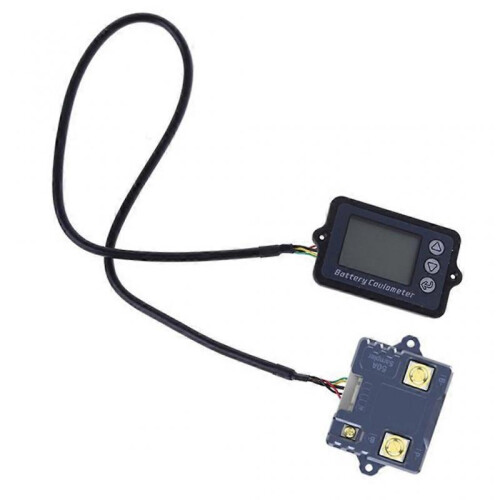

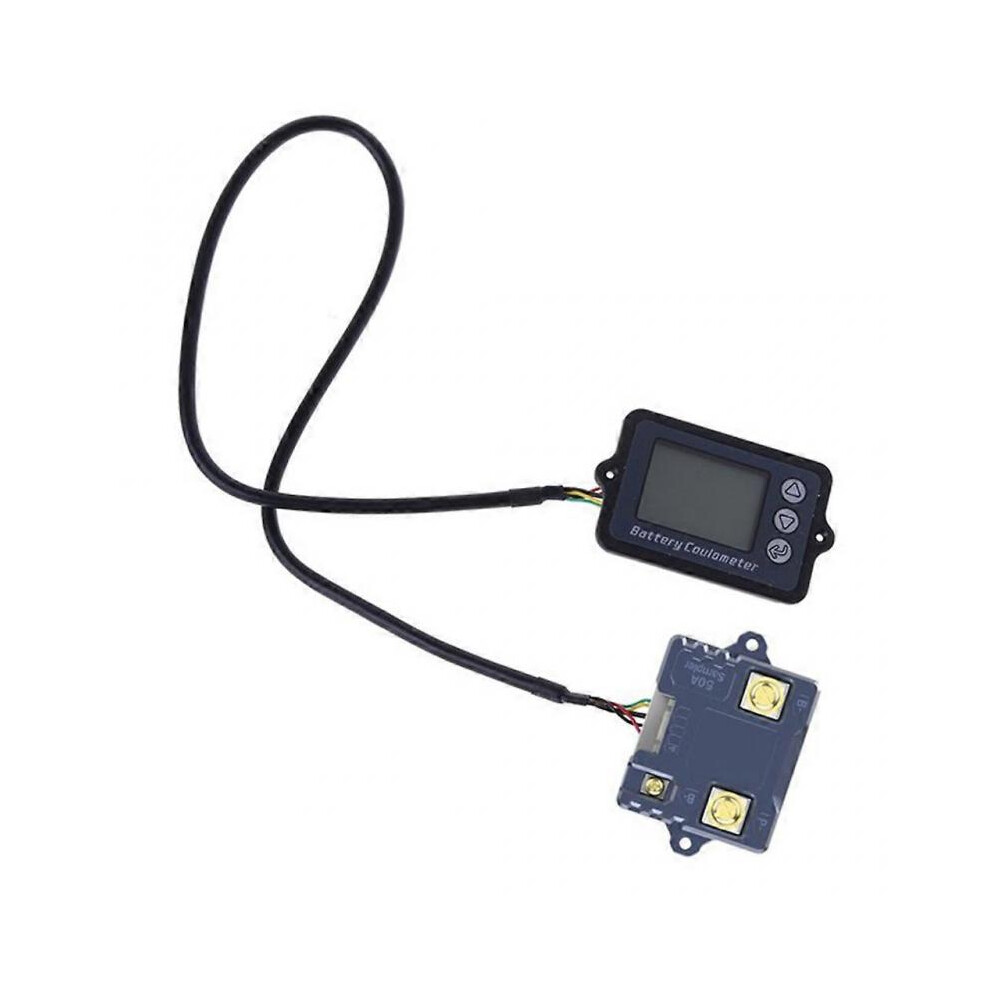

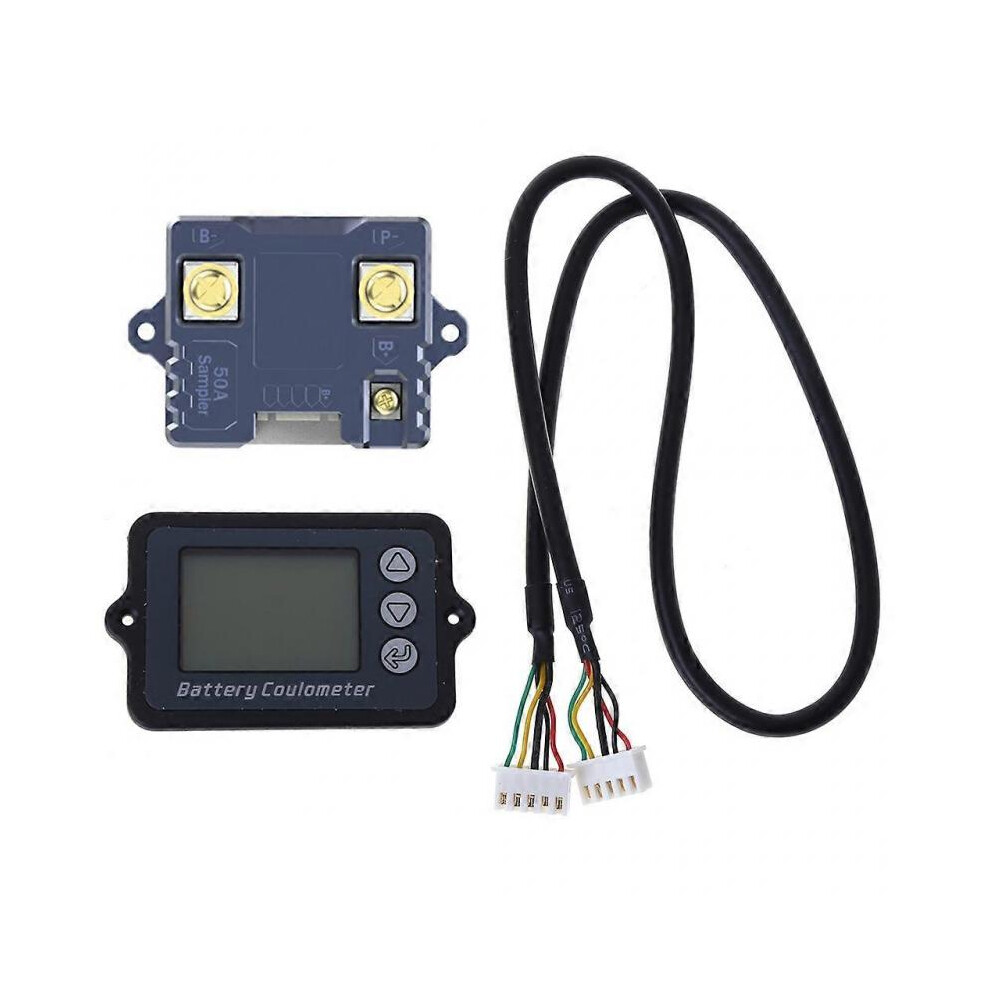

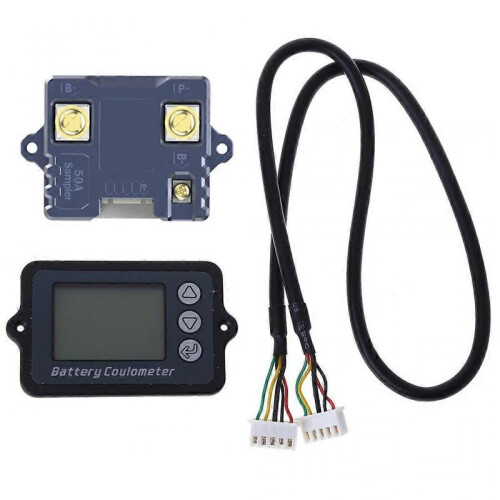

Professional Precision Battery Tester for LiFePo Coulomb Counter Easy Wiring

Professional Precision Battery Tester for LiFePo Coulomb Counter Easy Wiring Beschreibung

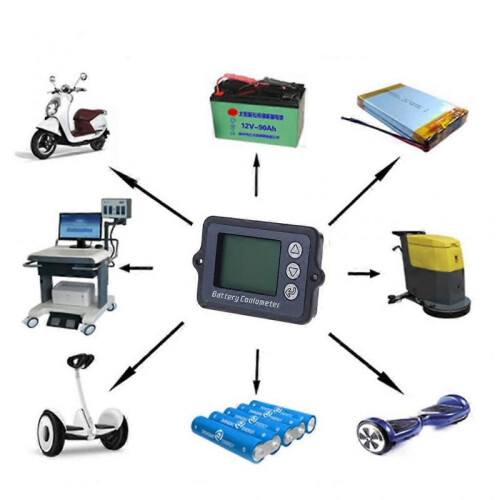

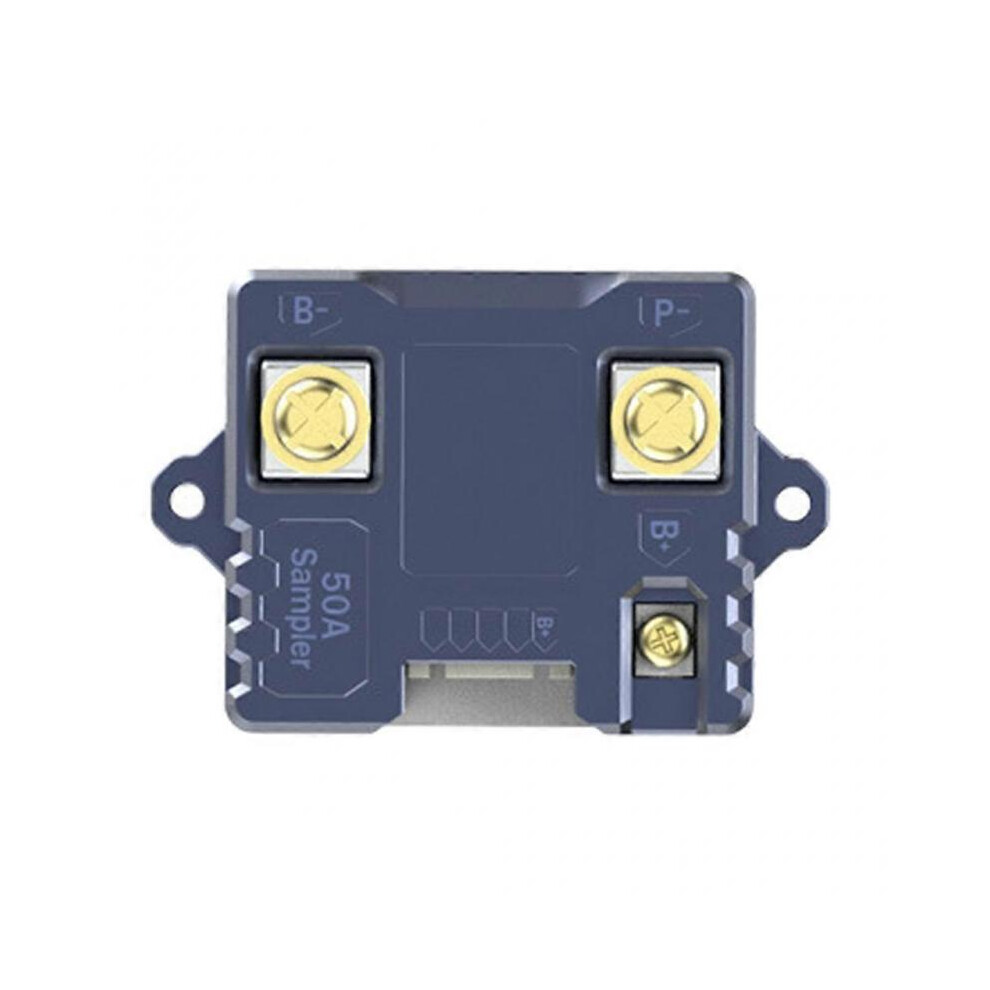

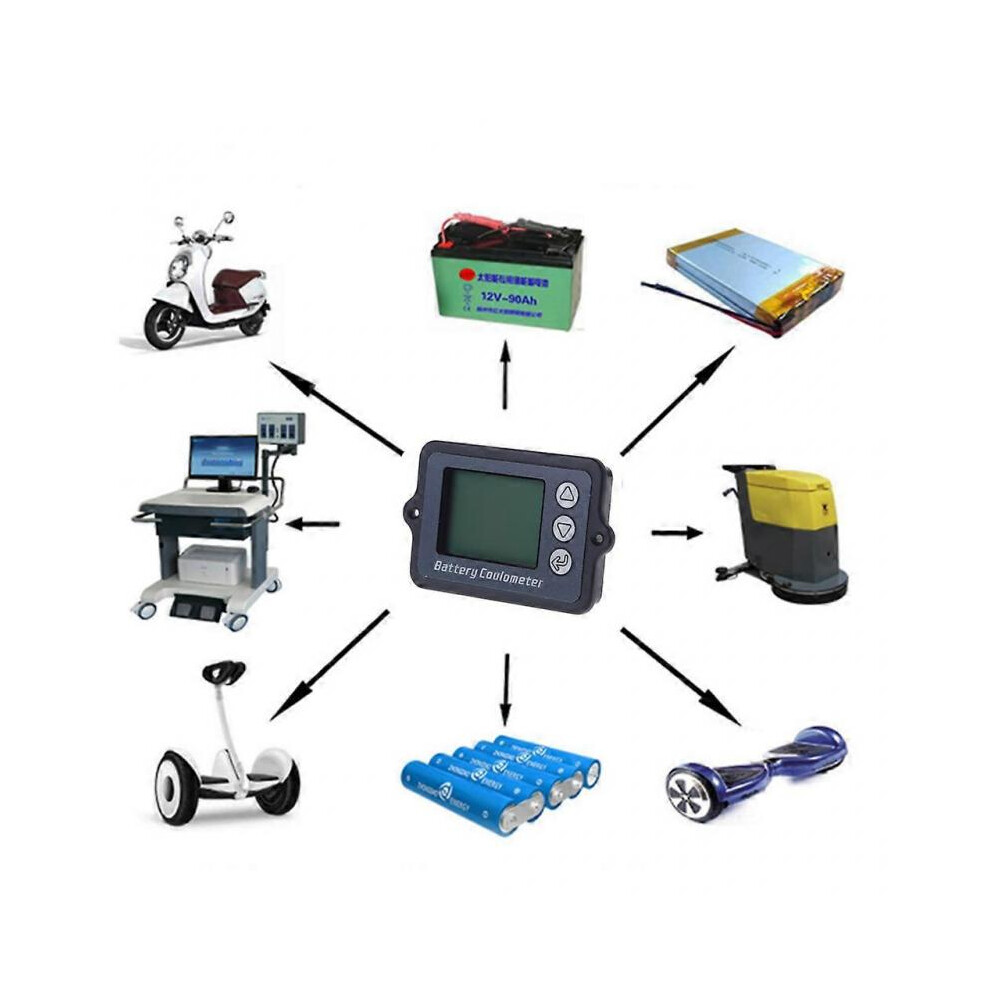

Description: The TK15 is a new type of the high precision current collection capacity indicating parameter instrument, which is for lithium battery,lithium iron phosphate batteries,lead-acid batteries and nikel-metal hydride batteries,hereinafter referred to as coulometer. It can collect the working state of the battery at anytime. It has various fatures,such as a wide range of operating voltage, low power, high accuracy in indicating. It can set the payload capacity and other parameters of batteries arbitrarily, and with automatic memory function when power down. Specifications: Type: Battery tester Model: TK15 Operating voltage range: DC8-80V Current: 50A Overall Size: 66x40x10mm Display area size: 32x23mm External normal Sampler Size:23x18x5mm Technical Parameters: Working power consumption: 8.0mA (Max:10.0mA) Standby power consumption: 0.5mA (Max:0.8mA) Sleep power consumption: 50uA (Max:60uA) Voltage acquisition accuracy: +/-1.0% Current acquisition accuracy: +/-1.0% Using ambient temperature rang: 0-35C Backlight on current: 40mA (Max:50mA) Backlight off current: 30mA (Max: 40mA) Battery capacity setting value: 0.-590Ah Built-in sampler working current: 5.0a (Max:10.0A instant) External normal sampler working current:30.0A (Max:50A) External big sampler working current:50.0A (Max:100A) Attention:The min voltage of the battery pack should higher than the min working voltage of the coulometer Features: 1.The empty and full voltage of battery can be adjusted 2.The backlight automatic open when using 3.Automatic memory function when power down 4.Fast response rate 5.Low power consumption, automatic wake-up Display: 1.Residual capacity of battery (Ah or mAh) 2.Capacity percentage and totem pole display 3.Battery voltage 4.Battery current 5.Powe output 6.Remaining for time of charge and discharg Package include: 1 x 50A Battery Tester 1 x Shielded Wire (If you need instructions, please contact us and we can send it by e-mail) Note: Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same. Please allow 1-3mm slight deviation due to manual measurement. Thank you!
