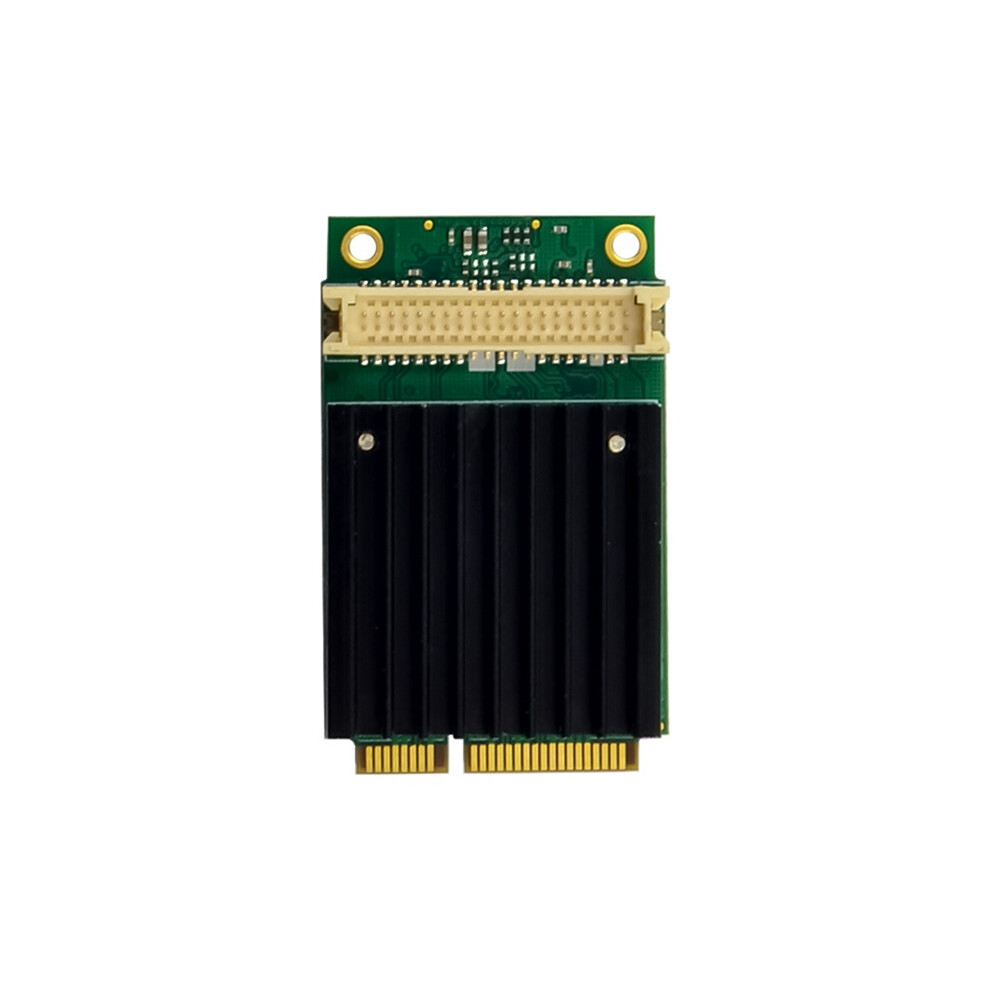

SM750 MiniPCIe zu Application Multimedia 2D-Grafikkarte

SM750 MiniPCIe zu Application Multimedia 2D-Grafikkarte Beschreibung

Supports cost-effective multi-display/panel
Supports dual 300 MHz DACs up to 1920x1440 resolution
Dual 18-bit interfaces with TMDS or LVDS converter support up to 1920x1440 resolution
Dual resolution and refresh rate display outputs
Fast Rotation Function

Graphics Engine:2D
Host Interface:MiniPCIE
Internal Memory:16MB DDR
External Memory:64MB DDR (max)
Resolution:1920 x 1440 (max)
Supported Systems:Win CE. Win XP, Win 7, Win 2003(32bit/64bit), Win2008(32bit/64bit)
Linux Enterprise(32bit/64bit), , Centos, Debian
CPU platforms:, for AMD, -Micro, Freescale .AMCc. -Micro, Marvell, and other PCle.
Operating Temperature:-40C - +85C
PCI-Express x 1 Architecture:- x86 Processors
ARM, MIPS, and ARC processors
16MB integrated video DDR memory
Embedded 16MB DDR only
Embedded 16MB DDR (32-bit I/F) + External 16MB DDR (32-bit I/F)
External up to 64MB DDR (64-bit I/F)
Low power consumption Less than 1.5W
Screen image can be rotated by 90, 180 and 270
2D Graphics Accelerator
128-bit 2D graphics engine
ROP3, BitBLT, Transparent , pattern , color expansion and line drawing
YUV-16/32 bit.RGB conversion
Video Display Layers
Supports 7 layers of display frames (2 hardware pointers, primary graphics, video, video transparent, transparent and secondary graphics) Scaling video ports
Two 8-bit ports or one 16-bit video capture port supports ITU 601 and ITU 656 specifications for V-16/32-bit RGB conversion
Colour:As Shown
Material:PCB

Package Contents:

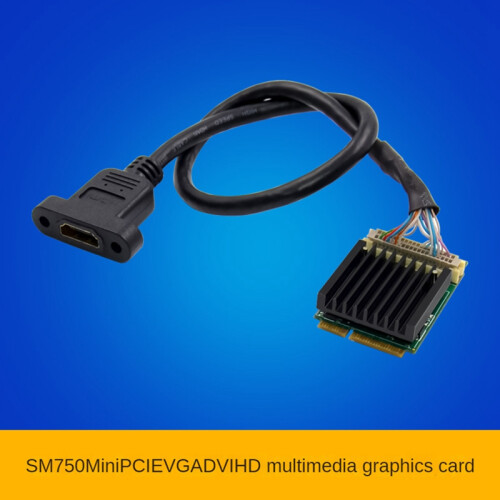

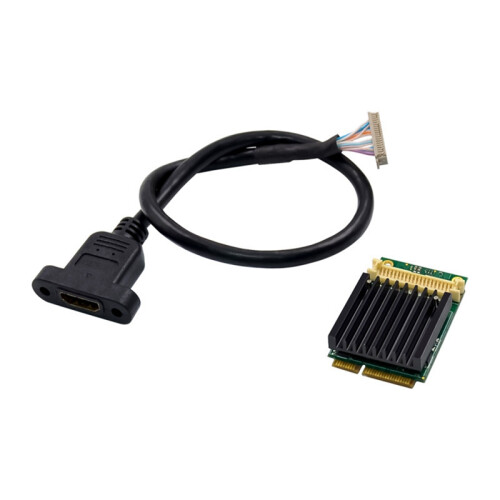

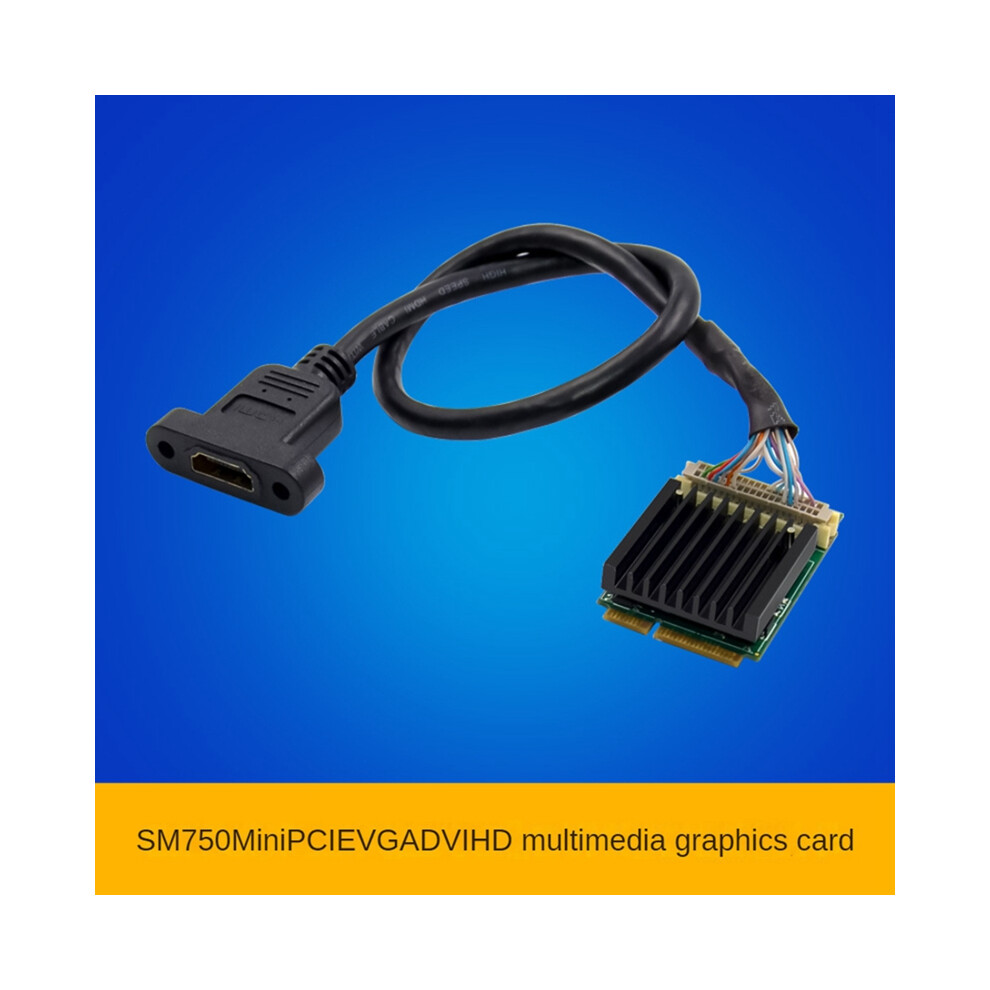

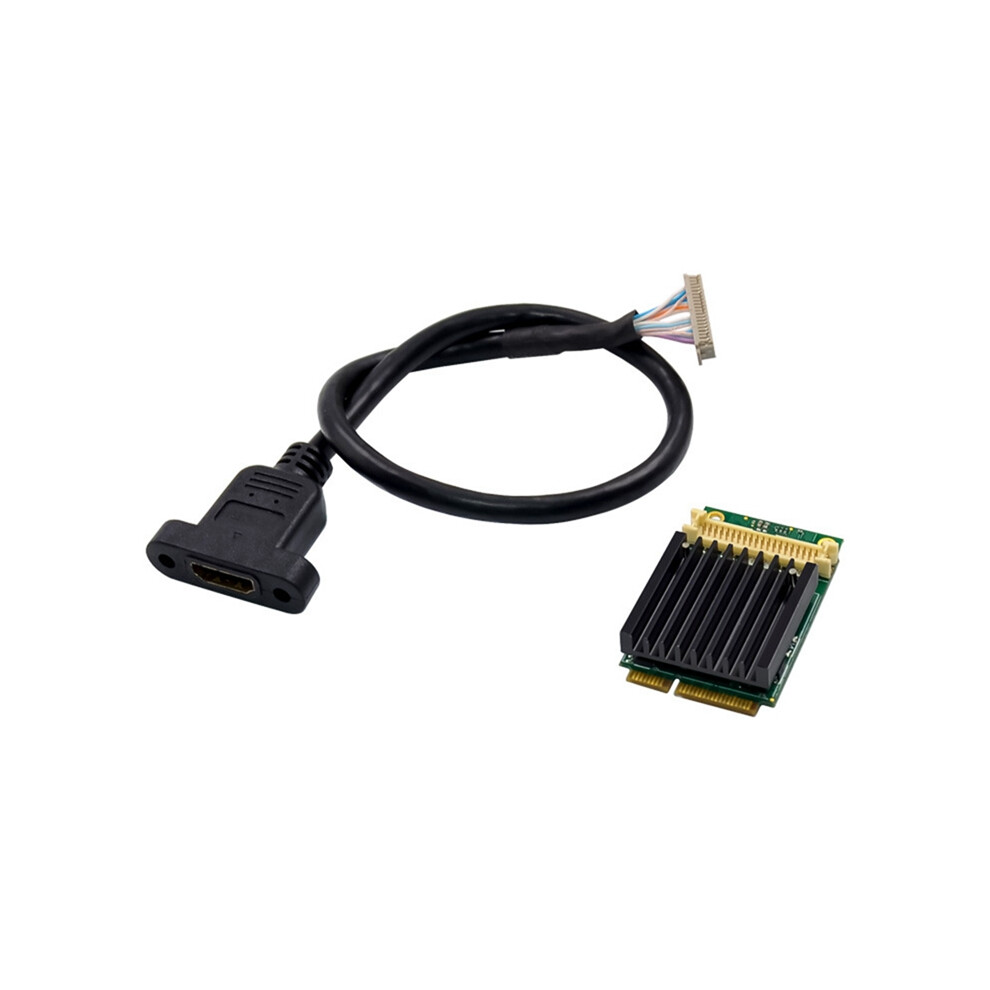

1 x SM750 MiniPCIE TO -Master Card
1 x Cable
1 x CD Driver

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
