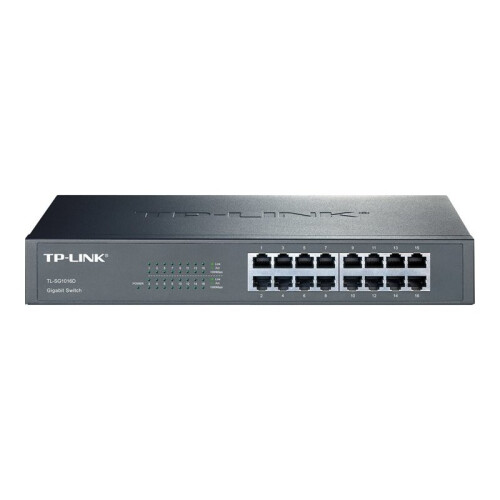

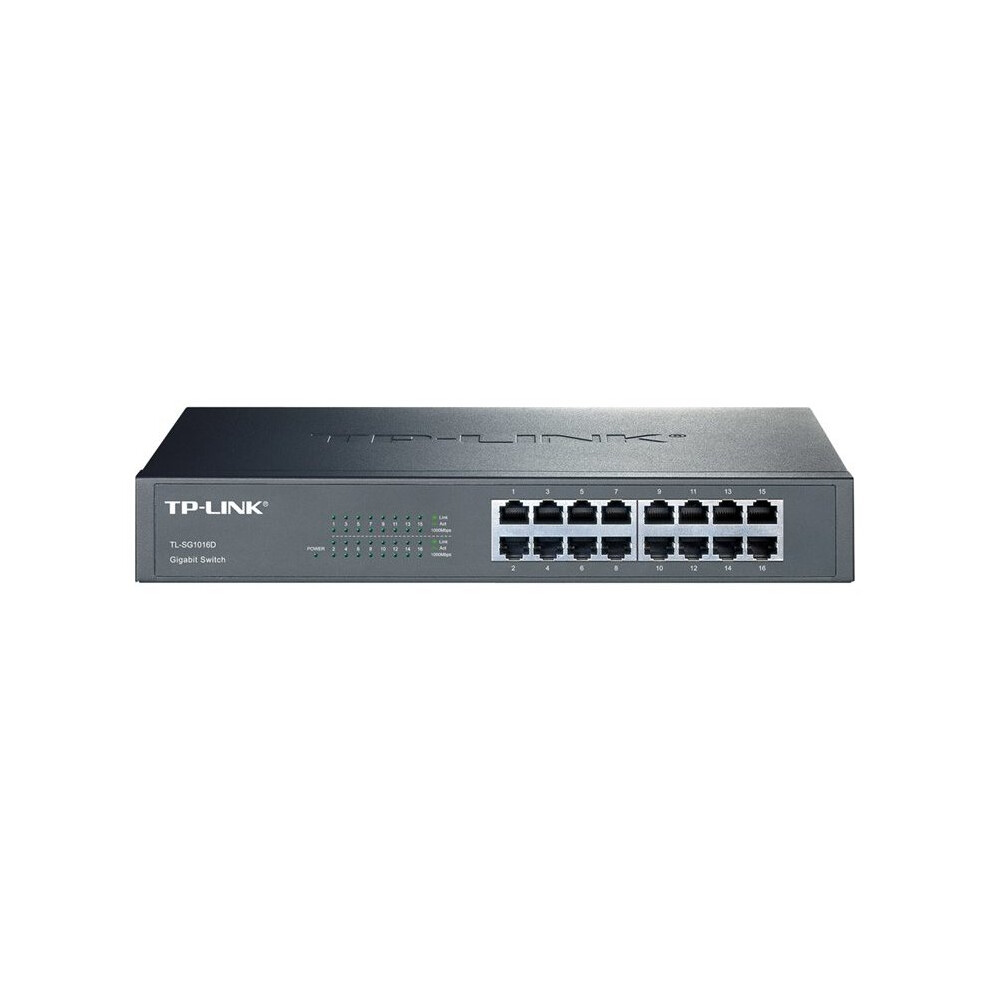

TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch

TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch Beschreibung

Description Management features Switch type Unmanaged Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 16 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 16 Power connector AC-in jack Network Networking standards IEEE 802.3abIEEE 802.3uIEEE 802.3x 10G support No Copper ethernet cabling technology 1000BASE-T1000BASE-TX100BASE-TX10BASE-TExpandFold Cable types supported Cat3Cat4Cat5Cat5eExpandFold Full duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Auto-negotiation Yes Data transmission Switching capacity 32 Gbit/s Forwarding rate 23.8 Mpps MAC address table 8000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 10000 Protocols Supported network protocols CSMA/CD, TCP/IP Design Rack mounting Yes Stackable Yes Product colour Black LED indicators Yes Performance Compatible operating systems Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux Maximum cable length 100 m Fanless Yes Power Power source AC Power supply included Yes AC input voltage 100 - 240 V AC input frequency 50/60 Hz Power consumption (max) 9.26 W Power over Ethernet (PoE) Power over Ethernet (PoE) No Operational conditions Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Heat dissipation 31.6 BTU/h Weight & dimensions Width 294 mm Depth 180 mm Height 44 mm Packaging data Cables included AC User guide Yes Rack mount kit Yes Package width 250 mm Sustainability Sustainability compliance Yes Sustainability certificates CEFederal Communications Commission (FCC)RoHS Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
