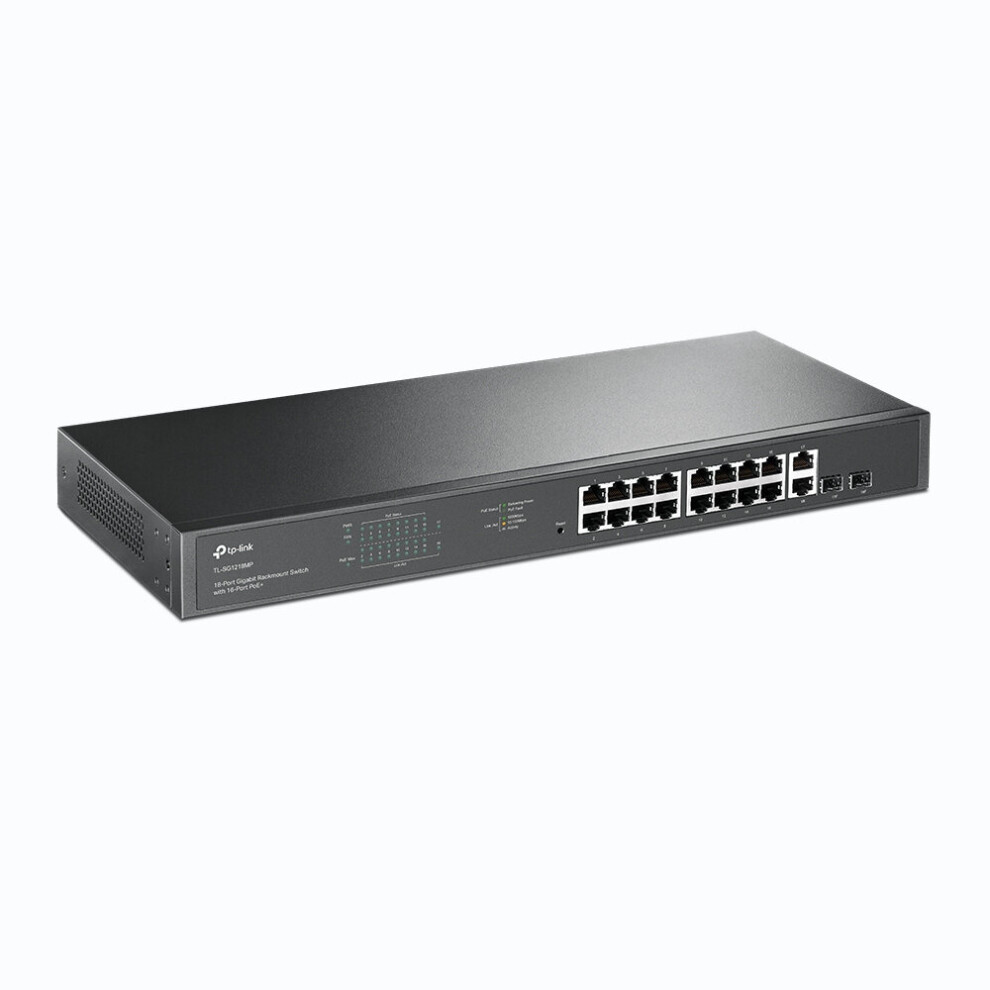

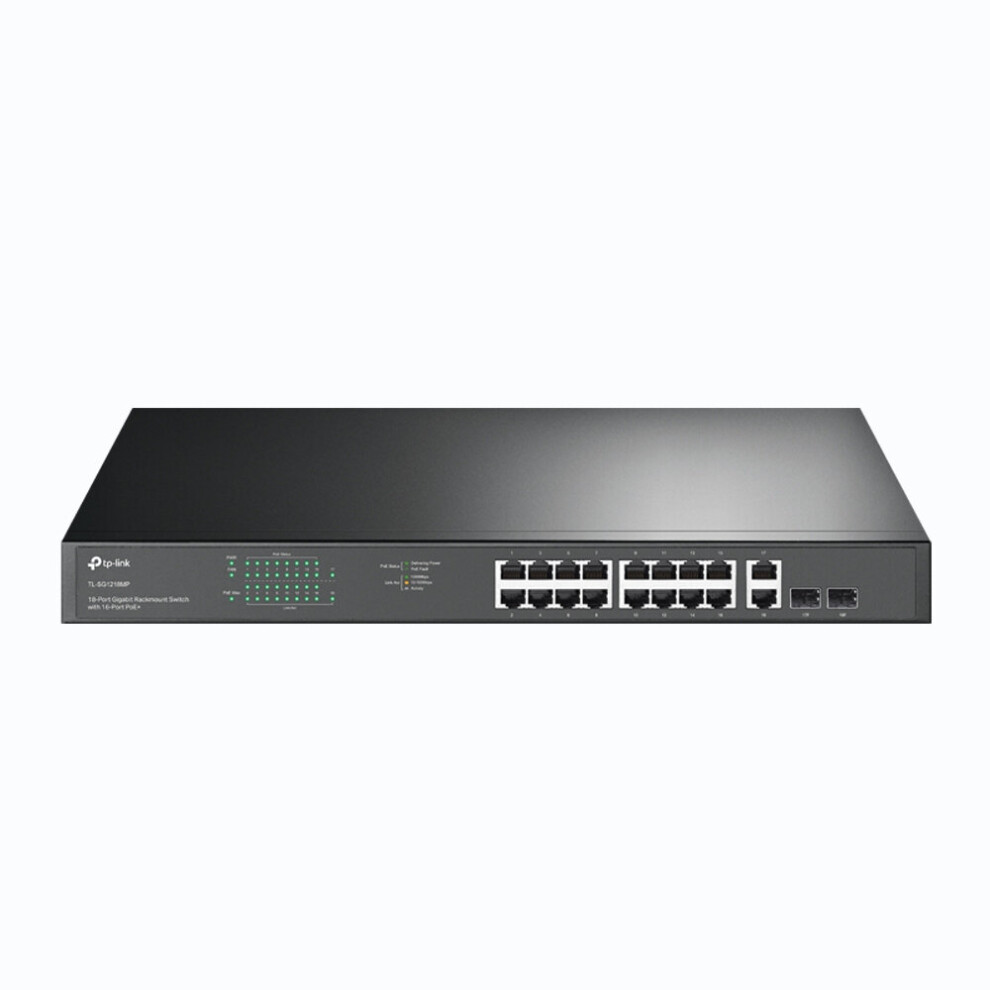

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+ Beschreibung

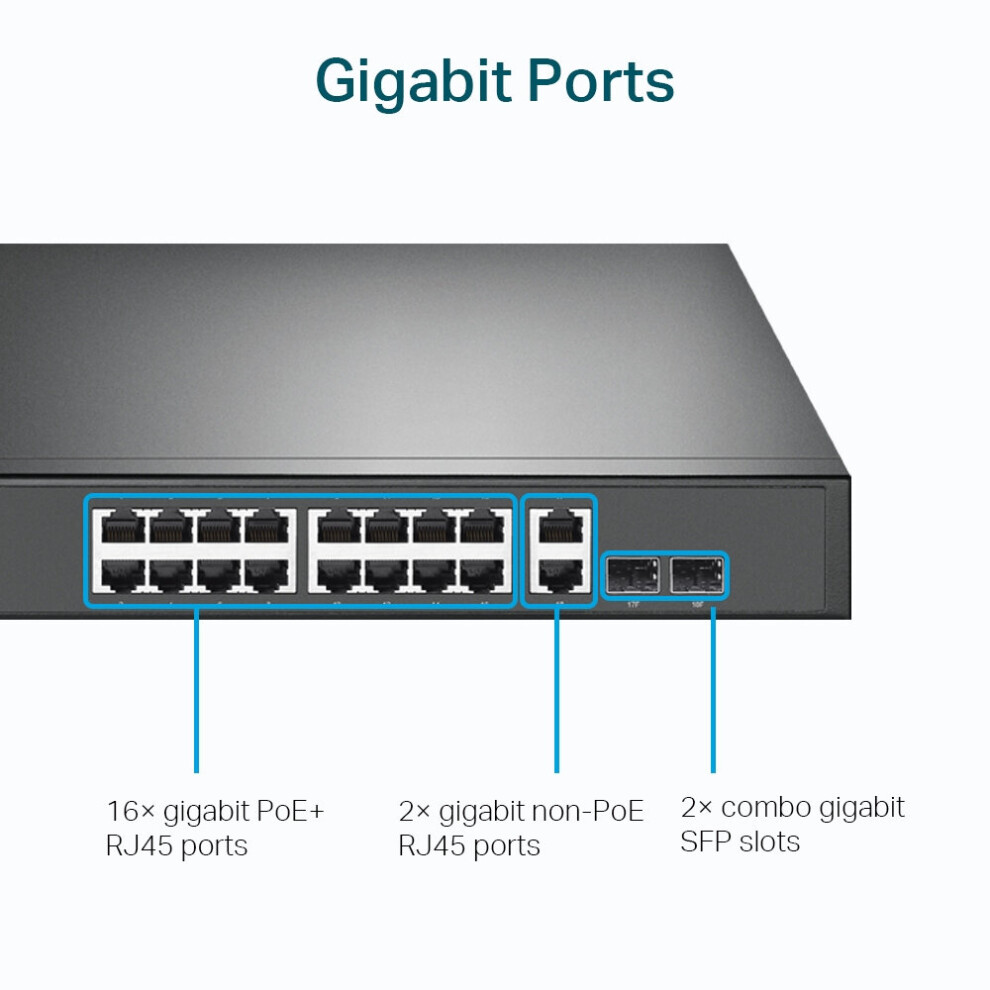

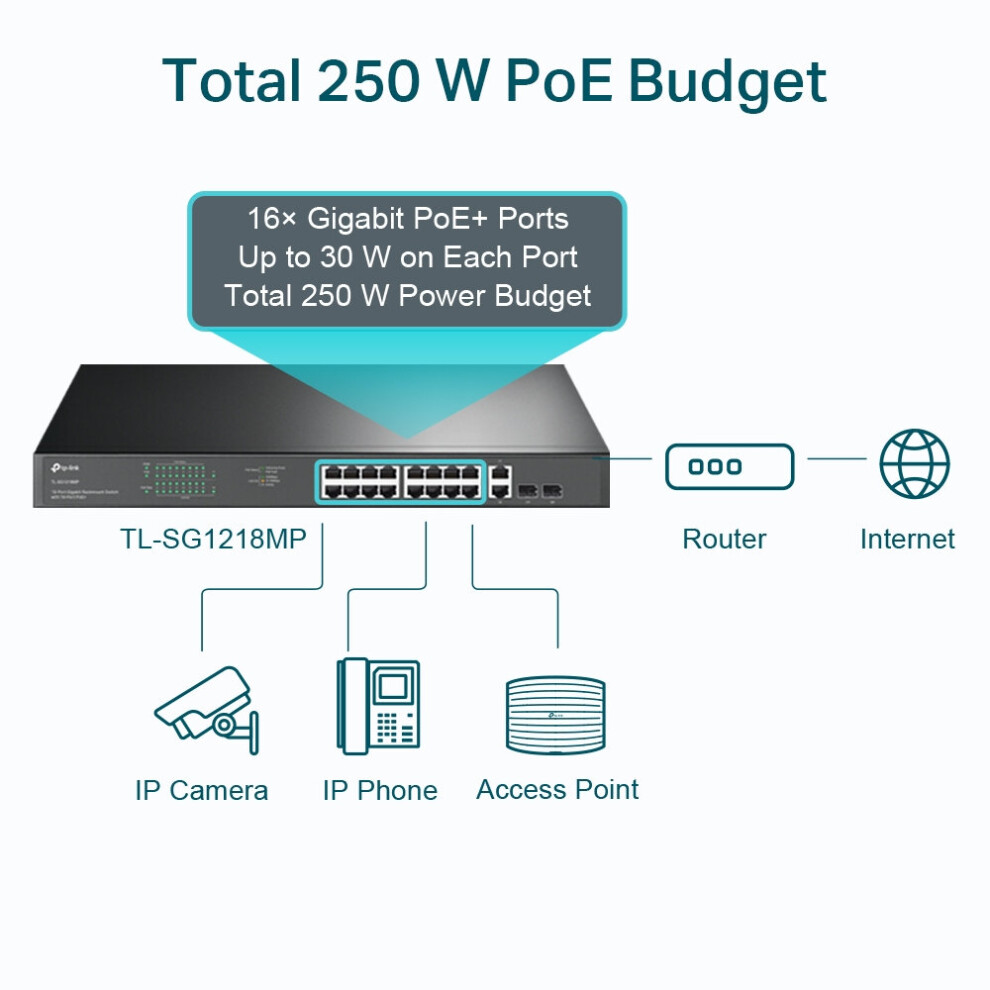

Description Management features Switch type Unmanaged Quality of Service (QoS) support Yes Traffic classification Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 18 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 18 Combo SFP ports quantity 2 Network Networking standards IEEE 802.1pIEEE 802.1QIEEE 802.3IEEE 802.3abIEEE 802.3uIEEE 802.3xExpandFold 10G support No Cable types supported Cat3Cat4Cat5Cat5eCat6ExpandFold Full duplex Yes Half duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Ethernet LAN data rates 10,100,1000 Mbit/s Auto-negotiation Yes MAC address auto-learning supported Yes MAC address auto-aging supported Yes Data transmission Switching capacity 36 Gbit/s Forwarding rate 26.78 Mpps MAC address table 8000 entries Jumbo frames support Yes Jumbo frames 10000 Packet buffer memory 4.1 MB Design Rack mounting Yes Form factor 1U Product colour Black Housing material Metal LED indicators Yes Number of fans 2 fan(s) Power Power source AC Power supply included Yes AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (max) 286.64 W Power over Ethernet (PoE) Power over Ethernet (PoE) Yes Power over Ethernet plus (PoE+) ports quantity 16 Power over Ethernet (PoE) power per port 30 W Total Power over Ethernet (PoE) budget 250 W Operational conditions Operating temperature (T-T) 0 - 50 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Heat dissipation 977.44 BTU/h Weight & dimensions Width 440 mm Depth 180 mm Height 44 mm Packaging content Cables included AC Quick start guide Yes Packaging data Package width 250 mm Certificates Certification CE, FCC, RoHS Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
