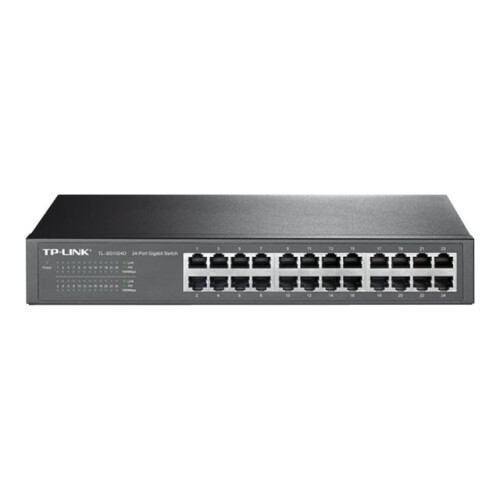

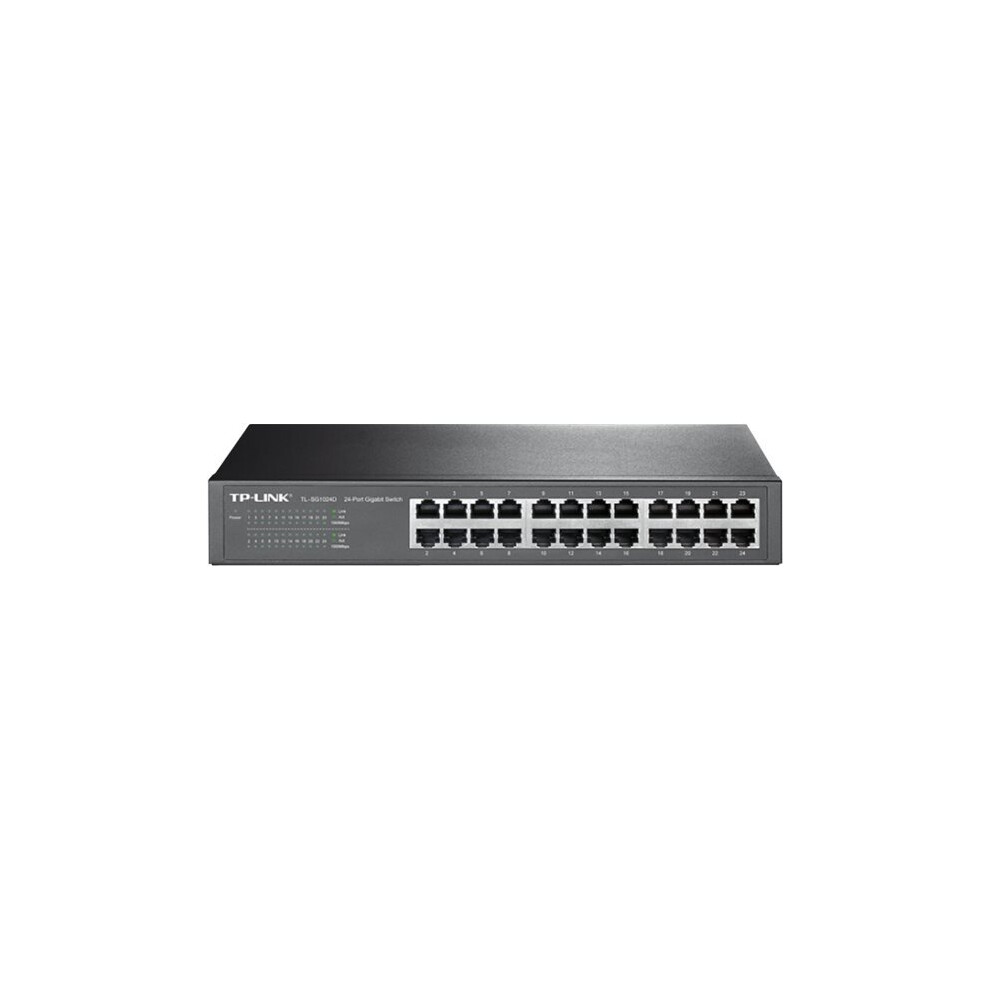

TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch

TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch Beschreibung

Description Management features Switch type Unmanaged Quality of Service (QoS) support Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 24 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 24 Power connector DC-in jack Network Networking standards IEEE 802.3abIEEE 802.3uIEEE 802.3x 10G support No Cable types supported Cat3Cat4Cat5Cat5eExpandFold Full duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Auto-negotiation Yes Data transmission Supported data transfer rates 10/100/100 Mbps Switching capacity 48 Gbit/s Forwarding rate 35.7 Mpps MAC address table 8000 entries Store-and-forward Yes Maximum data transfer rate 1 Gbit/s Jumbo frames support Yes Jumbo frames 10000 Protocols Supported network protocols CSMA/CD, TCP/IP Design Rack mounting Yes Stackable Yes Product colour Grey LED indicators Yes Certification FCC, CE, RoHS Power Power source AC Power supply included Yes AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (max) 13.62 W Power over Ethernet (PoE) Power over Ethernet (PoE) No Operational conditions Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Operating temperature (T-T) 32 - 104 F Heat dissipation 46.44 BTU/h Weight & dimensions Width 294 mm Depth 180 mm Height 44 mm Packaging data Cables included AC User guide Yes Rack mount kit Yes Package width 250 mm Other features Dimensions (WxDxH) 294 x 180 x 44 mm Connectivity technology Wired Bandwidth 48 Gbit/s Power requirements 100 - 240V, 50/60Hz Networking features Gigabit Ethernet Connectivity LEDs Y Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
