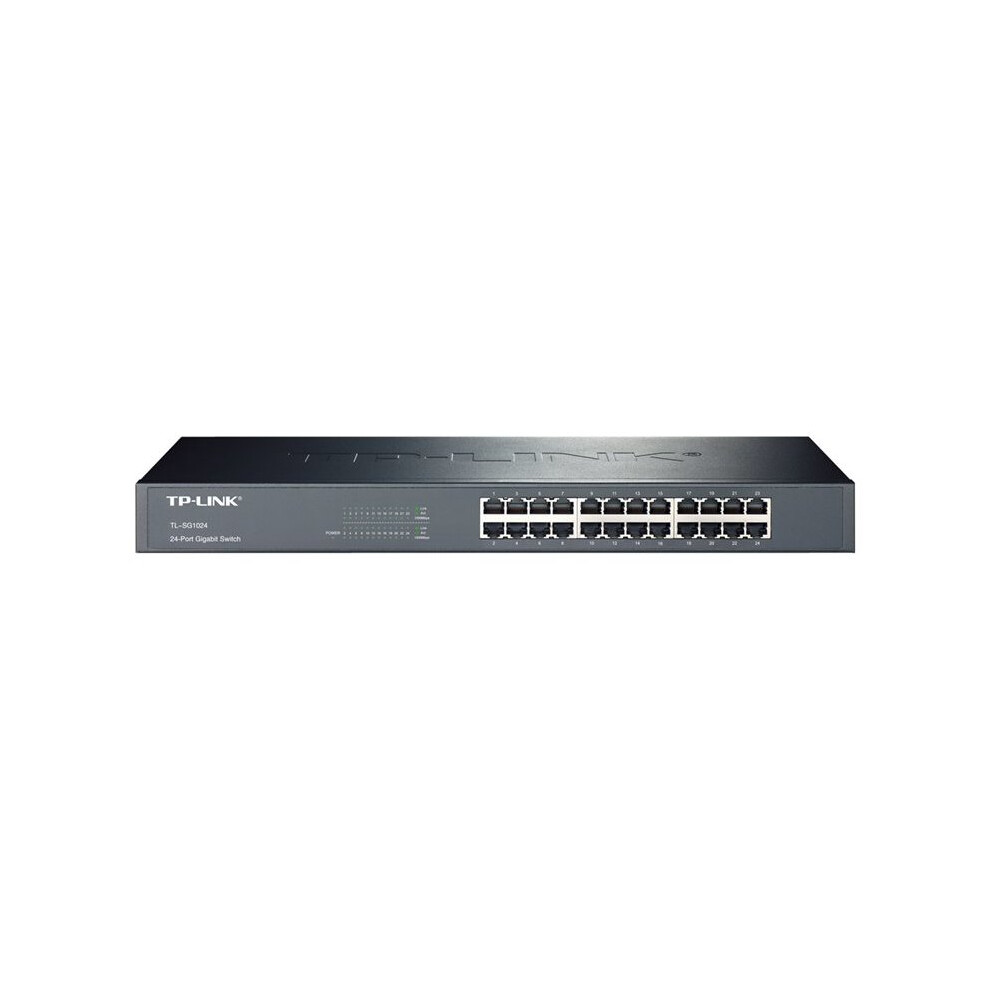

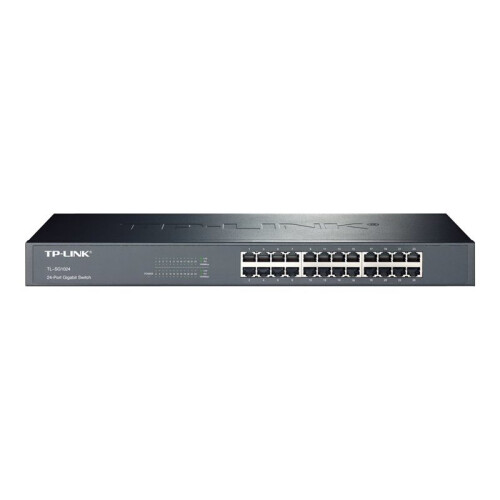

TP-Link 24-Port Gigabit Rackmount Network Switch

TP-Link 24-Port Gigabit Rackmount Network Switch Beschreibung

Description Management features Switch type Unmanaged Quality of Service (QoS) support Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 24 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 24 Network Networking standards IEEE 802.3abIEEE 802.3iIEEE 802.3uIEEE 802.3xExpandFold 10G support No Copper ethernet cabling technology 1000BASE-T100BASE-TX10BASE-T Full duplex Yes Half duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Auto-negotiation Yes Data transmission Supported data transfer rates 10/100/1000 Mbps Switching capacity 48 Gbit/s Forwarding rate 35.7 Mpps MAC address table 8000 entries Store-and-forward Yes Maximum data transfer rate 1 Gbit/s Jumbo frames support Yes Jumbo frames 10000 Protocols Supported network protocols CSMA/CD, TCP/IP Design Rack mounting Yes Form factor 1U Product colour Black LED indicators Yes Certification FCC, CE, RoHS Power Power source AC Power supply included Yes AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (max) 13.62 W Operational conditions Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Operating temperature (T-T) 32 - 104 F Heat dissipation 46.44 BTU/h Weight & dimensions Width 440 mm Depth 180 mm Height 44 mm Packaging data Cables included AC User guide Yes Rack mount kit Yes Package width 250 mm Other features Connectivity technology Wired Bandwidth 48 Gbit/s Connectivity LEDs Y Dimensions (W x D x H) (imperial) 439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7") Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
