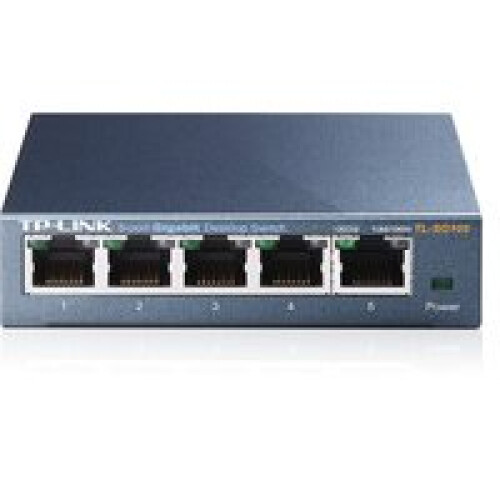

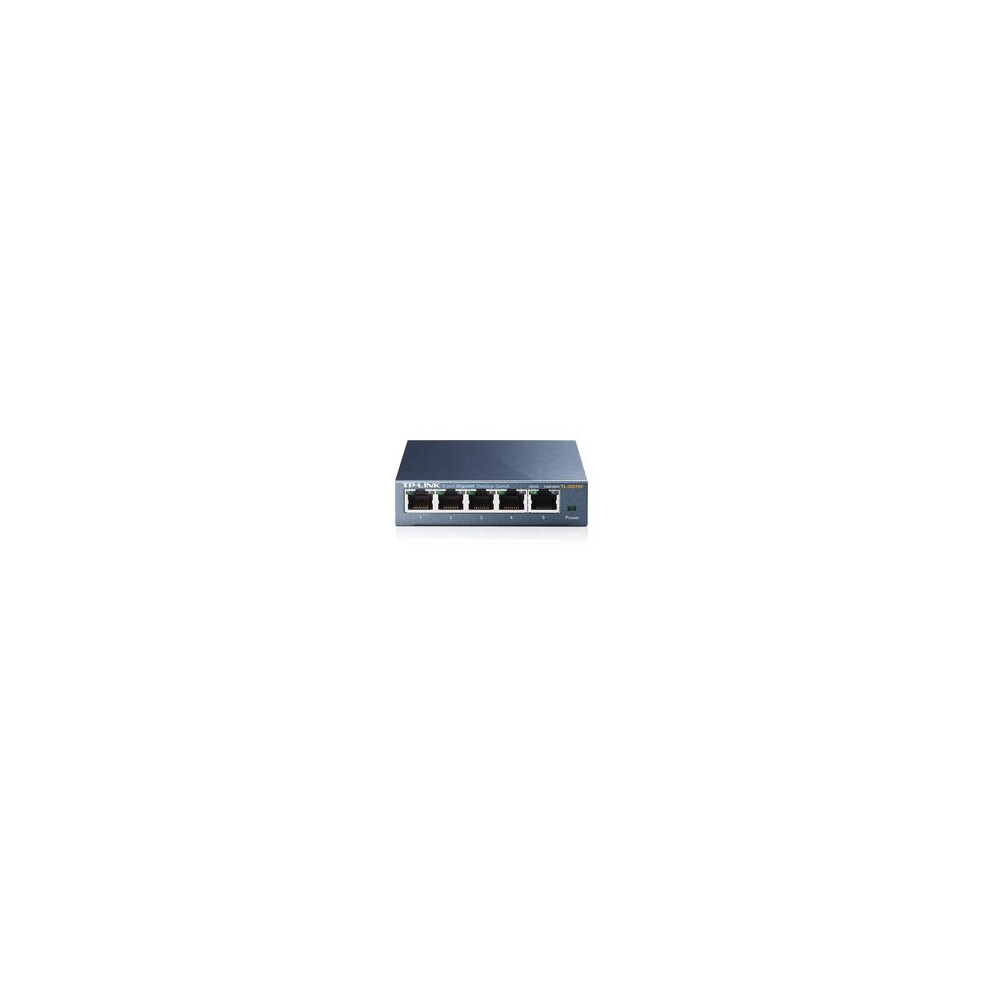

TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch

TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch Beschreibung

Description Management features Switch type Unmanaged Quality of Service (QoS) support Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 5 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 5 Power connector DC-in jack Network Networking standards IEEE 802.1pIEEE 802.3abIEEE 802.3iIEEE 802.3uIEEE 802.3xExpandFold 10G support No Full duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Ethernet LAN data rates 10,100,1000 Mbit/s Auto-negotiation Yes Data transmission Supported data transfer rates 10/100/1000Mbps Switching capacity 10 Gbit/s Forwarding rate 7.4 Mpps MAC address table 2000 entries Store-and-forward Yes Maximum data transfer rate 2 Gbit/s Jumbo frames support Yes Jumbo frames 16000 Packet buffer memory 1 MB Security IGMP snooping Yes Protocols Switching protocols CSMA/CD Design Product colour Black LED indicators Yes Certification CE, FCC, RoHS Power Power source DC Power supply included Yes Input current 0.6 A Input voltage 9 V Power consumption (max) 2.3 W Power over Ethernet (PoE) Power over Ethernet (PoE) No Operational conditions Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Heat dissipation 7.83 BTU/h Weight & dimensions Width 100 mm Depth 98 mm Height 25 mm Packaging data User guide Yes Rack mount kit Yes Package width 125 mm Other features Connectivity technology Wired Wi-Fi No Power LED Yes Ethernet LAN Yes Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
