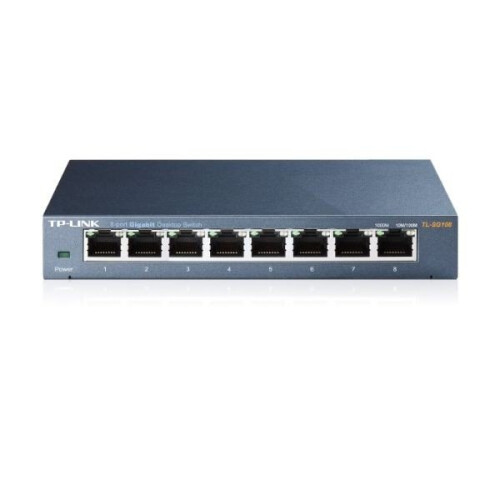

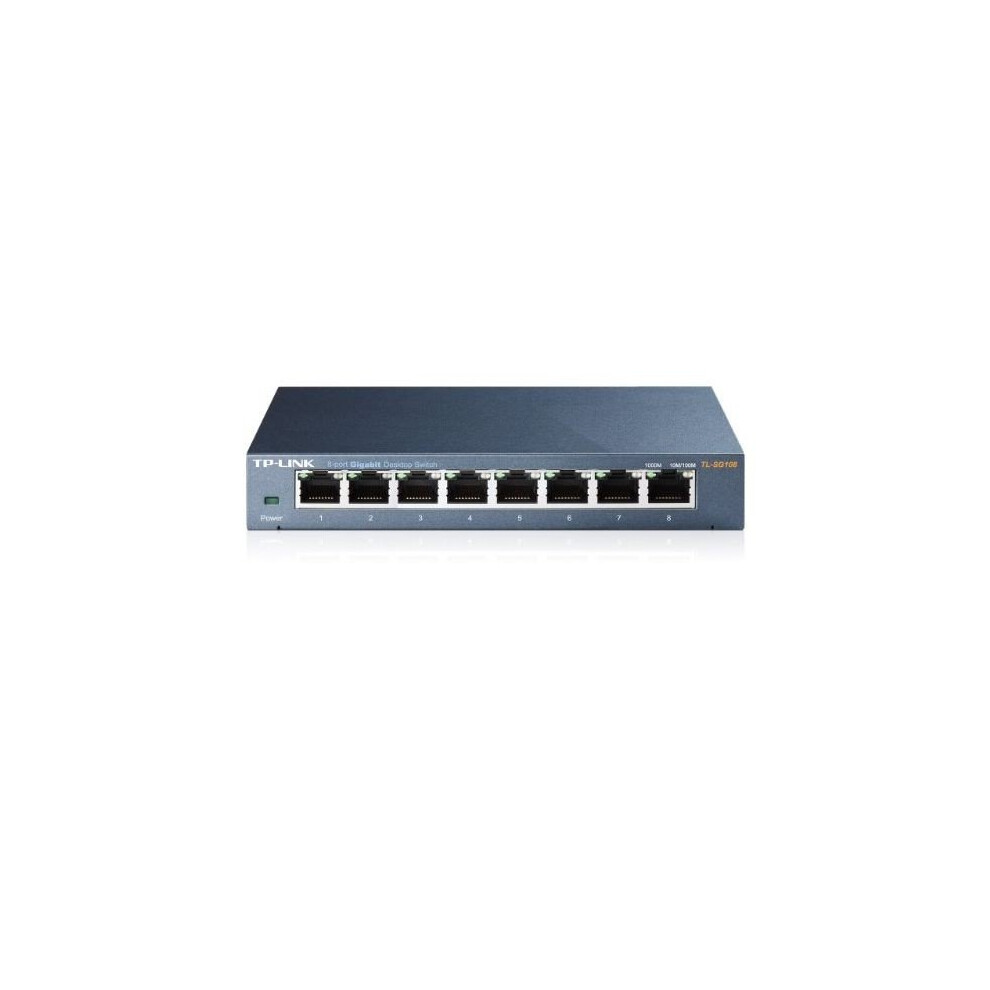

TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch

TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch Beschreibung

Description Management features Switch type Unmanaged Quality of Service (QoS) support Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 8 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 8 Power connector DC-in jack Network Networking standards IEEE 802.1pIEEE 802.3abIEEE 802.3iIEEE 802.3uIEEE 802.3xExpandFold 10G support No Full duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Ethernet LAN data rates 10,100,1000 Mbit/s Auto-negotiation Yes Data transmission Supported data transfer rates 10/100/1000Mbps Switching capacity 16 Gbit/s Forwarding rate 11.9 Mpps MAC address table 4000 entries Store-and-forward Yes Maximum data transfer rate 2 Gbit/s Jumbo frames support Yes Jumbo frames 16000 Packet buffer memory 1.5 MB Security IGMP snooping Yes Protocols Switching protocols CSMA/CD Design Product colour Black LED indicators Yes Power Power source DC Power supply included Yes Input current 0.6 A Input voltage 9 V Power consumption (max) 3.31 W Power over Ethernet (PoE) Power over Ethernet (PoE) No Other features Connectivity technology Wired Bandwidth 16 Gbit/s Packet transfer speed 14880pps/148800pps/1488000pps Wi-Fi No Power LED Yes Ethernet LAN Yes Ethernet interface type Gigabit Ethernet Operational conditions Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Weight & dimensions Width 158 mm Depth 101 mm Height 25 mm Packaging content User guide Yes Packaging data Package width 130 mm Certificates Certification CE, FCC, RoHS Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
