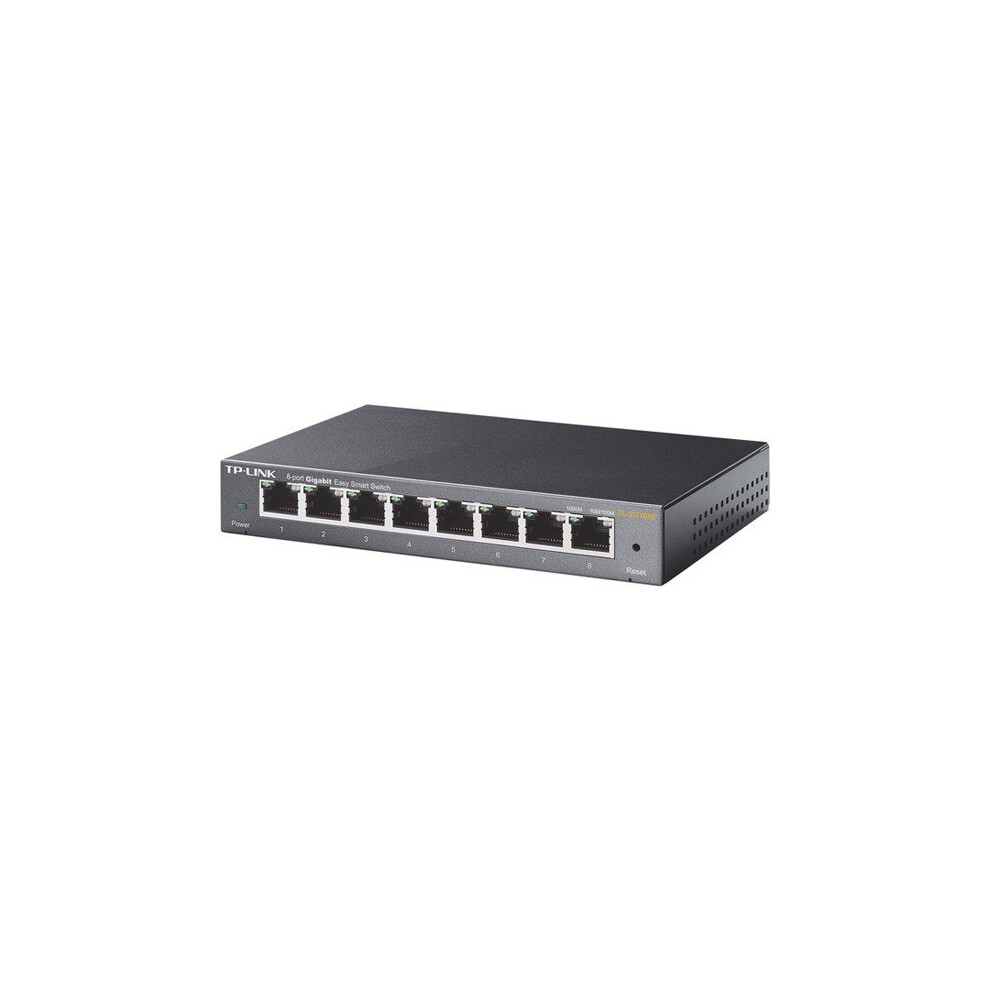

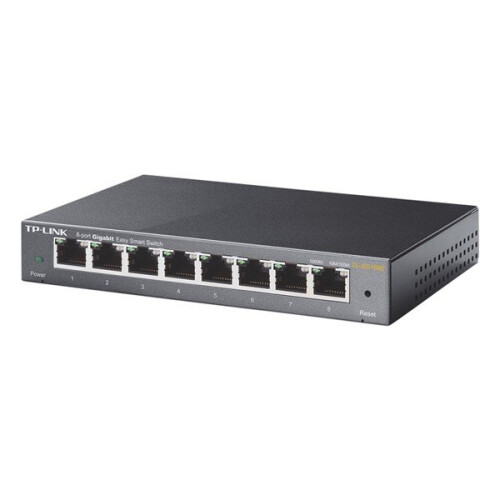

TP-Link 8-Port Gigabit Easy Smart Switch

TP-Link 8-Port Gigabit Easy Smart Switch Beschreibung

Description Management features Switch type Managed Switch layer L2 Quality of Service (QoS) support Yes Web-based management Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 8 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 8 Network Networking standards IEEE 802.1abIEEE 802.1pIEEE 802.1QIEEE 802.3IEEE 802.3uIEEE 802.3xExpandFold 10G support No Cable types supported Cat3Cat4Cat5Cat5eExpandFold Port mirroring Yes Link aggregation Yes Broadcast storm control Yes Auto MDI/MDI-X Yes Auto-negotiation Yes VLAN support Yes Virtual LAN features Port-based VLAN Number of VLANs 32 Data transmission Switching capacity 16 Gbit/s Forwarding rate 11.9 Mpps MAC address table 4000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 15000 Packet buffer memory 1.5 MB Security IGMP snooping Yes Security algorithms SNMPSNMPv2SNMPv3 Loop protection Yes Design Product colour Black Housing material Metal LED indicators Yes Certification FCC, CE, RoHS Performance Plug and Play Yes Power Power source DC Power supply included Yes Input current 0.6 A Input voltage 9 V Power consumption (max) 3.55 W Operational conditions Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Heat dissipation 12.12 BTU/h Weight & dimensions Width 158 mm Depth 101 mm Height 25 mm Packaging data Cables included AC User guide Yes Package width 130 mm Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
