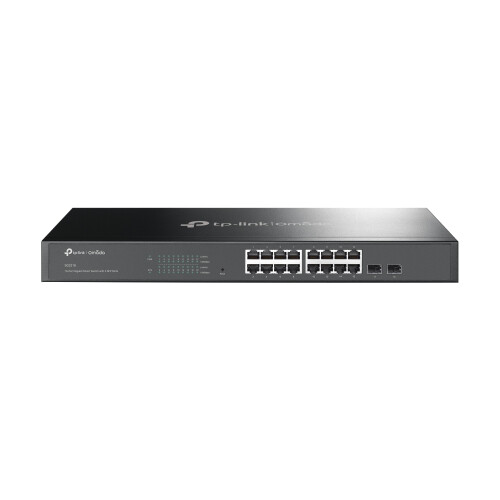

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots Beschreibung

Description Management features Switch type Managed Switch layer L2/L2+ Quality of Service (QoS) support Yes Web-based management Yes Cloud-managed Yes ARP inspection Yes System event log Yes MIB support Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 16 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 16 SFP module slots quantity 2 Network Networking standards IEEE 802.3abIEEE 802.3iIEEE 802.3uIEEE 802.3zExpandFold 10G support No Port mirroring Yes Flow control support Yes Link aggregation Yes Broadcast storm control Yes Rate limiting Yes Spanning tree protocol Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support Yes Virtual LAN features Port-based VLANPrivate VLANProtocol-based VLANTagged VLANVoice VLANExpandFold Number of VLANs 4000 Data transmission Switching capacity 36 Gbit/s Forwarding rate 26.8 Mpps MAC address table 8000 entries Store-and-forward Yes Static route Yes Number of static routes 32 Number of IP interfaces 16 Jumbo frames support Yes Jumbo frames 9000 Packet buffer memory 4.1 MB Security DHCP features DHCP clientDHCP relayDHCP serverDHCP snoopingDHCPv6 clientDHCPv6 snoopingExpandFold Access Control List (ACL) Yes IGMP snooping Yes SSH/SSL support Yes Loop protection Yes BPDU filtering/protection Yes Multicast features Multicast support Yes Multicast Listener Discovery (MLD) snooping Y Protocols Management protocols SNMPv1/v2c/v3, SNTP GARP VLAN Registration Protocol (GVRP) Yes Design Rack mounting Yes Form factor 1U Product colour Black LED indicators Yes Certification CE, FCC, RoHS Performance Fanless Yes Power Power source AC Power supply included Yes AC input voltage 100 - 240 V AC input frequency 50/60 Hz Power consumption (max) 12.3 W Power over Ethernet (PoE) Power over Ethernet (PoE) No Operational conditions Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Heat dissipation 41.97 BTU/h Weight & dimensions Width 440 mm Depth 180 mm Height 44 mm Packaging data Cables included ACLAN (RJ-45) Quick start guide Yes Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
