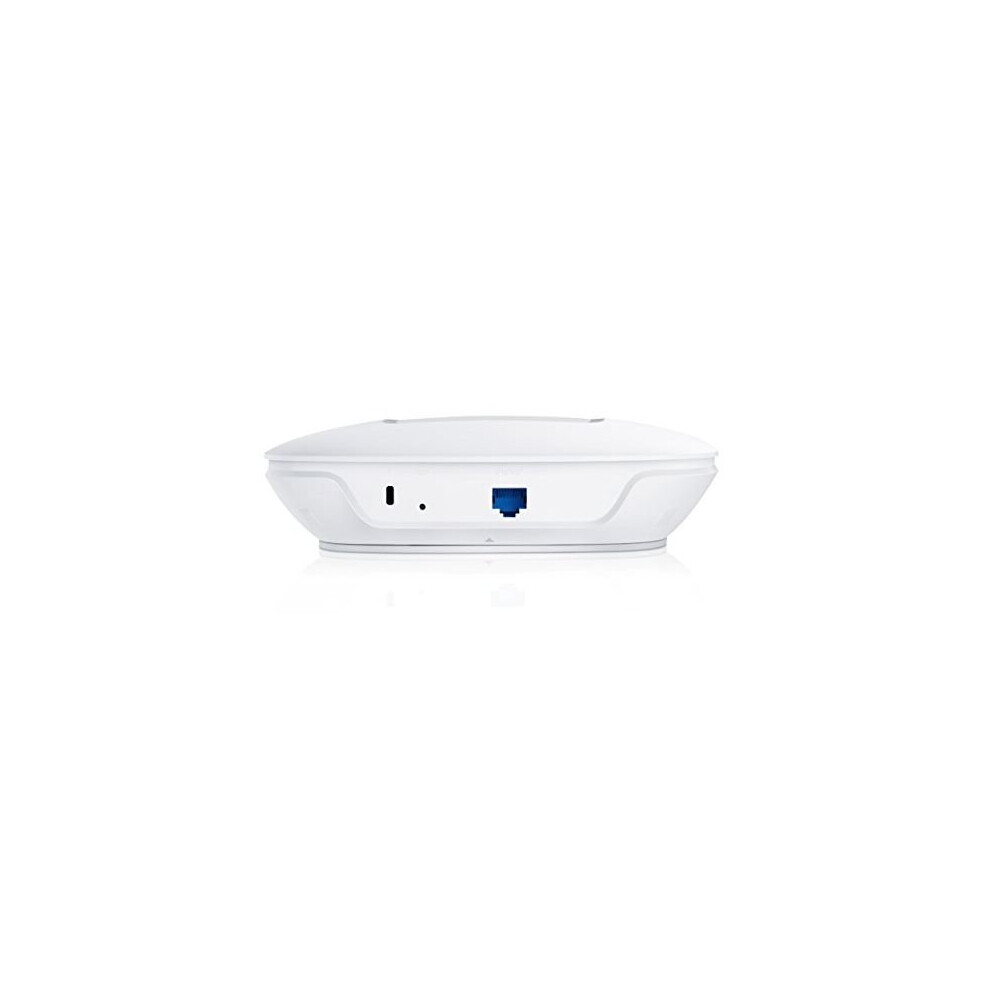

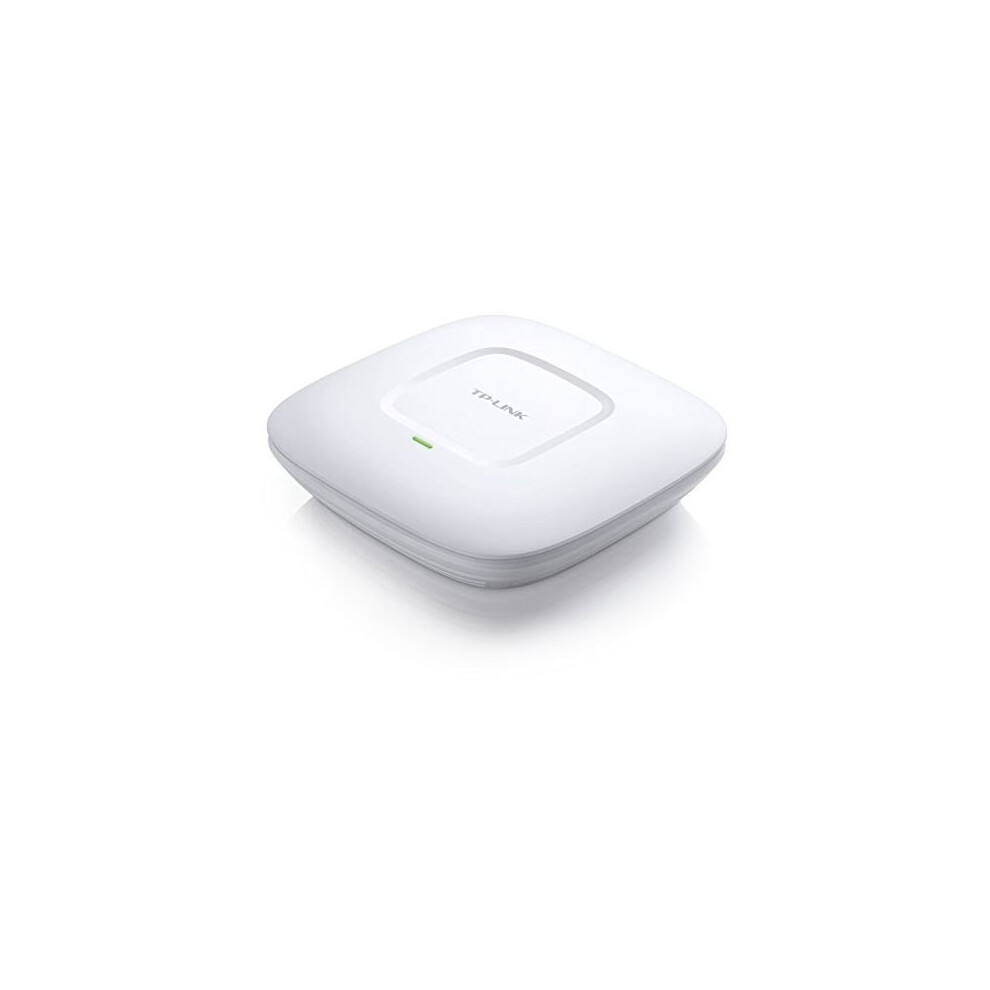

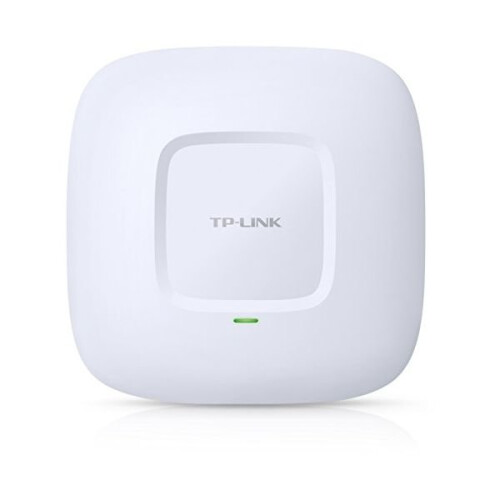

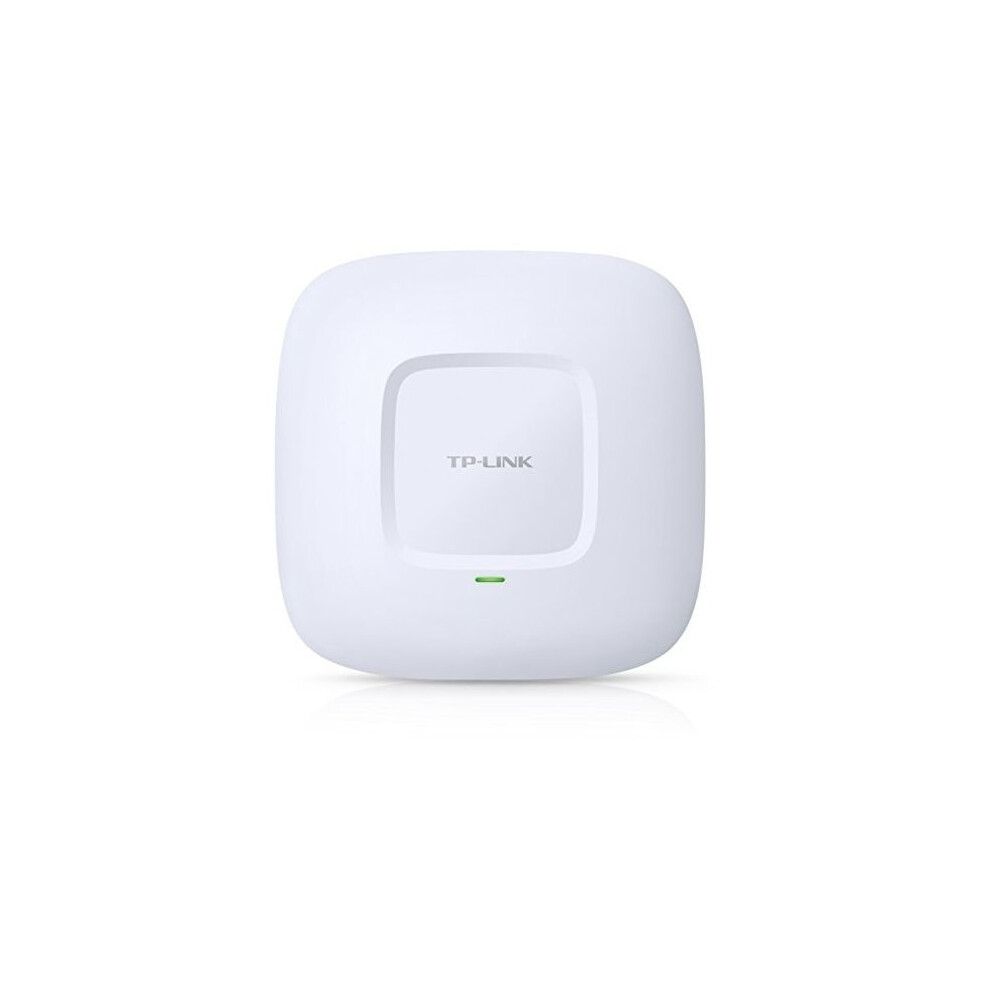

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point Beschreibung

Description Features 2.4 GHz Yes 5 GHz No 6 GHz No Maximum data transfer rate 300 Mbit/s Maximum data transfer rate (2.4 GHz) 300 Mbit/s Ethernet LAN data rates 10100 Mbit/s Frequency band 2.4 - 2.4835 GHz Networking standards IEEE 802.11bIEEE 802.11gIEEE 802.11nIEEE 802.1xExpandFold Cabling technology 10/100Base-T(X) Wi-Fi Multimedia (WMM)/(WME) Yes VLAN support Yes Virtual LAN features VLAN mapping Rate limiting Yes Wireless isolation Yes Quality of Service (QoS) support Yes Transmitting power (CE) 19 dBm Transmitting power (FCC) 21 dBm Receiver sensitivity 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER Security Security algorithms 128-bit WEP152-bit WEP64-bit WEPHTTPSSNMPSNMPv2SSHWPAWPA2-EnterpriseWPA2-PSKWPA-PSKExpandFold MAC address filtering Yes Service Set Identifier (SSID) features Multiple SSIDs Number of SSID supported 8 Access Control List (ACL) Yes Management features Web-based management Yes Syslog Yes Ports & interfaces Ethernet LAN (RJ-45) ports 1 Power Power over Ethernet (PoE) Yes Power over Ethernet (PoE) type supported Passive PoE AC input voltage 24 V Power consumption (typical) 2.8 W Design Placement Ceiling, Wall Product colour White Reset button Yes LED indicators Power Antenna Antenna type Internal Antenna direction type Omni-directional Antennas quantity 2 Antenna gain level (max) 4 dBi Weight & dimensions Width 189.5 mm Depth 170.5 mm Height 29.7 mm Packaging data Package type Box Packaging content PoE adapter included Yes Cables included AC Mounting kit Yes Quick start guide Yes Operational conditions Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Storage relative humidity (H-H) 5 - 90% Sustainability Sustainability compliance Yes Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
