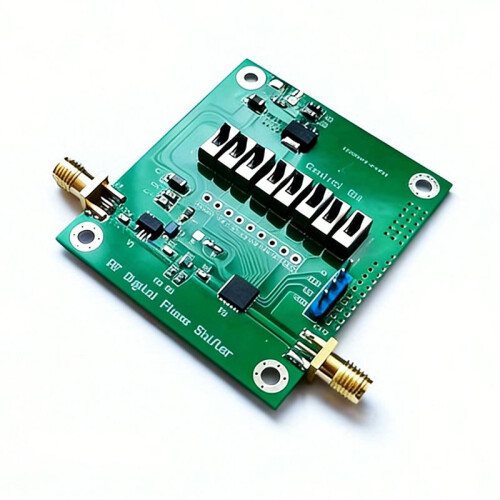

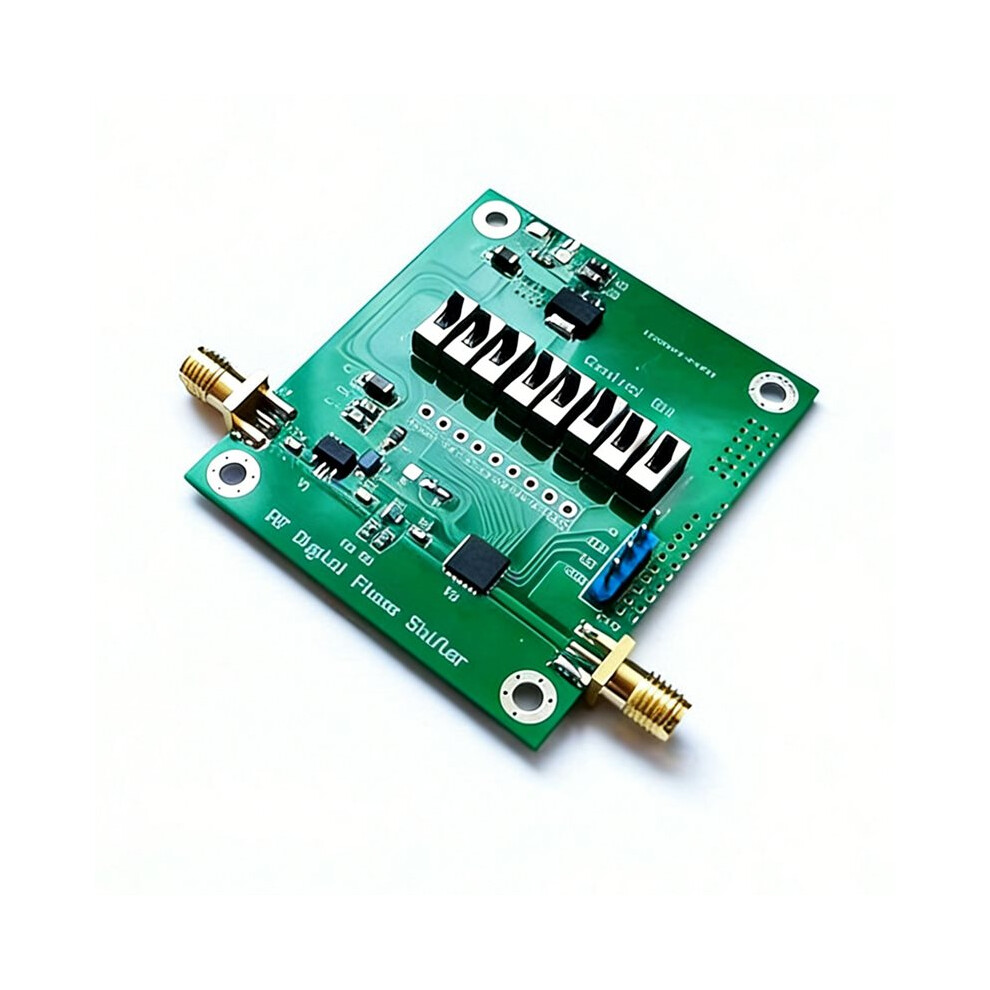

1-2.8GHz Digital Phase Shifter 8BIT Digital Phase Shifter Phase Regulator 360 Degree Phase Shifted Phased Array

1-2.8GHz Digital Phase Shifter 8BIT Digital Phase Shifter Phase Regulator 360 Degree Phase Shifted Phased Array Popis

Wide-band high coverage: Supports 1-2.8GHz frequency range, suitable for various RF applications.
High-precision phase control: 8-bit digital control, minimum step 1.4, phase accuracy to 1.4, meeting precision adjustment requirements.
Built-in gain compensation: Integrated preamplifier, automatically compensates for insertion loss, maintaining stable signal strength.
Flexible control method: Default parallel control, equipped with DIP switches, intuitive and convenient operation, also supports customized serial control.
Industrial-grade design: +5V single power supply, SMA interface, compact size, with mounting holes for easy integration.
Product Overview:
This product is a high-performance digital programmable phase shifter with an operating frequency range of 1-2.8GHz. It adopts 8-bit CNC technology and can achieve precise phase adjustment from 1.4 to 358.6. The module has a built-in pre-amplifier function to effectively compensate for insertion loss and ensure signal transmission quality. Suitable for high-requirement systems such as phased array , microwave communication, and test measurement.
Product Parameters:
Operating Frequency: 1-2.8GHz
Power Supply: +5V Single Power Supply
Phase Adjustment Range: 1.4~358.6
Phase Step Accuracy: 1.4
Control Method: Parallel DIP (Default)
Control Bits: 8-bit
Interface Type: SMA-K
Application Areas:
Phase Array Systems
Microwave and Satellite Communication Equipment
RF Test and Measurement Instruments
Electronic Countermeasures and Signal Processing Systems
Color: Green
Material: PCB

Package Contents:
1 * Digital Phase Shifter
