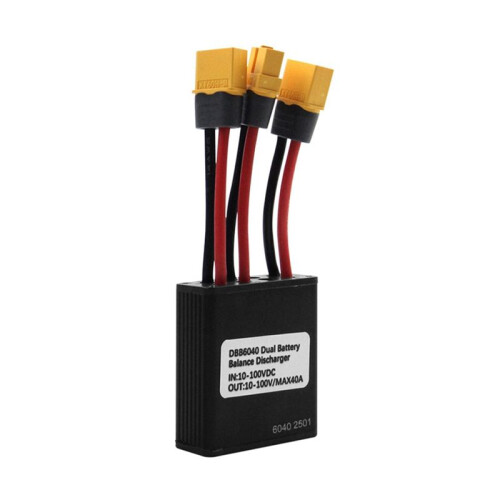

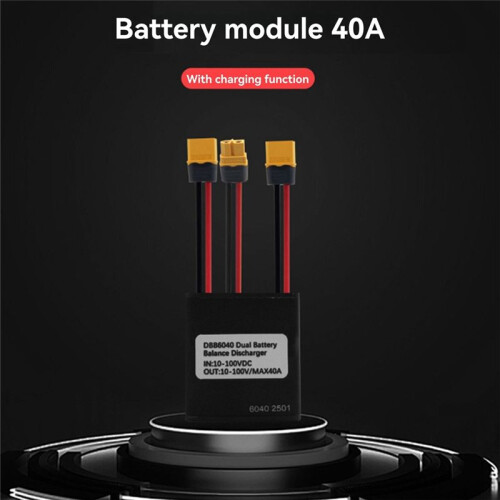

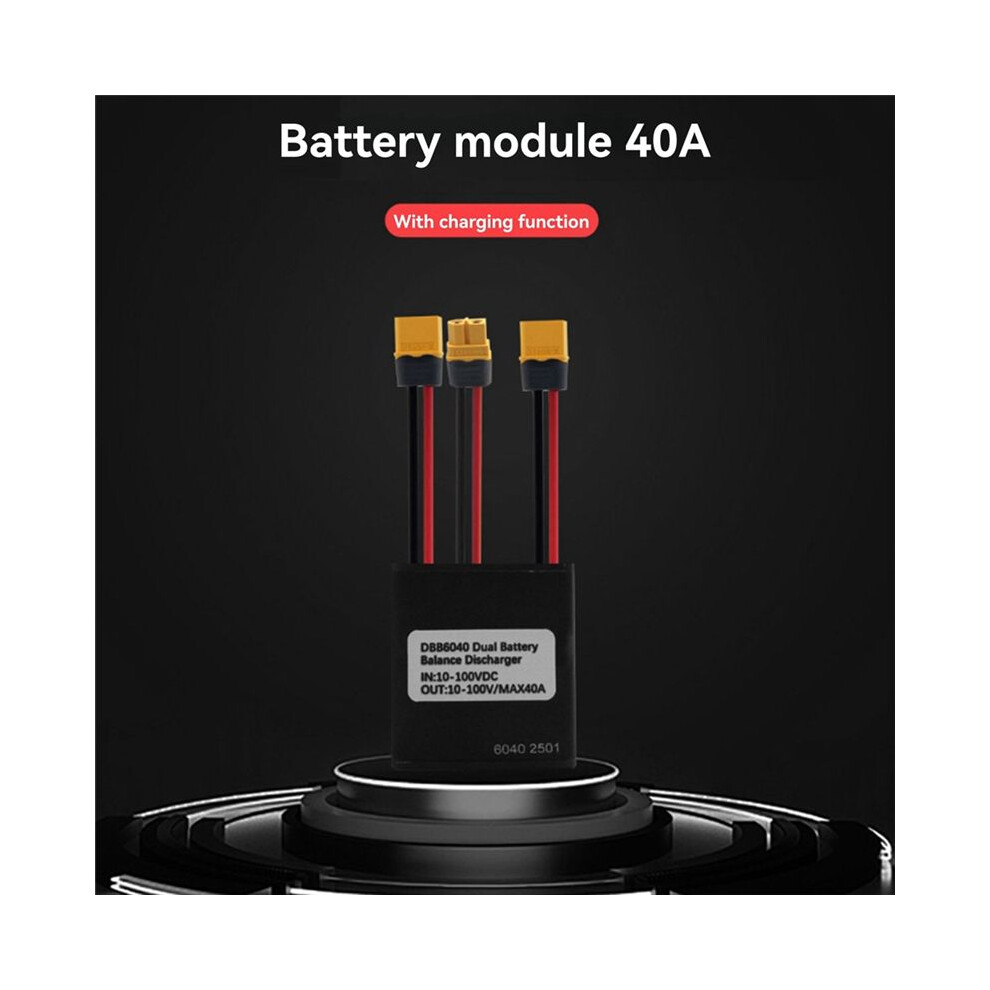

10-100V 40A 2000W E Bike Battery Module Single Discharge Dual Battery Management System Module Ebike Accessories

10-100V 40A 2000W E Bike Battery Module Single Discharge Dual Battery Management System Module Ebike Accessories Popis

Description/Features: 1. EBKE electric bicycle new single discharge dual battery management system module 10-100V 40A

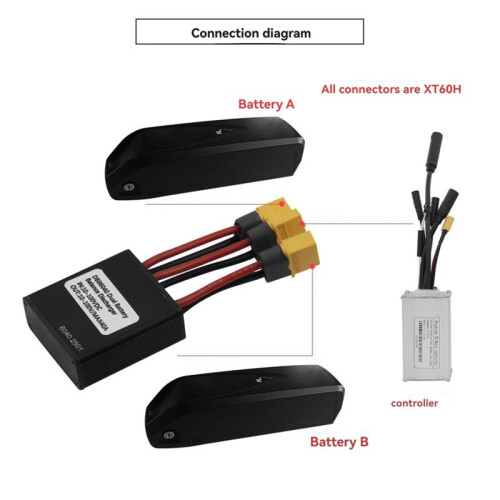

Note: Module function introduction: This connection is a single discharge version, Dual battery parallel module version
2. Before you choose the module current requirement, you can understand the maximum power of your controller. For example, if the maximum current your controller label is 40A, then you can choose a 40A module. Normally, the module current needs to be equal to or greater than the maximum protection current of the controller

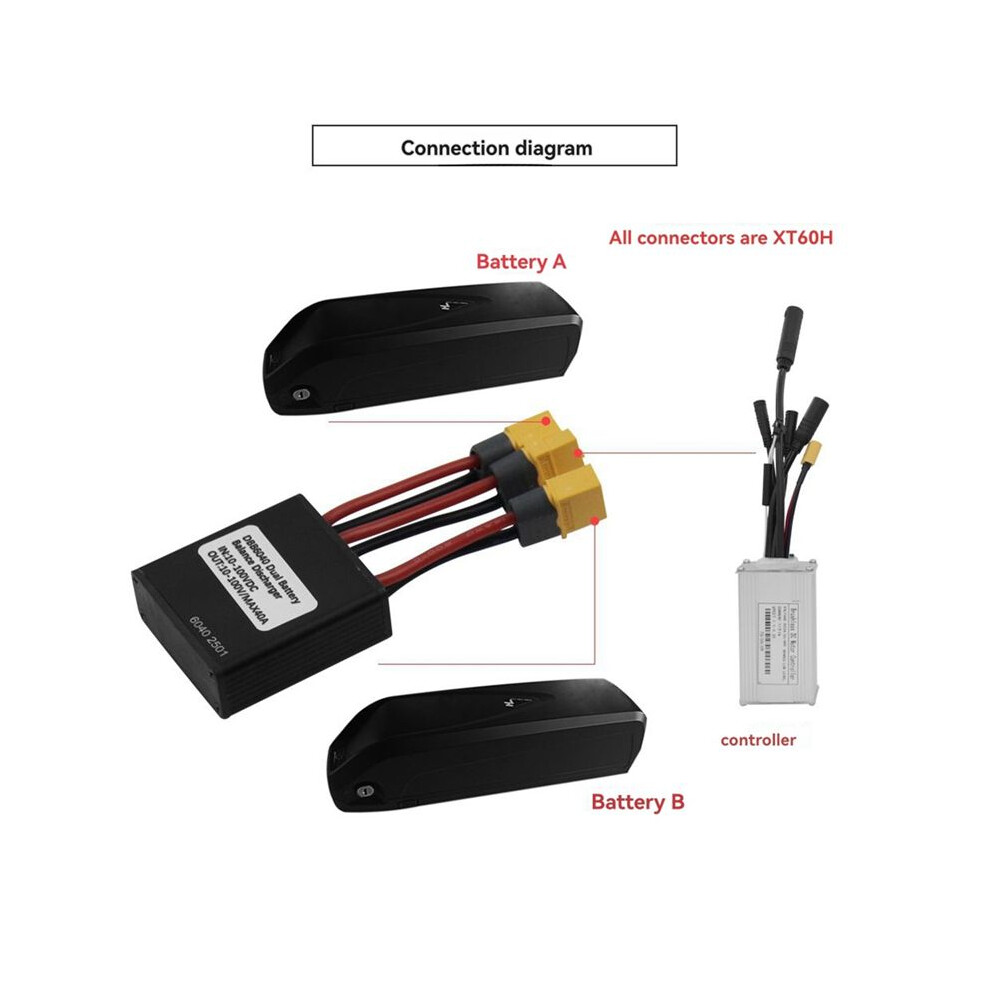

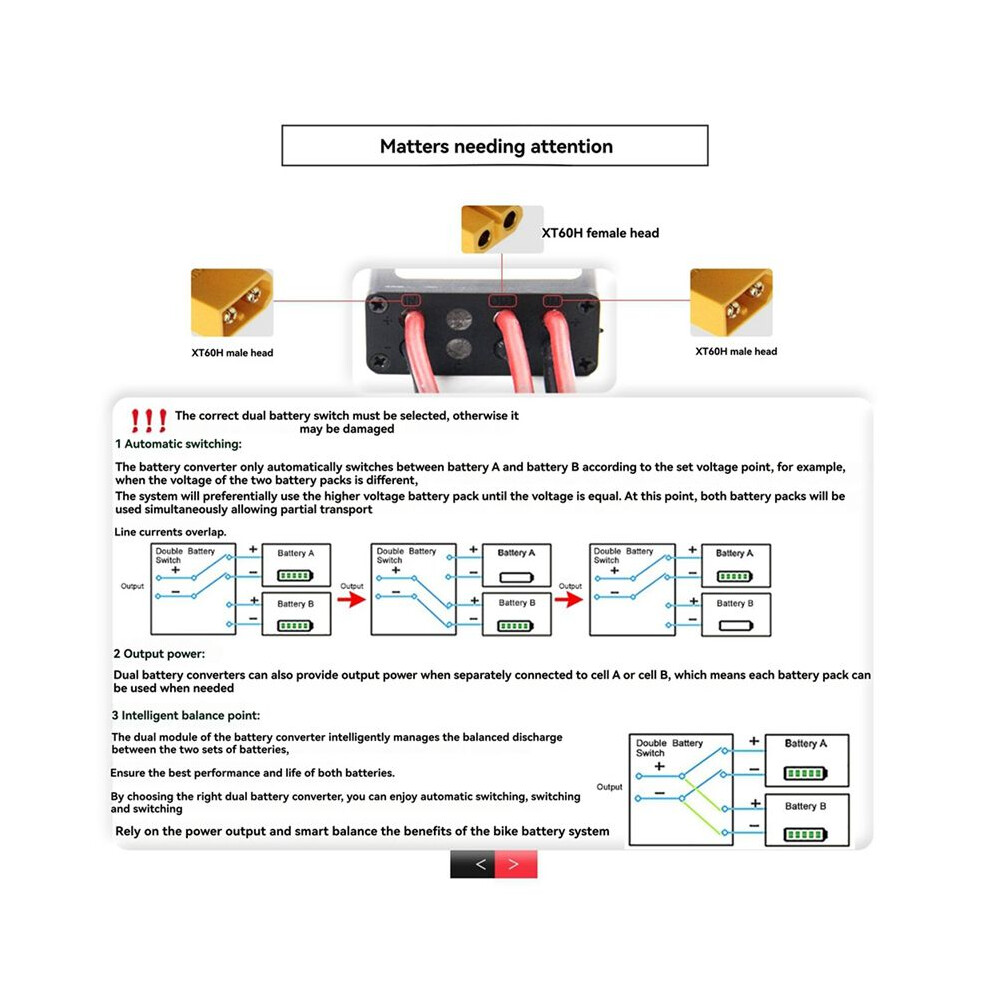

3. Single discharge means that after two groups of batteries with the same voltage (such as 2 x 36V or 2 x 48V) are connected in parallel, the module will give priority to the group with the highest voltage until the battery is about to run out of power and automatically to the second group of batteries to continue working
4. If your controller supports renewable charging and electronic braking functions, then this version can support reverse charging of electrical into the battery, and continue to retain the normal use of this function of the control system

The main component of this module is the field effect tube MOSFET, which will heat after long-term use. The maximum temperature of 65 is normal. Please pay attention to heat protection during installation

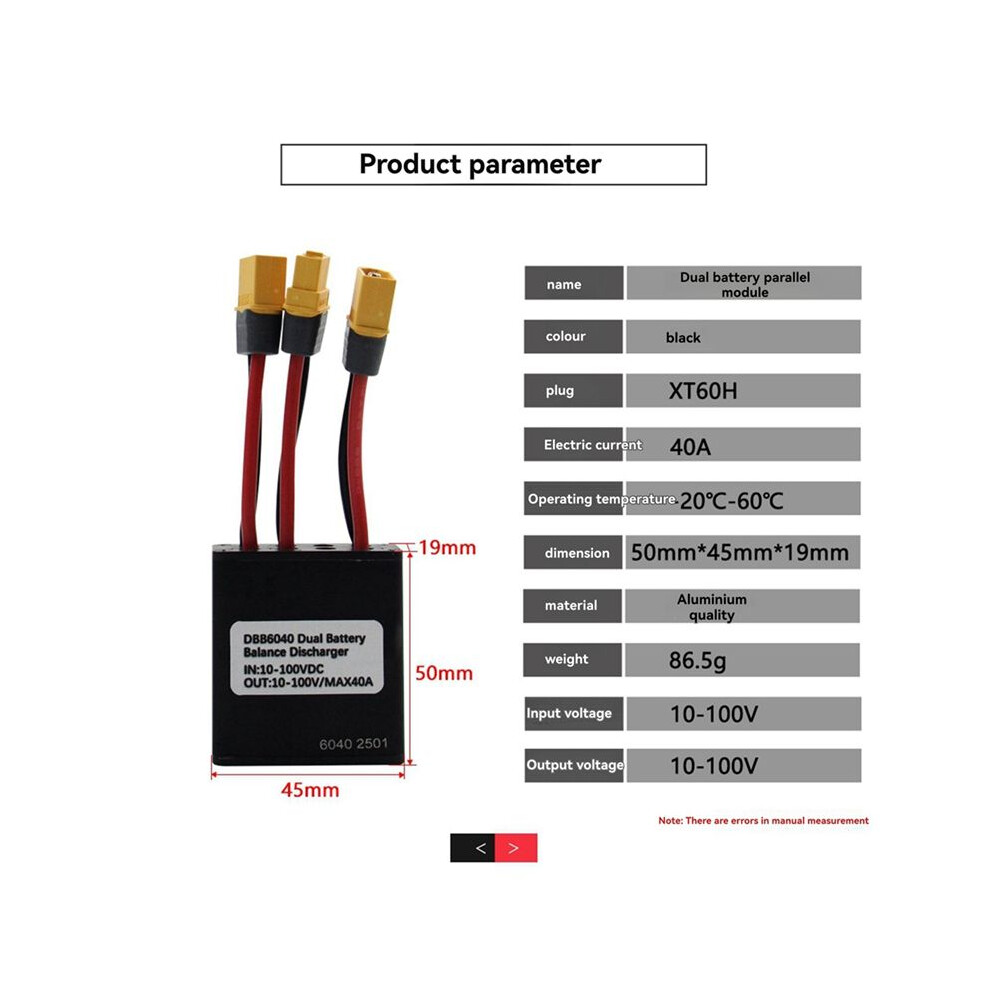

Specifications:
Voltage range: 10V-100V
Recommended maximum power: 40A
Maximum operating current: 40A
Recommended maximum power: less than 2000W
Operating temperature: less than 65
Note: This connection is a single discharge version, Dual battery parallel module version
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color: black
Material: aluminium
