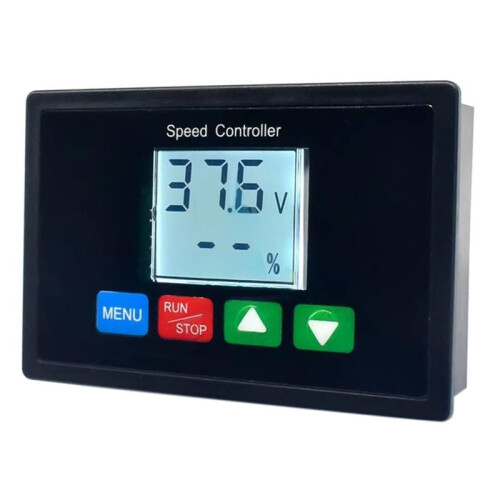

10-55V 20A PWM Speed Controller LCD Digital Display 0- Adjustable Motor Governor Voltmeter Ammeter 24V 36V 48V

10-55V 20A PWM Speed Controller LCD Digital Display 0- Adjustable Motor Governor Voltmeter Ammeter 24V 36V 48V Popis

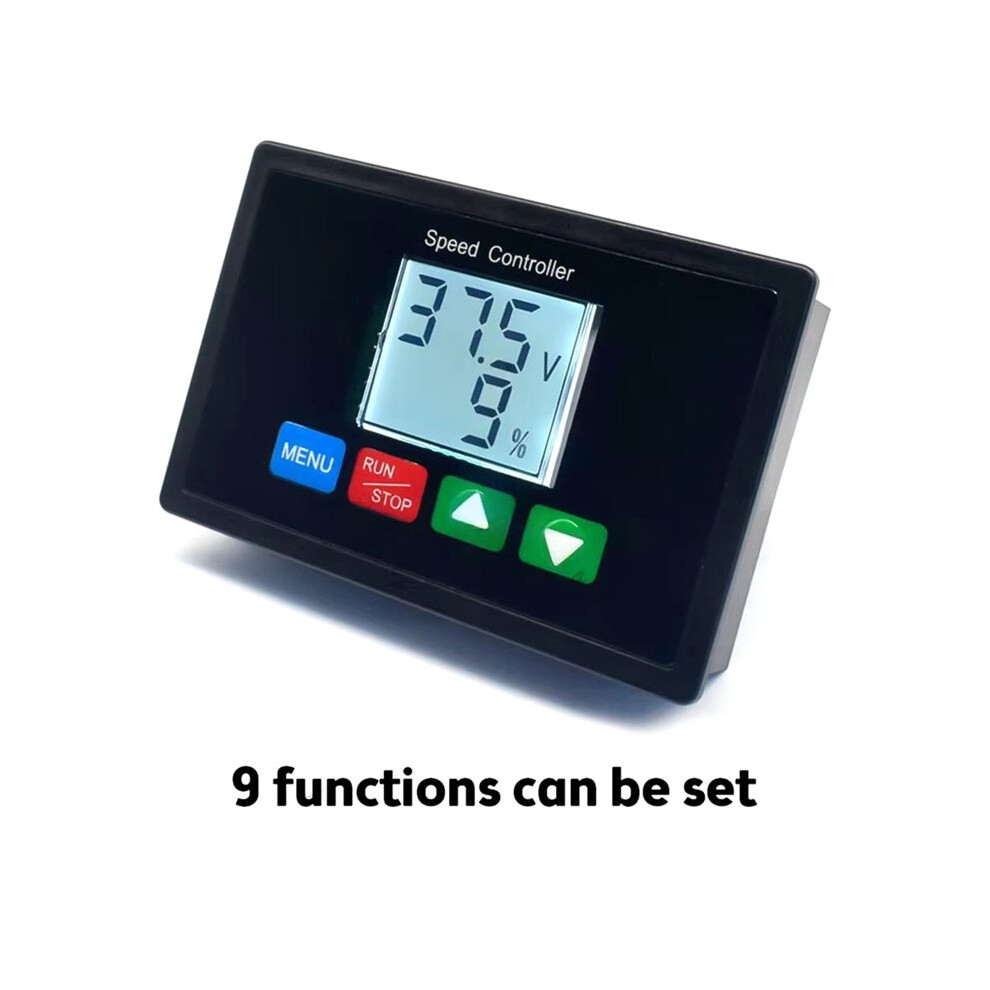

Slow start and slow stop can be set. The panel can touch the to control acceleration and deceleration, and can also share the encoder speed regulation start and stop

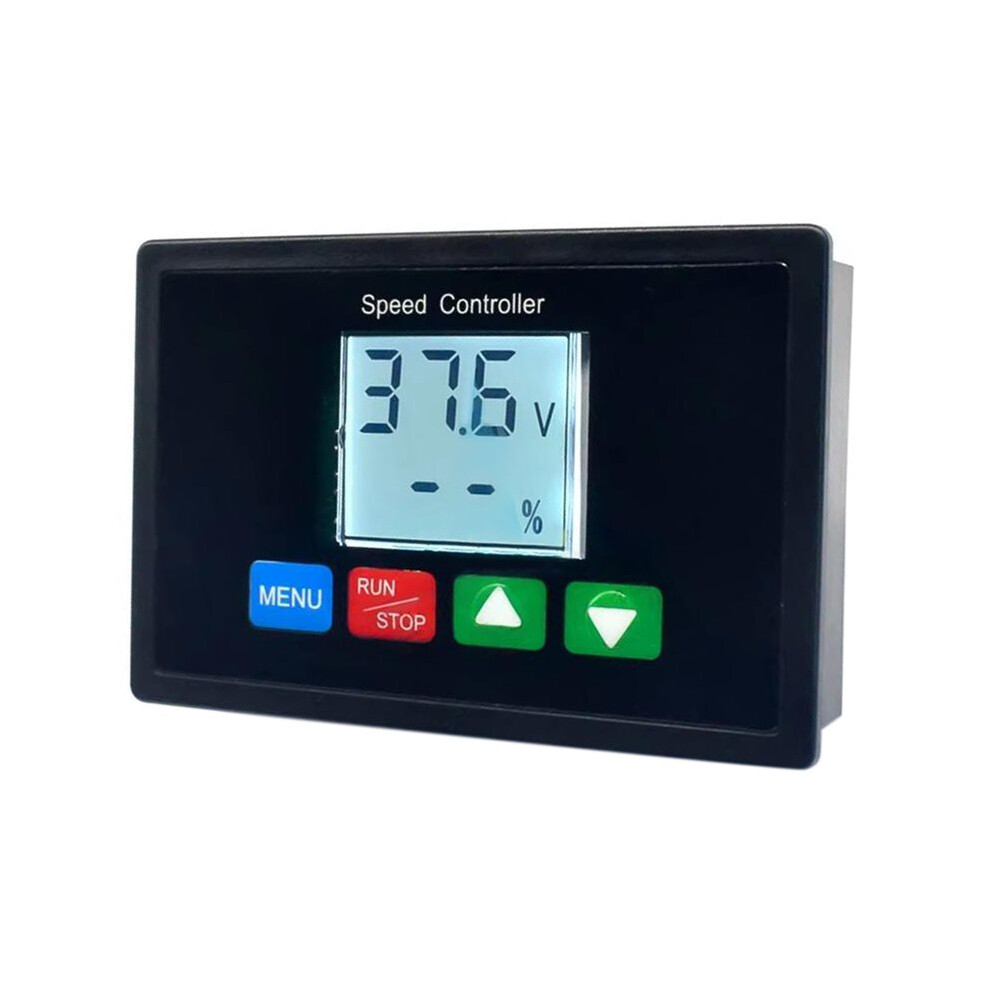

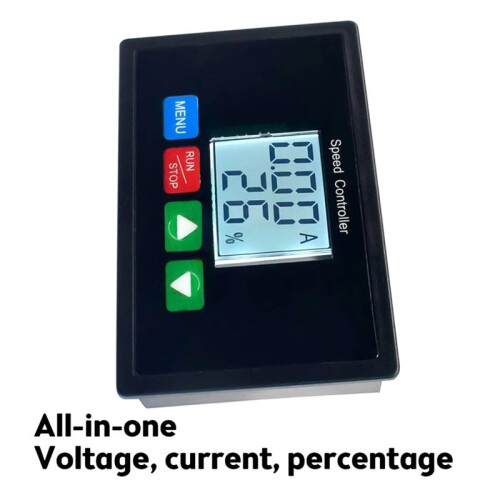

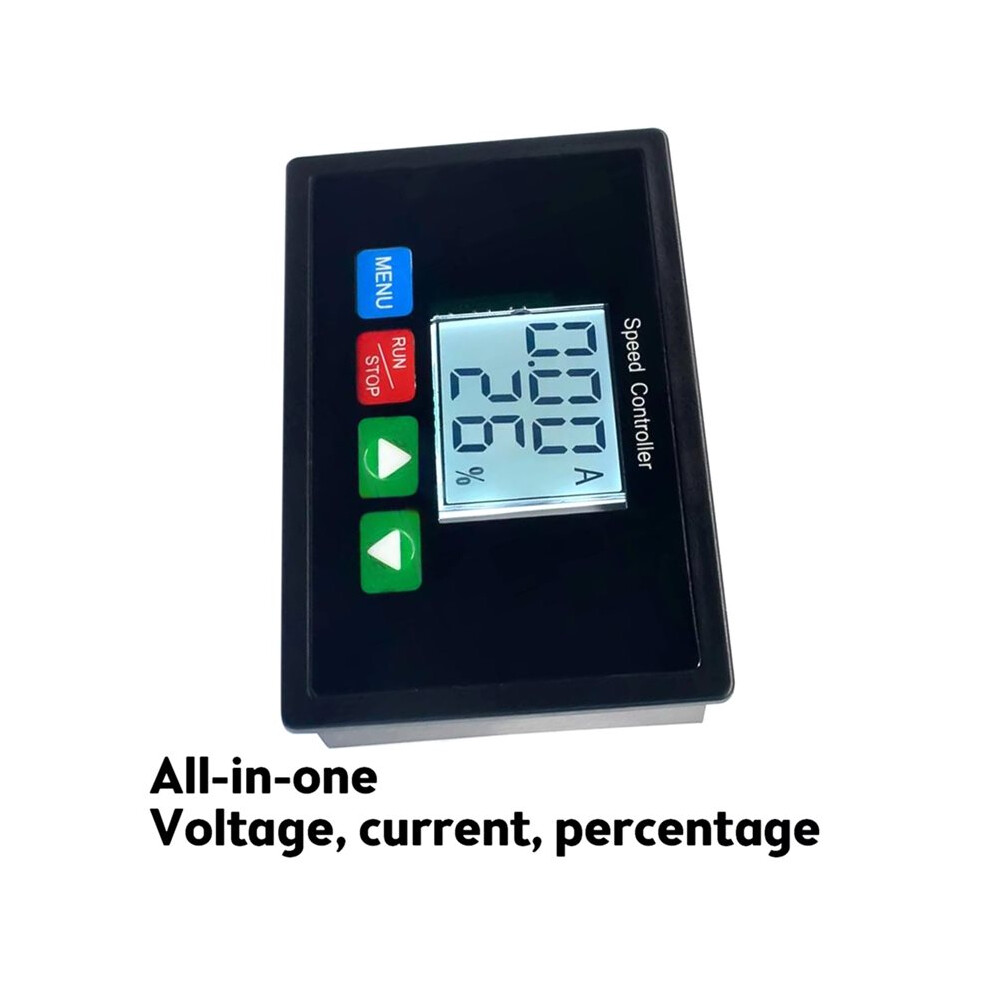

LCD with backlight can measure input voltage and output current
Speed upper limit and speed lower limit can be set
The undervoltage power-off protection belt alarms function (backlight flashing) can be set, and the overload power-off protection belt alarms function (backlight flashing) can be set
The function of directly running the motor when powered and not self starting when powered can be selected

Product parameters:

Input voltage: within DC10-55V (the specific voltage is equal to the rated voltage of the motor)

Measuring voltage: DC10-55V

Measuring current: within 20A

Starting current: 100ma

Current accuracy: 5%

Speed regulation type: current regulation

Slow start and stop: 0-10 seconds can be set

Upper and lower limit: 0- can be set

Acceleration and deceleration values: 1%, 2%, 5%, 10%, 15%, 20%, 25% optional

Undervoltage protection: 0-55V settable

Overcurrent protection mode: mode 1 closes the output, and mode 2 maintains the set current

Overcurrent protection: 0-20A can be set

Power startup mode: mode 1 will not start when power , and mode 2 will start automatically when power

Supporting motor: brush motor

Speed digital display: 0-100 percentage table (not the actual motor speed)

Forward and reverse: not supported

Output voltage: linear under load

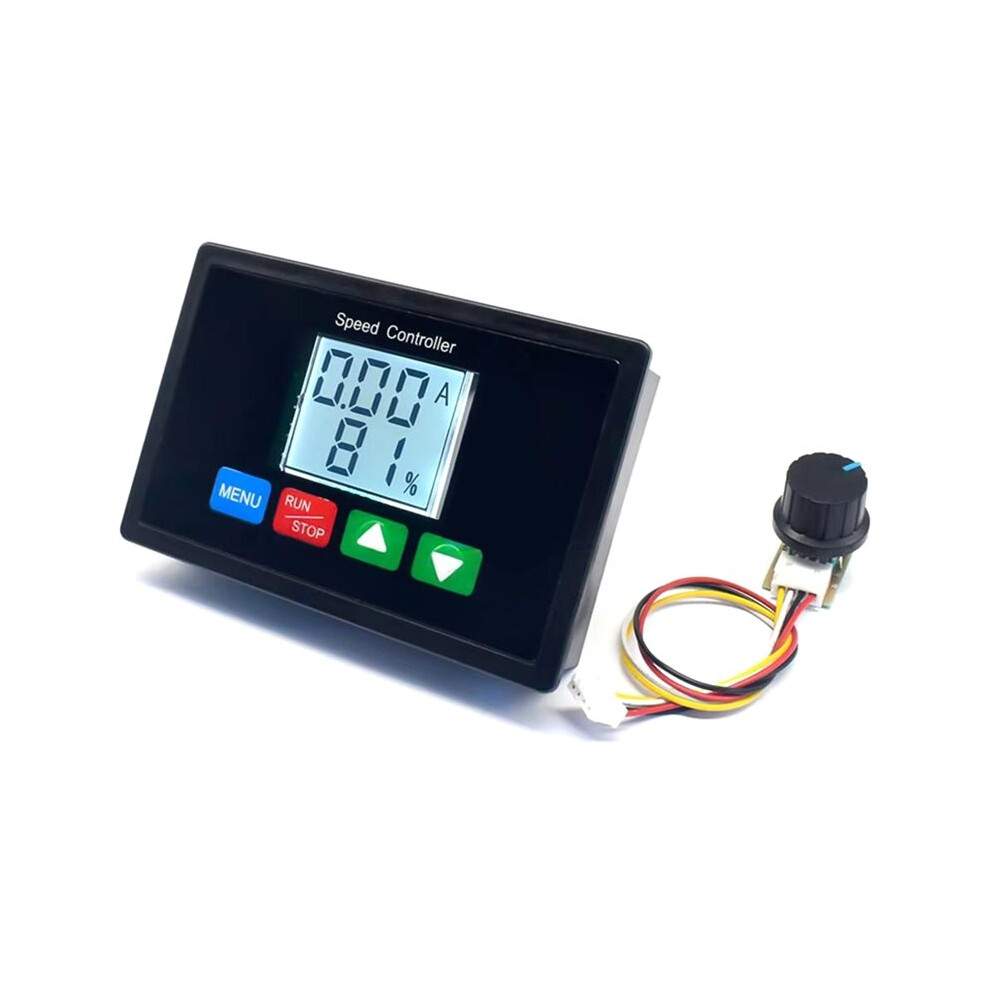

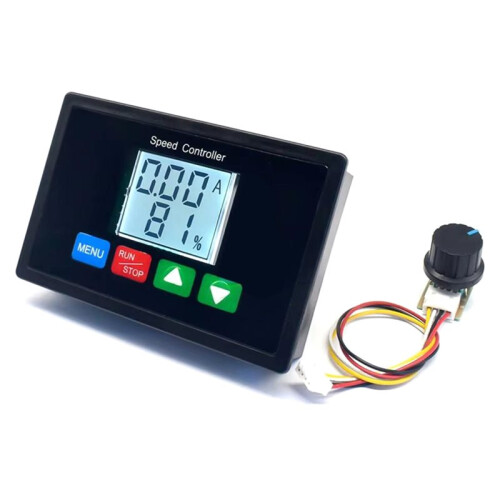

Speed regulation mode: inching+encoder dual-use

Speed regulation range: 0-

Control frequency: 15KHZ

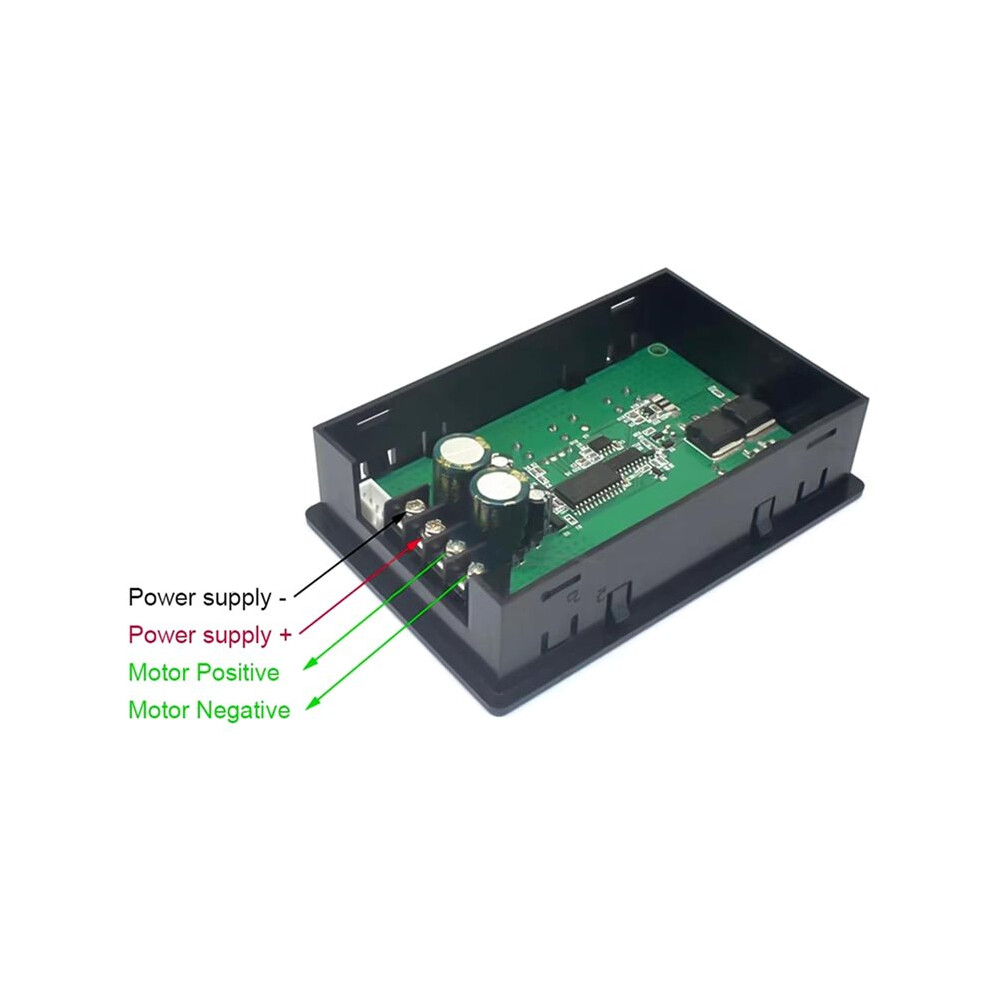

Wiring type: fence terminal
