1PCS AD8495 Amplifier Module - High-Quality Analog Output K-Type Thermocouple Amplifier

1PCS AD8495 Amplifier Module - High-Quality Analog Output K-Type Thermocouple Amplifier Popis

Type: Voltage Regulator - Designed to function efficiently as a voltage regulator, this module ensures stable and consistent voltage levels, providing optimal performance and extending the lifespan of your electronic devices.
Condition: New - Guaranteed new and unused, this AD8495 amplifier module comes in pristine condition, ensuring that you receive a high-performance product free from any defects or previous wear.

Description/Features:
This compact PCB module is designed specifically for use with Type K thermocouples and provides an easy-to-read analog output. Simply power the board with a voltage between 3-18VDC and measure the output the OUT pin. The temperature can be calculated using the formula: Temperature = (Vout - 1.25) / 0.005V. For instance, a voltage of 1.5VDC corresponds to a temperature of 50C. The device is equipped with the AD8495ARMZ chip, ensuring reliable and accurate readings within the specified temperature ranges.

Specifications:
Compatibility: Only suitable for Type K thermocouples.
Power Supply: Accepts 3.3V and 5V inputs.
Temperature Range:
With 5V power supply: -250C to +750C output (0 to 5VDC).
With 3.3V power supply: -250C to +410C output (0 to 3.3VDC).

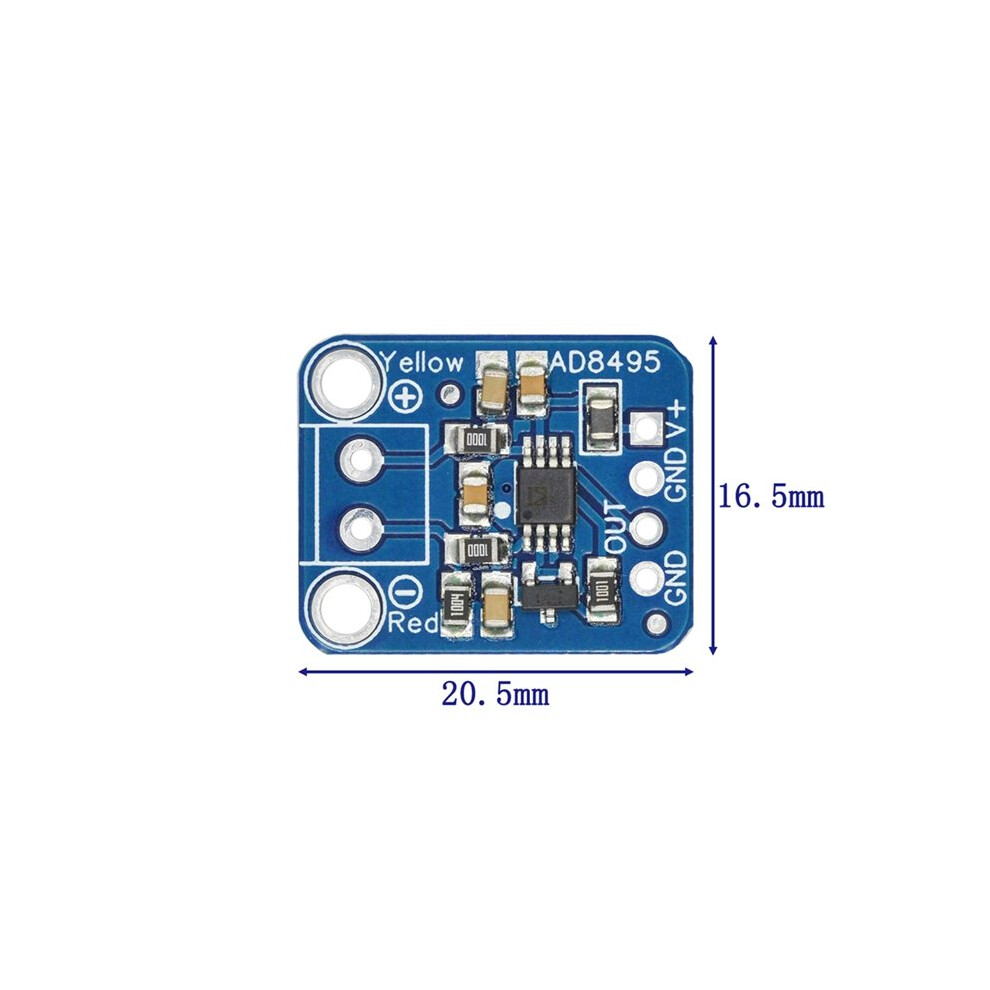

Pin Configuration:
V+: Power supply pin.
GND: Common ground pin.
OUT: Output voltage pin, connect to analog inputs.
RED- : Connection for the red or negative wire of the thermocouple.
YELLOW+: Connection for the yellow or positive wire of the thermocouple.
Formula for Temperature Calculation: Temperature = (Vout - 1.25) / 0.005V.
Color:
Material: plastic

Package Contents:
1PCS AD8495 Amplifier Module
