24GHz Speed Sensor,1-240KM/H Car Velocity Sensor Module with RS485/TTL Interface,180m Speed Detection Sensor

24GHz Speed Sensor,1-240KM/H Car Velocity Sensor Module with RS485/TTL Interface,180m Speed Detection Sensor Popis

Color: As shown
Material: PC + Metal

Specifications
K-band RFIC design;
Frequency range: 24.125 GHz (customizable frequency);
Modulation: CW (Continuous Wave) for moving vehicle detection; detection range 180 meters;
Supports RS485 interface and TTL serial port (baud rate: 9600 bps);
Speed measurement range: 1 /h - 240 /h;
Speed measurement error: < 1 /h (when the angle between the direction of motion and the axis is 0);
Voltage: 9-24 V; current 50 mA @ 12 V;
Output power (EIRP): 20 dBm; actual power consumption 1.2 W;
Antenna angles: Horizontal 40, Vertical 16 (3dB beamwidth; actual detection coverage exceeds 4 lanes);
Sensor dimensions: 69 x 53 x 5 mm.
Color: As Shown
Material: PC+Metal

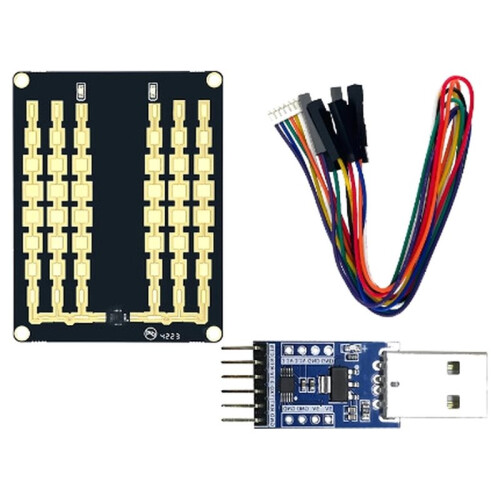

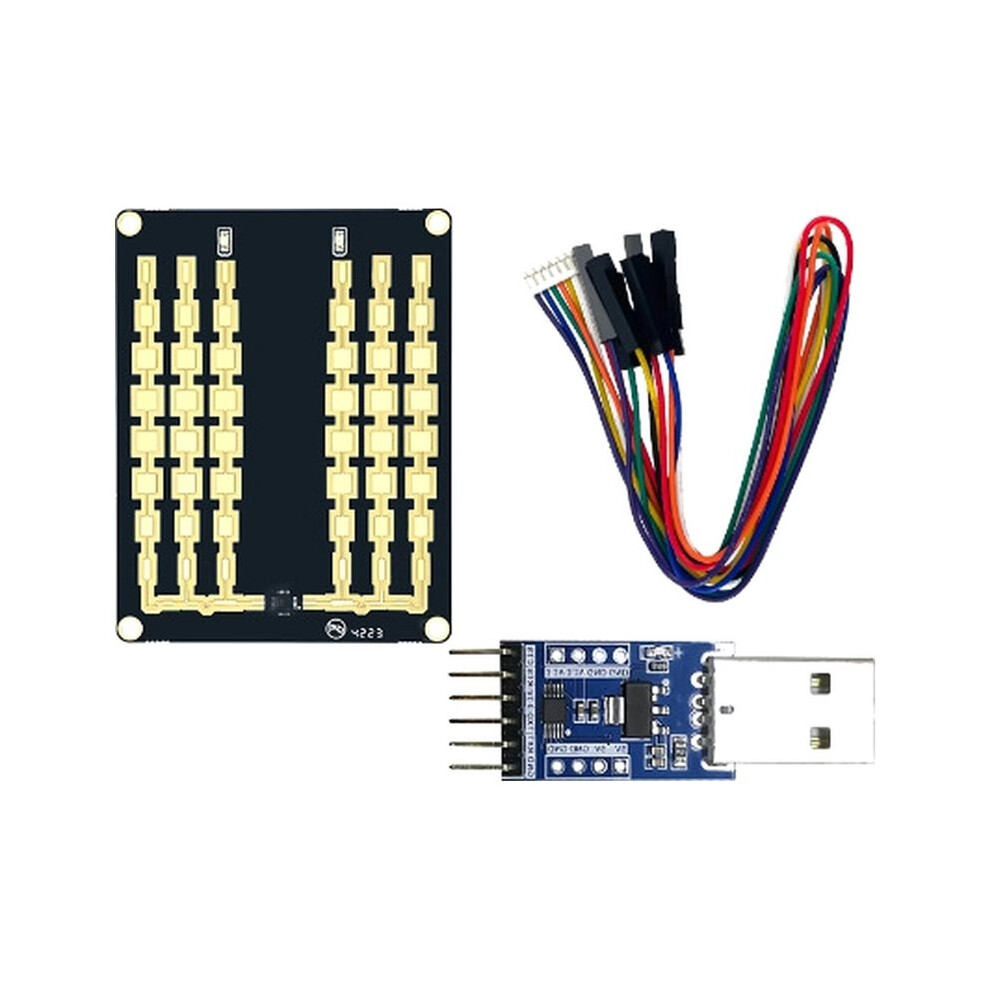

Package Contents:
1* Module
1* Cable
1* Serial port adapter board
