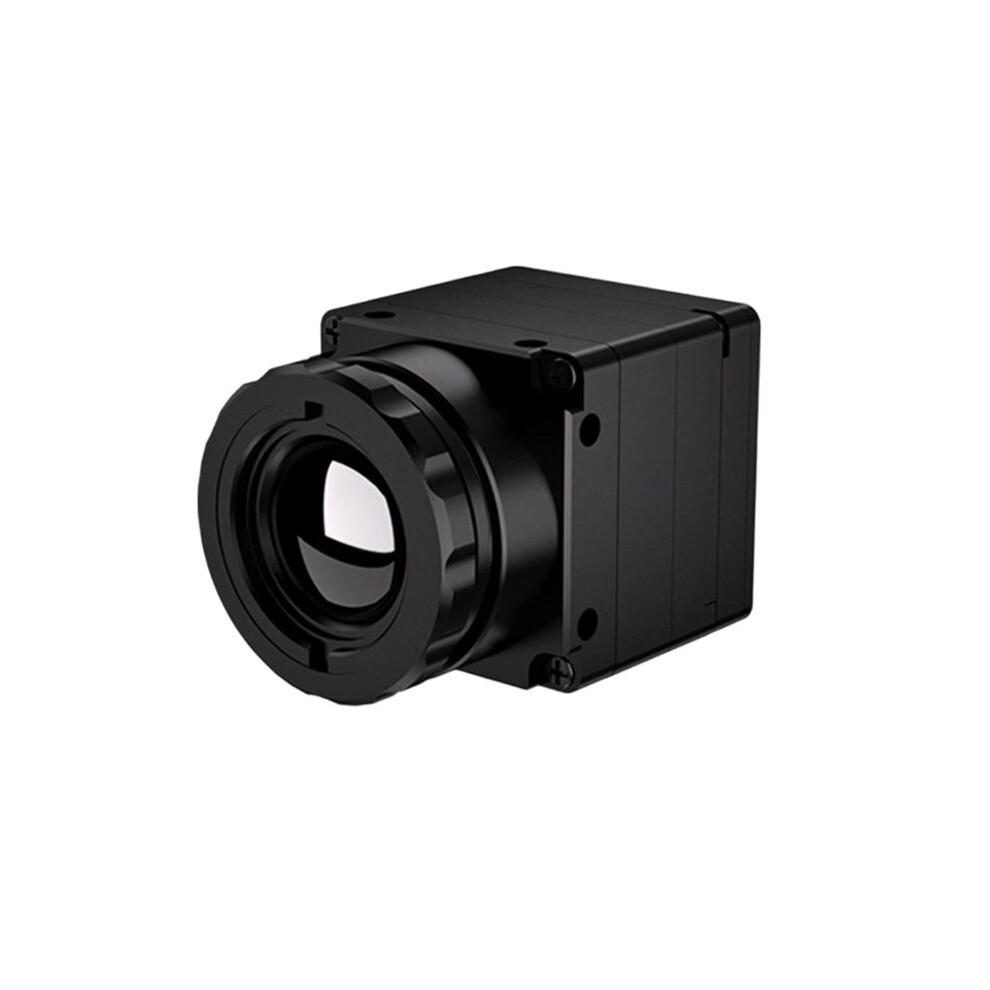

256x192 Infrared Thermal Imaging Module HD Camera with CVBS Interface, UAV Drone Thermal Imager Sensor for Night Vision
Podobné produkty, které by se vám mohly líbit
Would you like us to let you know when it's back?
Shrnutí
- Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Array Detector
- Thermal Imaging Module
- Drone Thermal Camera
- Thermal Module
- Industrial Thermal Imager
256x192 Infrared Thermal Imaging Module HD Camera with CVBS Interface, UAV Drone Thermal Imager Sensor for Night Vision Popis
Detector Type: Vanadium Oxide Uncooled Infrared Plane Array Detector
Resolution: 256x192
Pixel Pitch: 12μm
Spectral Band: 8-14μm
NETD: 40mK
Frame Rate: 50Hz
Shutter: Auto Shutter Correction
Length: Adjustable Focus
Aperture: f/1.0
Lens: 9mm
FOV (H*V): 17.6x13.2
Detection Distance (Recognition): Humans: 1000m
Vehicles: 2389m
Detection Distance (Detection): Humans: 250m
Vehicles: 597m
Pseudo-Color Mode: Incandescent / Incandescent
Analog Video: PAL
Output Type: CVBS
Overall Module Voltage: 4.5-18V
Power: 600mW
Operating Temperature: -40~+80
Storage Temperature: -50~+85
Dimensions: 21*21MM
Color: Black
Material: plastic
Package Contents:
1*Infrared thermal imaging module
Podrobnosti
| OPC | PTRGYJV |
|---|---|
| Kódy | 4713063277635 (EAN) |
| Informace o produktu a bezpečnosti |
Produktová data
| Height | 5cm |
|---|---|
| Width | 9cm |
| Length | 9cm |
| Weight | 0.0635kg |
| Colour | Black |
| Material | Plastic |
