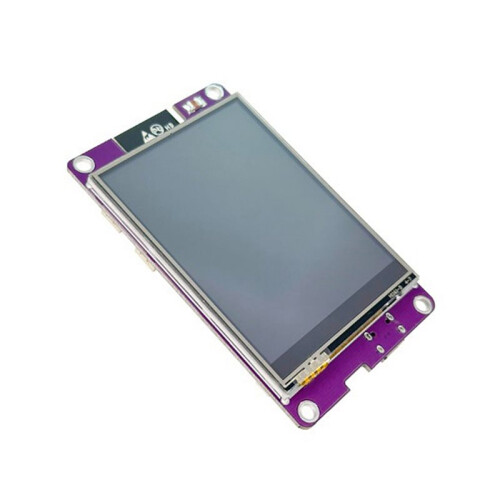

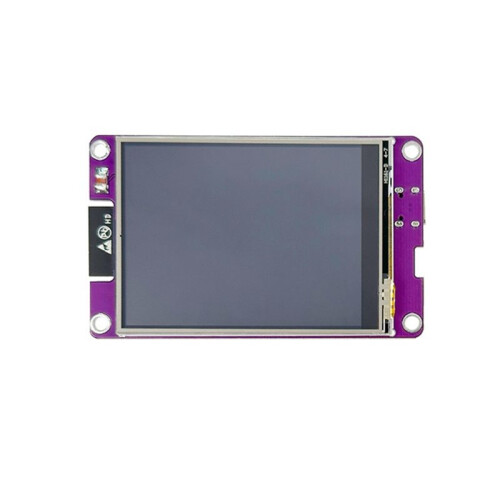

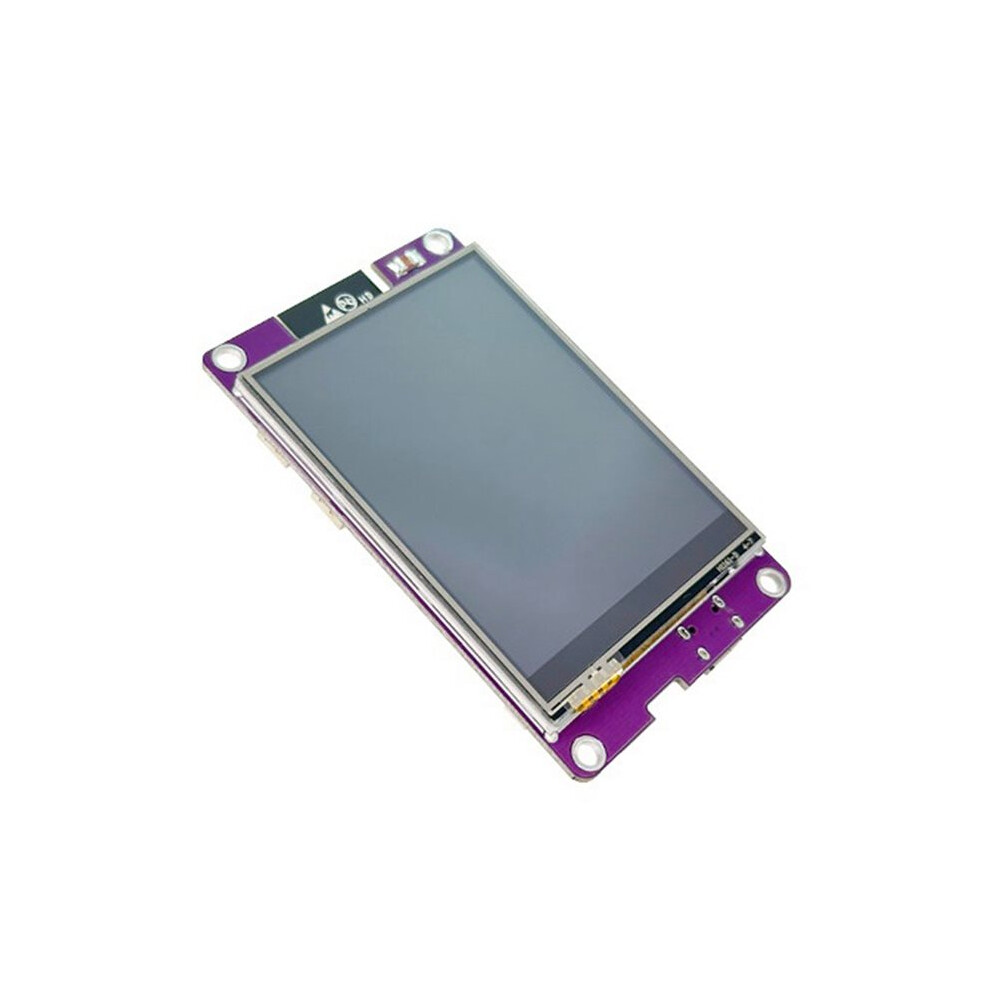

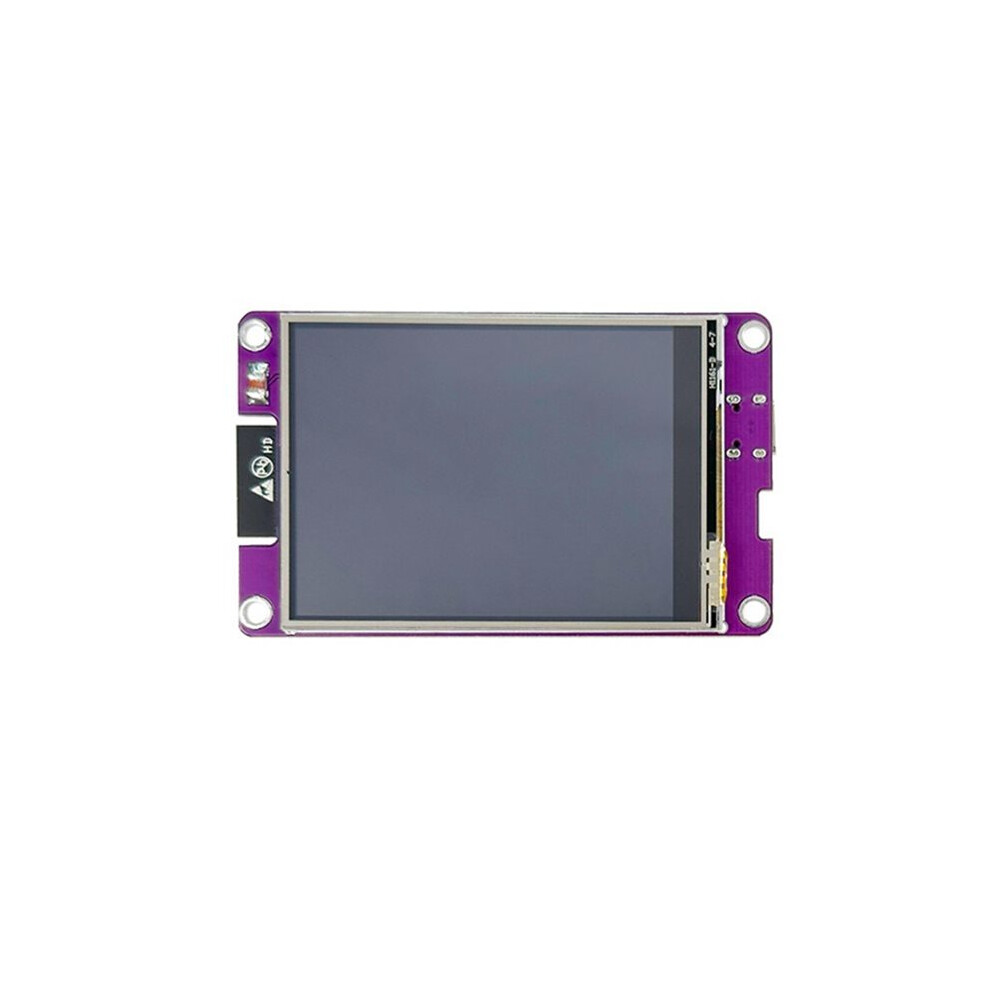

2.8 Inch 240x320 IPS Resistive Touch LCD Dispaly Module LVGL Screen ESP32 WiFi Development Board

2.8 Inch 240x320 IPS Resistive Touch LCD Dispaly Module LVGL Screen ESP32 WiFi Development Board Popis

Comes with ESP32-WROOM-32E module for easy development.
2.8-inch color screen, maximum resolution 240x320, supports to 262K colors (RGB666), displaying rich colors.

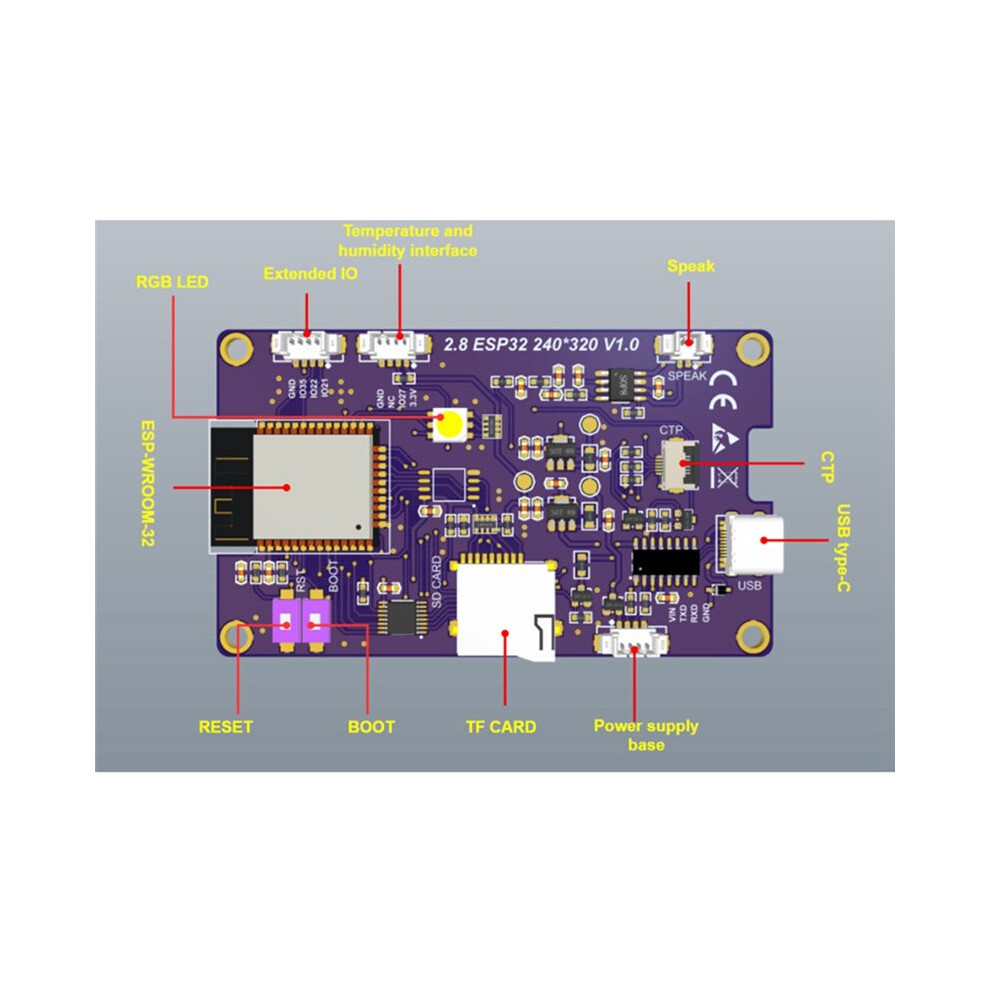

Rich interfaces for easy connection to various peripherals (SPI, UART, etc.)
Supports external speaker for audio playback.
Comes with RGB three-color indicator lights for rich status indication.

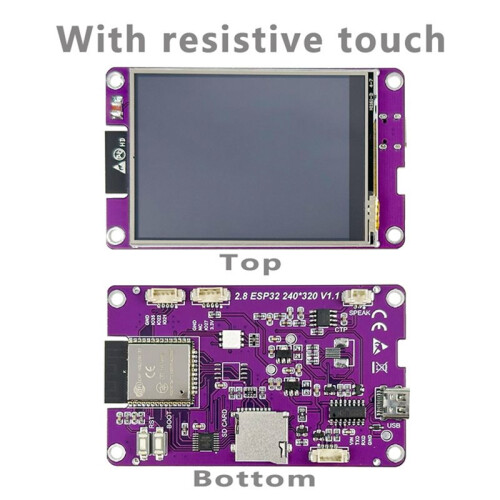

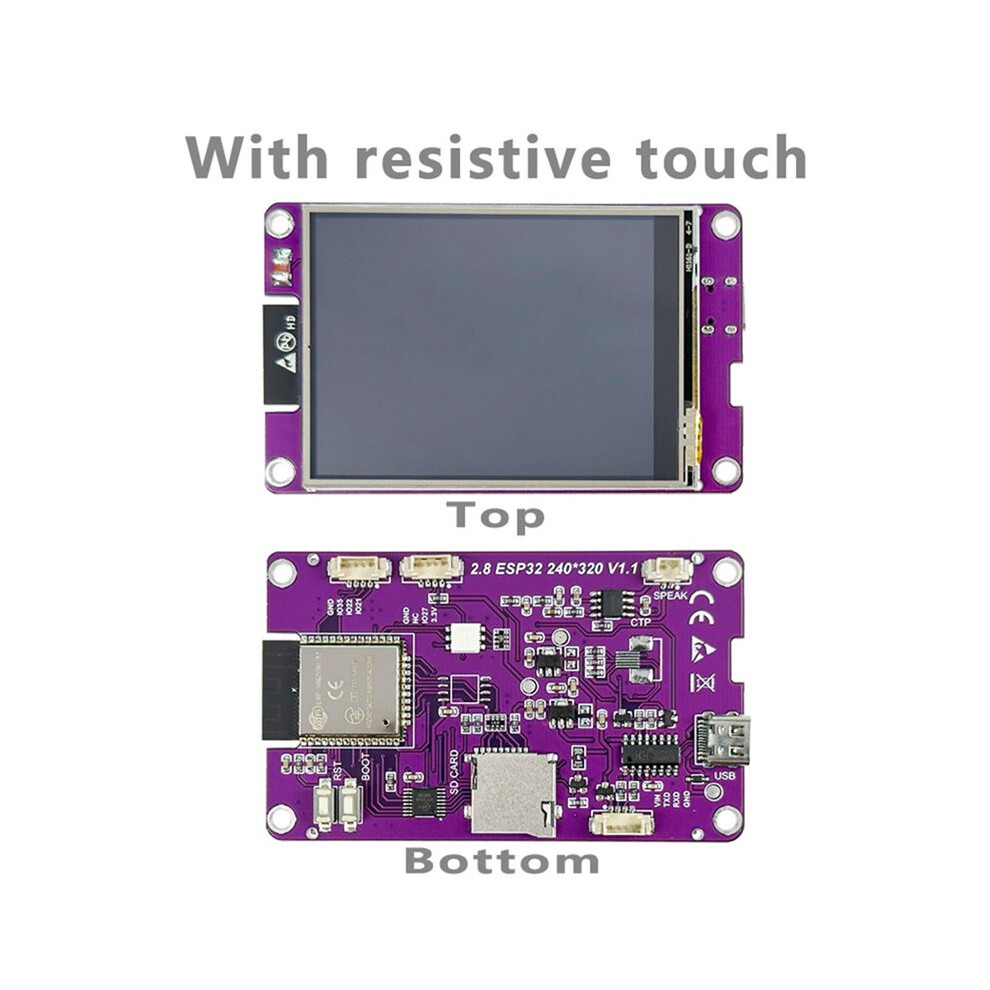

Comes with resistive touchscreen for easy human-computer interaction.
Standard TYPE-C interface for easy program download and power supply.
Comes with micro TF card slot for easy storage expansion.

LCD Screen Parameters:
Screen Size: 2.8 inch
Screen Type: IPS TFT
Resolution: 240xRGBx320(pixels)
Active Display Area: 43.20(W)x57.60(H)(mm)
Number of Colors: Maximum:262K(RGB666)
Driver lC: IL19341V
Display Interface: 4- SPl (connected to ESP32)
Pixel Size: 0.153(H)x0.153(mm)
Viewing Angle: Full Viewing Angle
Backlight Brightness (Typical Value): 260 cd/m2
Backlight Type: White LED*4
Operating Temperature: -10~50(C)
Storage Temperature: -20~60(C)

Electrical Parameters:
Operating Voltage: 5.0V
Backlight Current: 80mA
Total Current: ESP32 Reset: 40mA, Display Only Operation: 135mA
Power Consumption: 0.675W (Display only operation)
Color:
Material: PCB+Plastic

Package Contents:
1 * Development Board
1 * data cable (Random color)
1 * Stylus pen
