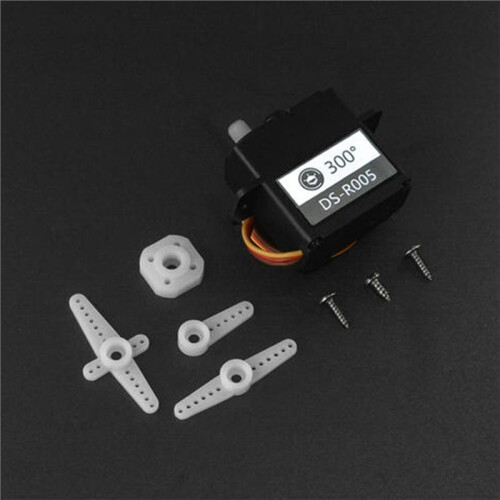

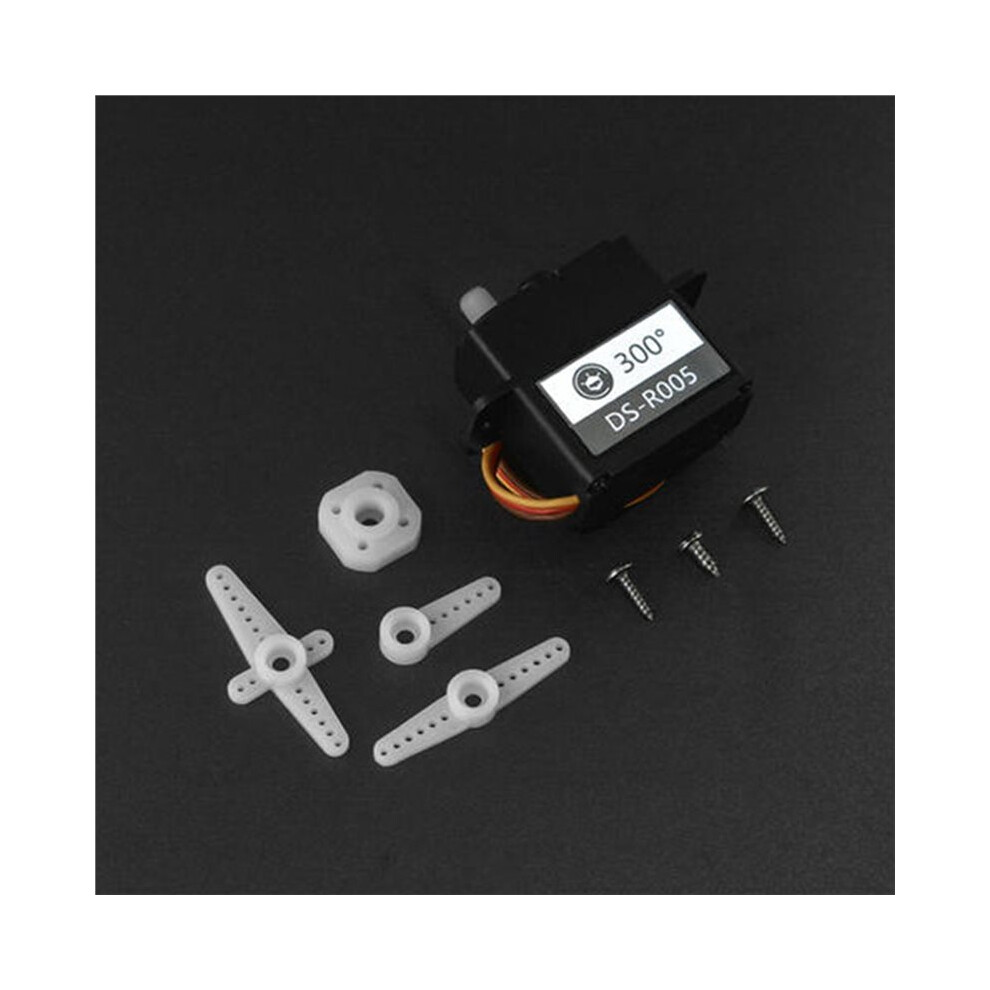

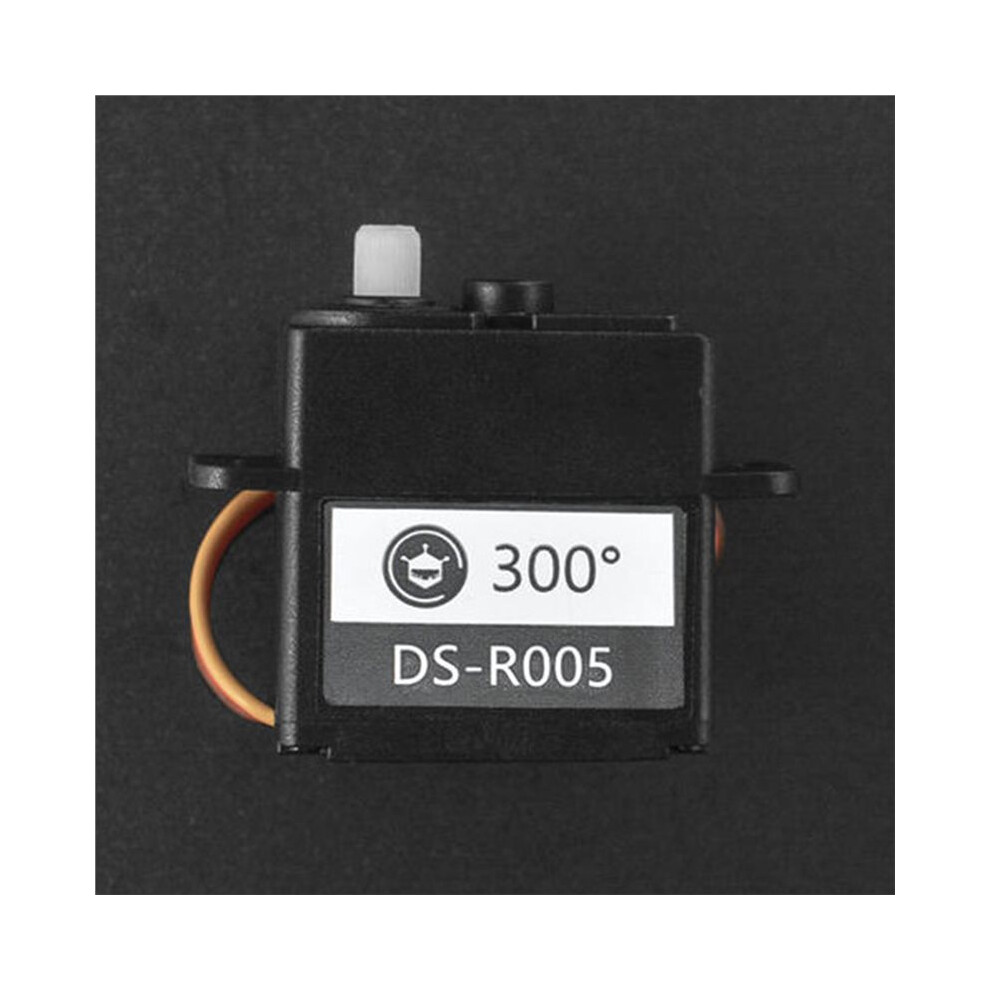

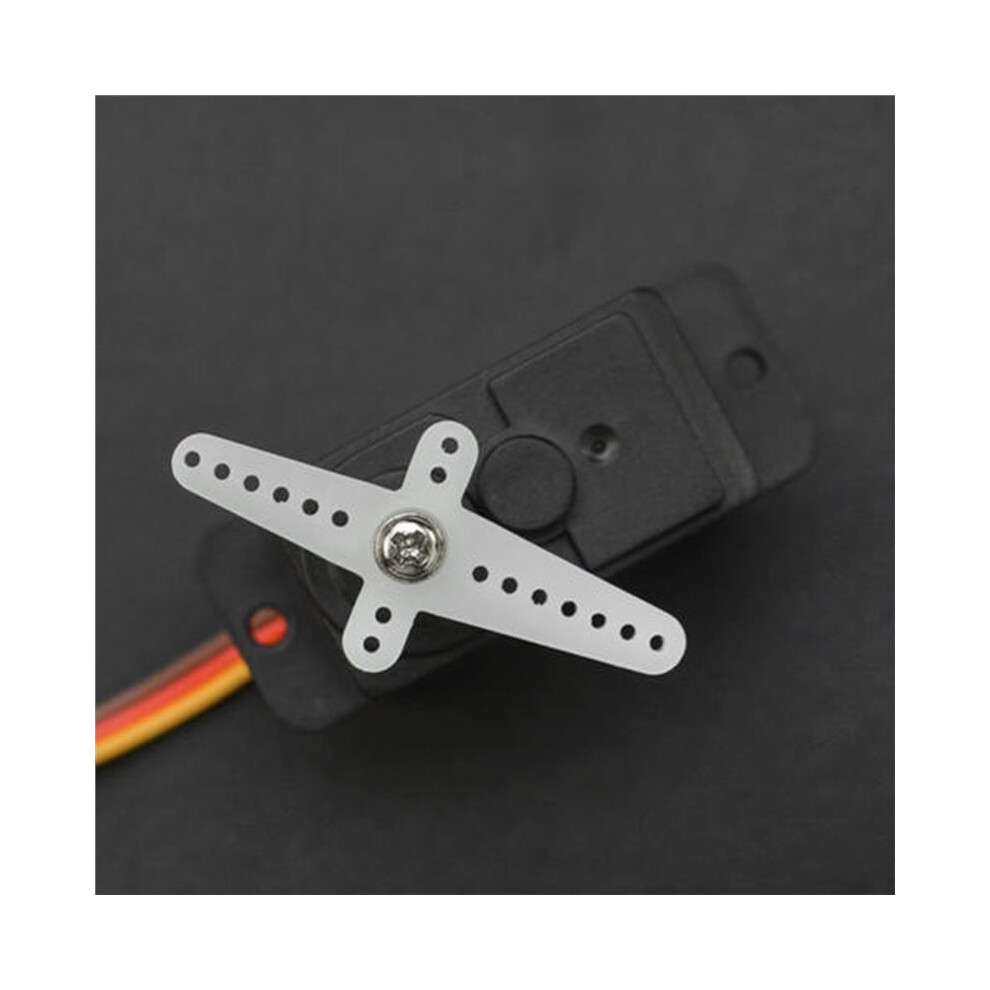

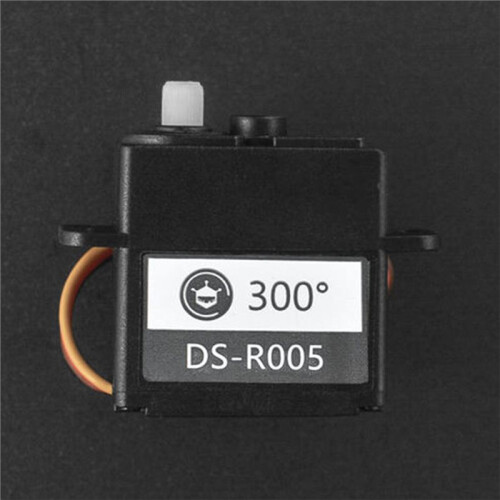

2kg 300 Clutch Servo Servo Motor with Clutch Function and Electronic Protection Features

2kg 300 Clutch Servo Servo Motor with Clutch Function and Electronic Protection Features Popis

When SERVos are used IN complex OPERATING environments such as robots, models, ETC. Are THERE THESE CONCERNS: gear jamming, servo burning, SERVO being blocked by external FORCE CAUSING damage......
DF has launched a series of servos with clutch function and electronic protection to solve your problems:
Clutch function: When the Angle of the servo is changed by external force during normal operation, the servo can automatically reset and continue working through the clutch function, making for the disadvantage of ordinary servos that are prone to damage when the Angle is changed by external force during operation.
Electronic protection: When the servo is blocked for 5 seconds, it will automatically cut off the power for protection to prevent the servo from being burned out due to being blocked.

Working voltage range: 4.8-6V
Static current: 8MA AT 6.0V
No-load current: 50MA AT 4.8V, 60MA at 6.0V
Locked-rotor current: 550MA AT 4.8V, 650MA AT 6.0V
Rated torque: 0.32KGF·CM AT 4.8V, 0.4KGF·CM AT 6.0V
Locked-rotor torque: 1.0KGF·CM AT4.8V, 1.2KGF·CM at 6.0V
Operating Angle: 30010
Signal width range: 500-2500μS
Communication method: PWM
Color: Black
Material: plastic

Package Contents:
1 set * clutch servo motor
