2Pcs - High Voltage Generator Module, 3V-4.2V 3.7V to 1500V-2000V 1800V Arc Pulse Step- Boost Power Board

2Pcs - High Voltage Generator Module, 3V-4.2V 3.7V to 1500V-2000V 1800V Arc Pulse Step- Boost Power Board Popis

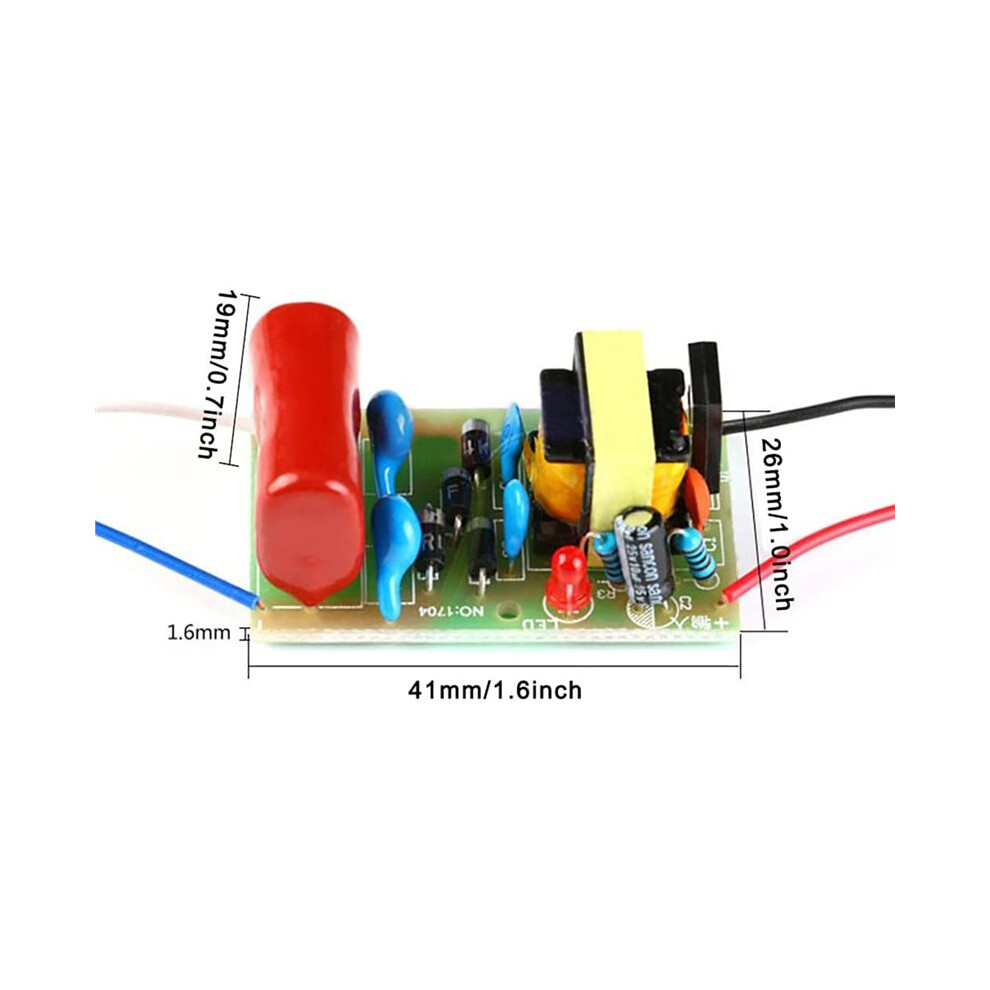

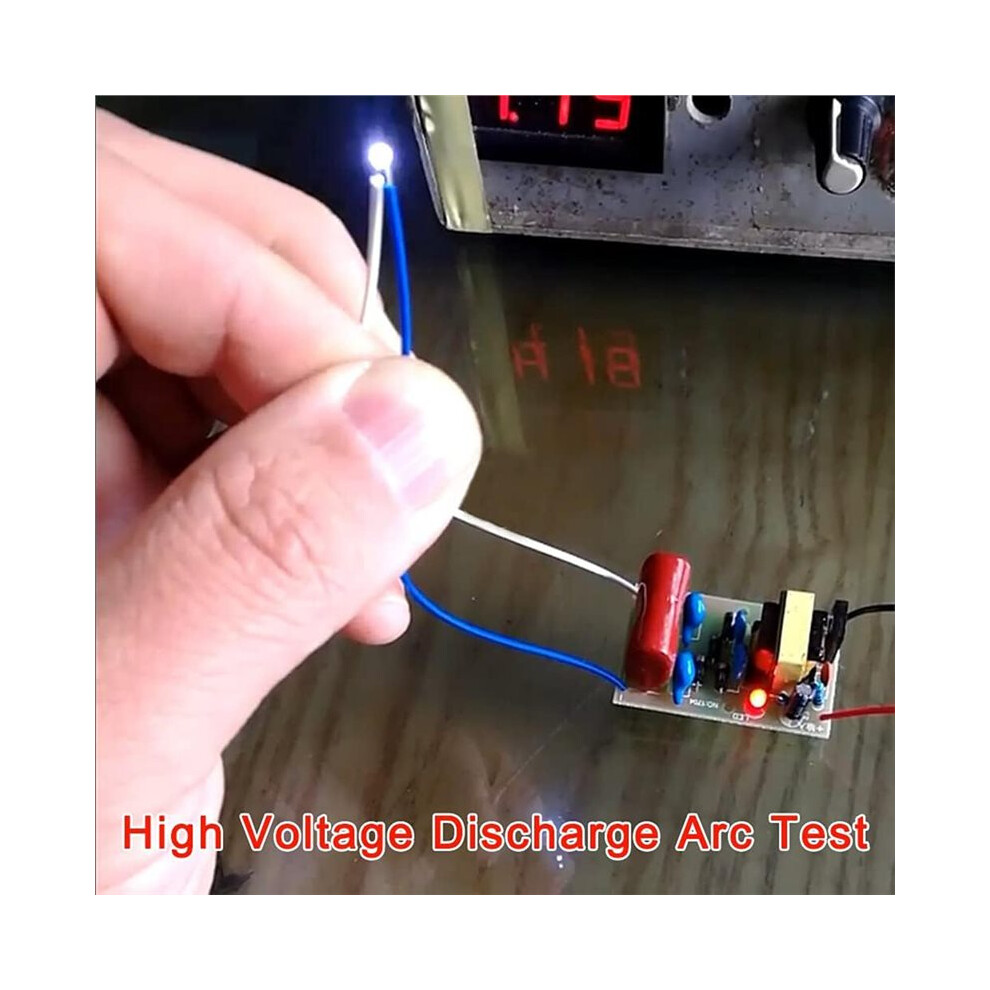

3V-4.2V boost 2000V, pulse boost module.It can work continuously and the maximum discharge distance is about 1.5MM. Dimensions: 41x26x19mm/1.6x1.0x0.74inch.

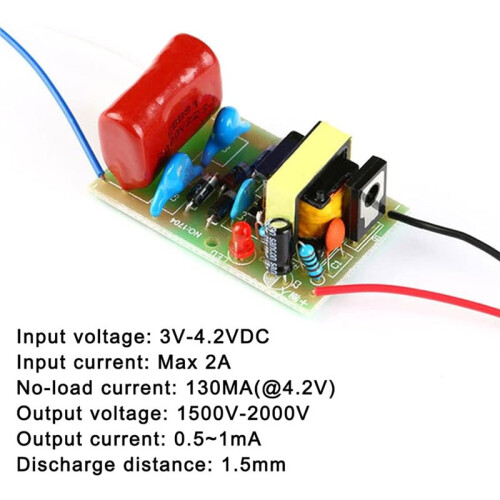

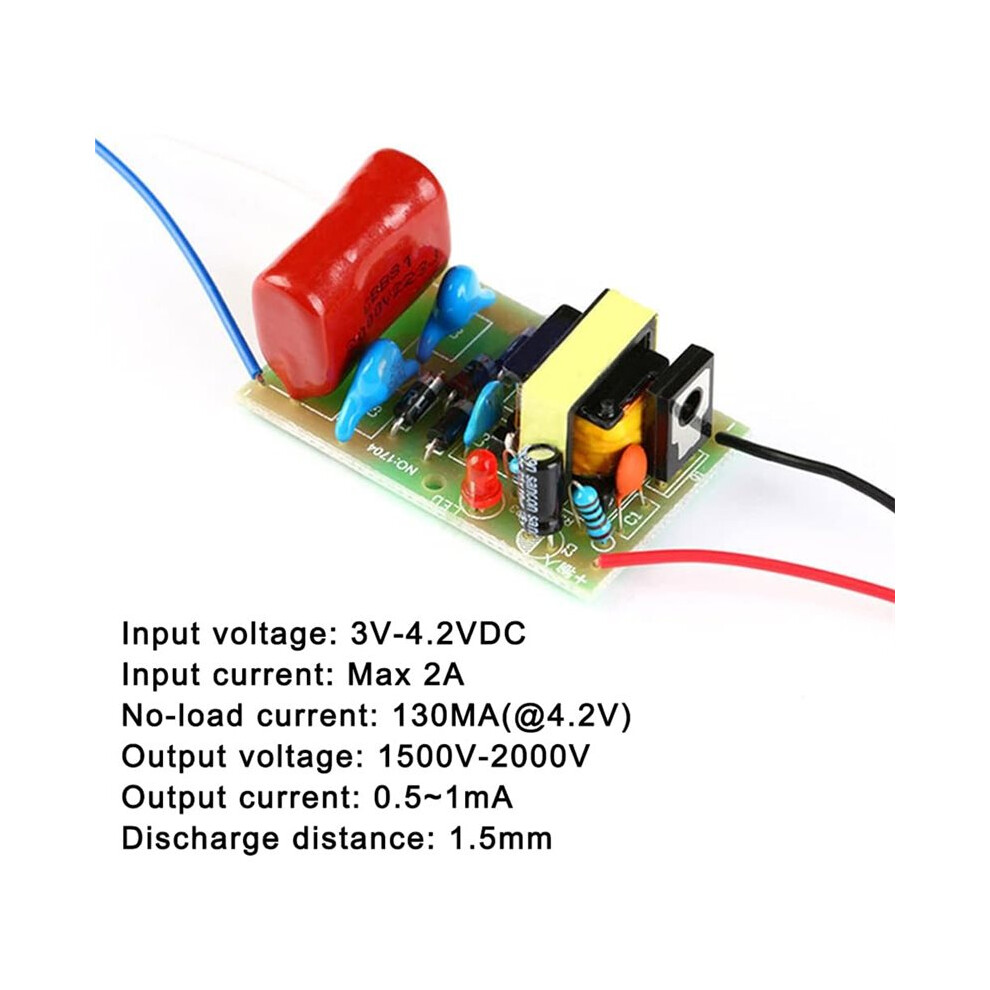

Input voltage: 3V-4.2V;Input Current: Max 2A;No-load current: 130MA(at 4.2V);Output voltage: 2000V (low battery voltage, low output voltage); Output current: 0.5~1mA(the external parallel capacitor can increase the output current).

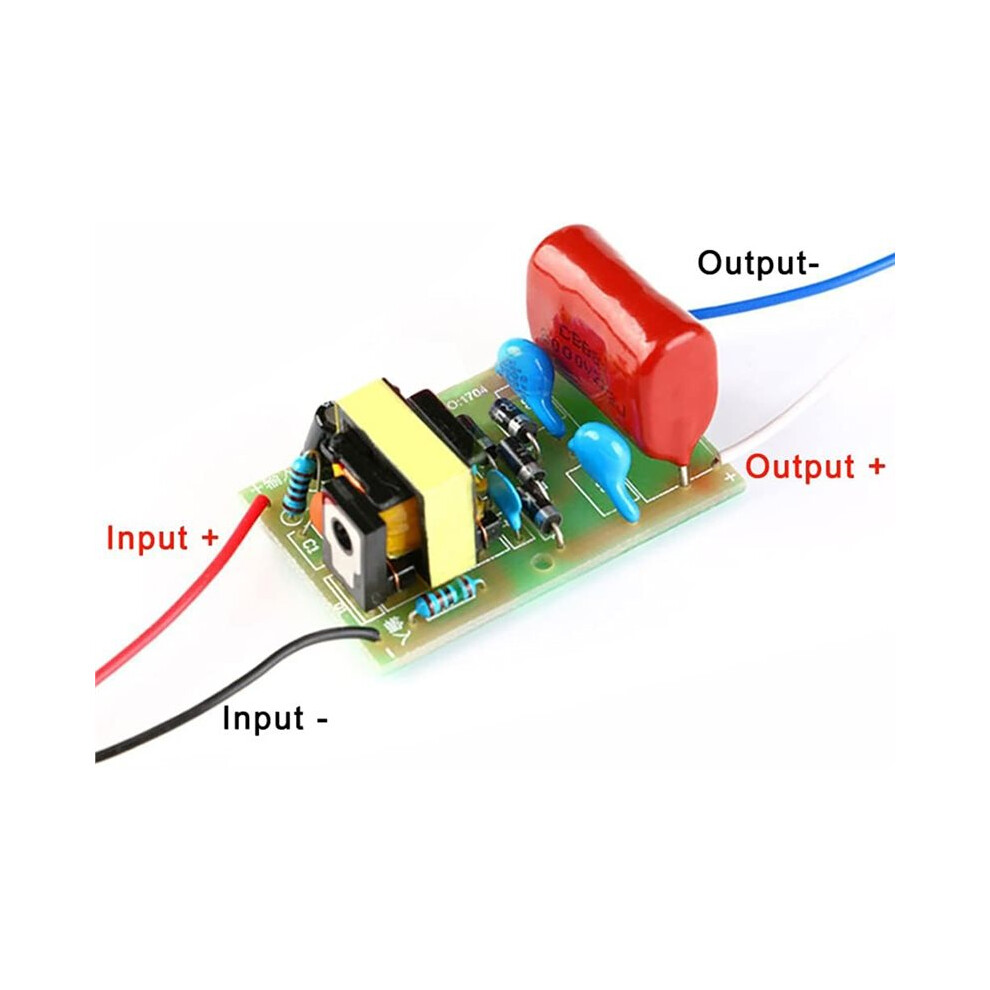

The output of 3V voltage input is about 1500V, the output of 3.7V input is about 1800V, and the output of 4.2V input is about 2000V. The output circuit is doubler rectifier. With high-voltage discharge capacitor, 2000V 223 (0.022uf). Note: High voltage output, pay attention to safety when using.
This is a high-voltage, low-current, low-power boost module. If you want to increase the instantaneous discharge current, you can output a large capacity, high-voltage capacitor in parallel (recommended four air-conditioning compressors CBB65 capacitor, 450V series use, capacity size according to your needs to choose).
Usage: Popular science experiment, electronic instrument, negative ion generator, scientific small-scale production, etc. Note: The board has a high voltage capacitor, which may leave surplus electricity after use.High pressure danger, use need to pay attention to safety.

Color: As Shown
Material: PCB

Package Contents:

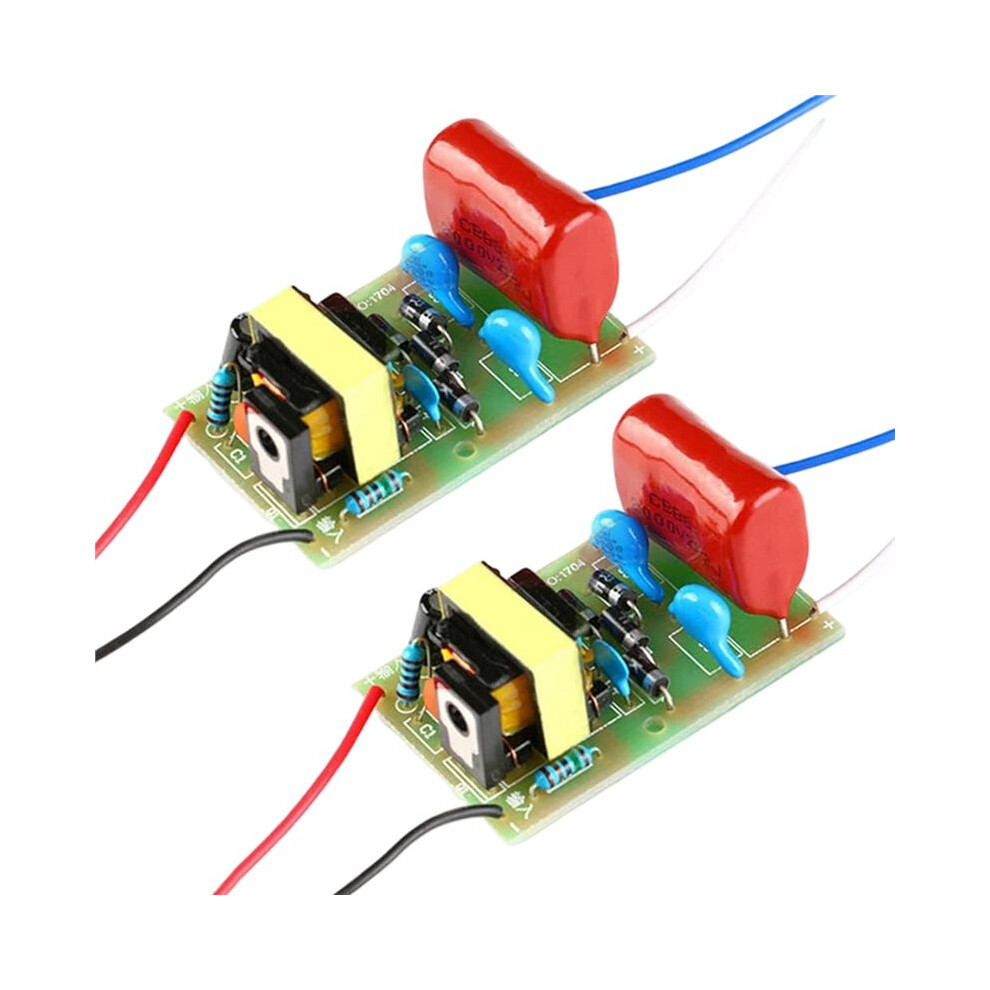

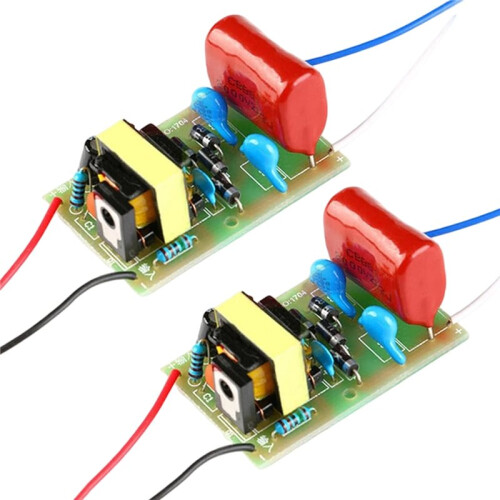

2*High Voltage Module
