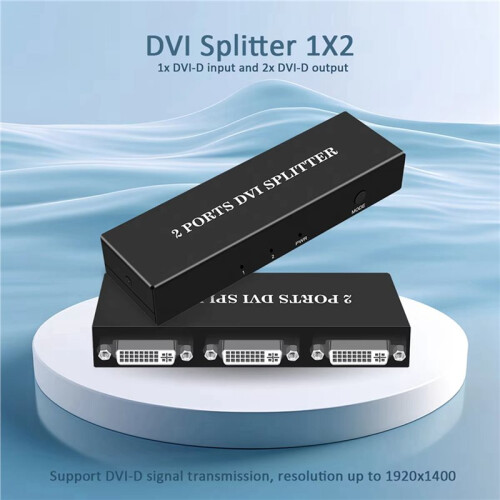

2X DVI Splitter 1X2 Switcher Extender Adapter 1 DVI-D Input and 2 DVI-D Output Dual Display for Display Computer

2X DVI Splitter 1X2 Switcher Extender Adapter 1 DVI-D Input and 2 DVI-D Output Dual Display for Display Computer Popis

1. 1x DVI-D input and 2x DVI-D output (DVI Splitter 1x2)
2. Support DVI-D signal transmission, resolution to 1920x1400
3. Support for long distance signal transmission
4. Installs in minutes, No loss of quality
5. Supports wide range voltage input (DC5V)

OPERATIONG AND CONNECTION:
1. Connect one DVI-D cable from a DVI signal source into the input port of splitter.
2. Connect DVI-D cables from TV/Monitor into the DVI output of splitter.
3. Connect plug of AC adapter to jack and inserted into the power socket.
Specifications:
1. DVI interface type:Dual link DVI-D
2. Support DIV signal format: to 2048x1536
3. Maxsignal bandwidth:340MHz
4. Max baud rate:3.4Gbps Serial Link
5. Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
6. Input/Output DDC signal:5Volts p-p (TTL)
7. DVI input cable distance:10m AWM 20276 DVI standard cable
8. DVI output cable distance:10m AWM 20276 DVI standard cable
9. Max working current:0.8A/5V
10. Power adapter:AC 100V-240V 50HZ/60Hz, DC5V/2A(DVISP002M1/DVISP004M1)
11. Operating Temperature range:-5 to +45
Colour: Black
Material: Aluminum Alloy

Package Contents:
2 x DVI Splitter
2 x Wiring
