4000W Compact Variable Voltage Controller Portable SCR Voltage Regulator for Speed Temperature Adjustment EU Plug

4000W Compact Variable Voltage Controller Portable SCR Voltage Regulator for Speed Temperature Adjustment EU Plug Popis

1. size, portable and , strong power, easy to use.
2. High power SCR voltage regulator, stepless regulation, help adjust speed, temperature, voltage and light.
3. Adopt high temperature resistant FR-4 circuit board, imported chip SCR, full aluminum thermal fin, precisions resistance with high voltage condenser.
4. Separate control, freely control the input power and cut off power.
5. No postpone and no delay, with crest voltage absorb circuit. Flame retardant insulation outshell, high temperature resistant, rustproof, anti high pressure and with fine durability.

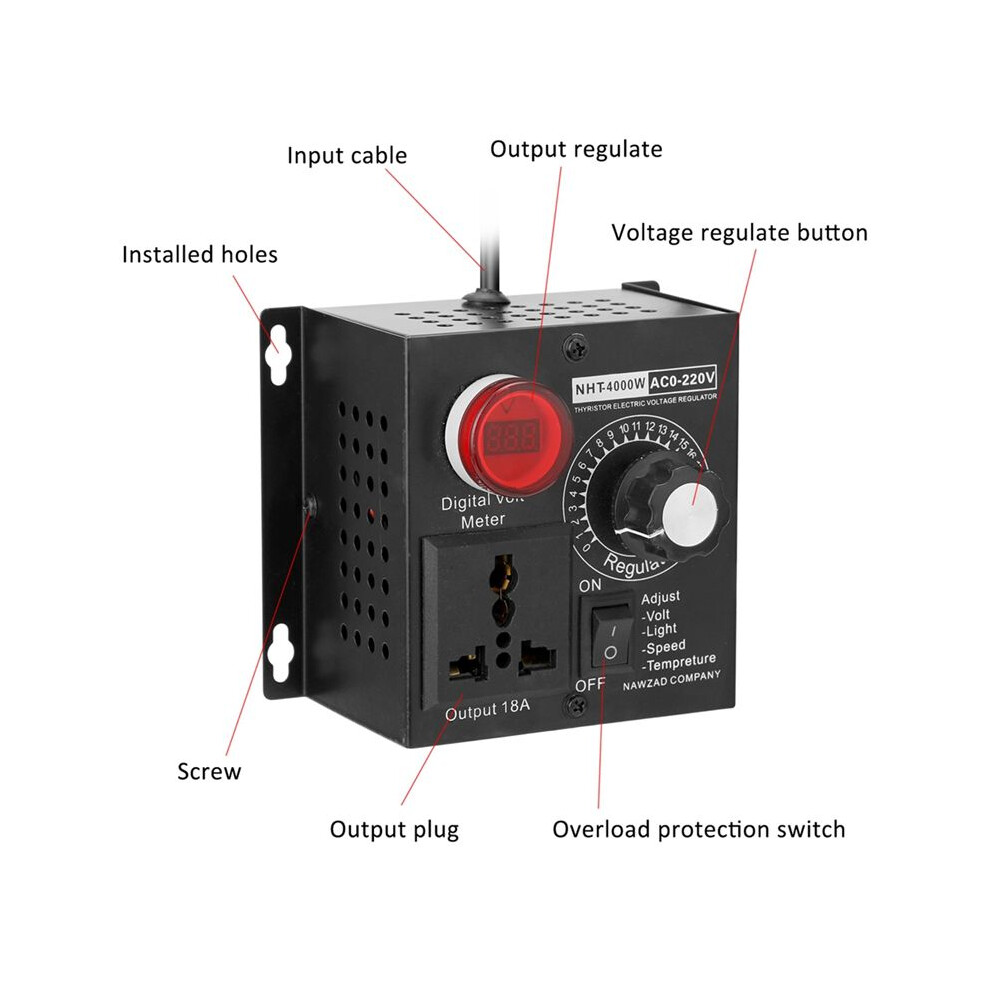

Adopt multi functional industrial sockets, thicken copper part design, with fine contact and safety.
Humanized installation hole design, keep flat place or hanging it is decided by yourself.
Silent work, saving, stable anti noise, and with wide range of use.
Suitable for electrical components, such as: electric stove, water heater, heat transfer lamp dimming, small motor, electric soldering temperature and etc.
Name:SCR Voltage Regulator
Maximum power:4000W
Rated current:9A
Maximum current:18A

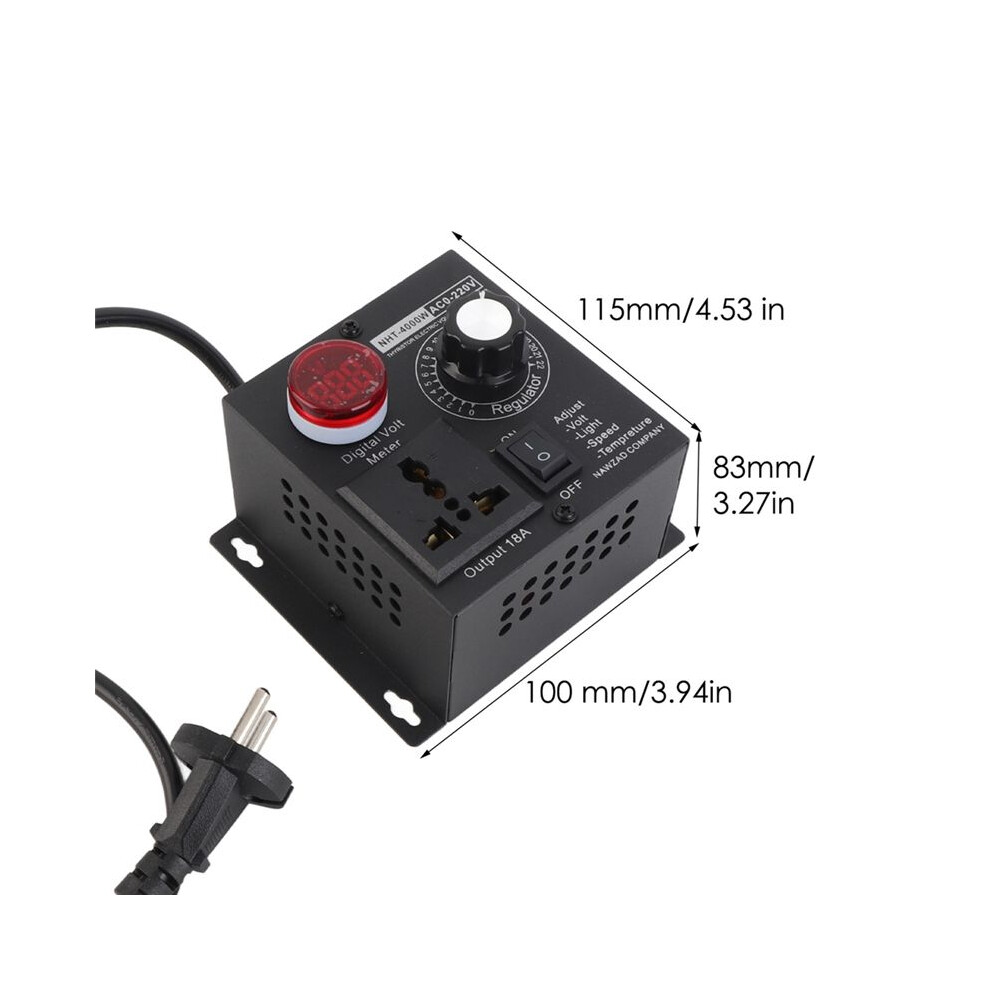

Main machine size:115x100x83mm/4.53x3.94x3.27in
Item weight:459g/1.01lb
Note:
When measuring the output voltage when it is empty, it is a virtual voltage. It must be connected to a load of 20W or more to measure the correct output voltage.
Input AC power, the output is also AC, not .
The above mentioned 4000W refers to the ulti mate power when working under resistive load.
The inductive load is 1/3 of the resistive load. The resistive load means that the inductive load such as a filament lamp or a heating wire is a series-excited motor,etc.,and the circuit board electronic products are used with caution.
This product is a metal case and must be grounded safely.
Plug Type:EU Plu
