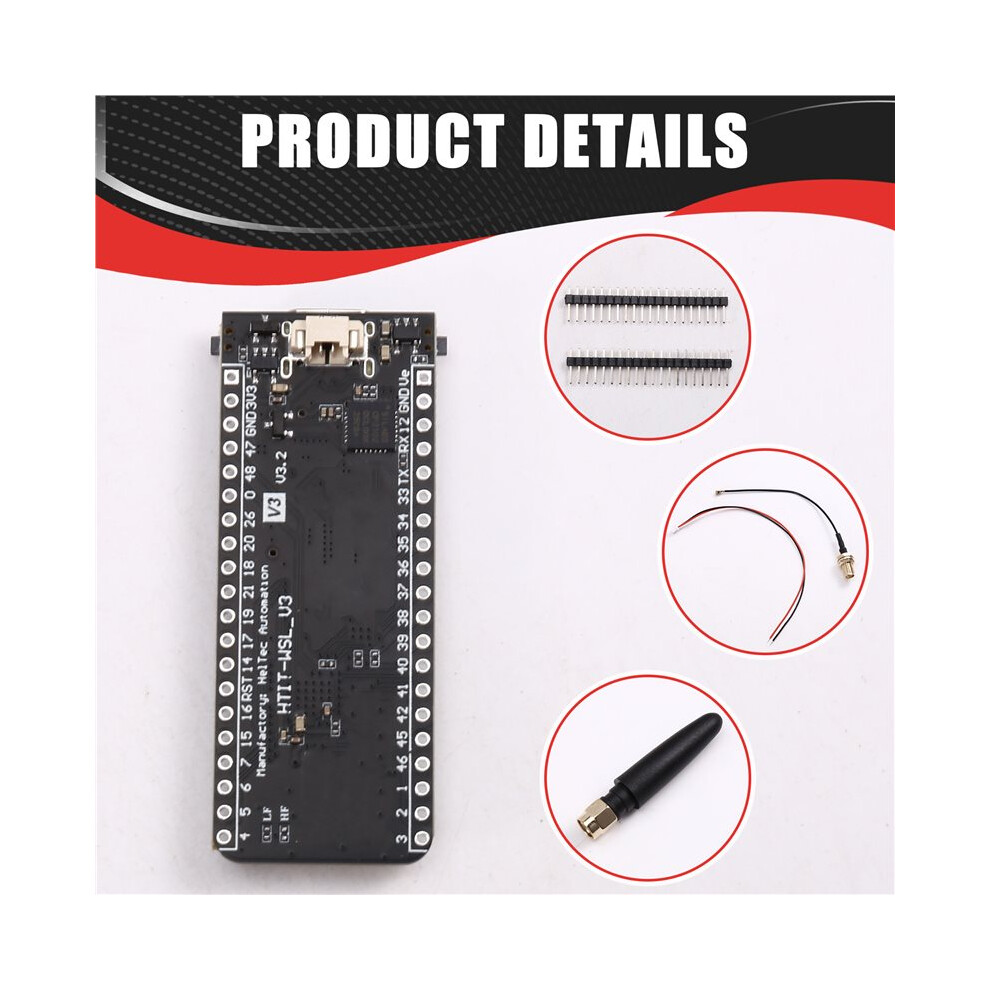

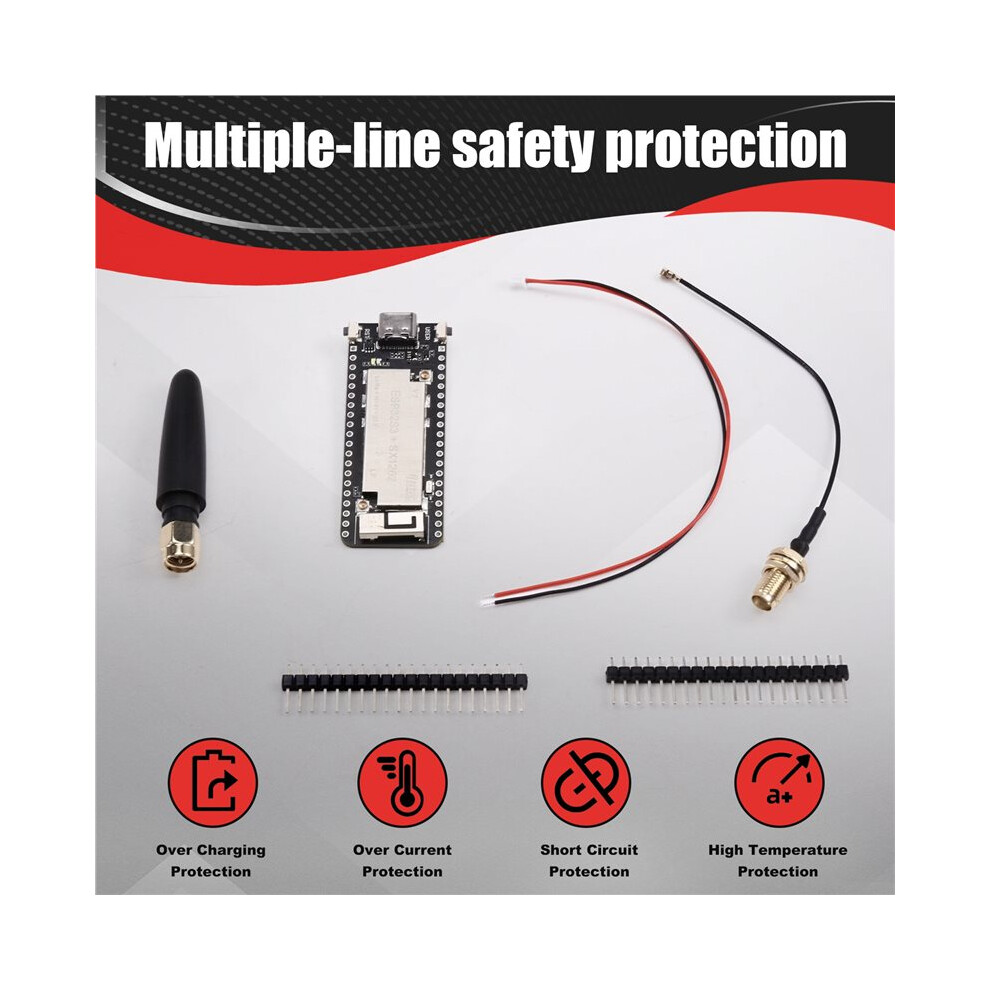

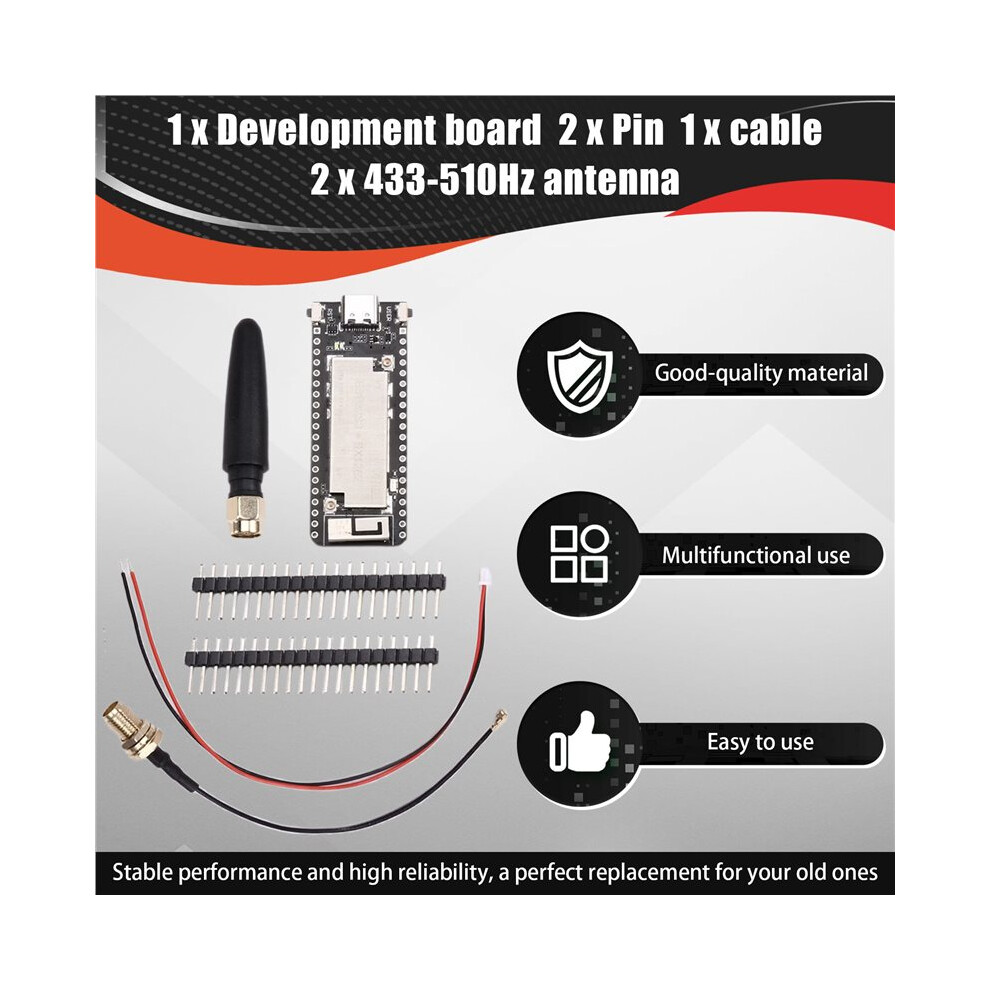

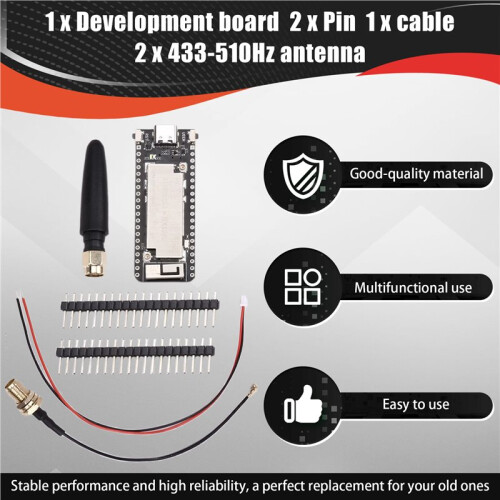

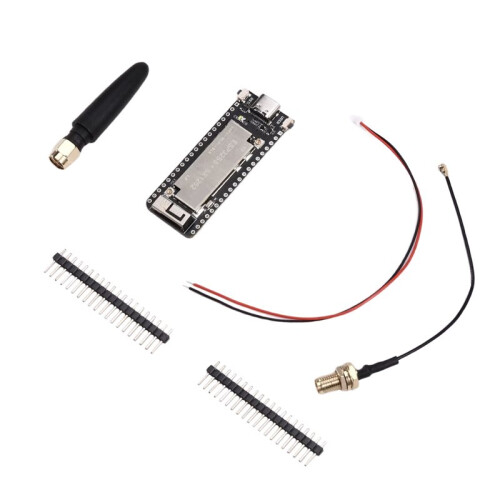

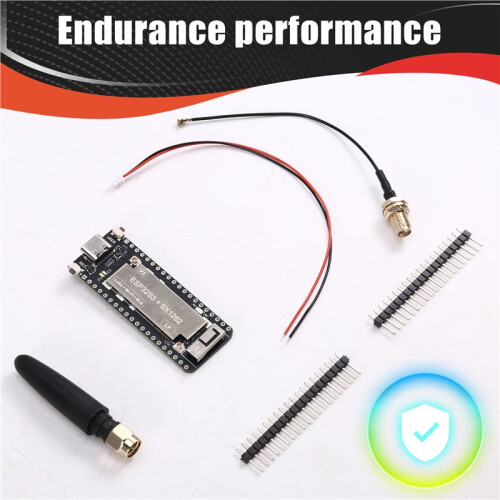

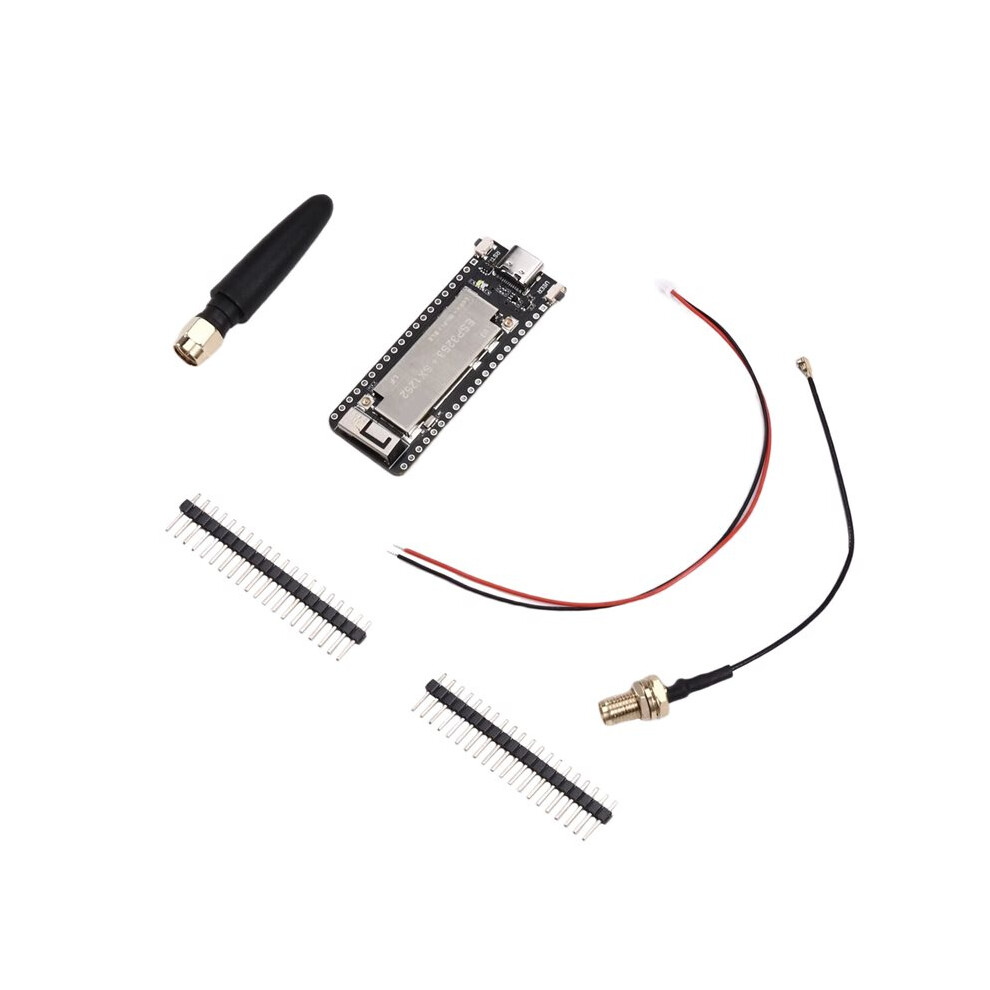

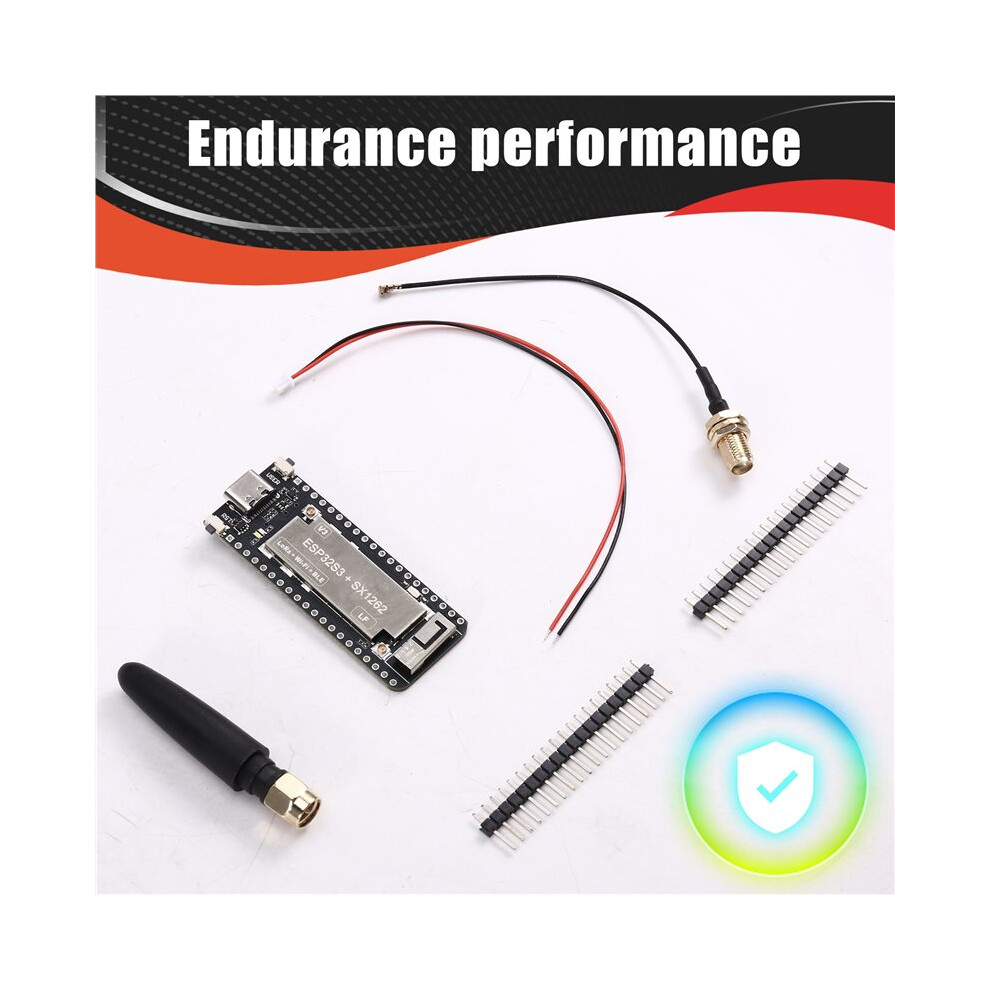

433-510MHZ Wireless Stick Lite V3 ESP32+LoRa Development Board Compatible with ESP32-S3 Node Type-C

433-510MHZ Wireless Stick Lite V3 ESP32+LoRa Development Board Compatible with ESP32-S3 Node Type-C Popis

1. The upgraded version is smaller and more -saving. It integrates the advantages of traditional wireless modules to make the product smaller and consume less ;
2. Shielding cover, strong anti-interference, the shielding cover is installed the module, which greatly improves the anti-interference ability of the product;
3. Using SX1262+ESP32 chip, it fully supports the IoT development kit of the standard LoRaWAN protocol;
4. Rich interfaces, products can be programmed through standard libraries and simple development languages, and solution verification and product development can be quickly completed;
5. Supports three major wireless communication protocols, ESP32 chip, supports WIFI, BLE and LoRa wireless communication functions. It is applicable to various intelligent scenarios. It can be used as a gateway for Internet of Things products and can also be used to drive terminal products;

Product parameters:

Frequency band: 433-510MHZ

MCU chip: ESP32-S3FN8

LORA chip: SX1262

Maximum receiving sensitivity: -139dBm

LORA maximum output power: 211dBm

Hardware resources: 7xADC1; 9xADC2; 8xTouch; 3xUART; 2x I2C; 2xSPI

FLASH:8MB

Interface: Type-C, battery interface, LORA antenna interface, 2. 4G antenna interface (IPEX)

USB to serial port chip: CP2102

Battery type: supports 3.7v lithium battery charging and discharging (battery not included in product)

Sleep current:
