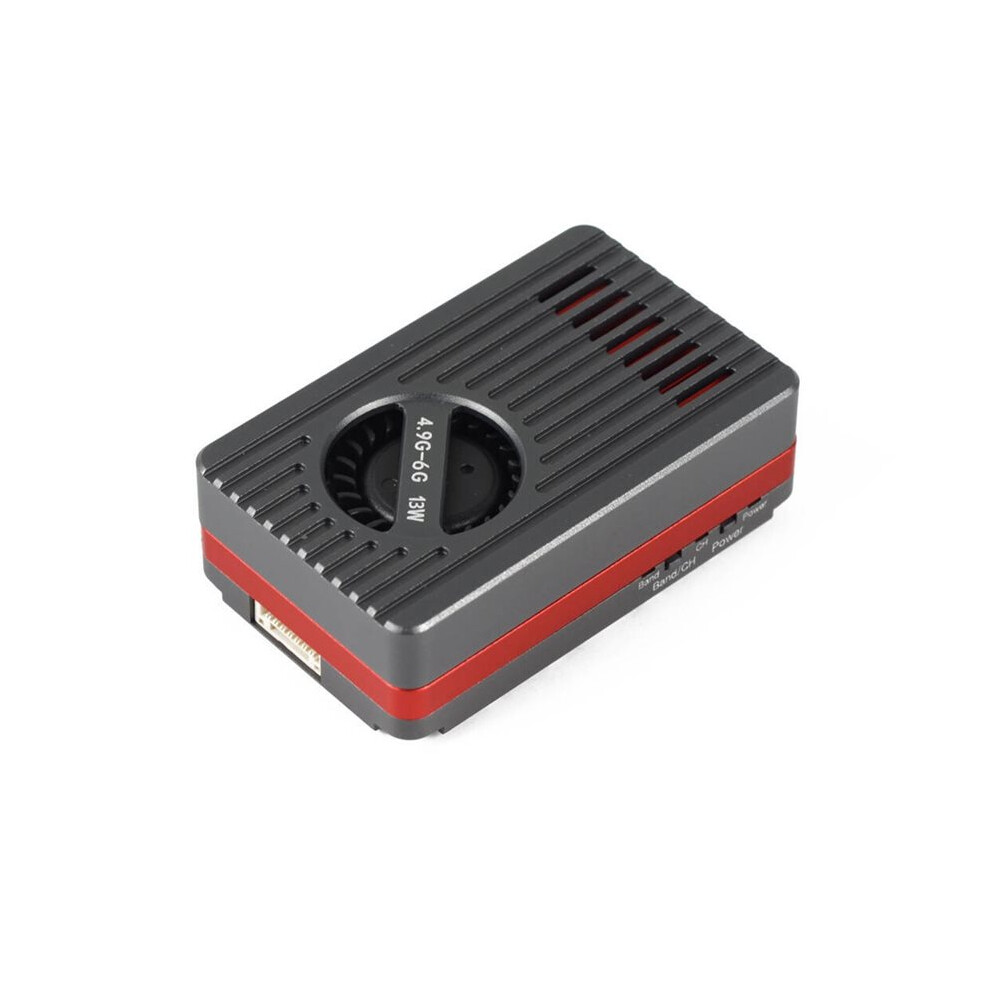

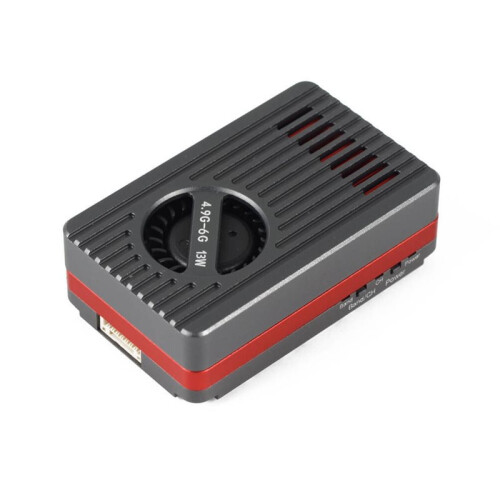

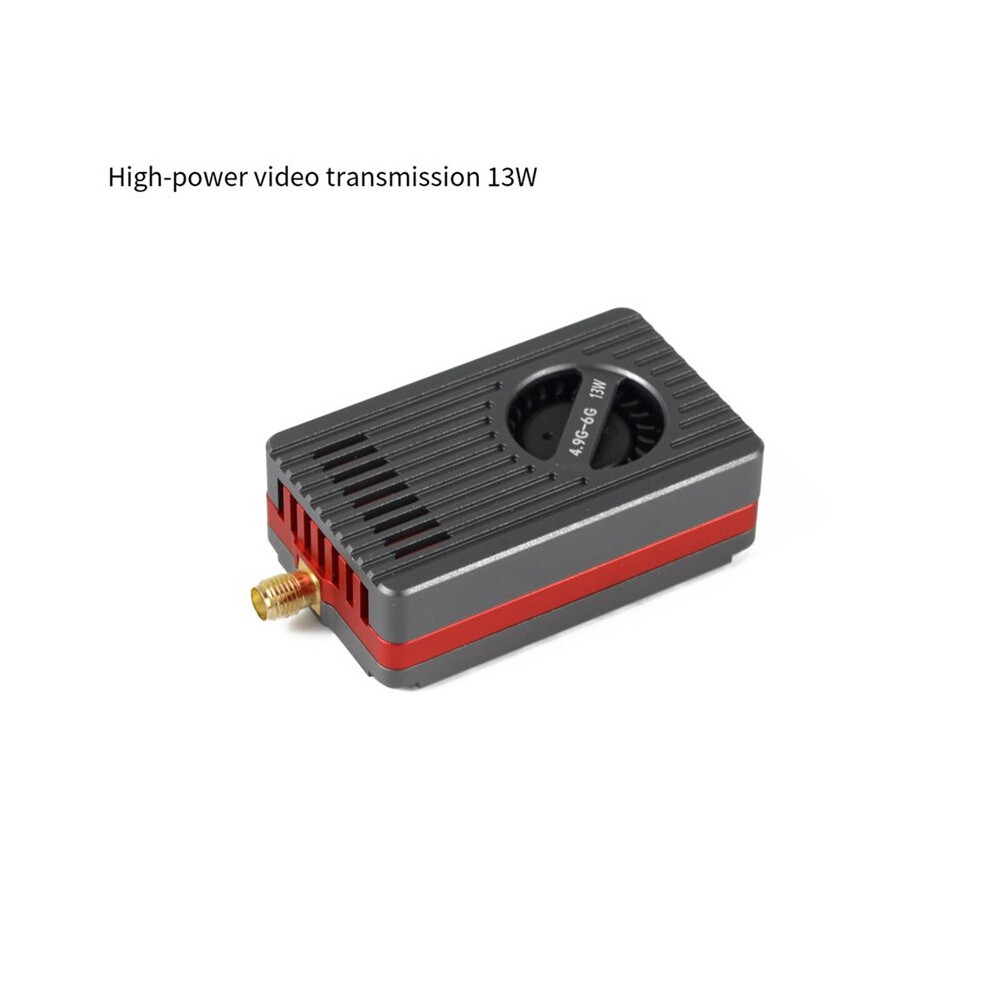

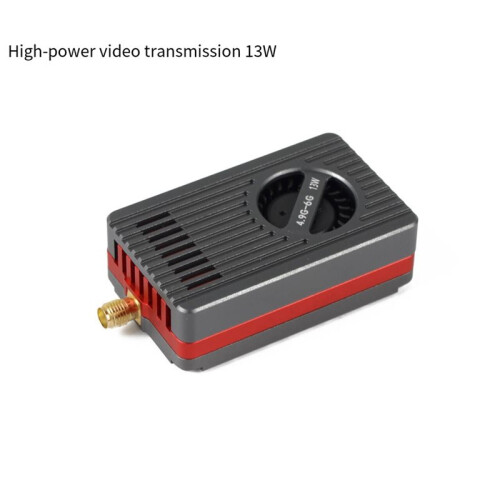

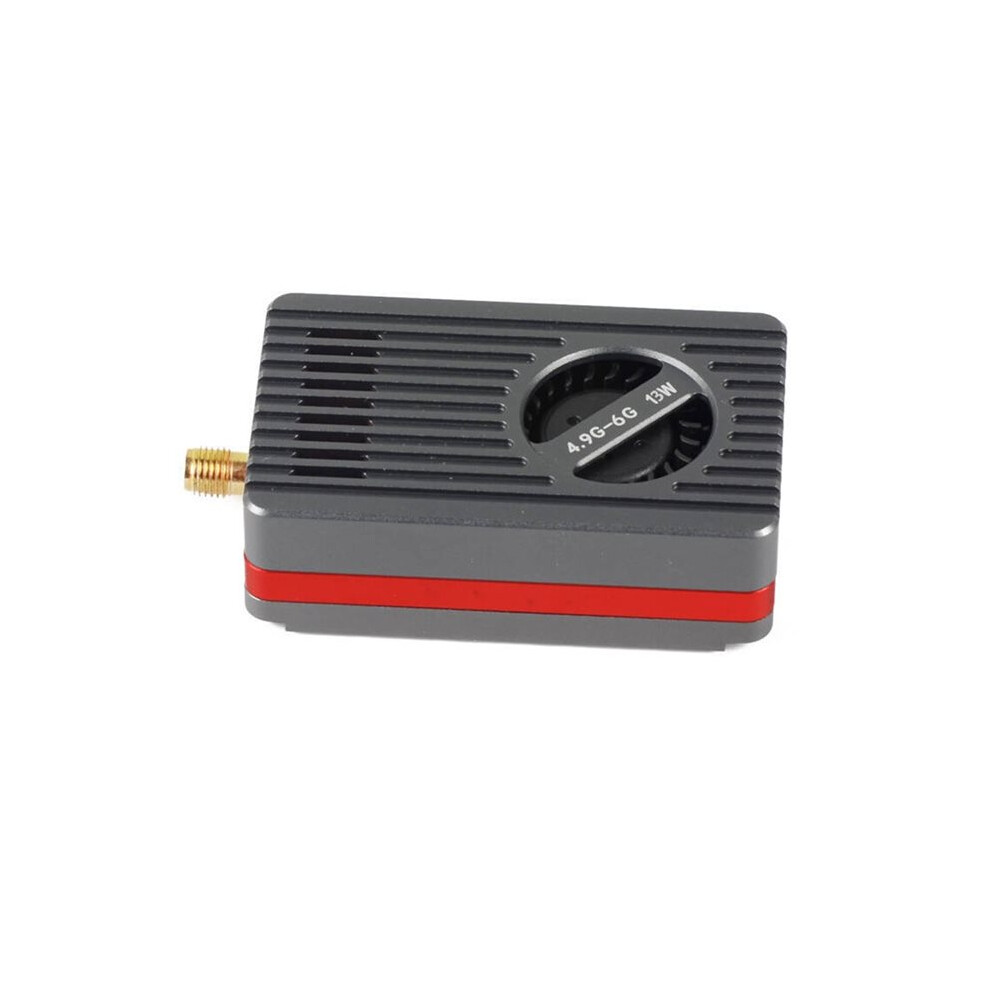

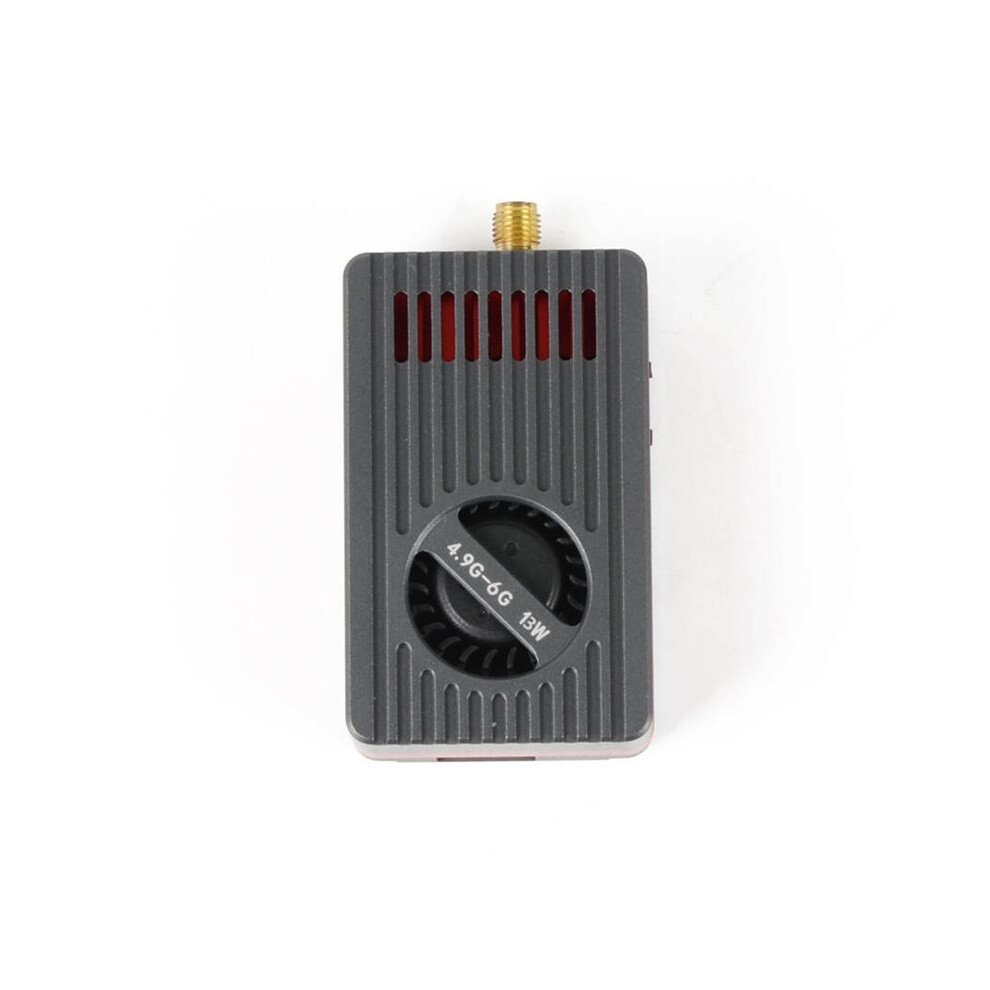

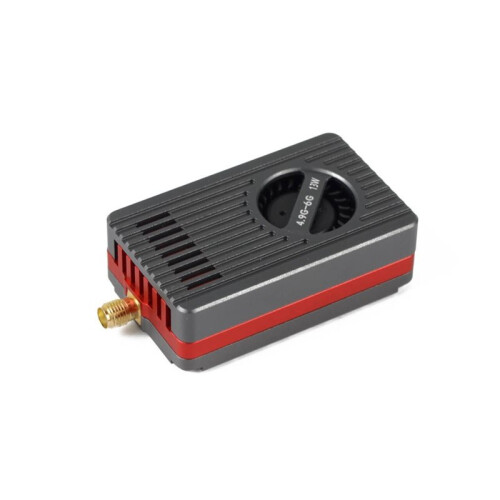

4.9G-6G 13W VTX 80CH High-Power FPV Video Transmitter SMA Interface for RC FPV Long Range Fixed-Wing Drones

4.9G-6G 13W VTX 80CH High-Power FPV Video Transmitter SMA Interface for RC FPV Long Range Fixed-Wing Drones Popis

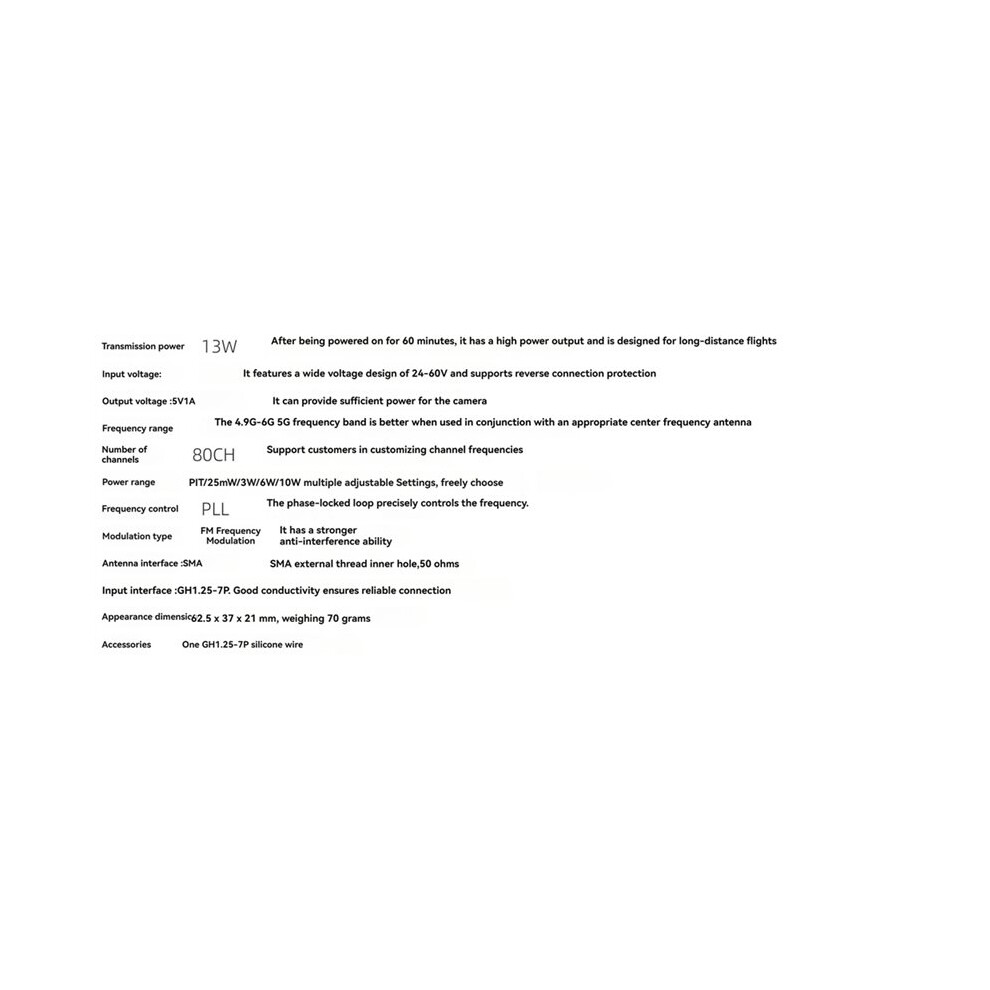

Transmission Power: 13W, designed for long-distance flight with power after 60 minutes of operation.
Input Voltage: 24-60V, wide voltage design supports reverse connection protection.
Output Voltage: 5V1A, provides sufficient power for the camera.
Frequency Range: 4.9G-6G, optimized for 5G band with appropriate antenna.
Power Levels: Adjustable levels including PIT/25mW/3W/6W/10W for flexible usage.

Transmission Power: 13W, power after 60 minutes of operation, designed for long-distance flight
Input Voltage: 24-60V, wide voltage design, supports reverse connection protection
Output Voltage: 5V1A, provides sufficient power for the camera
Frequency Range: 4.9G-6G, 5G band, works best with an antenna of the appropriate center frequency
Number of Channels: 80CH
Frequency Control: PLL phase-locked loop for precise frequency control
Modulation Type: FM, frequency modulation provides stronger anti-interference capabilities
Antenna Interface: SMA, SMA male connector, 50 ohms
Input Interface: GH1.25-7P, good conductivity ensures reliable connection
Color: Red & Black
Material: Carbon Fiber

Package Contents:
1*VTX
1*GH1.25-7P Cable
