4S 1.2A Balance Equalizer Module Li-Ion Lifepo4 Lithium Battery Active Balancer Transfer

4S 1.2A Balance Equalizer Module Li-Ion Lifepo4 Lithium Battery Active Balancer Transfer Popis

Notice: More than 13 series cable plugs need to be inserted obliquely, first contact the B- pin and insert it obliquely upward, otherwise it may cause the board to burn.
Working voltage: 2.0V-4.5V
Universal ternary iron lithium battery
LTO battery is not applicable! ! !

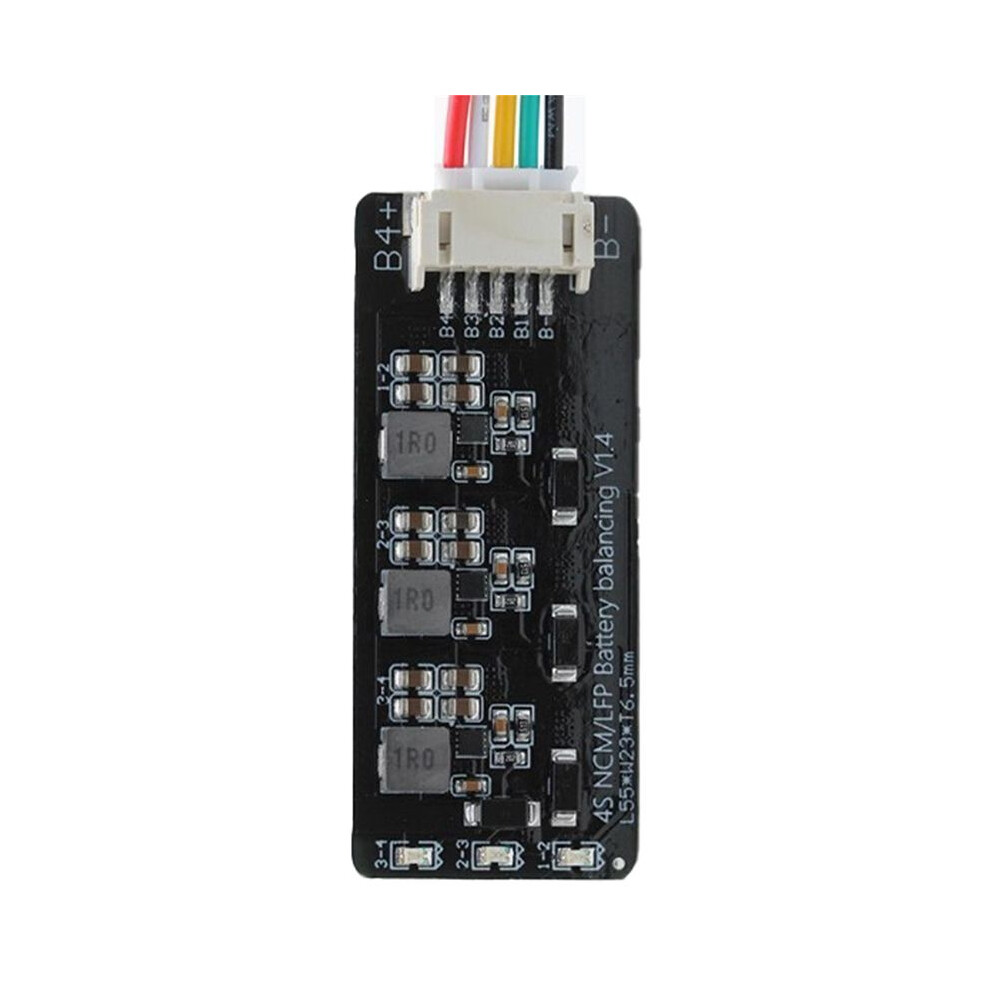

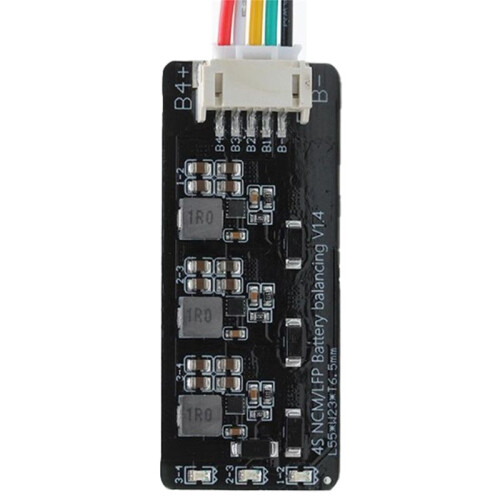

This board is based the principle of adjacent equalization and cannot be used as a maintenance tool.To connect to the battery,it must be used with the lithium battery protection board.The pressure difference generated by charging and discharging triggers the work of the equalization board to achieve transfer and balance.Inductive transfer balance board,high current 1.2A transfer battery voltage balancer,significantly balance the battery voltage and improve the overall use efficiency of the battery pack.
Wiring Definition:
B-: The total negative pole of the battery pack(the negative pole of the first battery)
B1: Positive pole of the first battery
B2: Positive pole of the second battery
B3: Positive pole of the third battery
B4: Positive pole of the fourth battery
Balance Instructions: 1. When the equalization light is , the equalization work is turned ;2. The equalization light is off, and the equalization circuit is in sleep state;3. The equalization light flashes,indicating that the string is dropped,or the circuit is faulty
Balance current: 1. The adjacent voltage difference is more than 0.1V(the current is about 0.5-0.7A); 2. Adjacent voltage difference is more than 0.2V(maximum equilibrium current is 1.2A);3. The smaller the voltage difference,the smaller the equalizing current
Colour:As Shown
Material:Plastic+Metal

Package Contents:
1 * Current balance module
