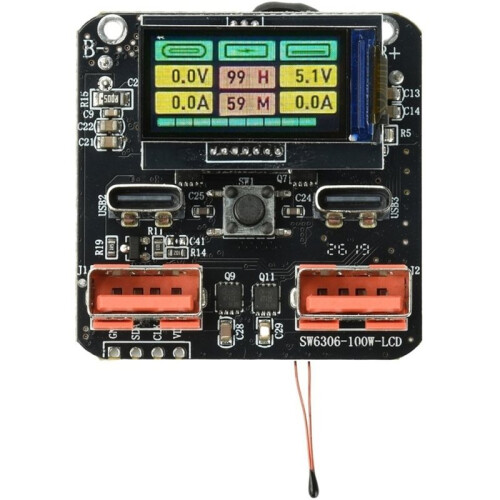

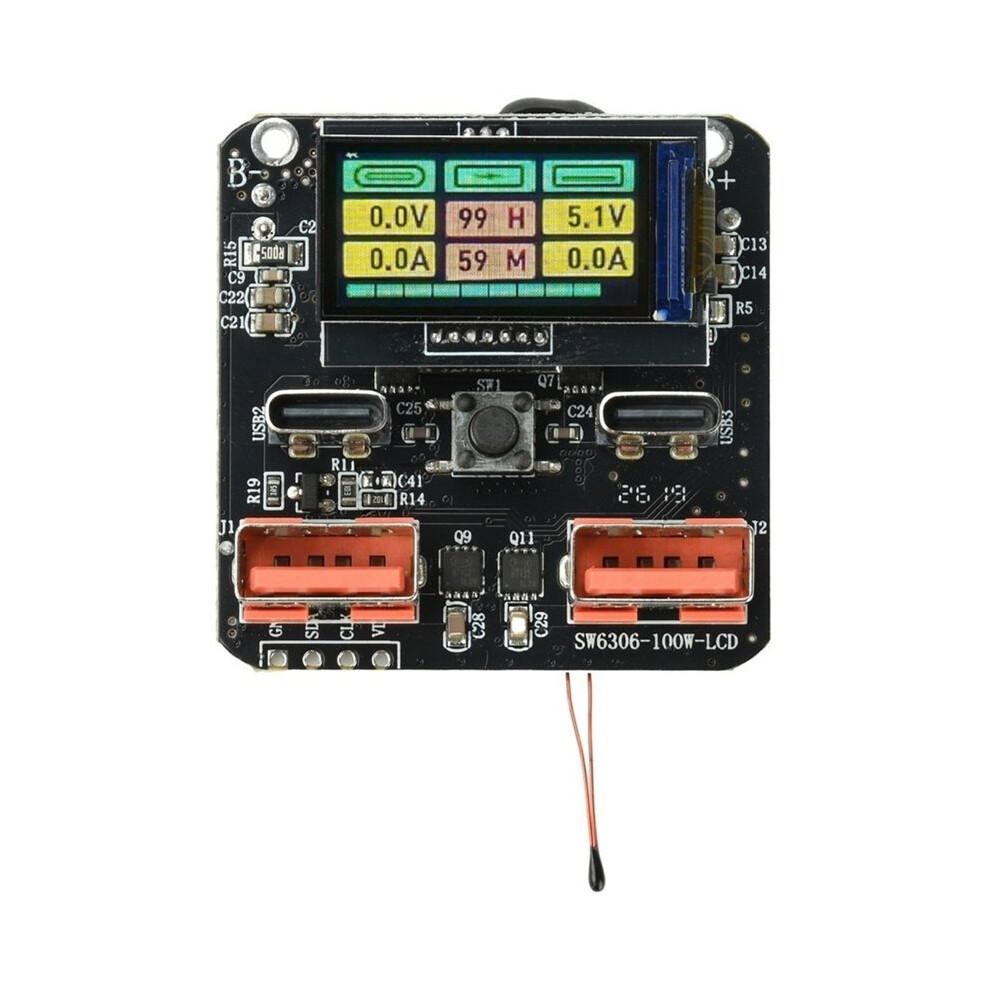

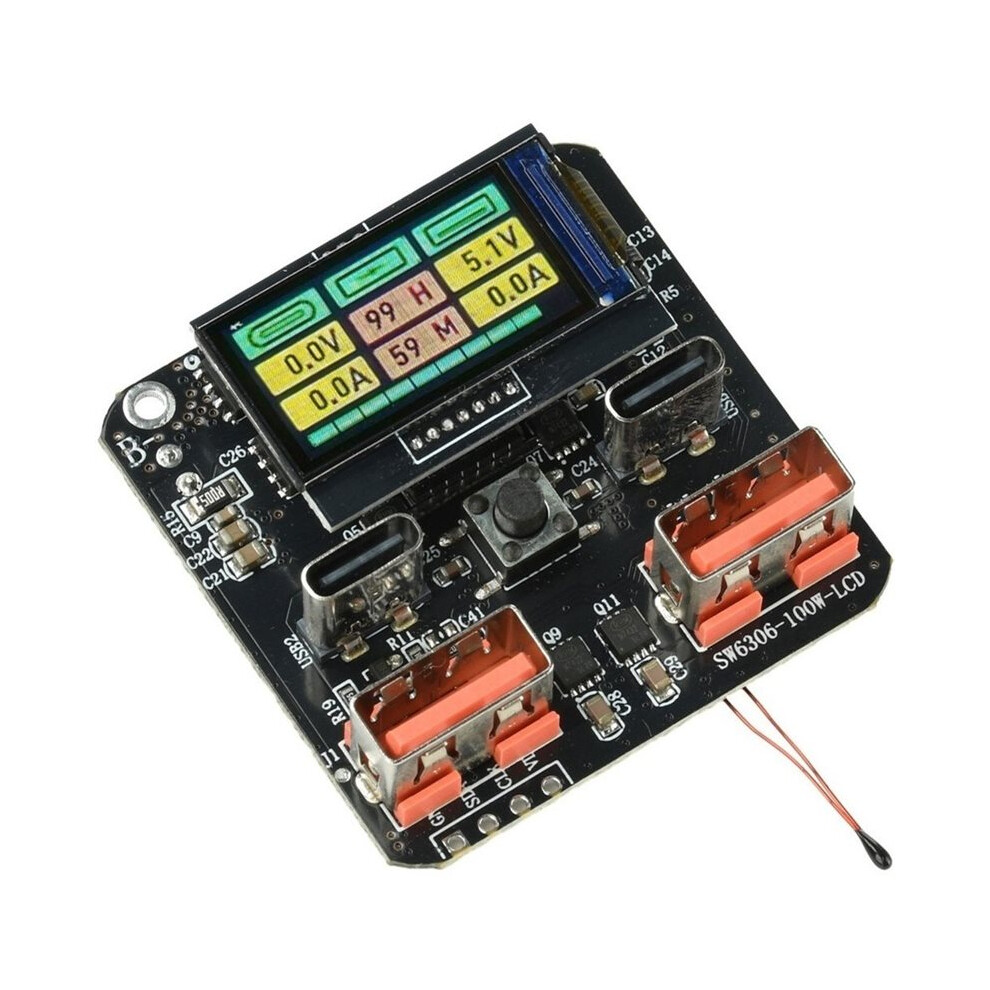

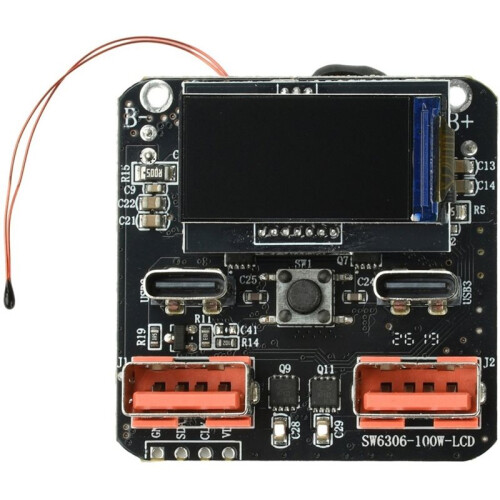

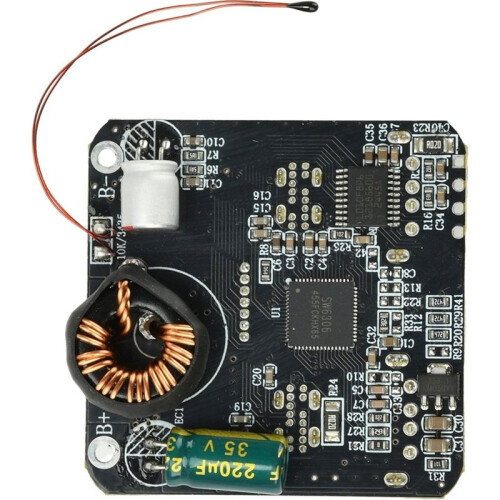

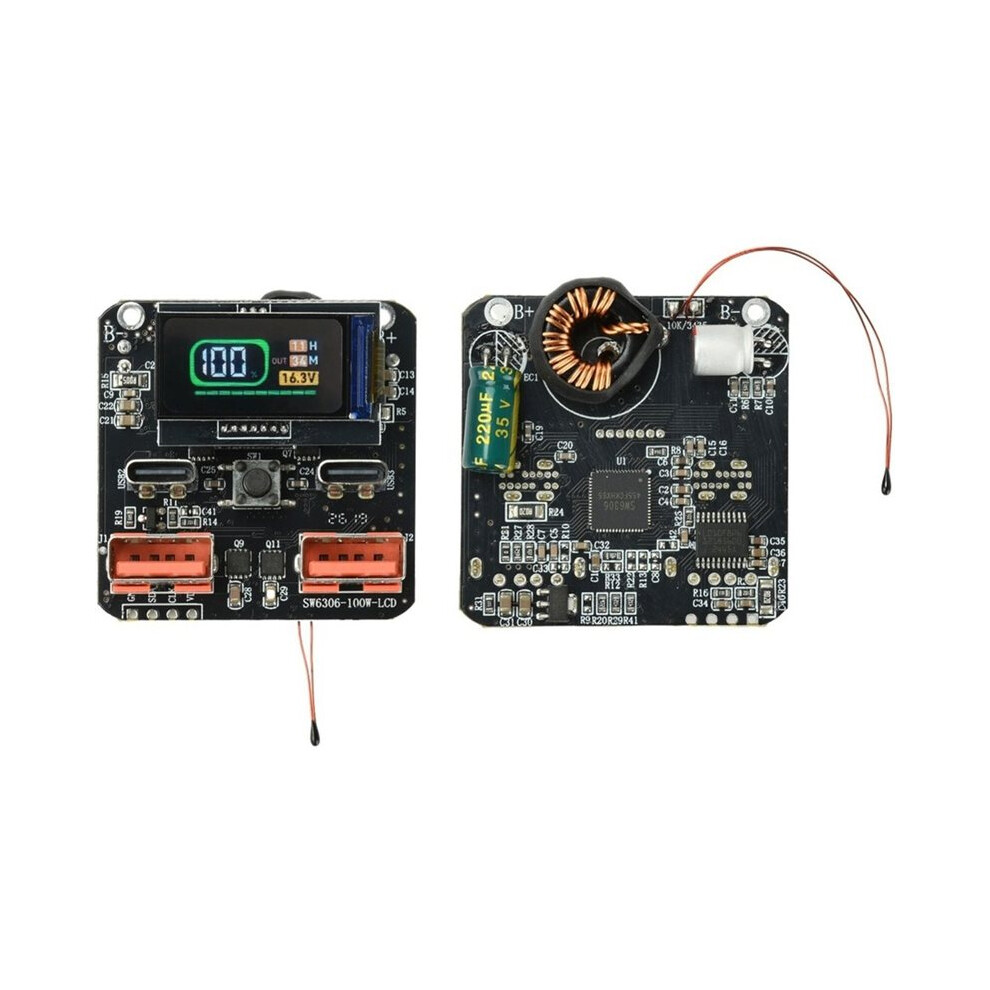

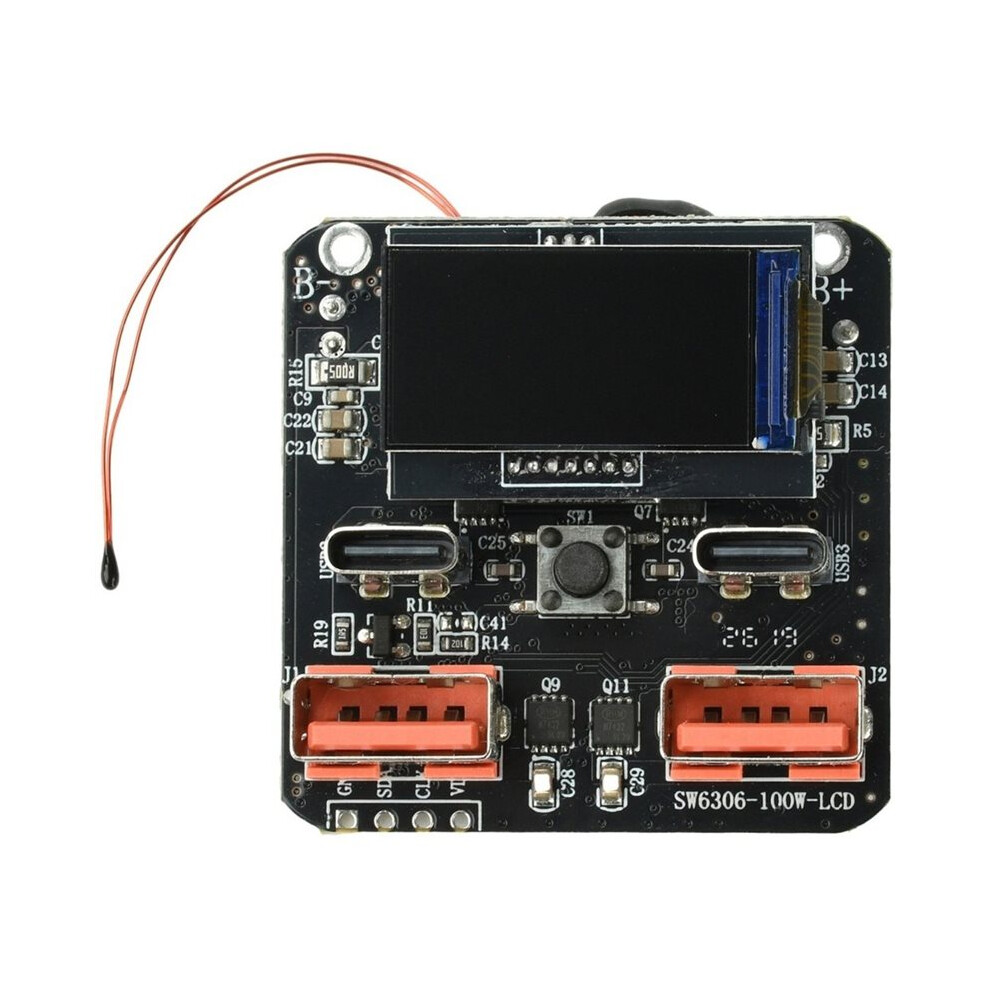

4S PD 100W Fast Charging Module 20V 5A High Power Charge/Discharge Buck-Boost Module Bidirectional Fast Charging Module

4S PD 100W Fast Charging Module 20V 5A High Power Charge/Discharge Buck-Boost Module Bidirectional Fast Charging Module Popis

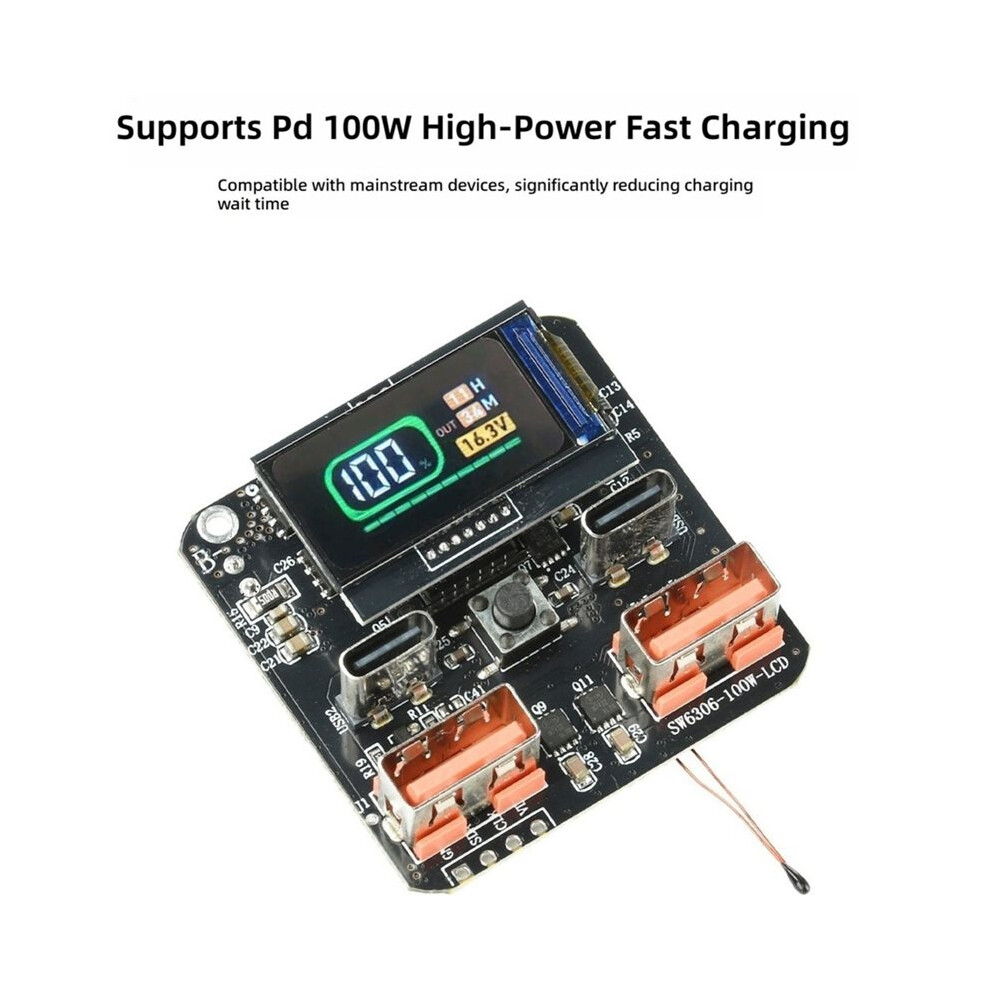

1. Supports PD 100W high-power fast charging; compatible with mainstream devices, significantly reducing charging wait times.

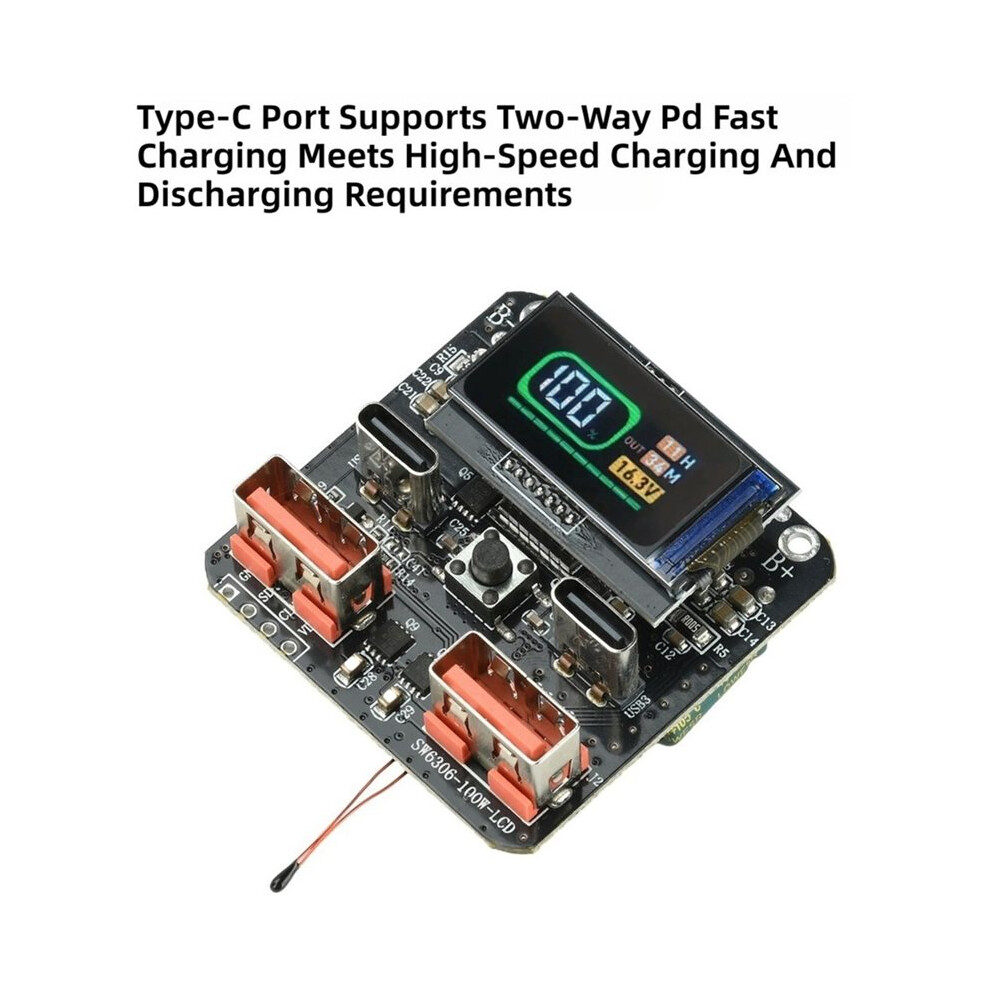

2. The Type-C port supports bidirectional PD fast charging, meeting high-speed charging and discharging needs.

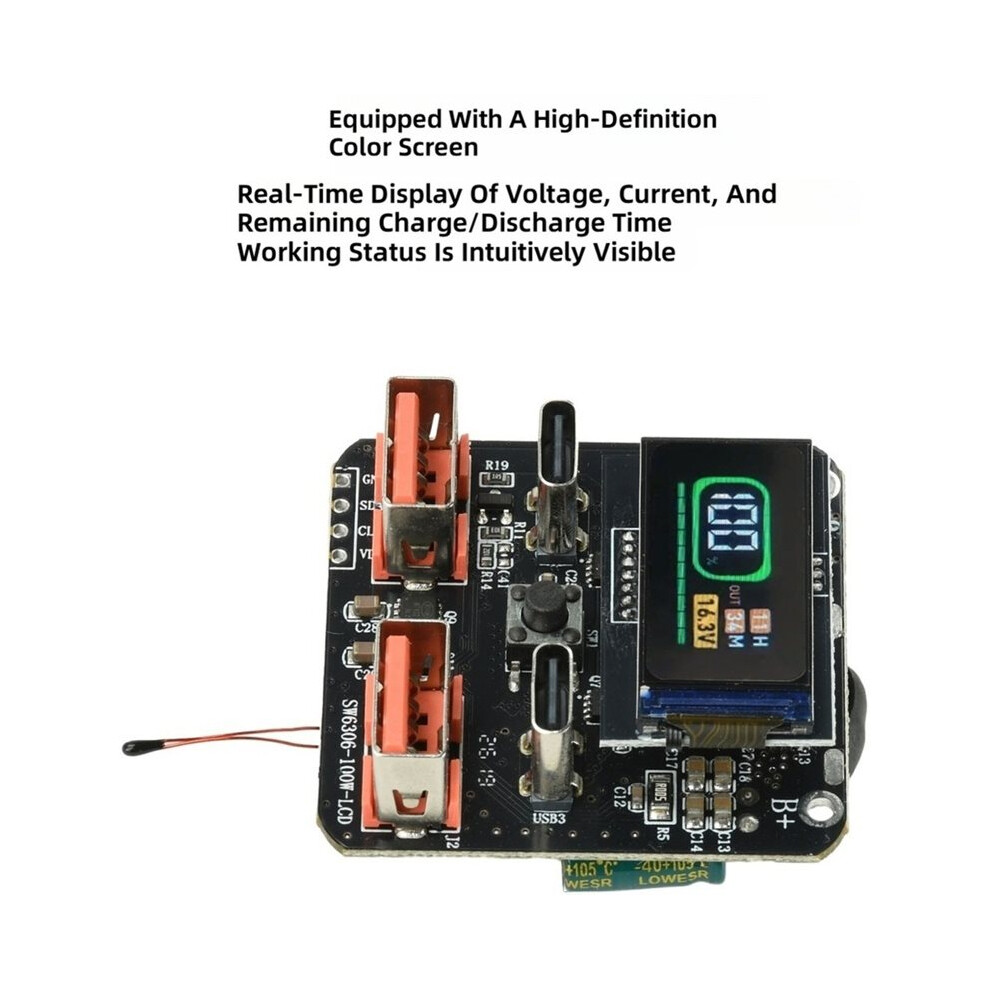

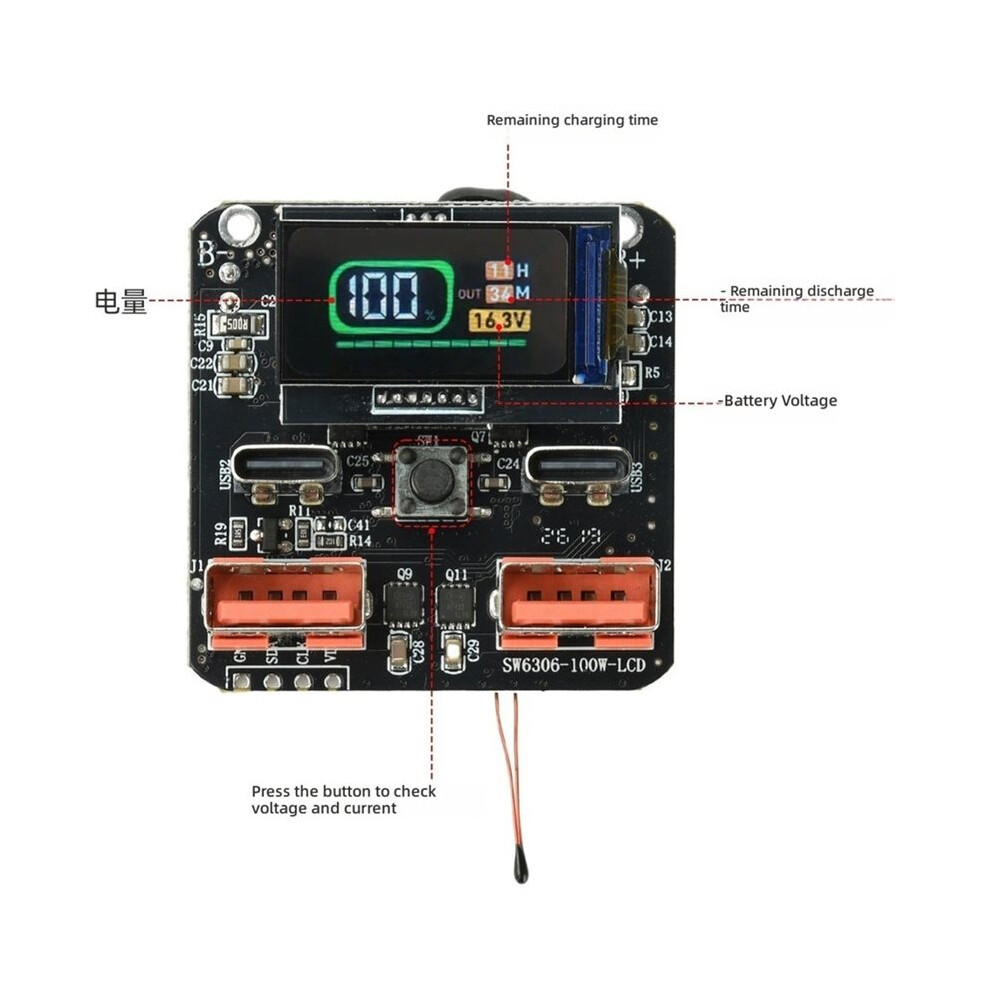

3. Features a high-definition color display that shows voltage, current, and remaining charge/discharge in real-, providing clear visibility of the operating status.

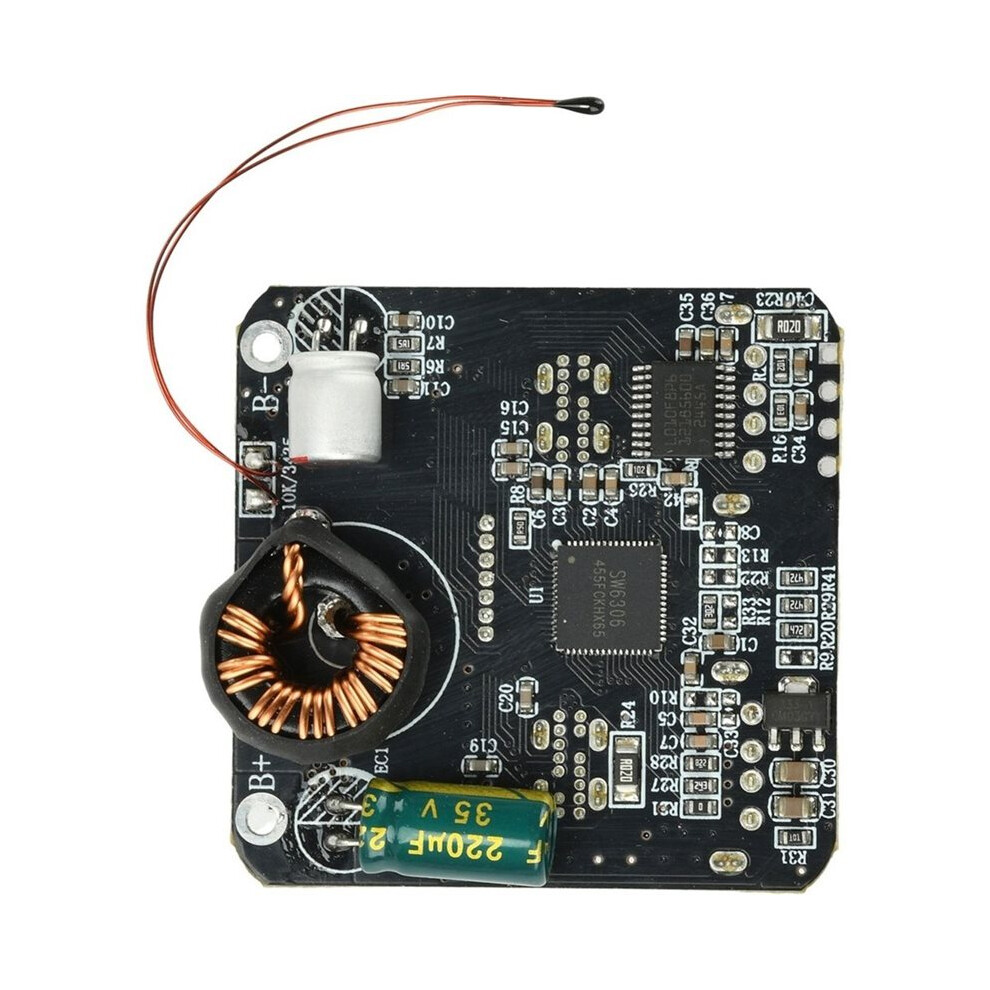

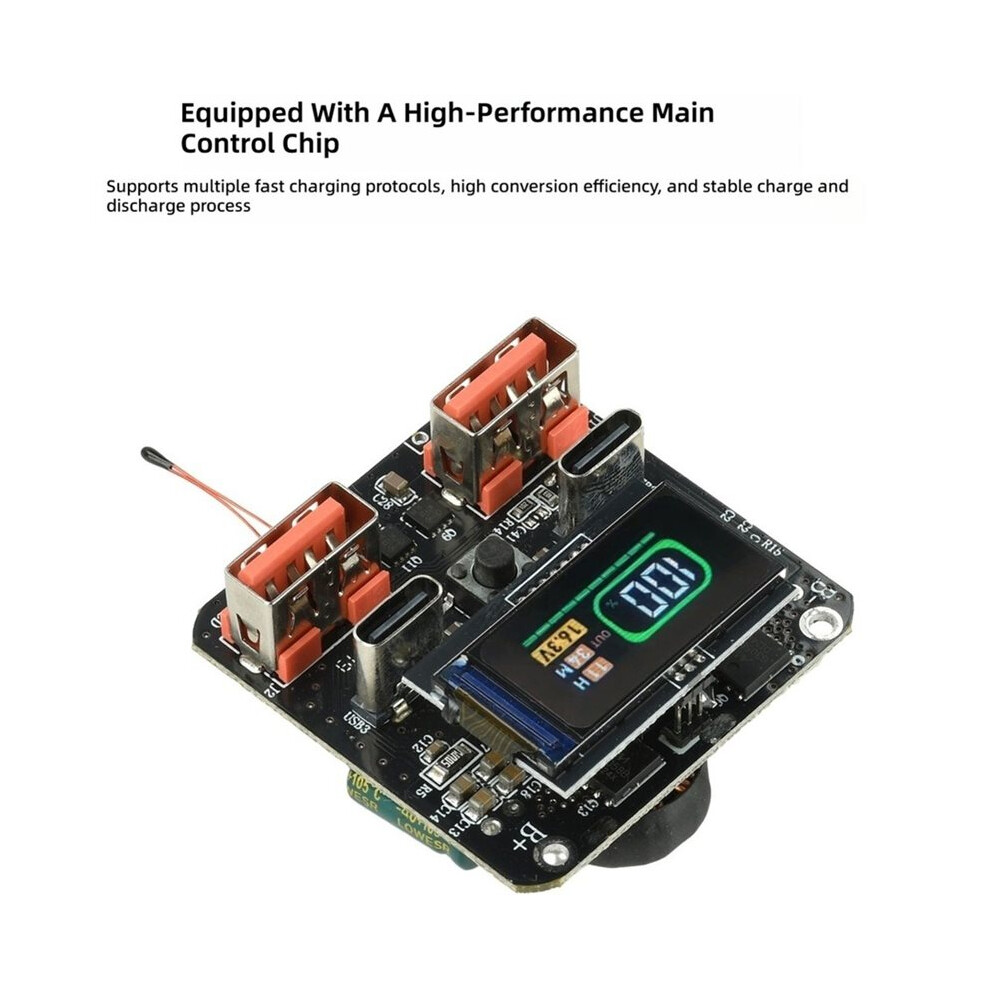

4. Equipped with a high-performance main control chip; supports multiple fast-charging protocols, offers high conversion efficiency, and ensures stable charging and discharging processes.
5. Supports mainstream fast-charging protocols; widely compatible with devices from various brands, offering strong compatibility and diverse application scenarios.

Product Parameters:
Type-C1 Input: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A
Type-C2 Input: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A
Type-C1 Output: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-5A
Type-C2 Output: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A
USB-A1 Output: 5V-3A, 9V-2A, 12V-1.5A (22.5W), 20V-5A (UFCS protocol)
USB-A2 Output: 5V-3A, 9V-2A, 12V-1.5A (22.5W), 20V-5A (UFCS protocol)
Real- display of battery level, voltage, current, and remaining charge/discharge .
Precautions
1. Do not solder while powered .
2. The mainboard has only +/- terminals; soldering while powered carries a risk of short-circuiting due to hand tremors. Please disconnect power before soldering and connect the mainboard +/- terminals first. Solder the battery pack's negative terminal last!!! The two mainboard wires cannot balance the battery cells; cell balancing and protection functions are handled by the lithium battery protection board.
3. The chip uses a coulomb counter to calculate battery level; the initial reading may not be accurate upon first pow
