4V -60V High-Power Mos Fet Trigger Drive Module Board Pwm Adjustable Controller Dual-Mos Module

4V -60V High-Power Mos Fet Trigger Drive Module Board Pwm Adjustable Controller Dual-Mos Module Popis

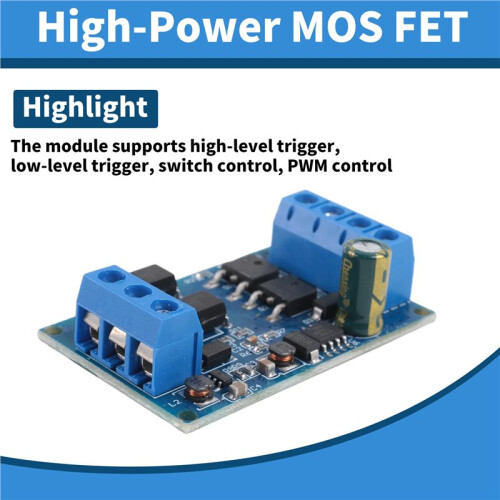

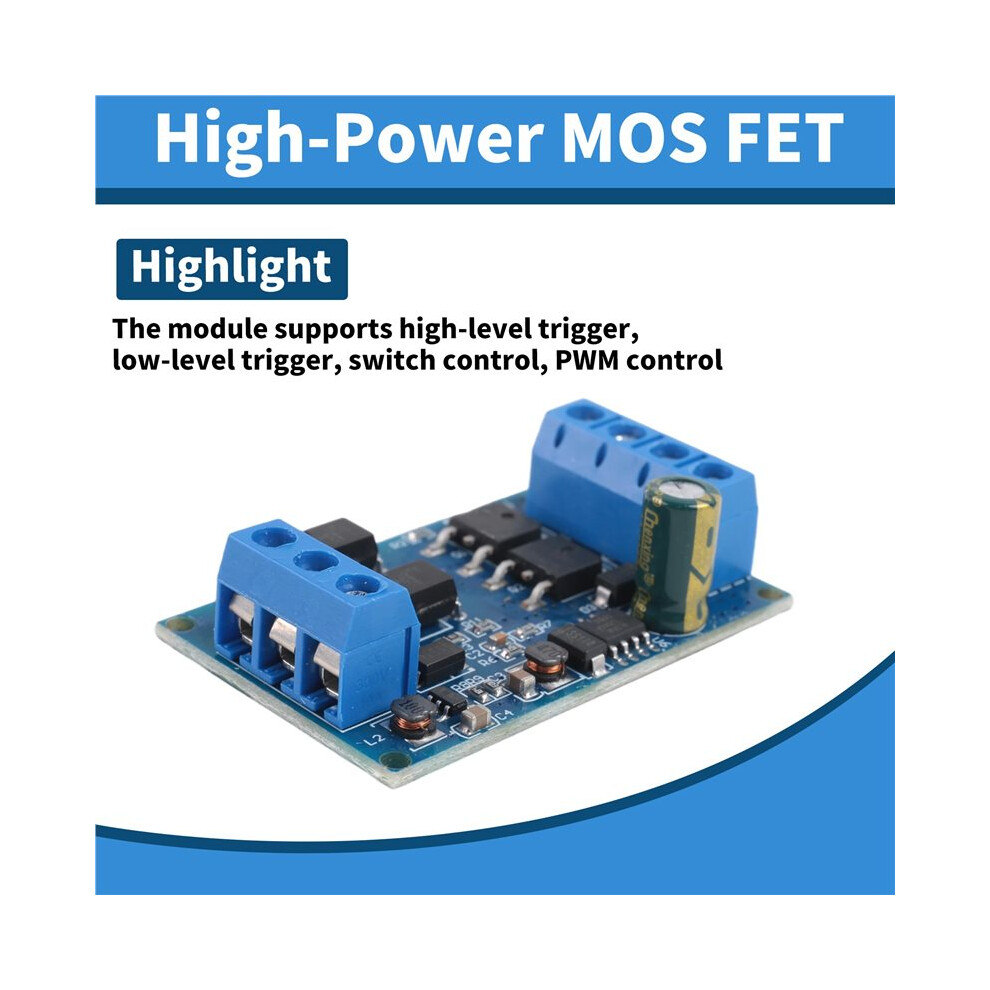

Highlight:The module supports high-level trigger, low-level trigger, control, PWM control
The use of imported dual-MOS parallel active output, lower internal resistance, current, power strong, continuous current at room temperature is 10A, 600W, to meet most of the equipment used
Wide voltage input: 4V ~ 60V
Easy to control high-power equipment
Application: It can control high-power equipment, such as motors, bulbs, LED lights with, motors, micro-pumps, solenoid valves and so . If you enter the PWM signal, you can control the motor speed, lamp brightness and so .

Note:
At the same , there is only one signal to control the module, can not use two or more signals to control the module;
High level trigger voltage range: DC3.0V ~ 24V, the trigger signal in the 3.0V ~ 24V, MOS tube conduction; less than 0.6V, that is 0V ~ 0.6V, MOS tube is closed; signal voltage must not 0.6V ~ 3.0V, because the MOS tube is not fully open, high-power output will burn MOS;
Low-level trigger voltage range: 0V ~ 0.6V, that trigger signal in the 0V ~ 0.6V, MOS tube conduction; higher than 3.0V, MOS tube is closed; signal voltage must not be 0.6V ~ 3.0V , Because the MOS tube is not fully open, high-power output will burn MOS.
Parameter:
Operating voltage: 4V - 60V
Trigger source: high level trigger (DC3.0V - 24V), low level trigger ( 0.0V ~ 0.6V), control, can connect MCU IO port, PLC interface, power supply, etc. PWM signal, support signal frequency range of 0 - 2.5KHZ
Output capacity: 4V - 60V, continuous current 10A at room temperature, power 600W
Auxiliary cooling conditions, the current to 15A
4.Life: unlimited
Condition: New
Type: Voltage Regulator
Dissipation Power: 600W
Application: Computer
Operating Temperature: -40 -85 Celsius
colour:
Material:abs
size:46.5 x 29.2mm

Package Contents:
1 x High-pow
