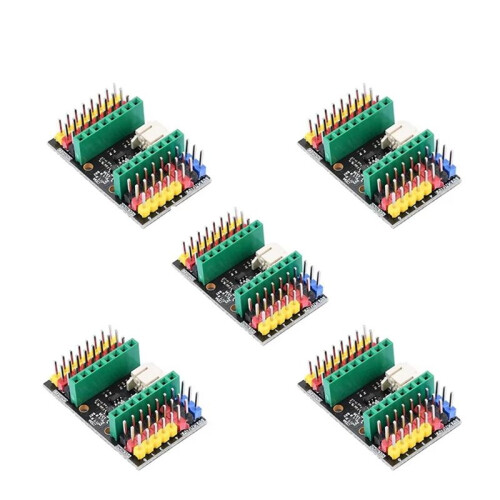

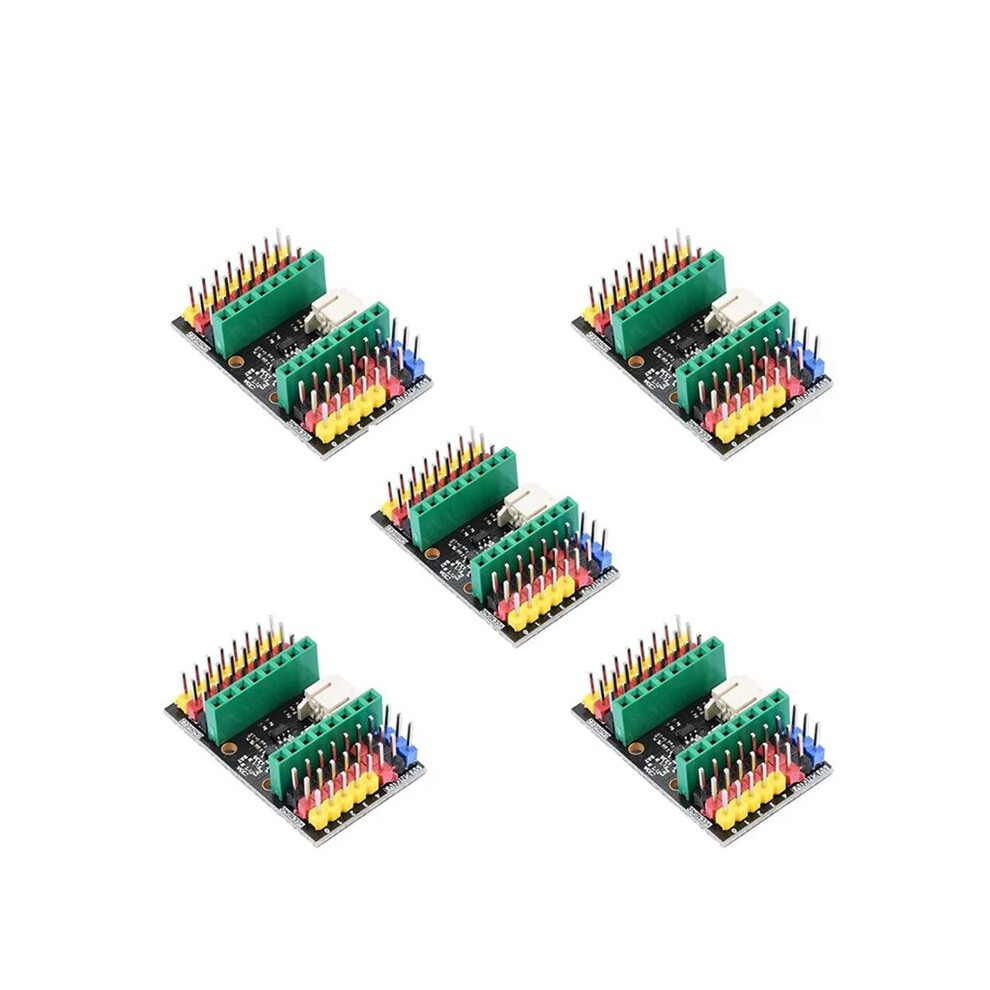

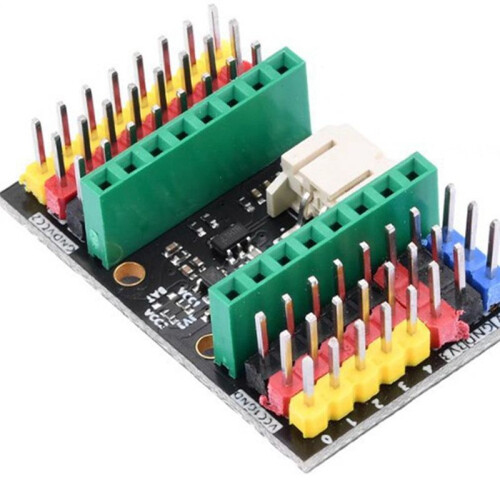

5PCS ESP32-C3 Development Board ESP32 Super Development Board WiFi Expansion Board
Značka TAUOH
Nové
Skladem
Proč si zamilujete nakupování na OnBuy:
- Získejte Cashback při každém nákupu – využijte jej okamžitě při další objednávce
- Doprava zdarma – u milionů položek na celém webu
- Zákazníci nás mají rádi – 130,000 recenzí s hodnocením “Vynikající”
565,64 Kč
861,94 Kč
Sleva 34 %!
+74,00 Kč za doru en
1%
Získejte 5,66 Kč okamžitě
Zjistěte více
Ceny zboží prodávaného na OnBuy jsou zobrazeny včetně DPH.
Možnosti platby bez úroků k dispozici
Zobrazit kompletní popis a podrobnosti o produktu
Doručení: Standardní (74,00 Kč) | stř 5 - pát 7 srp
Prodává: moresk
Vrácení zboží: 30 dní
180denní ochrana platby
Nejoblíbenější v kategorii Knihy o programování a vývoji softwaru
Popis a podrobnosti
Shrnutí

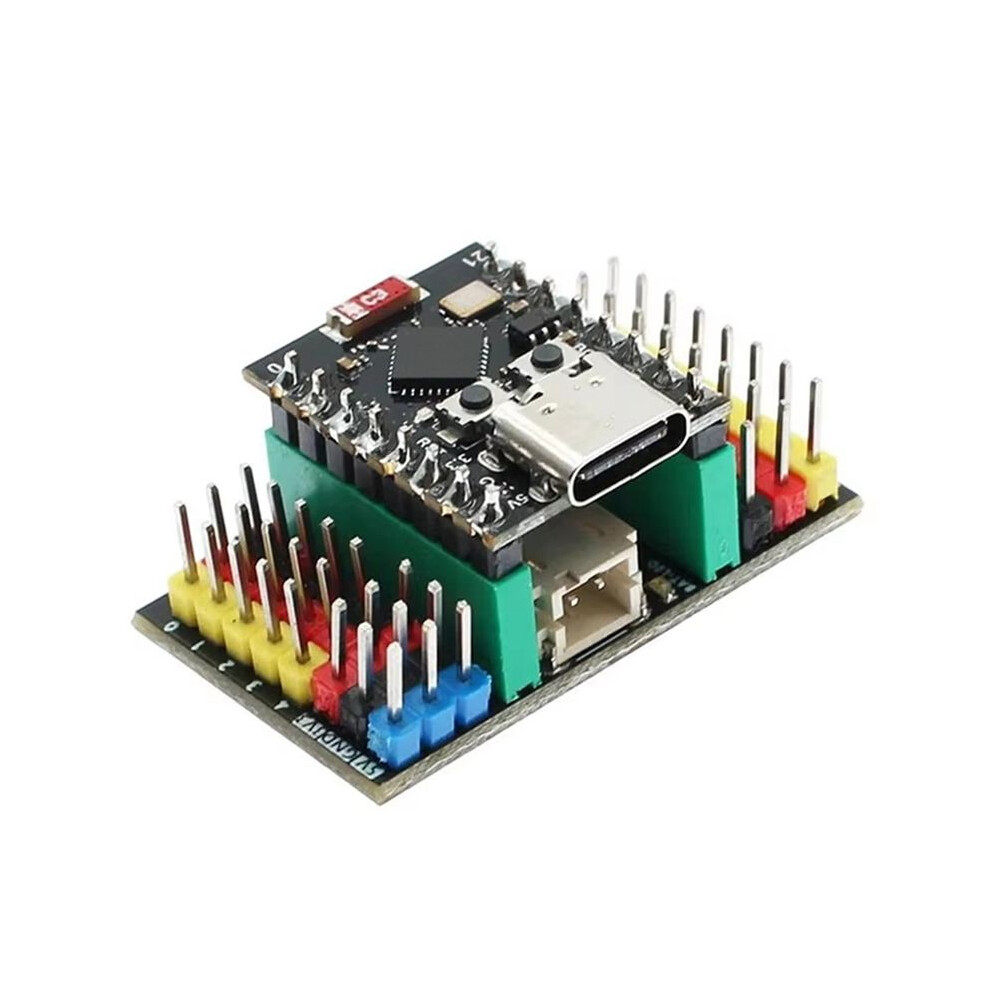

- 1. ESP32C3 SUPERMINI is an I0T mini development board based on the ESPRESSIF ESP32-C3 WIFI/Bluetooth dual-mode chip. ESP32-C3 is a 32-bit RISC-VCPU that includes an FPU (floating point unit) that can perform 32-bit single-precision operations and has powerful computing power. It has excellent RF performance and supports IEEE 802.11 B/G/N WIFI and Bluetooth 5 (LE) protocols.
- 2. The board comes with an external antenna to enhance the signal strength of wireless applications. It also has a small and exquisite appearance combined with a single-sided surface mount design. It is equipped with rich interfaces, with 11 digital I/O that can be used as PWM pins and 4 analog I/O that can be used as ADC pins.
- 3. It supports four serial interfaces such as UART, I2C and SPI. There is also a small reset button and a bootloader mode button on the board. ESP32-C3 SUPERMINI is positioned as a high-performance, low-power, and cost-effective IoT mini development board, suitable for low-power IoT applications and wireless wearable applications.

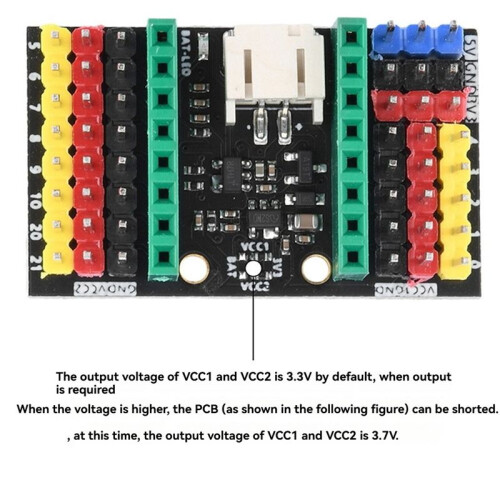

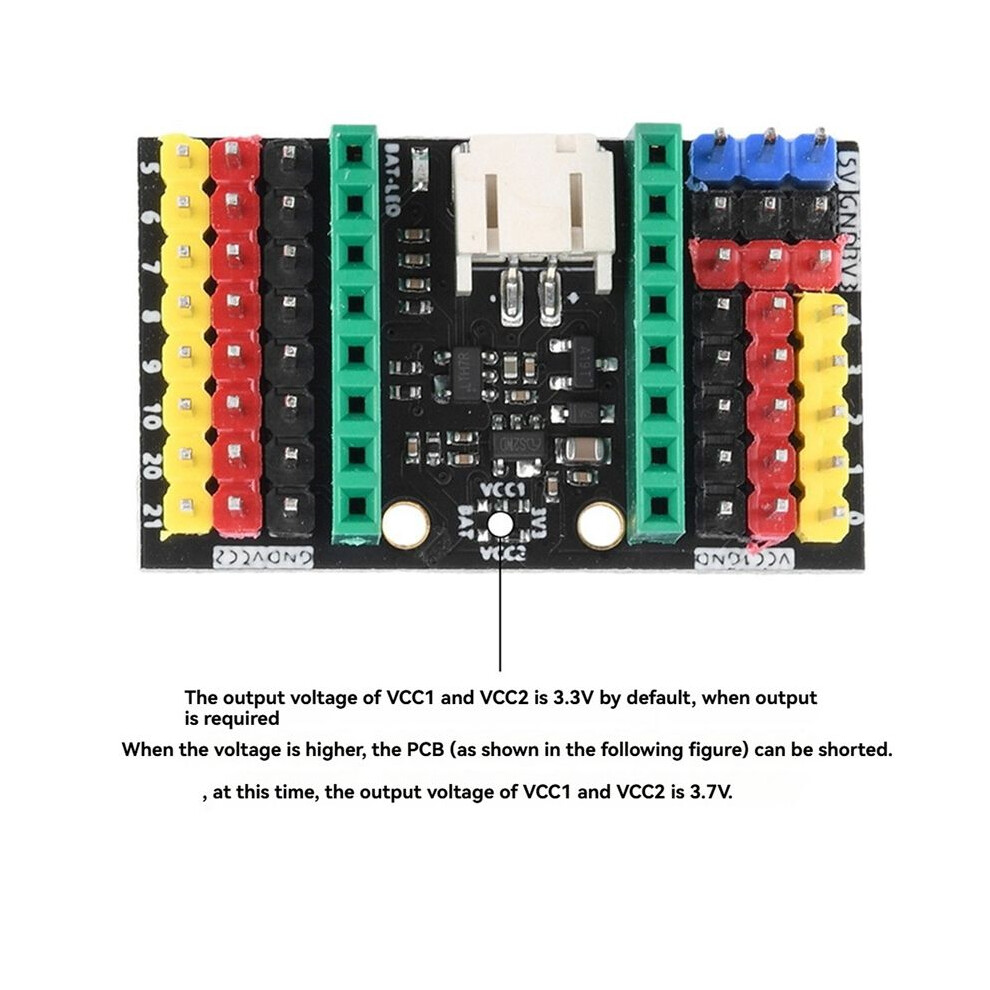

- 4. Note: If external power supply is required, just connect the external power supply + level to the 5V position and GND to the negative pole. (Support 3.3-6V power supply). Remember that when connecting an external power supply, you cannot connect to USB. You can only choose one between USB and external power supply. Be careful not to short-circuit the positive and negative poles during welding to burn the battery and equipment.
- 5. Instructions: Enter download mode: Press and hold the BOOT button of ESP32C3, then press the RESET button, release the RESET button, and then release the BOOT button. At this time, ESP32C3 will enter download mode. (You need to re-enter download mode every time you connect. Sometimes, if you press it once, the port will be unstable and disconnected. You can judge it by the port recognition sound)
5PCS ESP32-C3 Development Board ESP32 Super Development Board WiFi Expansion Board Popis
1. ESP32C3 SUPERMINI is an I0T development board based the ESP32-C3 WIFI/ dual-mode chip. ESP32-C3 is a 32-bit RISC-VCPU that includes an FPU (floating point unit) that can perform 32-bit single-precision operations and has powerful computing power. It has excellent RF performance and supports IEEE 802.11 B/G/N WIFI and 5 (LE) protocols.
2. The board comes with an external antenna to enhance the signal strength of wireless applications. It also has a small and exquisite appearance combined with a single-sided surface mount design. It is equipped with rich interfaces, with 11 digital I/O that can be used as PWM pins and 4 analog I/O that can be used as ADC pins.
3. It supports four serial interfaces such as UART, I2C and SPI. There is also a small reset button and a bootloader mode button the board. ESP32-C3 SUPERMINI is positioned as a high-performance, low-power, and cost-effective IoT development board, suitable for low-power IoT applications and wireless wearable applications.
4. Note: If external power supply is required, just connect the external power supply + level to the 5V position and GND to the negative pole. (Support 3.3-6V power supply). Remember that when connecting an external power supply, you cannot connect to USB. You can only choose one between USB and external power supply. Be careful not to short-circuit the positive and negative poles during welding to burn the battery and equipment.
5. Instructions: Enter download mode: Press and hold the BOOT button of ESP32C3, then press the RESET button, release the RESET button, and then release the BOOT button. At this , ESP32C3 will enter download mode. (You need to re-enter download mode every you connect. Sometimes, if you press it once, the port will be unstable and disconnected. You can judge it by the port recognition sound)
CPU: ESP32-C3, 32-bit RISC-V single-core processor
Operating frequency: 160MHZ
Mai
Podrobnosti
| OPC | PTF9HW6 |
|---|---|
| Značka | TAUOH |
| Kódy | 4711855622861 (EAN) |
| Informace o produktu a bezpečnosti |
Produktová data
| Height | 4cm |
|---|---|
| Width | 3cm |
| Length | 10cm |
| Weight | 0.042kg |
| Colour | As Shown |
| Material | ABS |
