8-Channel Digital Interface Bidirectional Level Conversion Board Module 3.3V to 1.8V Bidirectional Level Shifter Board

8-Channel Digital Interface Bidirectional Level Conversion Board Module 3.3V to 1.8V Bidirectional Level Shifter Board Popis

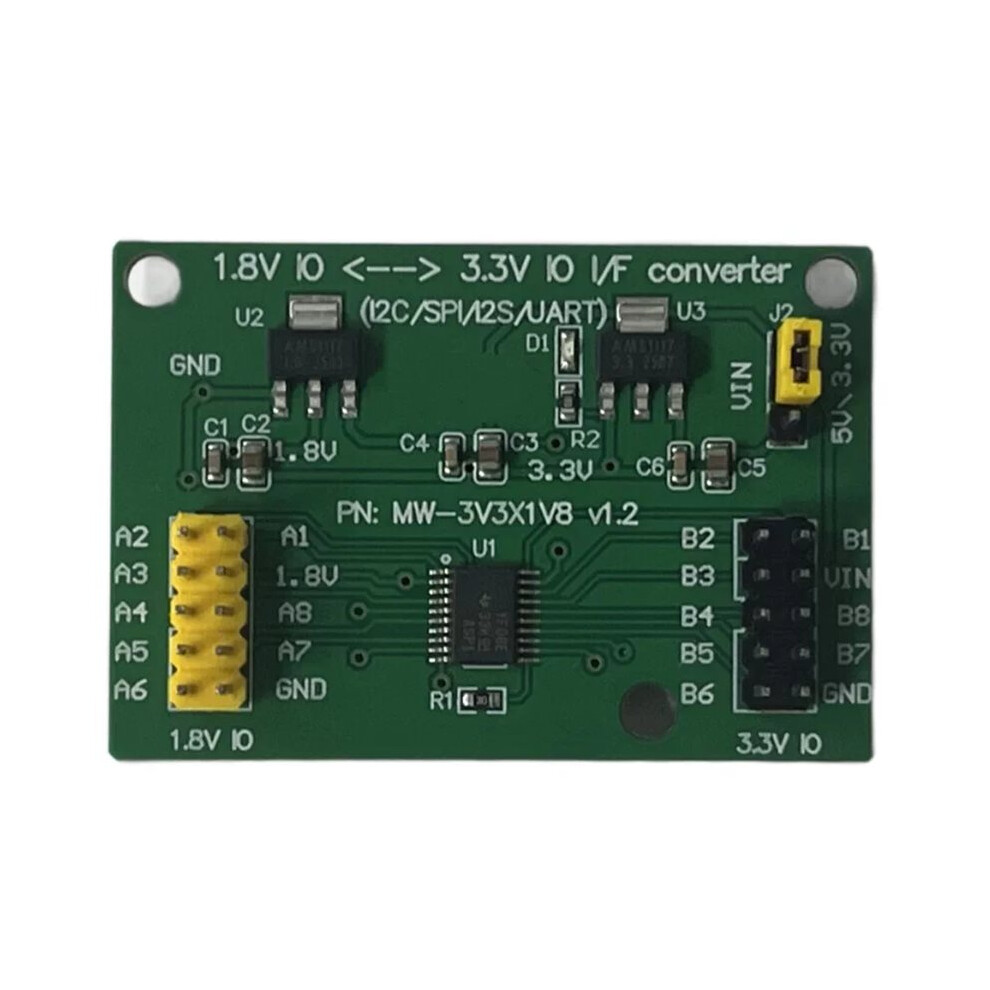

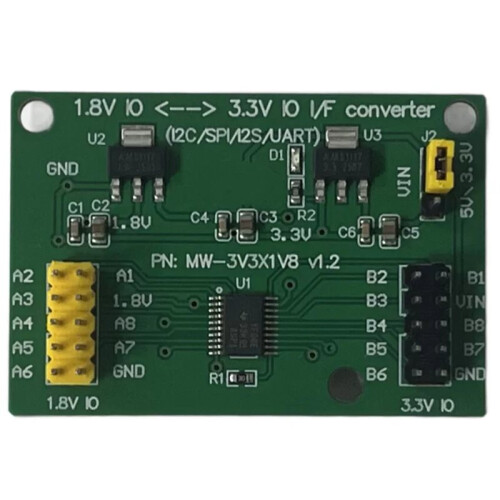

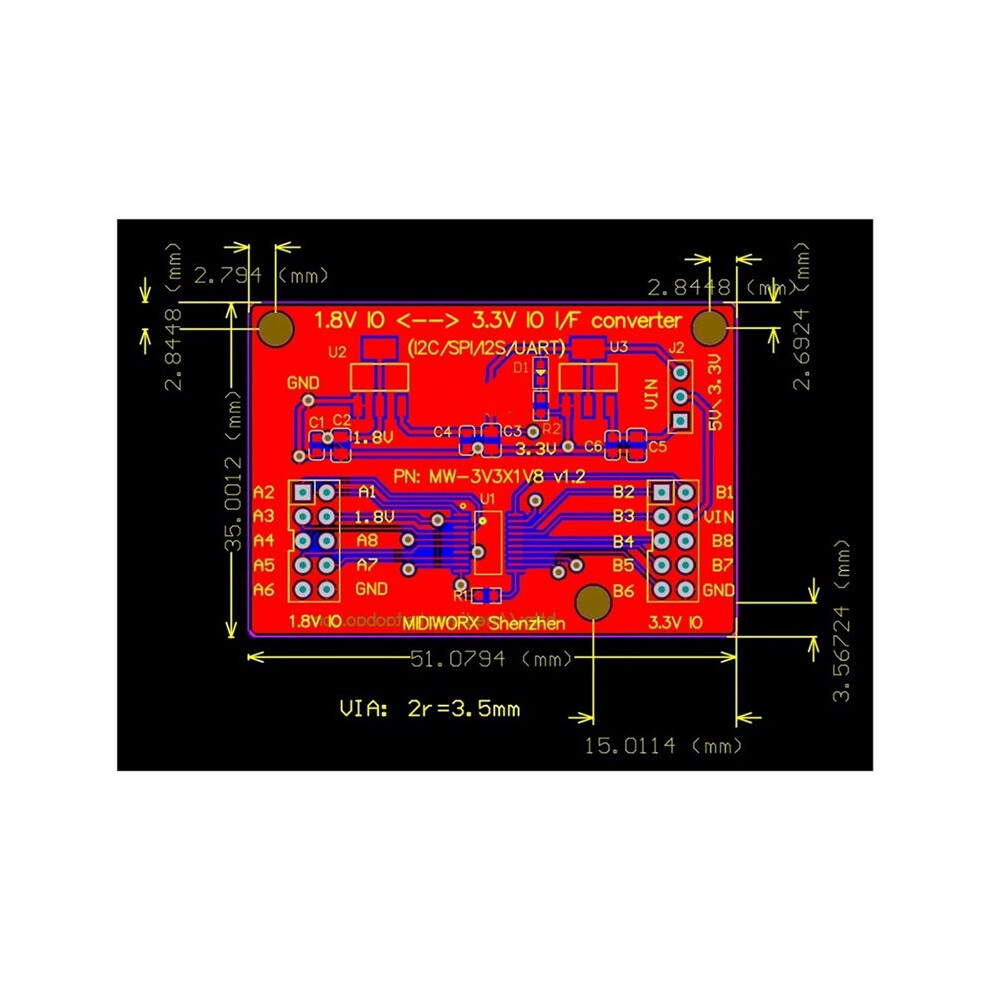

This is an 8-channel digital interface bidirectional level conversion module. The 1.8V input uses a TI level conversion chip.

The B-end power input (VIN) can be directly connected to 3.3V, or a voltage of approximately 5V can be generated to 3.3V via the integrated LDO the board.
Only the B-end voltage is required for operation. The 1.8V at the A-end is generated by the integrated LDO the board.
Simultaneously, this 1.8V power supply can also be used as an output to power subsequent devices (be careful not to exceed power consumption limits!).

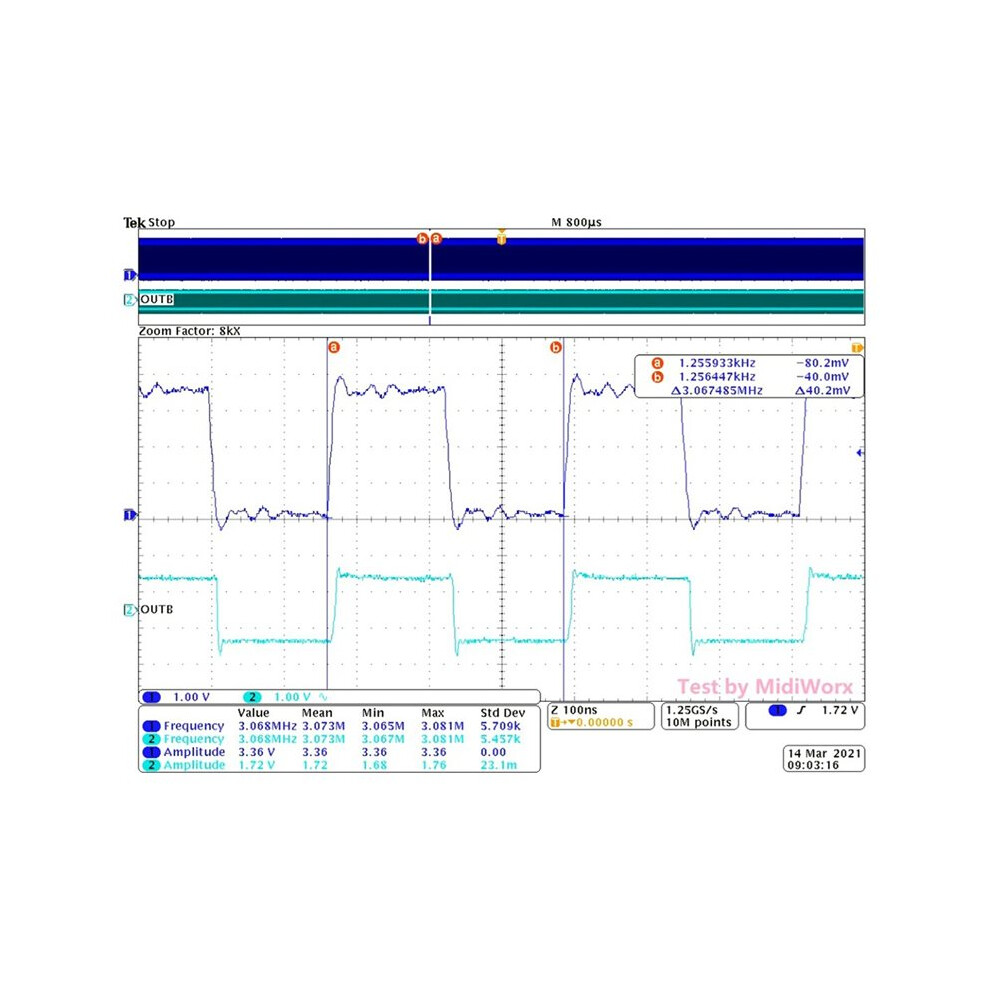

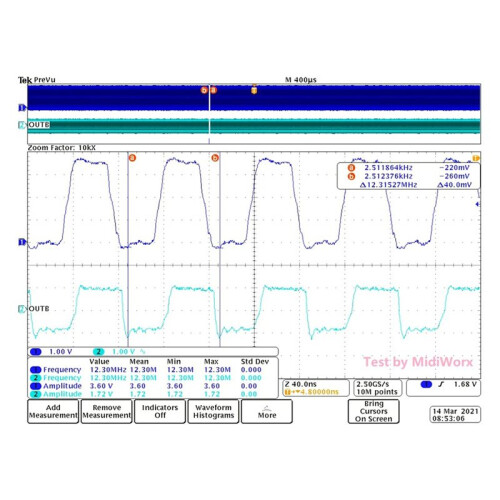

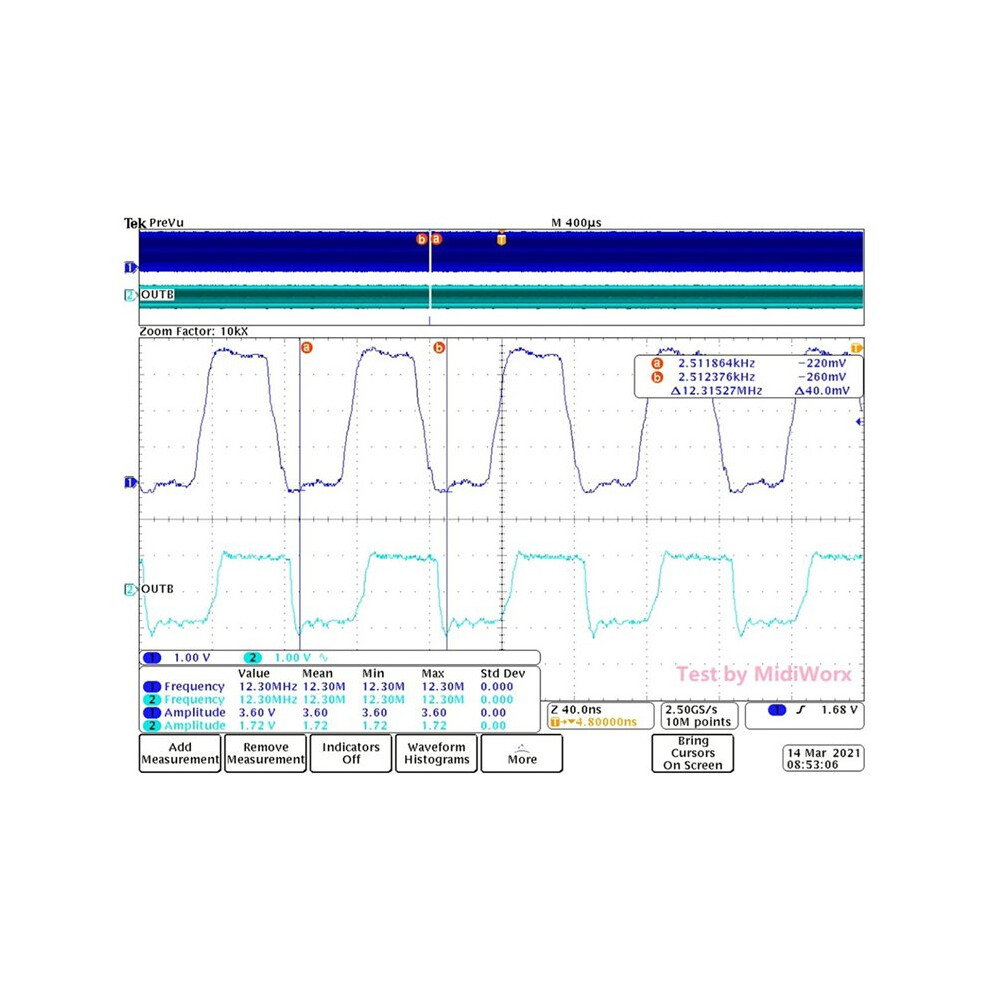

Maximum Data Rates
110Mbps (Push-Pull output)
1.2 Mbps (Open Drain output)

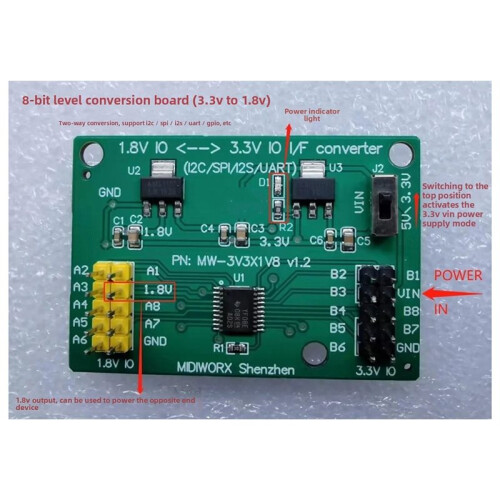

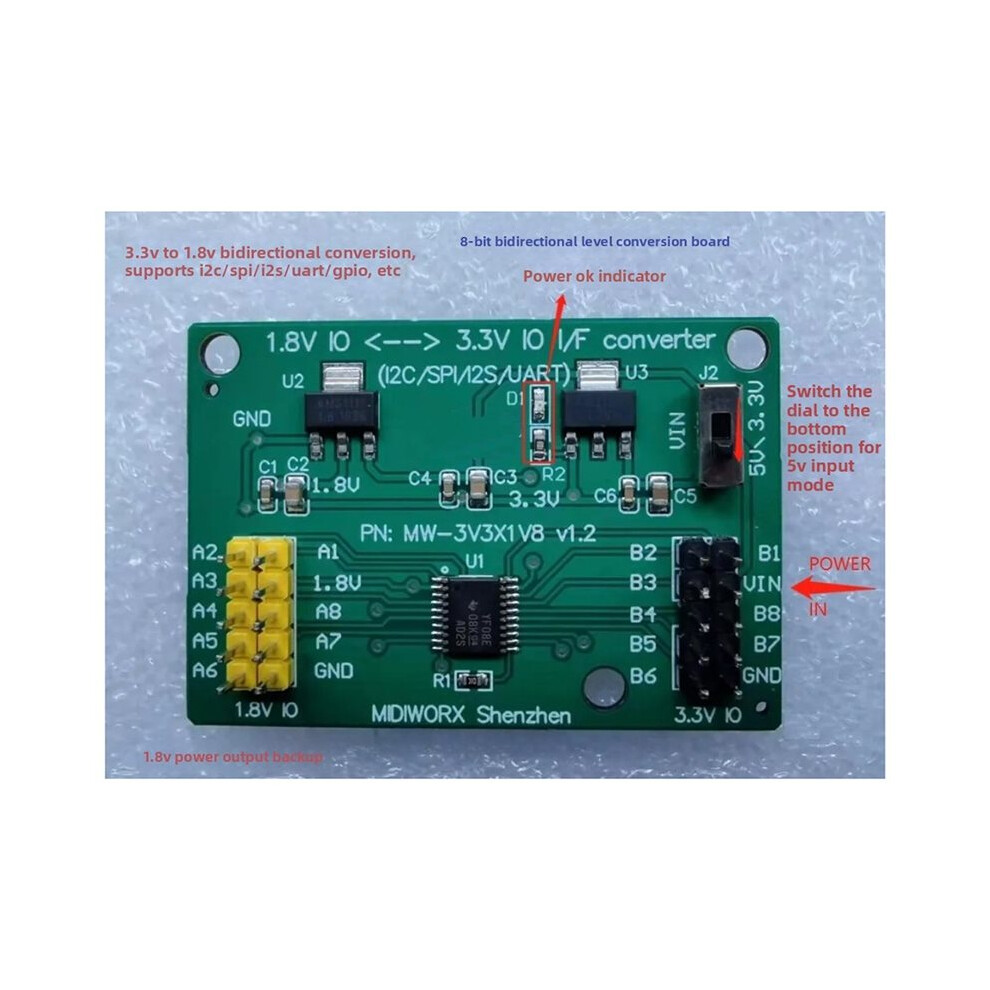

1. Enables level conversion for various interfaces, 3.3V to 1.8V (JTAG, SPI/IIC/UART/12S, GPIO/MP, etc.)
2. Also supports level conversion for ADI SIGMADSP emulator USBi (many domestic USBi do not support 1.8VI0).

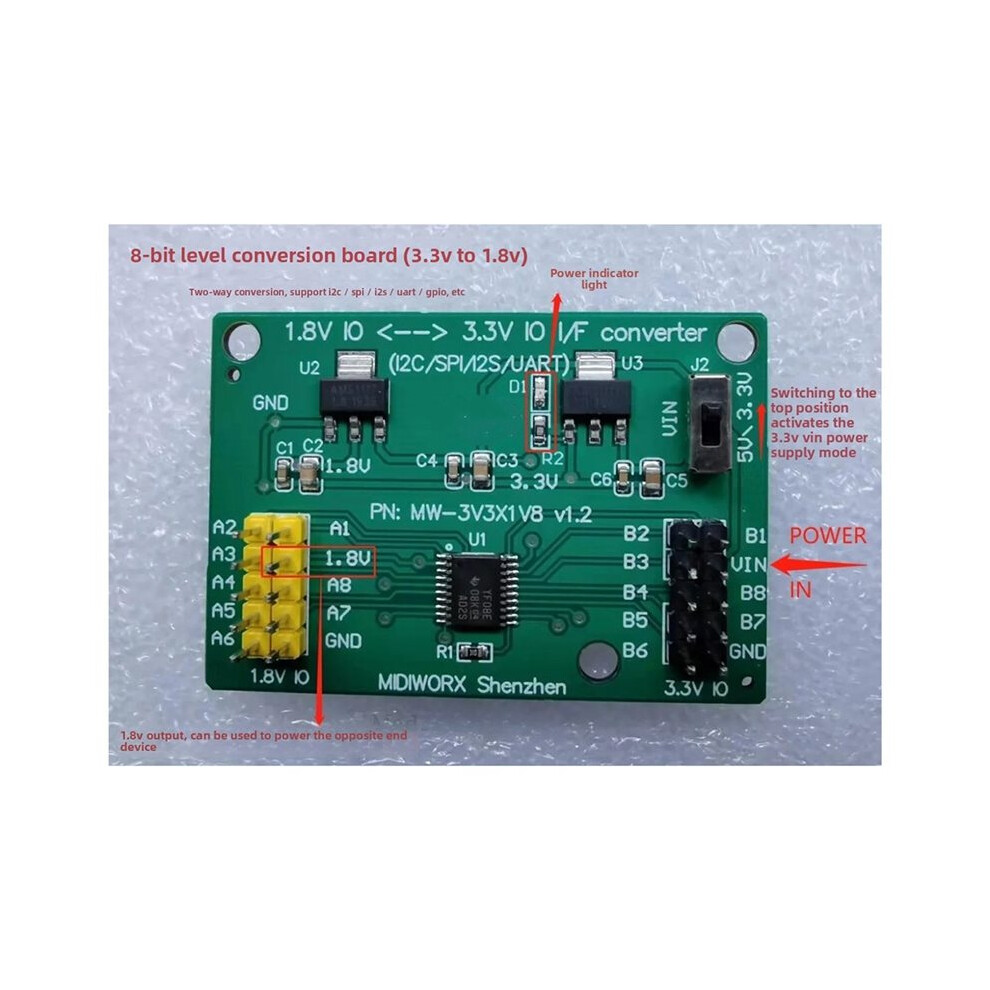

3. Selectable power supply voltage for the B terminal: VIN=3.3V or 5V (USBi uses 5V); power supply for the A terminal is generated by LDOU2.
Color: As Shown
Material: PCB

Package Contents:
1*Board
