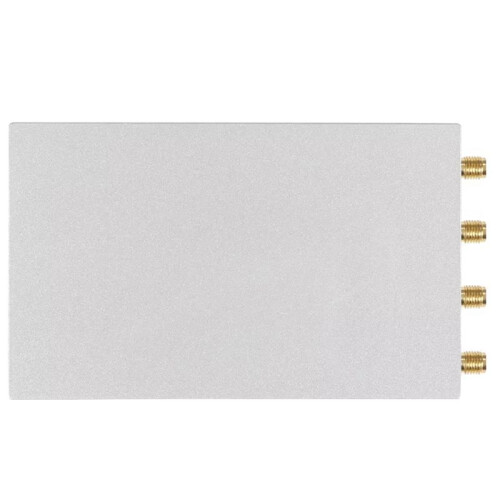

ADI Pluto+ 70Mhz-6Ghz SDR Software Defined Radio XC7z020 AD9363 for Libiio Iioscope SDRsharp Matlab

ADI Pluto+ 70Mhz-6Ghz SDR Software Defined Radio XC7z020 AD9363 for Libiio Iioscope SDRsharp Matlab Popis

Using XC7z020-2CLG400I FPGA with 2-core Cortex A9
The AD9363 RFSOC is turned in AD9361 mode. The frequency range is 70MHz-6GHz, and the maximum sampling rate is 61.44MHz
1GB 32bit wide DDR3 1066MHz frequency
With 32M QSPI storage, ADI Pluto+ supports TF card expansion
Supports automatic switching of QSPI boot and TF card boot (insert a TF card for TF card boot; remove the card for QSPI boot)

Statement:ADI Pluto+ is intended for educational, scientific and hobby use only.
-board JTAG circuit and USB to serial port. Only one cable is required to supply power and debug

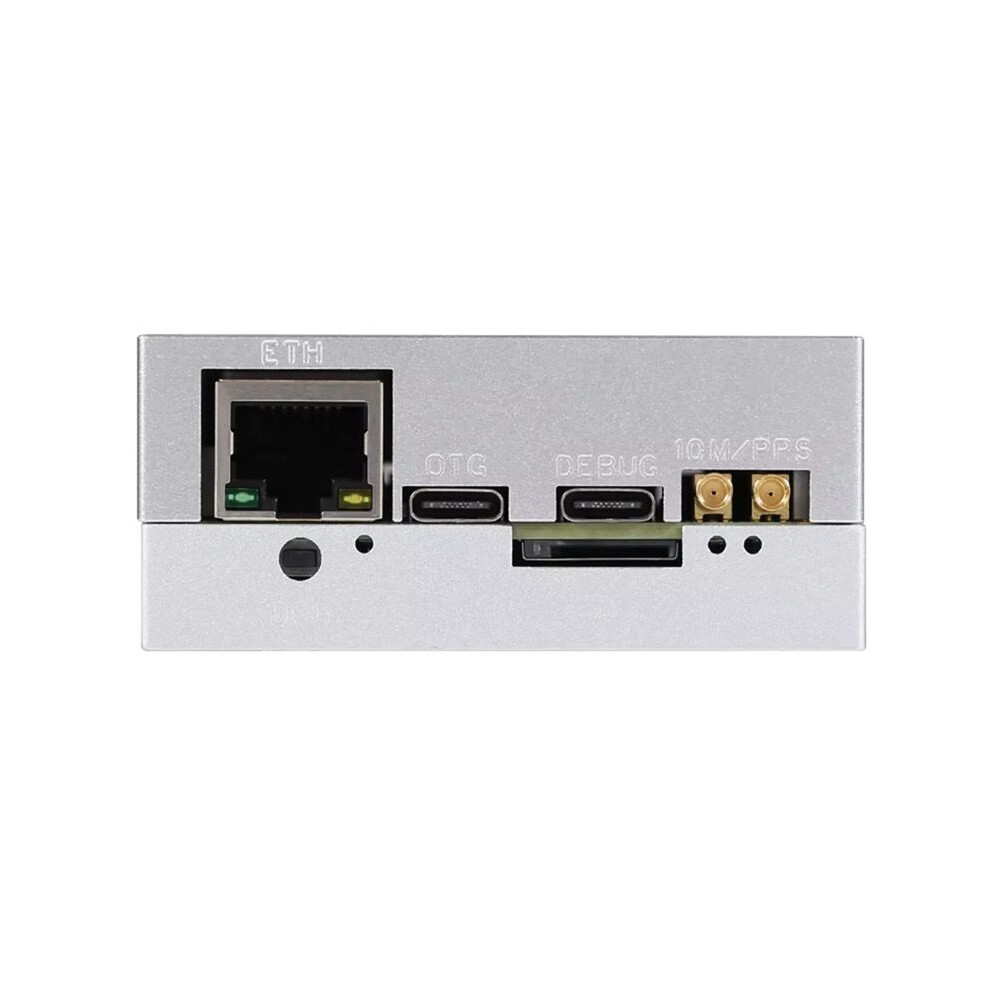

Supports USB OTG interface, master and slave. All USB interfaces are TYPE-C interfaces. Supports OTG mode automatic recognition and opens the USB port to supply power.
VCTCXO is used. The initial frequency accuracy is 0.5PPM, and it supports PPS or 10MHz external disciplined oscillator.
Gigabit Ethernet interface.
The design current of all power rails in the digital part is 4A. The current is abundant. AD936x is powered by a ADP1755 high-performance LDO to improve RF performance.
ADI Pluto+ is designed with 10 layers of PCB, impedance matching, and signal integrity.

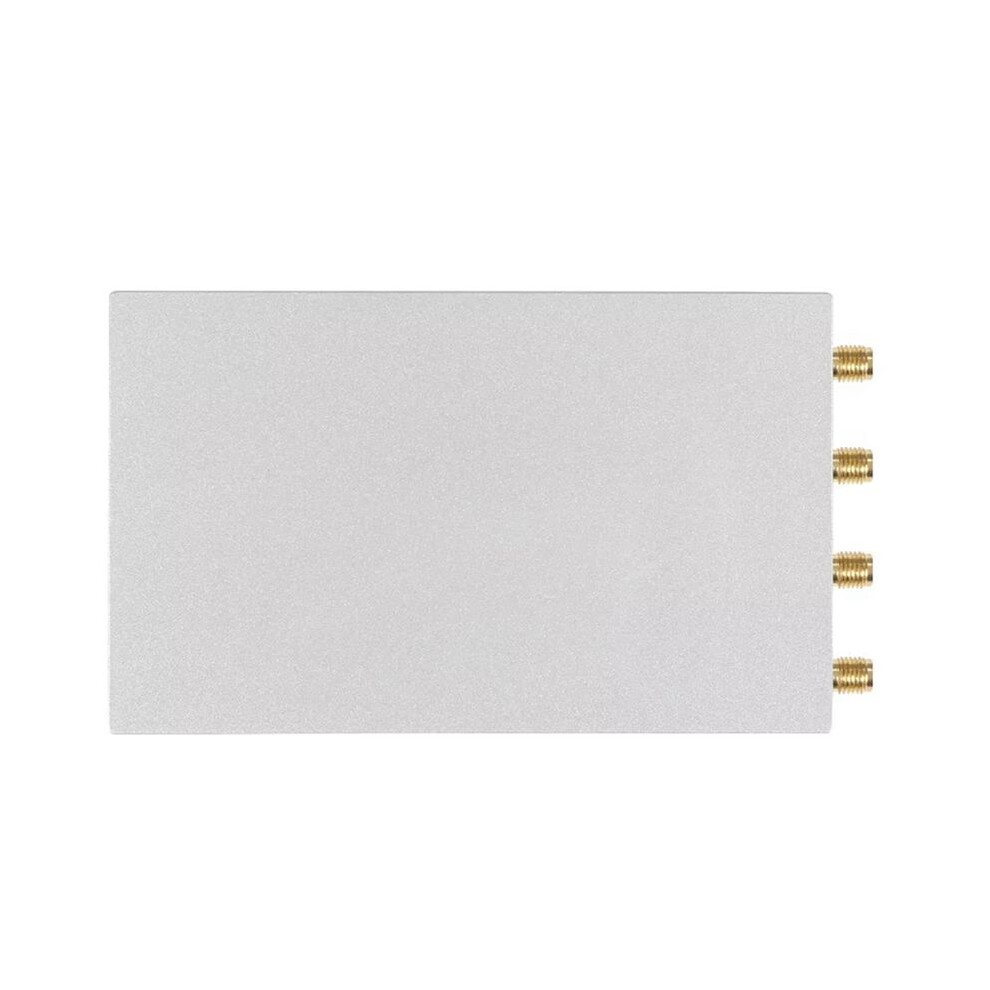

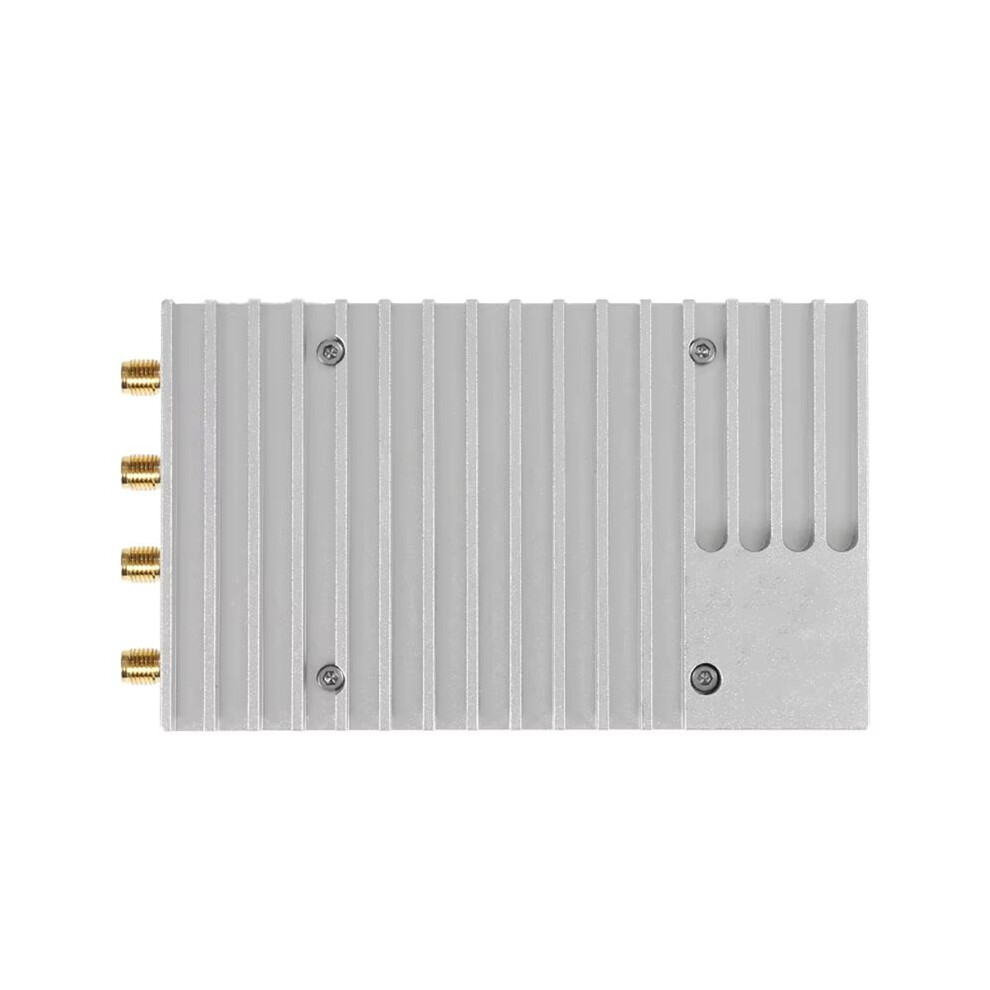

The product adopts a CNC shell to strengthen heat dissipation and ensure strength.
Note:
TF/ card is not included.
We only sell hardware, No firmware provided. (This product is compatible with many firmwares, and buyers can find firmwares various websites.)
To start the device, a card is require
Note:The colors of cables and antennas are random, and the designation is not accepted. The product model has no practical significance.
Color:As Shown
Material:Metal+Plastic

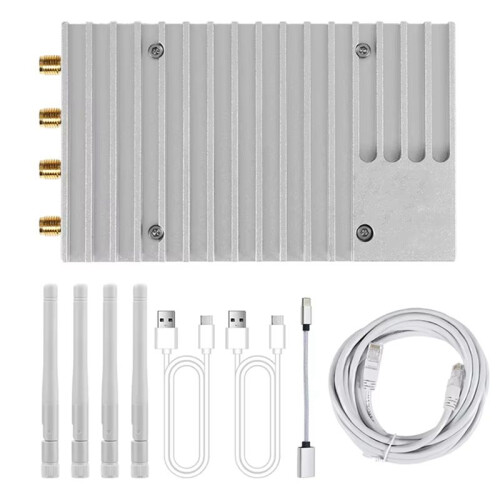

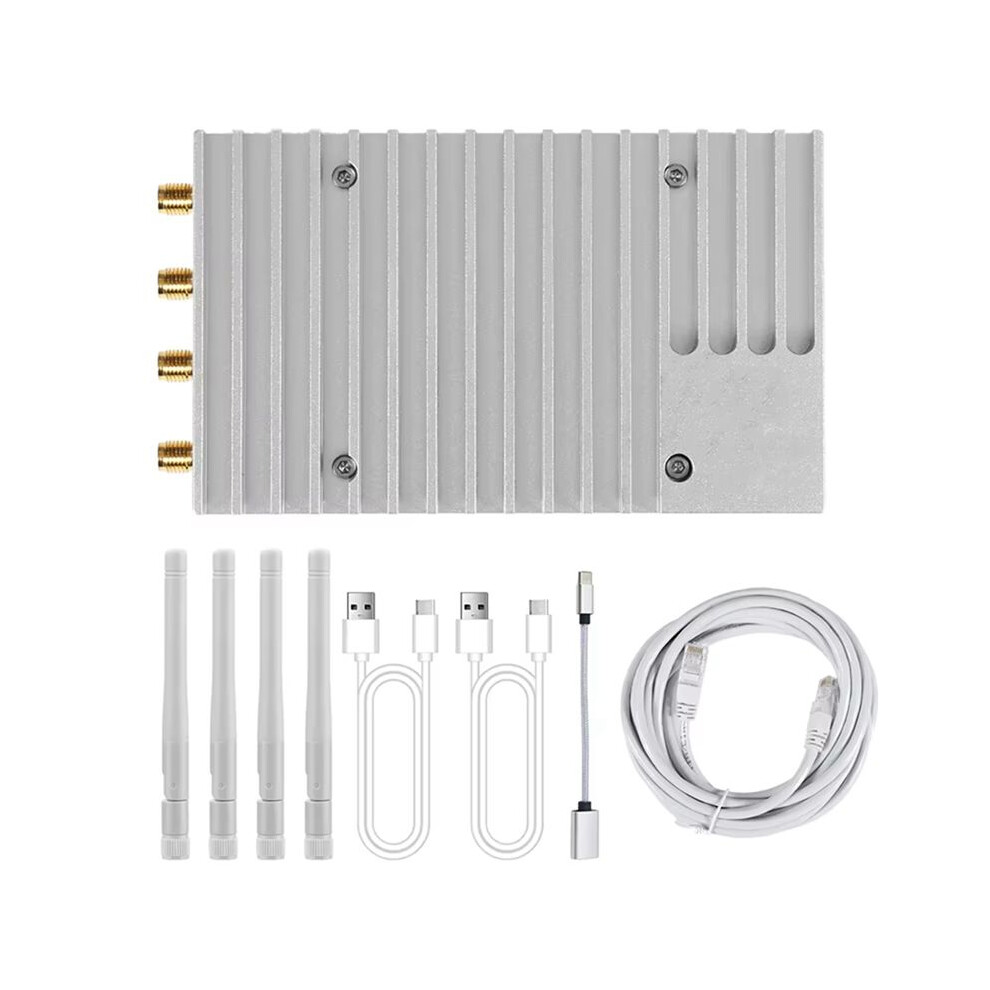

Package Contents:
1 x ADI Pluto+ Radio set
