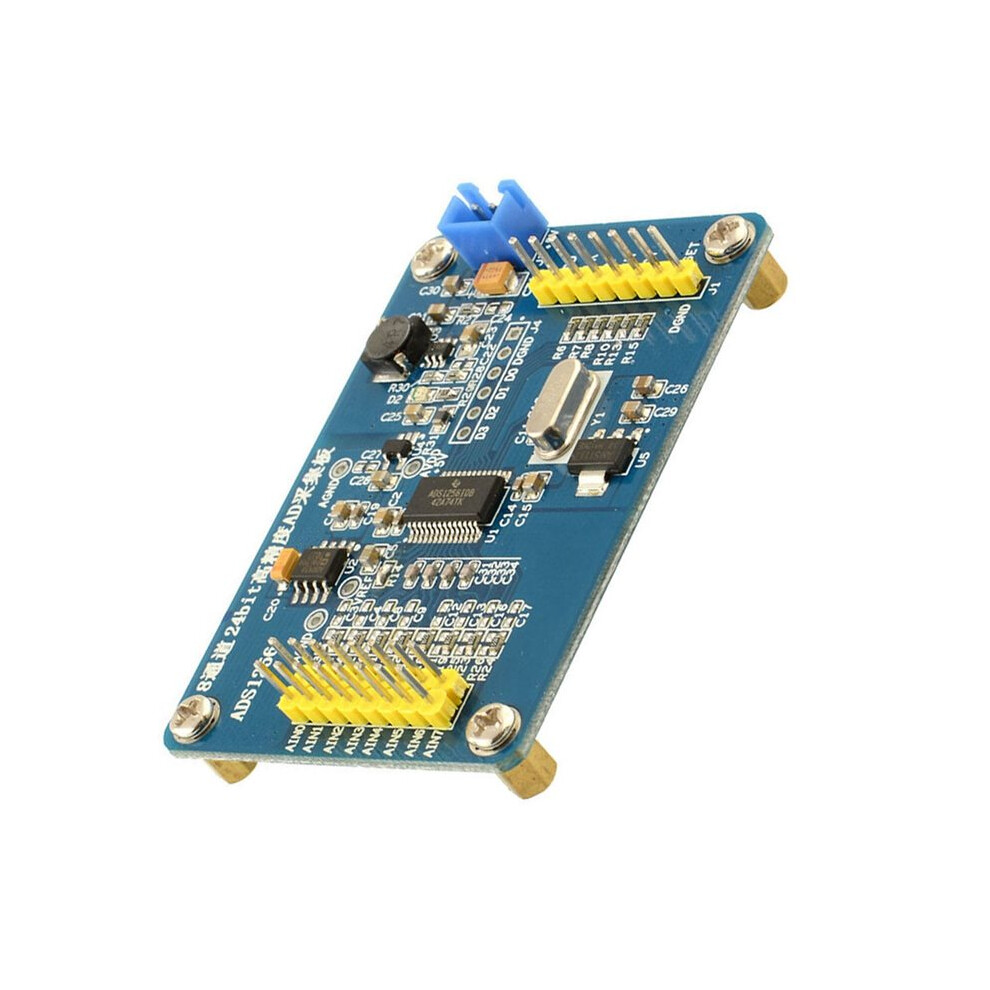

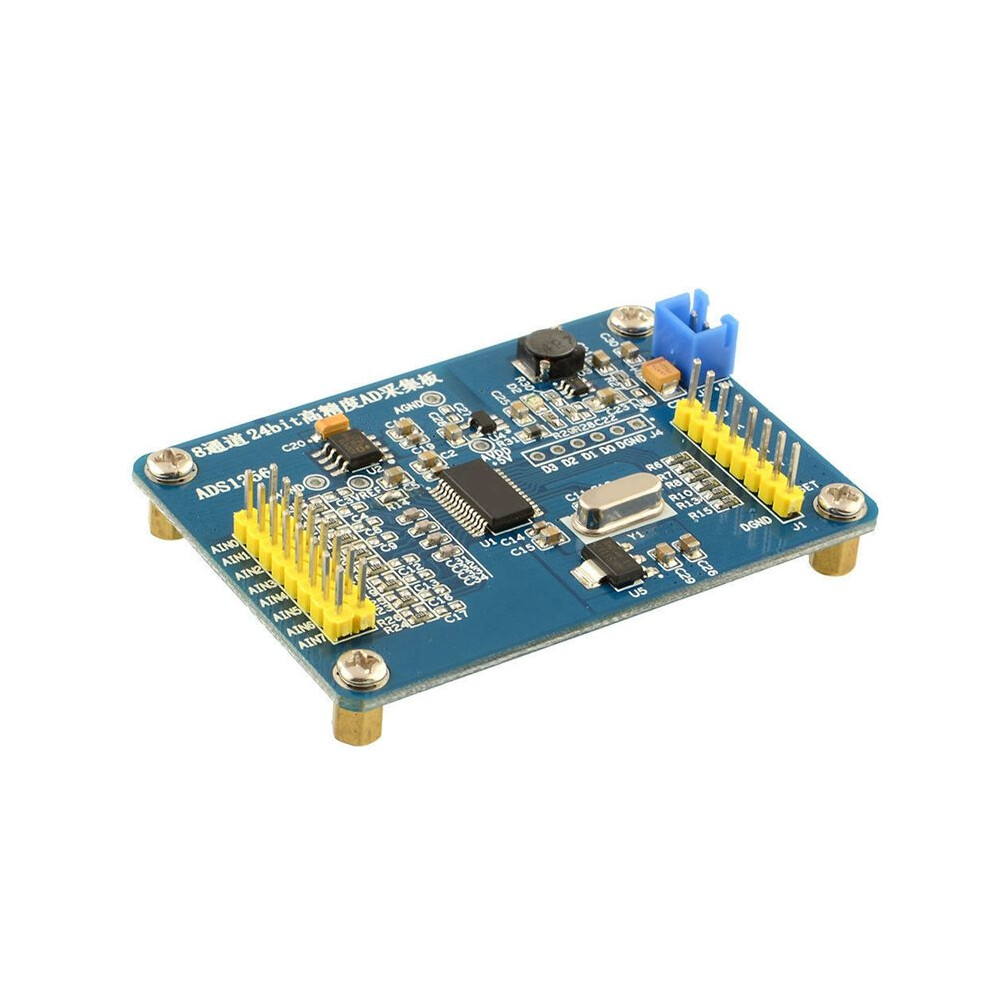

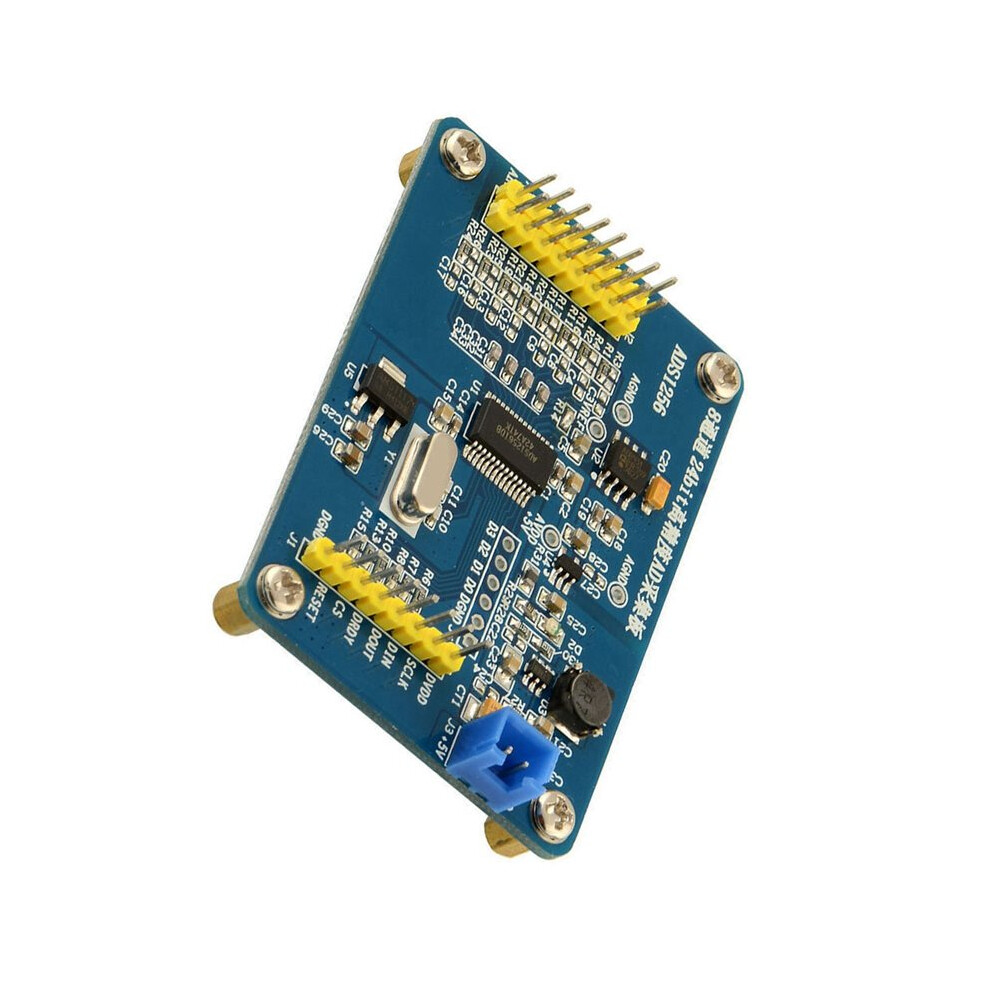

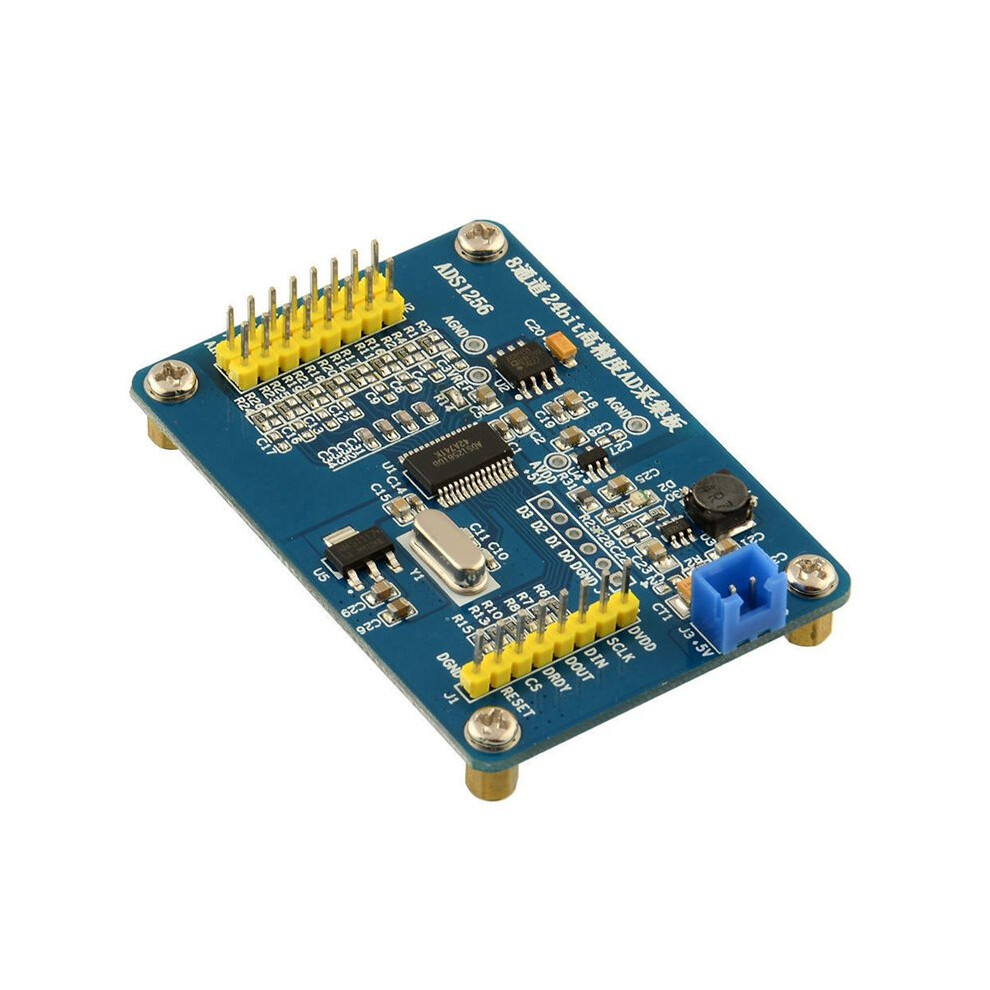

ADS1256 24 Bit 8 Channel ADC Analog to Digital Converter Data Acquisition Module with Cable Data Acquisition Card

ADS1256 24 Bit 8 Channel ADC Analog to Digital Converter Data Acquisition Module with Cable Data Acquisition Card Popis

Built around the ADS1256 24-bit analog-to-digital converter, this module delivers ultra-high resolution measurement performance, ideal for applications that require accurate low-level signal acquisition and precise data logging

Equipped with 8 channels for multi-point signal acquisition, the board supports differential and single-ended input configurations, making it suitable for reading multiple sensors, transducers, and industrial signals simultaneously
Features low noise design and stable reference input to ensure reliable, repeatable measurements over long-term operation
Ideal for high-precision sensor interfaces, weight scales, pressure measurement, and scientific experiments.
Specifications
Operating Voltage: +5V (Power Terminal Input)
Digital Interface Voltage: 3.3V (Output Available)
ADC Resolution: 24-bit

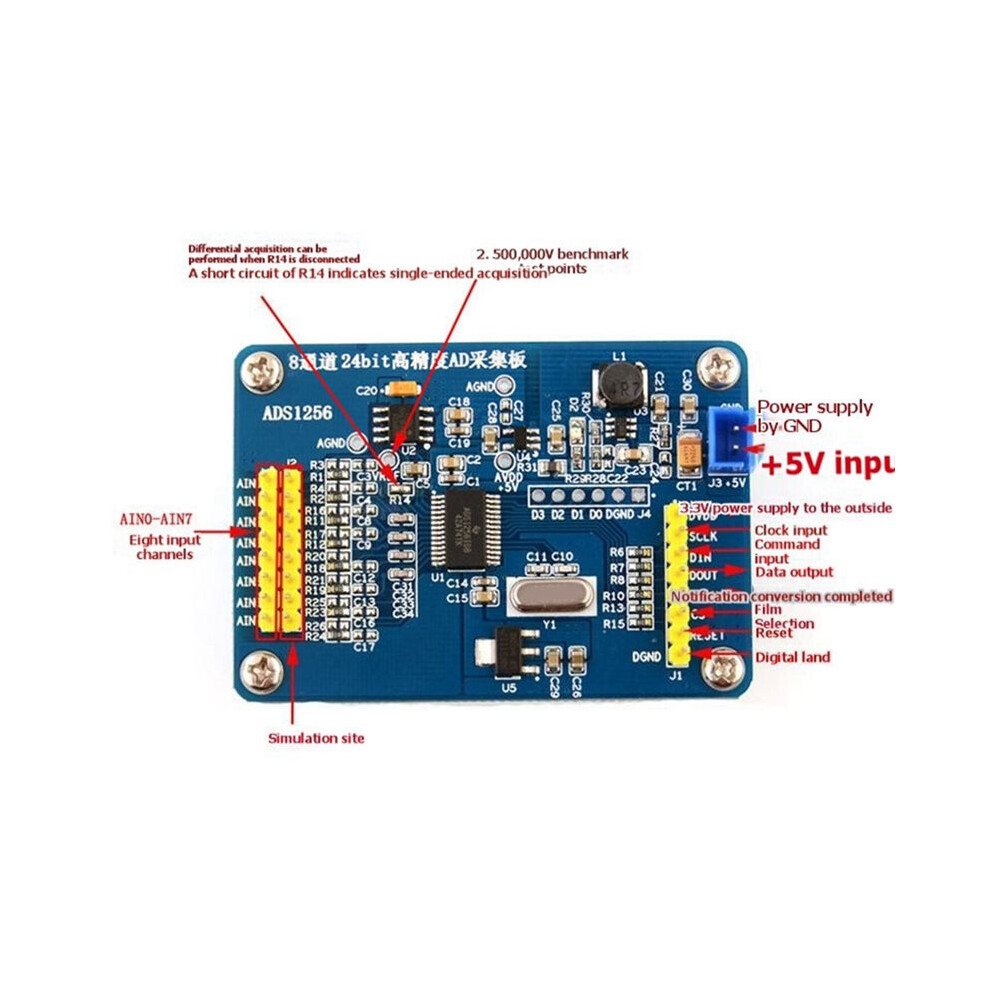

Input Channels: 8 Single-Ended / 4 Differential
Reference Voltage: 2.500000V 0.05%
Sampling Rate: 2.5SPS ~ 30kSPS Programmable
Communication Interface: SPI (Supports 3.3V/5V Logic)
Crystal Frequency: 7.68MHz
Operating Temperature: -40 ~ +85
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Color: As Shown
Material: PCB

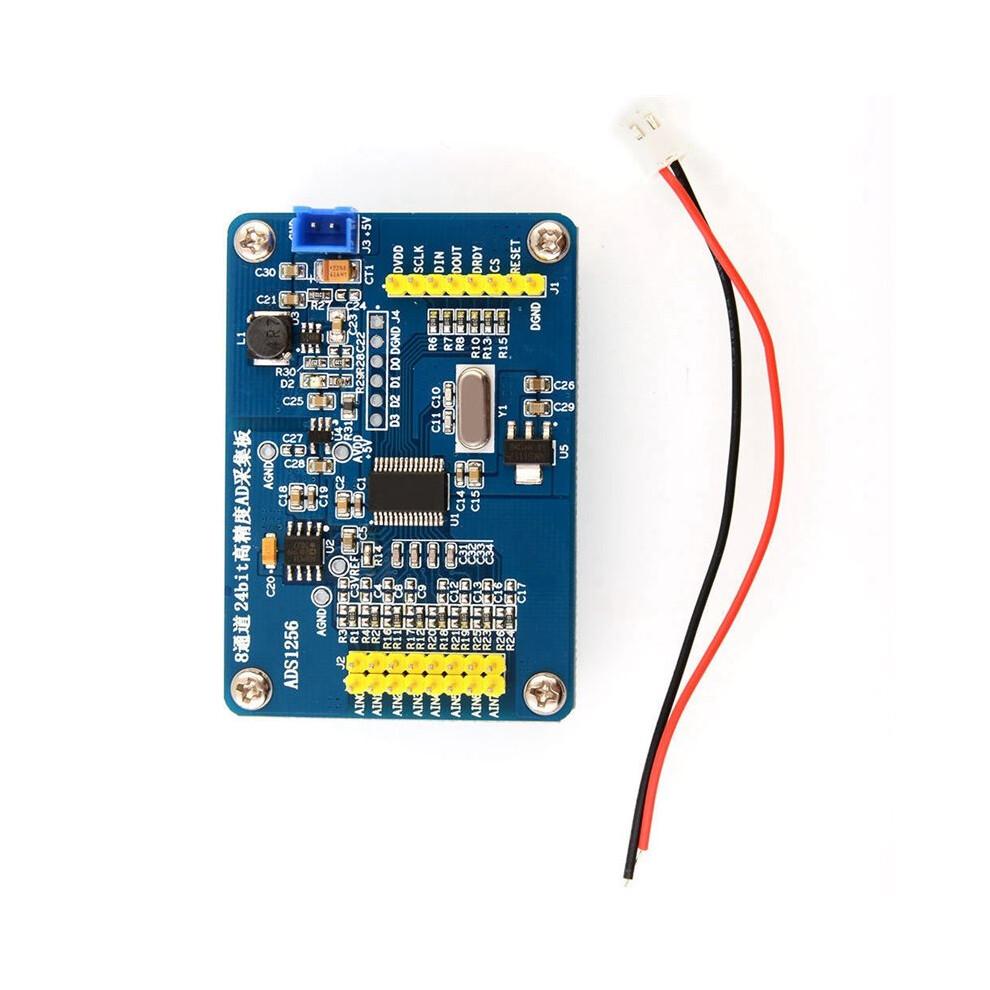

Package Contents:
1*ADC Analog to Digital Converter
