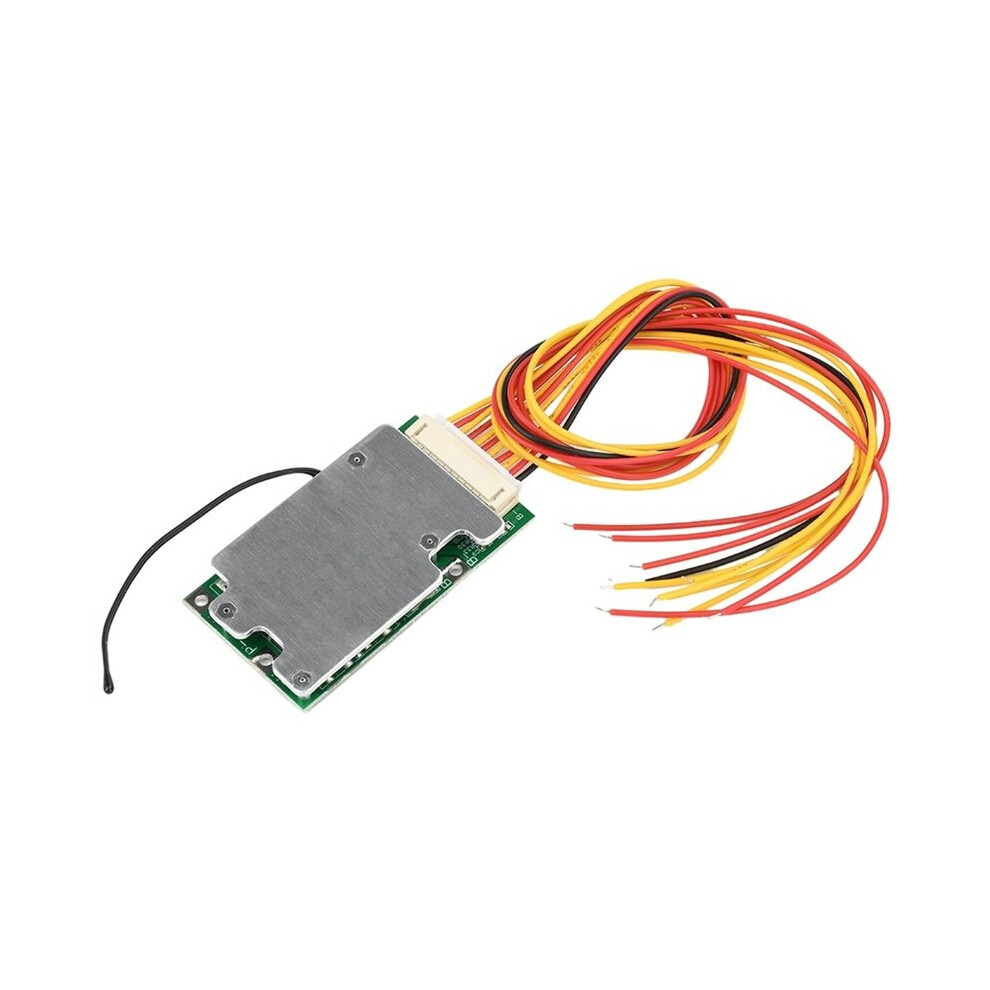

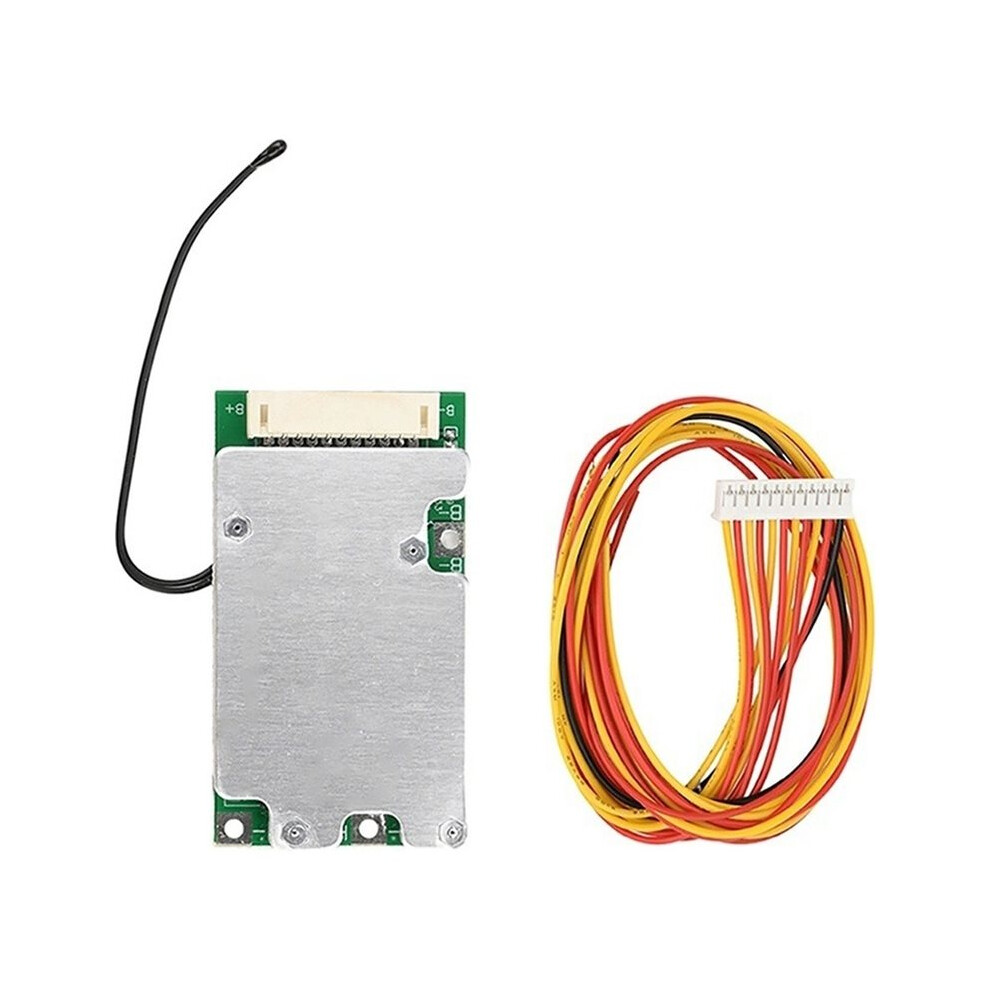

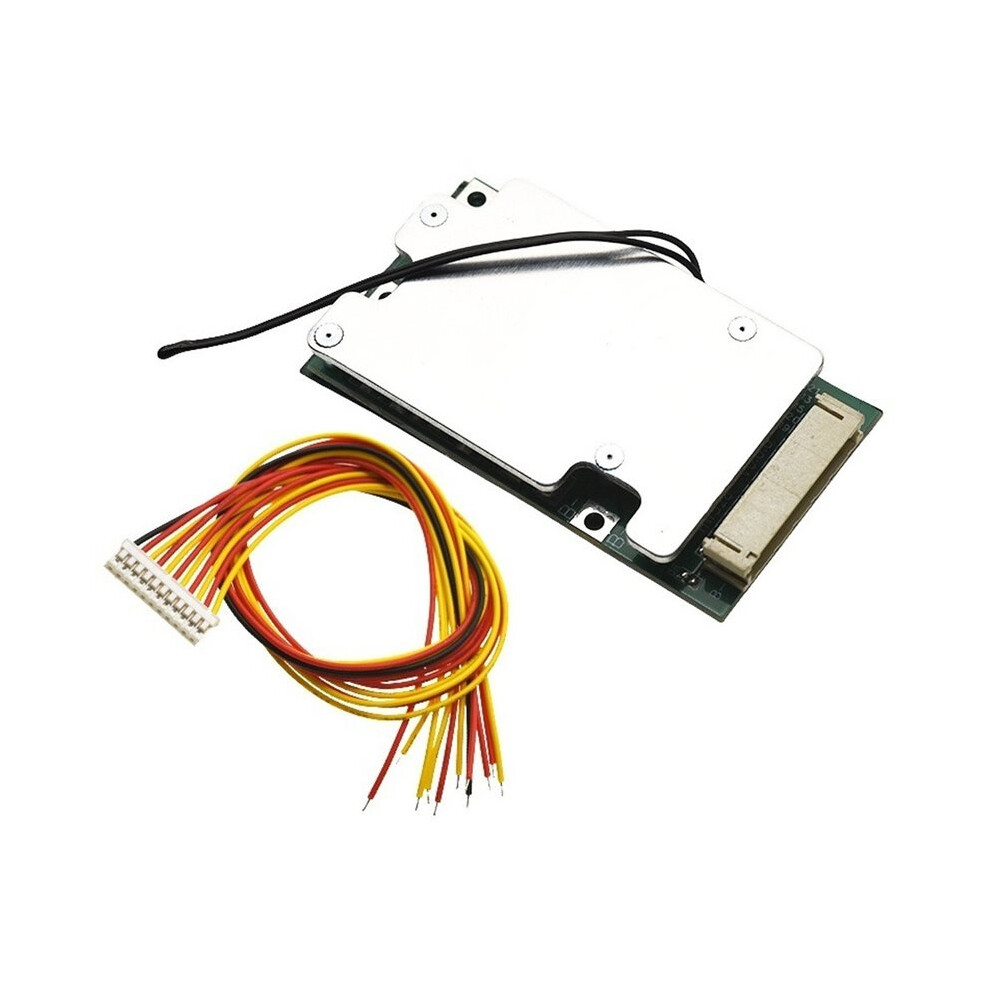

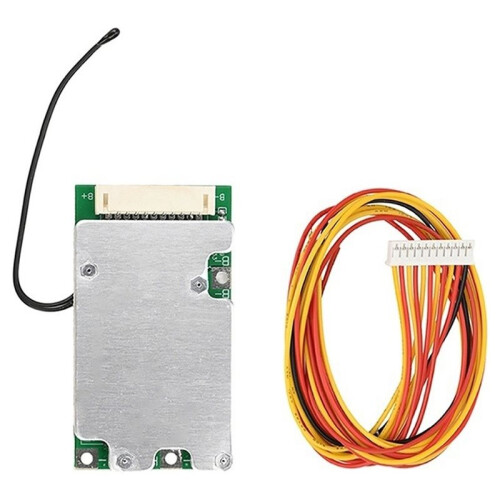

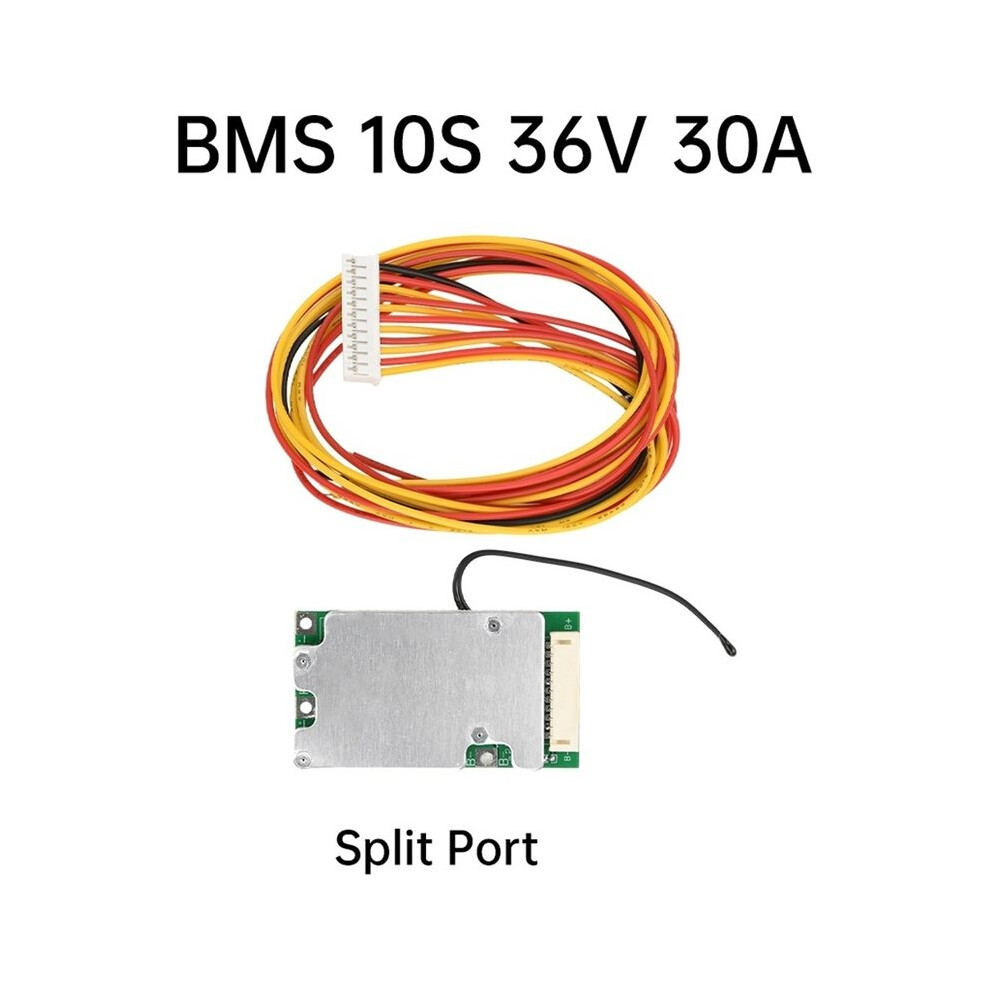

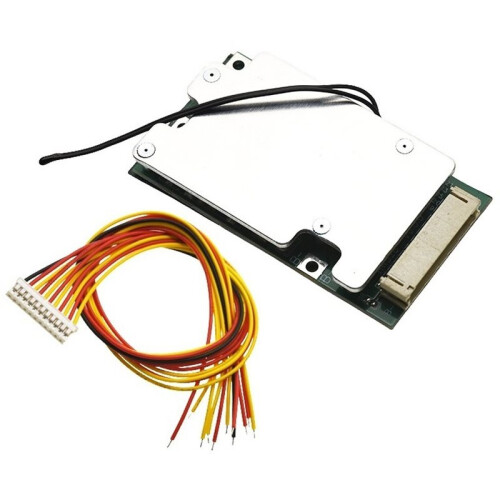

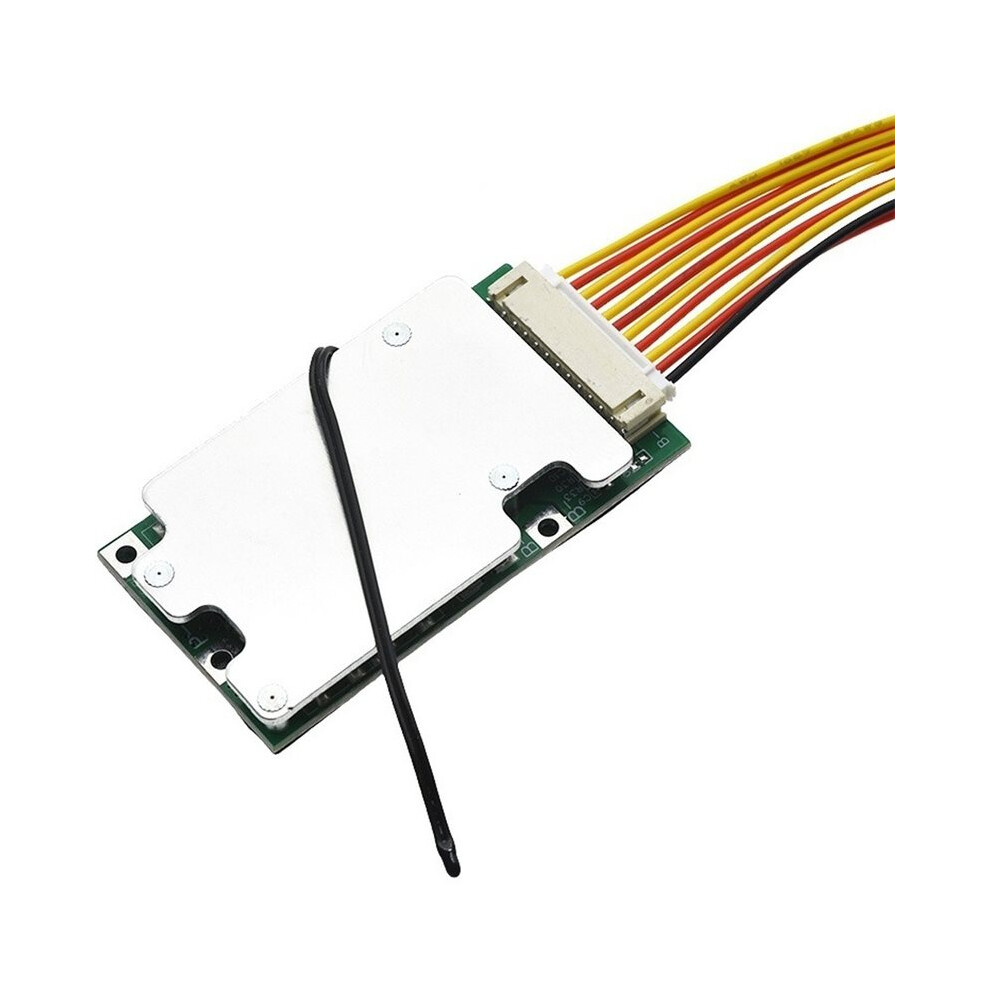

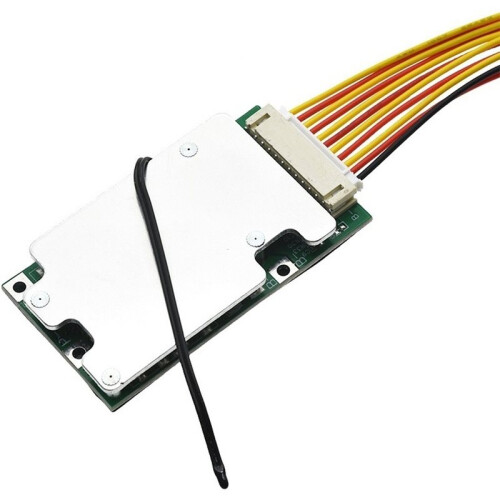

BMS 10S 36V 30A Split Port Lithium Battery Protection Board with Equalization 18650 Battery Balanced Protection Board

BMS 10S 36V 30A Split Port Lithium Battery Protection Board with Equalization 18650 Battery Balanced Protection Board Popis

Supply Voltage and Application: Specifically designed for electric toys, this module operates efficiently with a DC36V supply voltage, ensuring optimal performance and reliability in powering your devices.
Operating Temperature Range: Engineered to withstand diverse environmental conditions, this battery protection board operates effectively within a temperature range of -7 to 75, making it versatile for various operating environments.
Advanced Protection Features: Equipped with split port configurations, this board provides comprehensive protection against overcharge, over-discharge, and short circuits, enhancing the lifespan and safety of your lithium batteries.

Specifications:
Charging Voltage: DC36V
Protection Features: Over-charging, over-discharge, over-current, and output short-circuit protection.
Maximum Working Current: 30A MAX
Continuous Discharge Current: 20A MAX
Over-discharge Protection Voltage: 2.6V
Overcharge Protection Voltage: 4.25V
Charging Current: 20A MAX
Equalizing Charging Function: Equalizing voltage 4.2V
Temperature Protection: Discharge High Temperature 75; Charge Low Temperature -7.
Applicable Battery Types: 3.7V Ternary Battery Lithium Cobalt, Lithium Manganese Battery

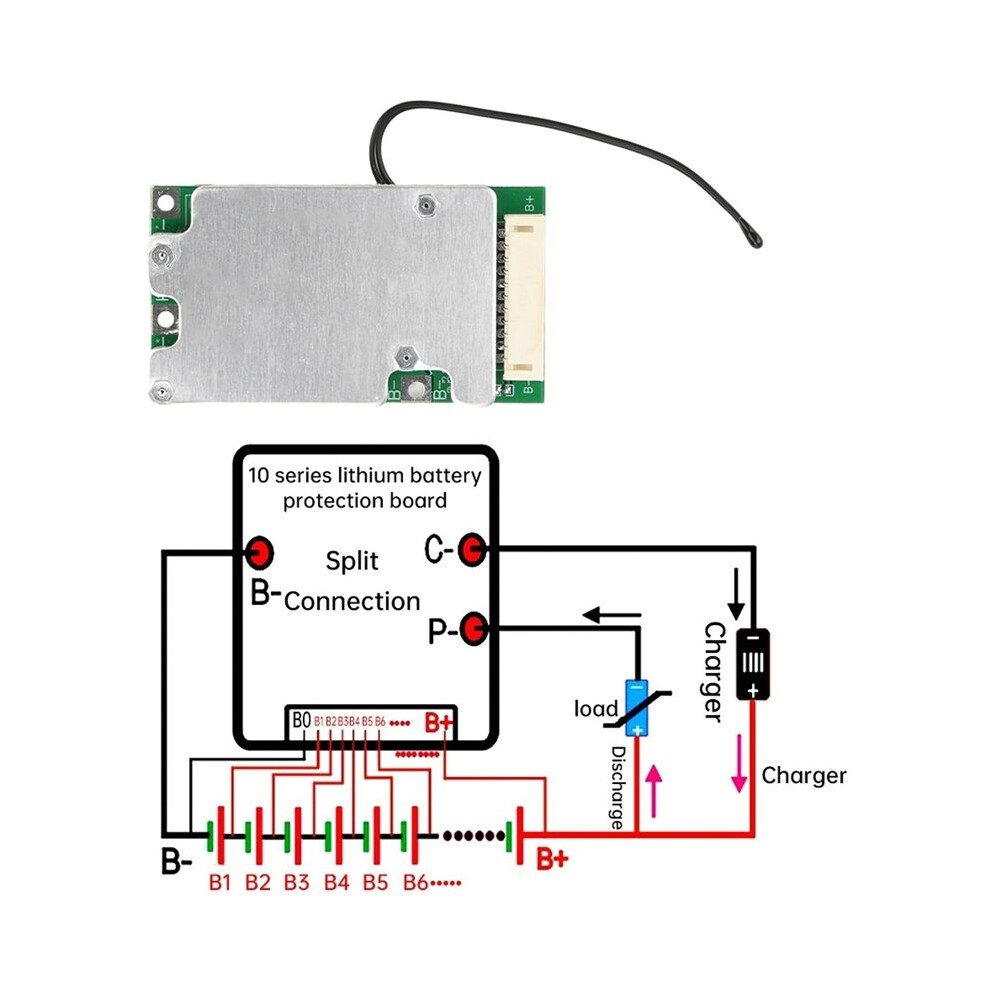

Wiring Steps:
1. Connect of wires to each battery section, ensuring effective connections and correct potential order.
2. Solder the B- lead of the protection board to the battery pack's total negative B-. Ensure firm, reliable, and conductive welds without hazards.
3. Connect the alignment cable plug to the protection board socket, ensuring proper placement and secure fixing.
4. Connect B+ and C- to the positive and negative terminals of the charging connector, ensuring correct polarity and avoiding short circuits.
Color: As Shown
Material: Plastic+Metal
