Shrnutí
- The Chain Encoder is a rotary encoder input node in the M5Stack Chain series. It integrates an AB rotary encoder, supporting rotation direction detection and pulse counting. The knob center supports button input.
- It also integrates a programmable RGB LED for status indication and interactive display. The encoder cap features a for LEGO-compatible hole structure, enabling more creative structural connections. Suitable for human-computer interaction, smart home control, and other applications.
- The Chain Encoder integrates the STM32G031G8U6 core controller and adopts the UART serial port cascading communication protocol. Through two HY2.0-4P expansion interfaces, it can expand to more Chain series devices and build richer interactive applications.
- for M5Stack Chain series
- for M5Stack Chain Encoder
Chain Encoder Rotary Encoding Input Node Module Integrated AB Knob Encoder Programmable RGB LED HY2.0-4P Interface Popis

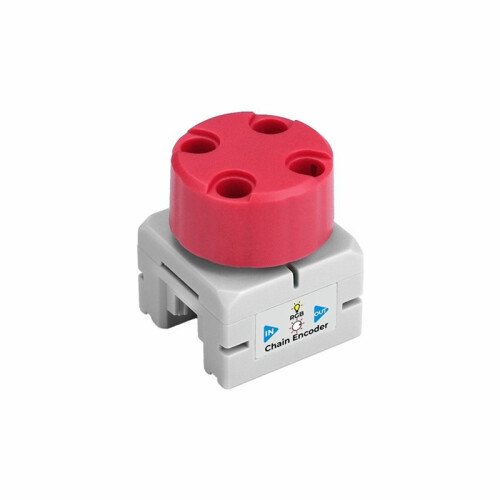

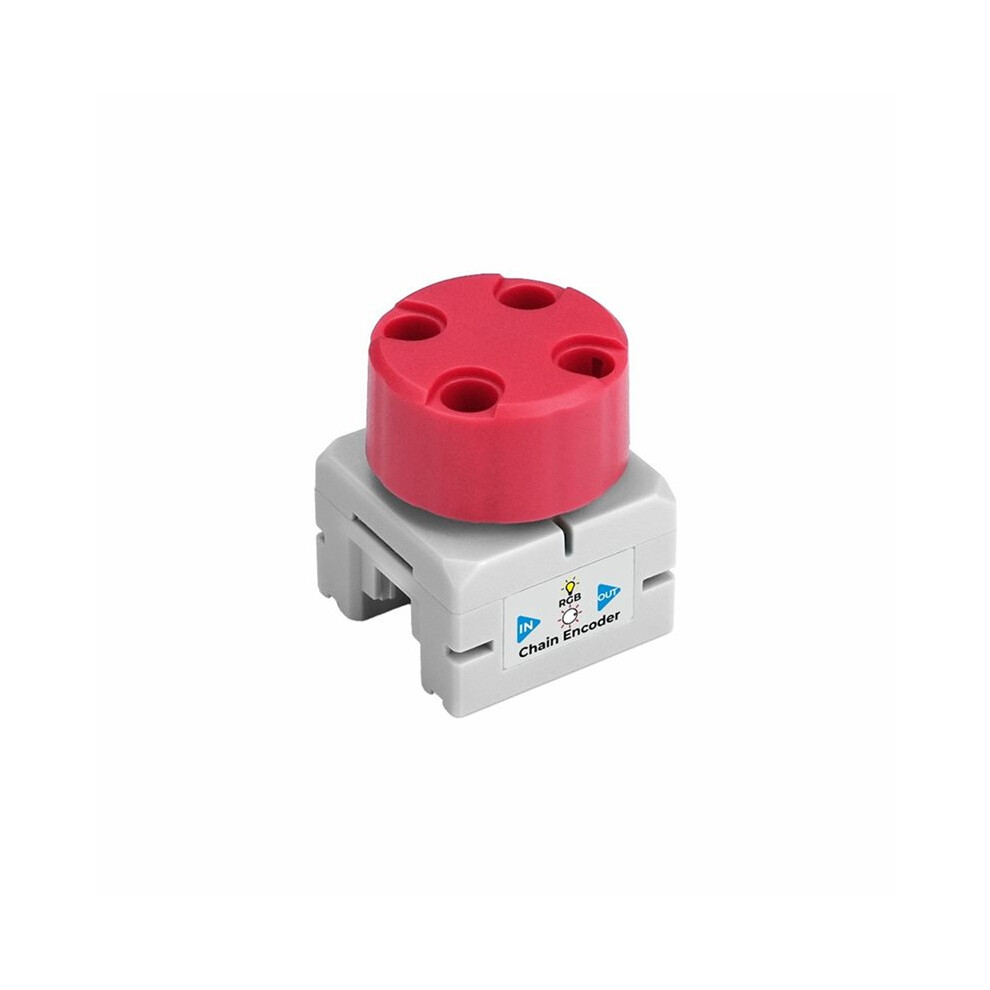

The Chain Encoder is a rotary encoder input node in the M5Stack Chain series. It integrates an AB rotary encoder, supporting rotation direction detection and pulse counting. The knob center supports button input.
It also integrates a programmable RGB LED for status indication and interactive display. The encoder cap features a for -compatible hole structure, enabling more structural connections. Suitable for human-computer interaction, home control, and other applications.
The Chain Encoder integrates the STM32G031G8U6 core controller and adopts the UART serial port cascading communication protocol. Through two HY2.0-4P expansion interfaces, it can expand to more Chain series devices and build richer interactive applications.
Specifications:
MCU: STM32G031G8U6
Input Power: 5V
Communication Method: UART 115200bps@8N1
Interface Specifications: 2x HY2.0-4P
RGB LED: 1x WS2812B
RGB Power Consumption: 22.51mA
Operating Temperature: 0~40C
Color: As Shown
Material: plastic
Package Contents:
1 * Chain Encoder
Podrobnosti
| OPC | PT9GMP9 |
|---|---|
| Značka | TAUOH |
| Kódy | 6032135946063 (EAN) |
| Informace o produktu a bezpečnosti |
Produktová data
| Height | 4cm |
|---|---|
| Width | 4cm |
| Length | 4cm |
| Weight | 0.014kg |
| Colour | As Shown |
| Material | Plastic |
