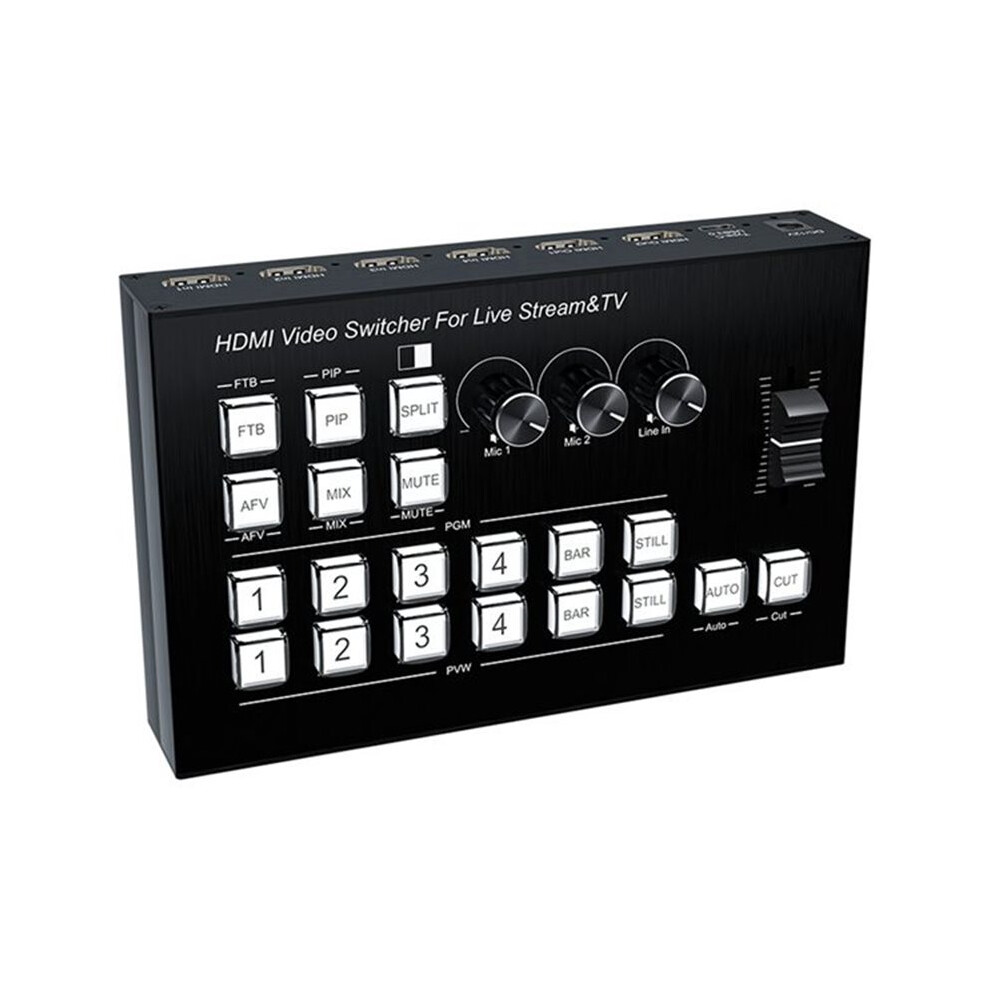

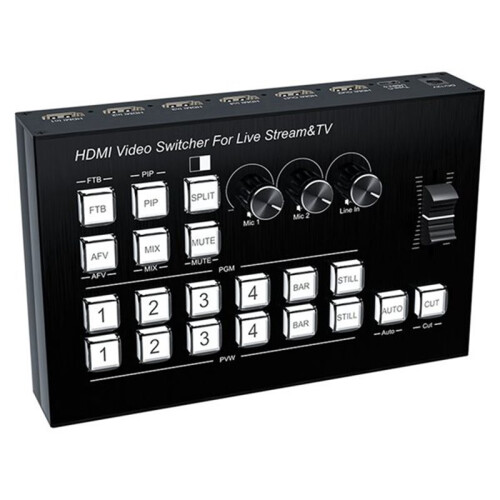

-Compatible Video Mixer Switcher Live Streaming 4-Channel 4 Way Multi-View -Compatible Video Switcher EU Plug

-Compatible Video Mixer Switcher Live Streaming 4-Channel 4 Way Multi-View -Compatible Video Switcher EU Plug Popis

Video switcher for live streaming, 4 -Compatible input support resolution 4K@30Hz, and support HDCP1.4 standard, support HD embedded audio +External analog audio, after mixed processing, can be embedded in the output HD signal or output from the analog port.
All resolution of the input signal is automatically adapted, the output resolution is 1920X1080@60Hz, To satisfy the requirements of Radio and television program production, live production of interviews and speeches, outdoor experience events, school courseware production and other video switching needs.
It can be used in live streaming and various event venues.

Features :
* 4 -Compatible input; 2 -Compatible output;
* 1 Type-C acquisition interface;
* Support OSD display input channel signal, resolution information, volume information;
* Support MIC, IN,HD mixing output
( OUT fixed mixing output,HD following or mixing);
* Support HD mixing and audio following (fixed following PGM);
* Support OUT and HD audio output;
* Support power-off save Settings;
* High quality keys, color backlight design

Specifications:
-Compatible input resolution ....... to 4K@30Hz
-Compatible output resolution ........1080P@60Hz
Supports audio format ............... PCM
The maximum bandwidth transmission ............. 340MHz
Maximum transmission rate .............3.4 x3Gbps
The input cable length ......... 4K/30Hz 15m AWG26 -Compatible standard cable
The output cable length ........1080P/60Hz15 m AWG26 -Compatible standard cable
Maximum working current ........... 0.7 A
Power adapter specifications .......... Input AC(50Hz,60Hz)100V-240V; Output: /12V 2A
Working temperature range ....... (-15 to +55)
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so .
Voltage: AC100-240V
Color: Black
Material: Metal
