CoreEP4CE10, ALTERA Core Board,FPGA Core Board, Features the ALTERA Cyclone IV Chip EP4CE10F17C8N Onboard

CoreEP4CE10, ALTERA Core Board,FPGA Core Board, Features the ALTERA Cyclone IV Chip EP4CE10F17C8N Onboard Popis

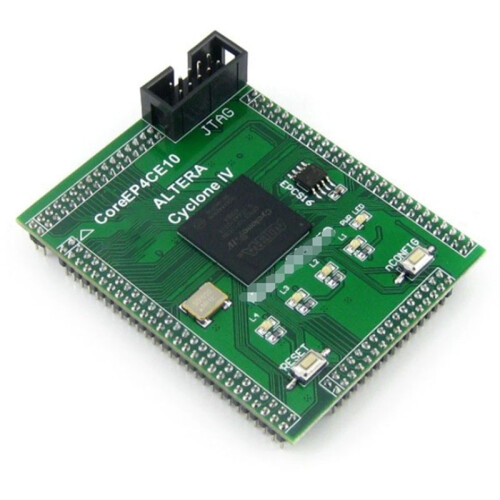

CoreEP4CE10 is an FPGA core board that features an EP4CE10F17C8N device onboard, supports further expansion.
onboard Serial Configuration Device EPCS16SI8N integrated FPGA basic circuit, such as clock circuit onboard nCONFIG button, RESET button, 4 x LEDs all the I/O are accessible the pin headers
onboard JTAG debugging/programming interface
2.00mm header pitch design, suitable for being plugged-in your application system

EP4CE10F17C8N:the ALTERA Cyclone IV FPGA device which features:
Operating Frequency: 50MHz
Operating Voltage: 1.15V~3.465V
I/Os: 164
LEs: 10K
RAM: 414kb
PLLs: 2
Debugging/Programming: supports JTAG
AMS1117-3.3 ( bottom side), 3.3V voltage regulator
AMS1117-2.5 ( bottom side), 2.5V voltage regulator
AMS1117-1.2 ( bottom side), 1.2V voltage regulator
EPCS16, onboard serial FLASH memory, for storing code
Power indicator
LEDs
Reset button
nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
50M active crystal
JTAG interface: for debugging/programming
FPGA pins expander, VCC, GND and all the I/O are accessible expansion connectors for further expansion
Development Resources
Related software (Quaters II, NIOS II etc.)
Demo code (Verilog, VHDL, NIOS II C)
Schematic (PDF)
FPGA development documentations
Material: PC
Color: As shown
Due to different product batches, the appearance may vary, which does not affect the use

Package Contents:
1 x CoreEP4CE10 core board
