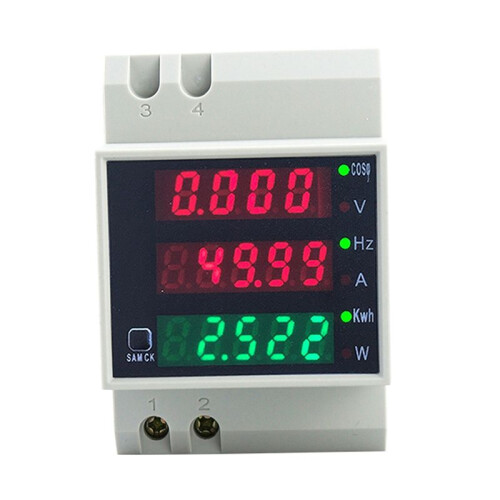

D52-2058 Wattmeter Din Rail Volt Current Meter Power Factor Digital Meter AC80-300V Multi-Function Kwh Hz Meter 0-100A,A

D52-2058 Wattmeter Din Rail Volt Current Meter Power Factor Digital Meter AC80-300V Multi-Function Kwh Hz Meter 0-100A,A Popis

Measurement accuracy: 1% 2 characters.
Frequency: 45.00-6500HZ. Power factor: 1.000-0000
Measurement speed: about 2 times per second

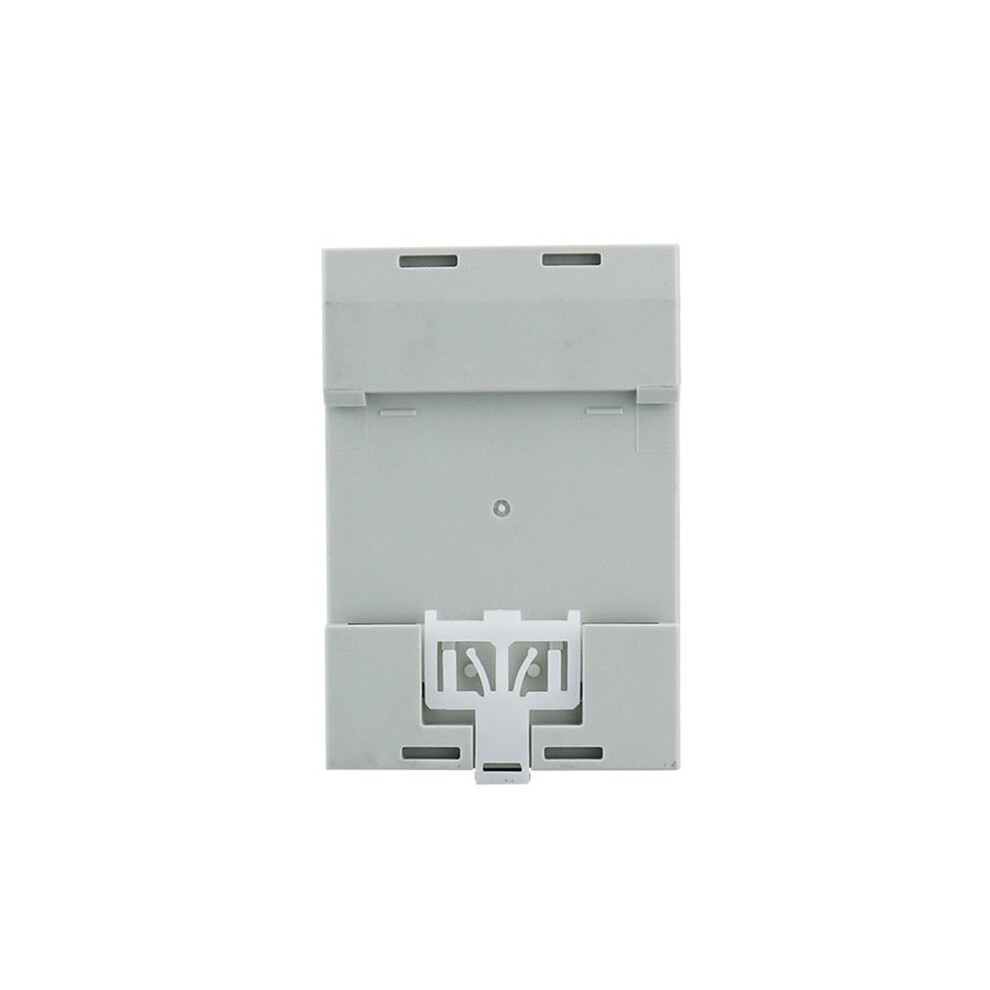

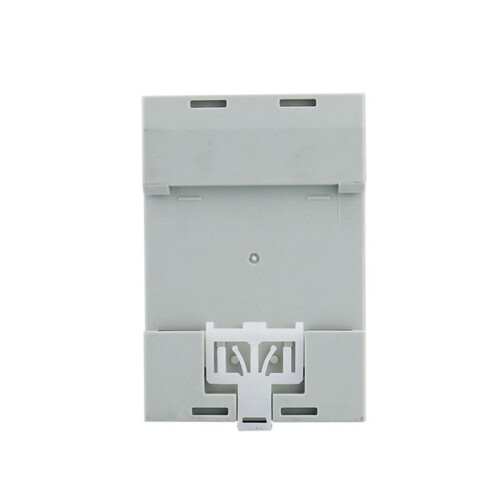

Installation method: track type (common guide rail in the market)

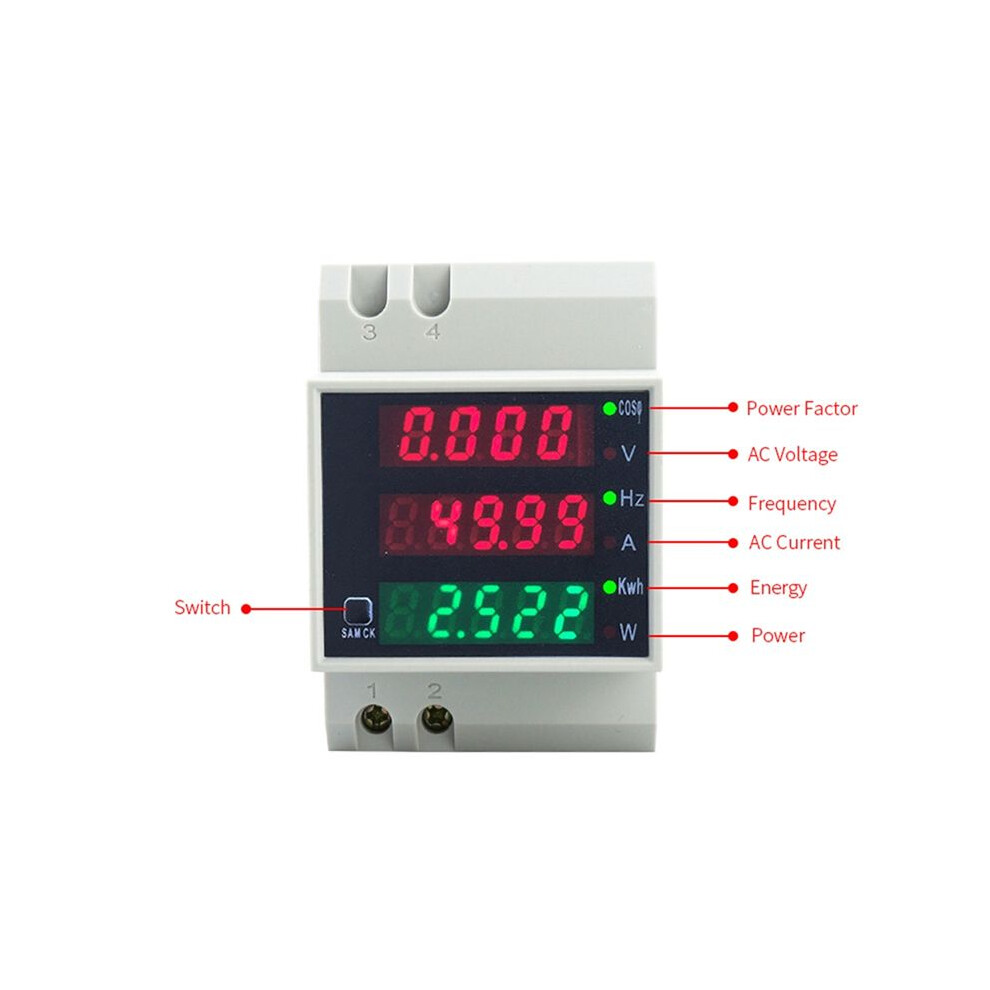

Display: Voltage display 4-digit red 0.31-inch LED digital tube, Current and frequency display use 5-digit red 0.31-inch LED digital tube, active power, electric (electricity) display use 5-digit, green 0.31-inch LED digital tube.

Measuring range: AC voltage: AC80.0-300.0V, (or AC200.0-450.0V, users should propose according to their needs when ordering) AC current: AC0-100.0A, when the measured current is less than 100A, the current display resolution is 0.01A, when the measured current is greater than 100A, the current display resolution is 0.1A, and the range is automatically converted. Active power: (measurement voltage AC80.0-300.0V) 0.0-30000W (AC200.0-450.0V: 45000W) Electric : 0.000-99999kwh, decimal point automatic conversion.
The external transformer (hole diameter 155mm) can meet the national standard 21-25 square (mm) standard copper wire passing through.
Extreme working conditions:
Working temperature: -10 - +60
Working humidity: 10-80% (no condensation)
Working air pressure: 80-106kPa
Sunlight exposure: no direct exposure

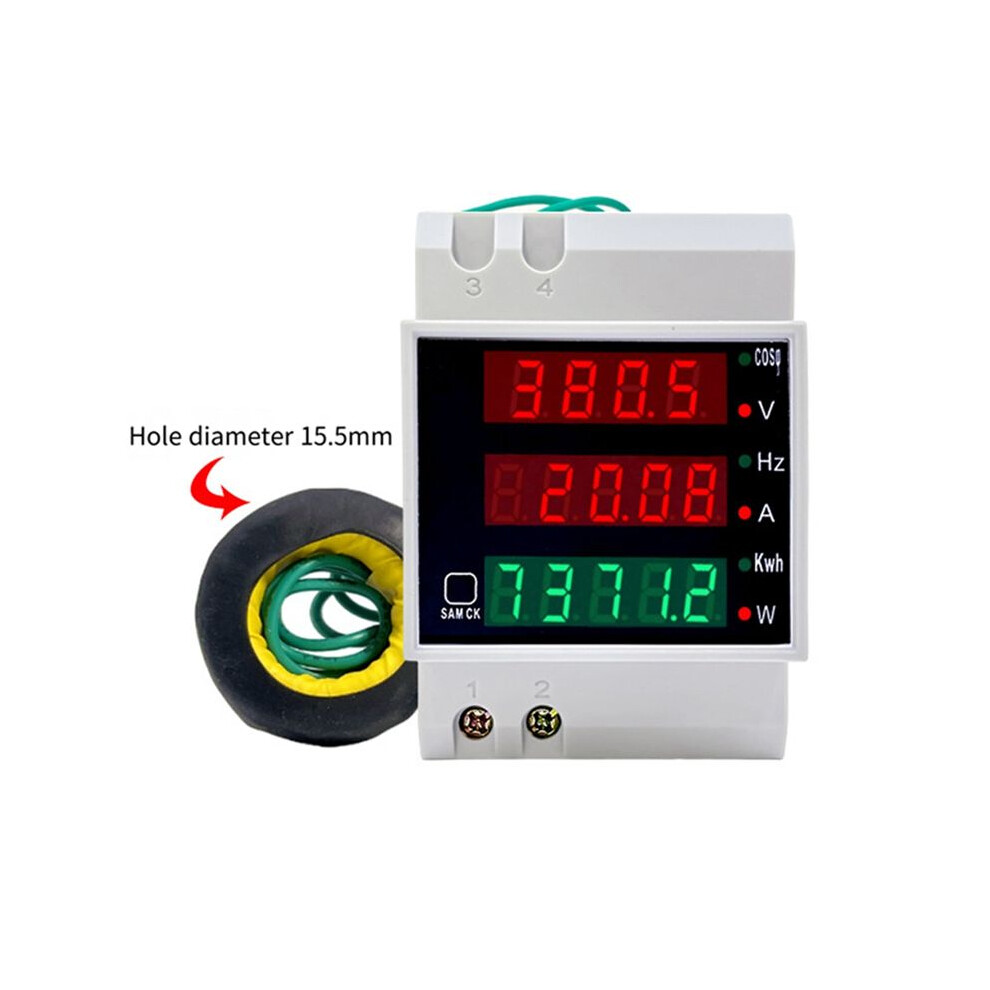

Specifications:A:Hole Diameter 15.5mm (External Transformer)
Colour:White

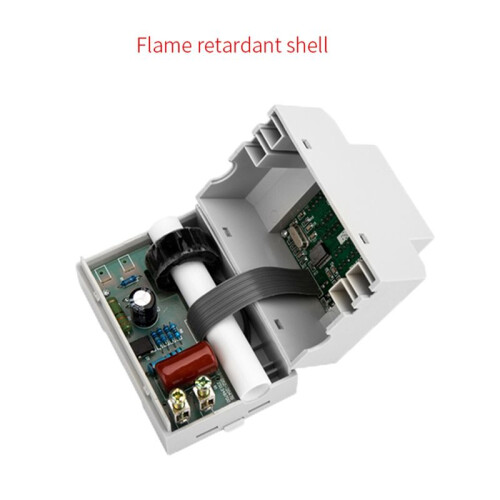

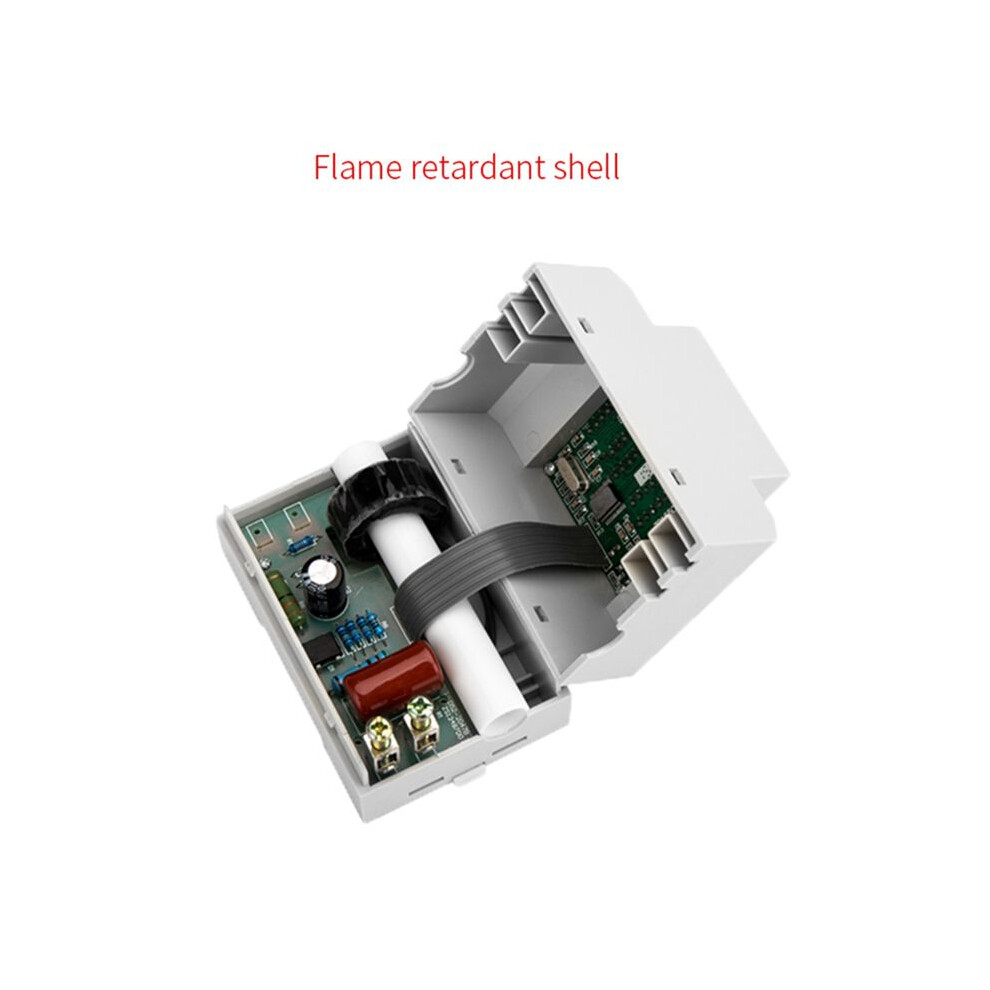

Material:ABS

Package Contents:
1 * power tester
