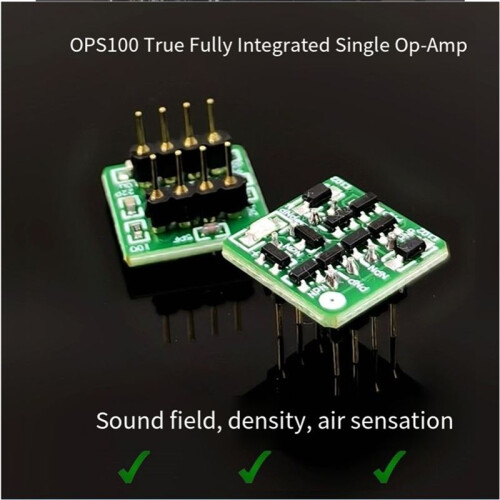

Dual Differential Fully Symmetry Discrete Component OPS100 Single OP AMP Module

Dual Differential Fully Symmetry Discrete Component OPS100 Single OP AMP Module Popis

It is specifically designed for professional audio applications and fields that require low noise, low distortion, and high linearity non-staining performance.
The noise is below 500nv/rms 20KHz, and the maximum output current can reach 80mA.
The current structure adopts multiple pairs of HIFI low-noise transistors and low error surface mount transistors, paired with multiple precision transistors. The overall sound quality is wide and full, with a grand scene and distinct layers. The mid frequency brightness is clear, the density is high, and the low frequency is deep and elastic.
High performance temperature stable power supply independent current source is used, which allows bias to remain locked at the optimal operating point regardless of power supply voltage or temperature.

Specification:The OPS100 Single operational amplifier can directly replace chips such as NE5534, OPA604, OPA627, AD797, LME49710, etc.
Application:
Low impedance amplifier and driver
Active filters and equalizers
Sum/Mixing Amplifier
High performance microphone preamplifier
High performance A/D or D/A front-end preamplifier
High current buffer amplifier
High performance D/A I-V converter
Output Current: 60mA
Working Voltage: 5V-18V
Noise Density: Less than 500 nv RMS
Distortion Factor: 0.0002%
Conversion Rate: 20V/μs
Color: As Shown
Material: PCB

Package Contents:
1 x Operational Amplifier Module
