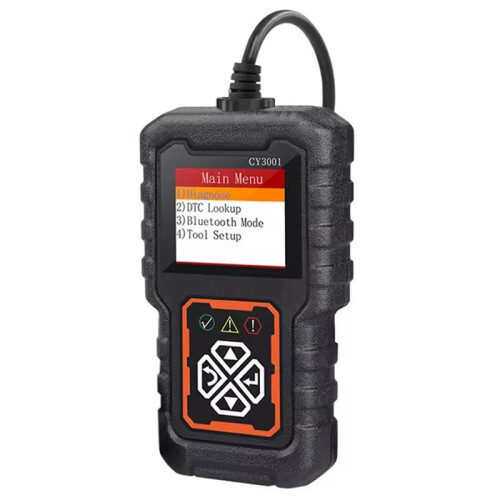

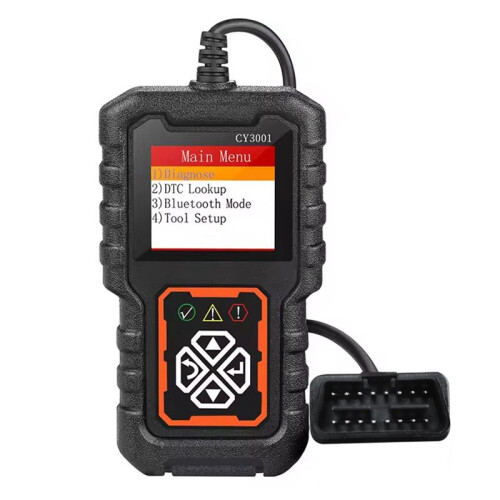

Engine Battery O2 Sensor EOBD OBD2 Scanner CY3001 OBD2 Code Reader Car Diagnostic Tools Fault Code Digital Display

Engine Battery O2 Sensor EOBD OBD2 Scanner CY3001 OBD2 Code Reader Car Diagnostic Tools Fault Code Digital Display Popis

1. Quick detection: Quickly read vehicle fault codes to save diagnostic .
2. Real data monitoring: Real display of vehicle operation data to help users understand vehicle status.
3. High precision: Provide accurate measurements and analysis to ensure the reliability of diagnostic results.
4. Strong compatibility: Suitable for various vehicle models and series, with wide applicability.
5. Easy to operate: user-friendly, easy to operate, and easy to get started.

Communication protocol:
1. SAEJ1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. 1s09141-2 (5 baud init,10.4 kbaud)
4. 1S014230-4 KWP(5 baud init,10.4 Kbaud)
5. 1S014230-4 KWP (fast init,10.4 Kbaud)
6. IS015765-4 CAN (1bit lD,500 Kbaud)
7. IS015765-4 CAN (29bit lD,500 Kbaud)
8. IS015765-4 CAN(11bit lD250 Kbaud)
9. 1S015765-4 CAN (29bit ID,250 Kbaud)
Specifications:
Product Name: CY3001 Automotive Tester
Working status: Three color indicator light
Product size: 70mmx120mmx23mm
Connection method: OBDII dedicated cable/ connection
Working temperature: -40 to 65
Voltage: DC9-16V
Color:Black
Material:Metal+Plastic

Package Contents:
1 * Car tester
