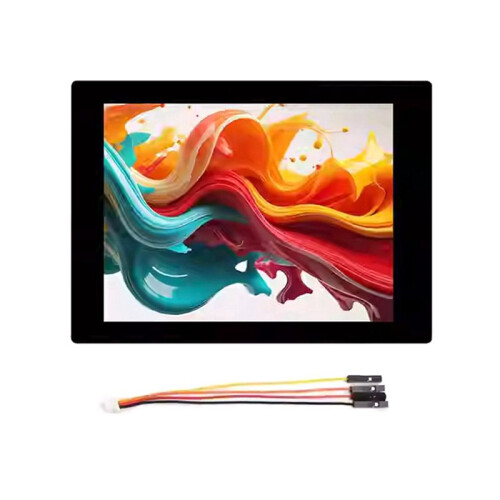

ESP32-S3 2.41inch AMOLED Touch Display Development Board 600x450 Resolution, Dual-Core 32-Bit LX7 Onboard Accelerometer
Would you like us to let you know when it's back?
Shrnutí
- 1. This product uses the ESP32-S3R8 chip, supports 2.4GHz Wi-Fi and BLE 5 Bluetooth functions, and has built-in large-capacity Flash and PSRAM
- 2. Equipped with a 2.41-inch high-definition AMOLED display, it can run GUI programs such as LVGL smoothly
- 3. Onboard RTC, IMU, Micro-SD card slot and lithium battery charging function, rich peripheral resources, and reserved USB, UART, I2C and 34PIN GPIO interfaces, providing flexible expansion capabilities, it is an ideal choice for rapid development of HMI applications based on ESP32-S3
- 4.Explore the capabilities of the Waveshare ESP32-S3 Development Board, featuring a high-resolution 2.41-inch AMOLED touch display with a 600x450 pixel resolution
- 5.This board is powered by a 32-bit LX7 dual-core processor, providing robust performance for all your development needs
ESP32-S3 2.41inch AMOLED Touch Display Development Board 600x450 Resolution, Dual-Core 32-Bit LX7 Onboard Accelerometer Popis
1. This product uses the ESP32-S3R8 chip, supports 2.4GHz Wi-Fi and BLE 5 functions, and has built-in large-capacity Flash and PSRAM
2. Equipped with a 2.41-inch high-definition AMOLED display, it can run GUI programs such as LVGL smoothly
3. Onboard RTC, IMU, Micro- card slot and lithium battery charging function, rich peripheral resources, and reserved USB, UART, I2C and 34PIN GPIO interfaces, providing flexible expansion capabilities, it is an ideal choice for rapid development of HMI applications based ESP32-S3
4.Explore the capabilities of the Waveshare ESP32-S3 Development Board, featuring a high-resolution 2.41-inch AMOLED touch display with a 600x450 pixel resolution
5.This board is powered by a 32-bit LX7 dual-core processor, providing robust performance for all your development needs
Display panel: AMOLED
Display size: 2.41 inches
Display resolution: 600 x 450
Display color: 16.7M
Display brightness: 800cd/m²
Contrast ratio: 100000:1
Communication interface: QSPI
Driver IC: RM690B0
Touch: Supported
Touch IC: FT6336
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color: As shown
Material: Plastic+LED
Package Contents:
1 x Touchscreen Display Development Board Kit
Podrobnosti
| OPC | PWNJGZ7 |
|---|---|
| Kódy | 6031254470831 (EAN) |
| Informace o produktu a bezpečnosti |
Produktová data
| Height | 5cm |
|---|---|
| Width | 10cm |
| Length | 14cm |
| Weight | 0.0355kg |
| Colour | As Shown |
| Material | Plastic+LED |
