Esp32-S3 Wifi Infrared Thermal Imaging Module Esp32 Serial Wifi RGB Development Board 80x62 Pixel Infrared Array A

Esp32-S3 Wifi Infrared Thermal Imaging Module Esp32 Serial Wifi RGB Development Board 80x62 Pixel Infrared Array A Popis

1. Equipped with ESP32-S3-WROOM-1 module, equipped with Xtensa 32-bit LX7 dual-core microprocessor, the main frequency can reach 240MHz, providing powerful data processing capabilities
2. Onboard antenna, supports 2.4 GHz WIFI (802.11 b/g/n) and 5 (LE) dual-mode communication
3. Built-in 512KB and 384KB ROM, stacked with 8MB PSRAM and external 16MB Flash
4. Use Type-C interface to improve device compatibility and user convenience
5. Onboard RGB LED indicator, real- display of module operation status, convenient for equipment monitoring and maintenance

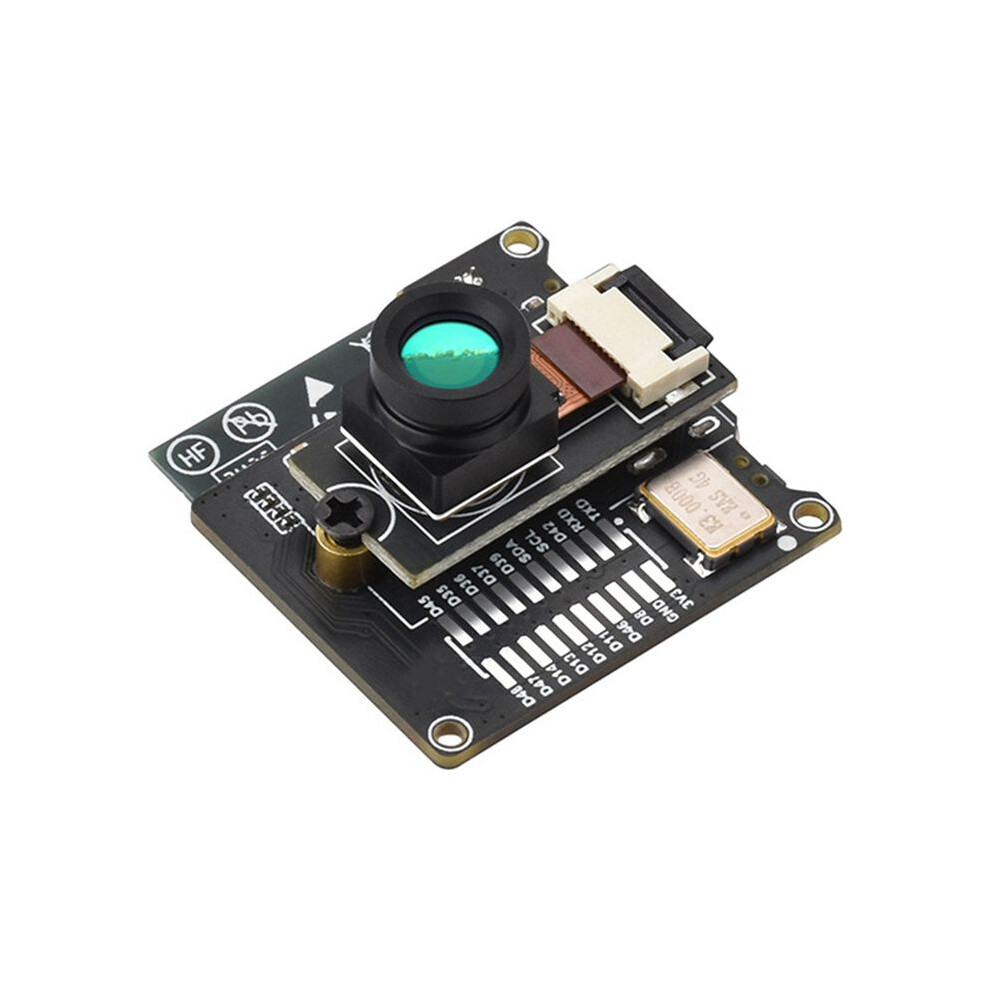

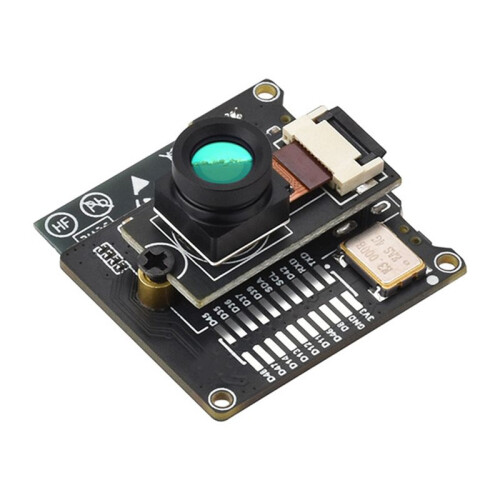

This is a wireless infrared thermal imaging device based the ESP32-S3-WROOM-1 main control module. It uses a hybrid technology of microbolometer and thermopile pixels and has an 80x62 pixel infrared array. The module can detect the infrared radiation distribution of objects within the lens field of view in real , and generate the object surface temperature distribution map and thermal imaging image through quantitative processing. In addition, the module integrates charging and discharging circuits and reserves a battery interface for users to connect the battery module for power supply.
Onboard 3.7V MX1.25 lithium battery charging and discharging interface, supports flexible power supply solutions, and extends the power supply of the device
Provides 2x10 pad interfaces, including 14 GPIOs, 1 I2C and 1 UART, supporting
Support external devices to expand functions
Compact design improves equipment space utilization and is suitable for embedded application scenarios
The product appearance and printed words may vary depending the batch, but this does not affect use.
Specification:A:90-degree wide-angle version
Colour:As Shown
Material:PCB

Package Contents:
1 * Wifi Camera Module
