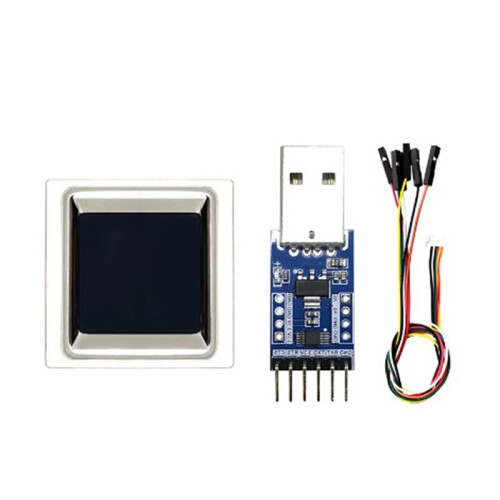

Fingerprint Identification Module ZW0608 Square Semiconductor Capacitive Fingerprint Acquisition Sensor Module,C

Fingerprint Identification Module ZW0608 Square Semiconductor Capacitive Fingerprint Acquisition Sensor Module,C Popis

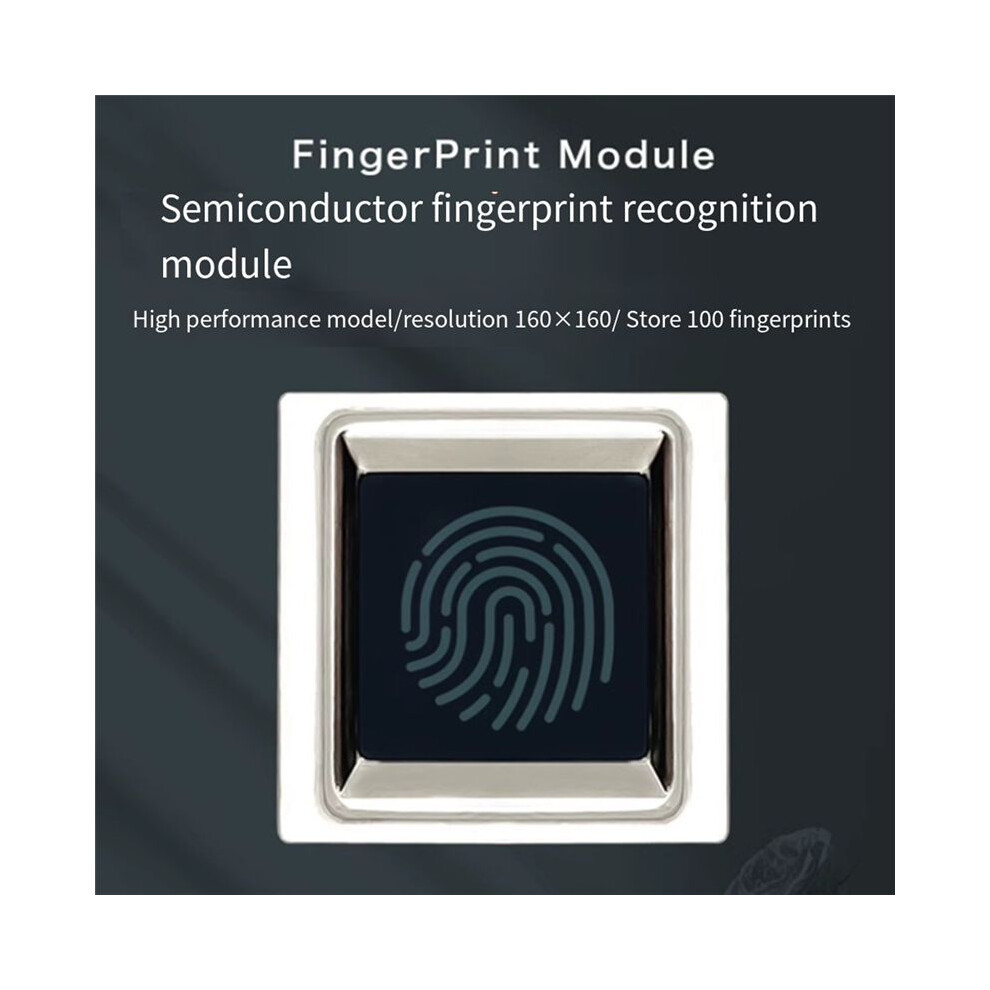

1. Semiconductor Fingerprint Recognition Module, High-Performance Model, Resolution 160x160, Storage Of 100 Fingerprints
2. Zw0608 Is A Capacitive Fingerprint Recognition Module, Consisting Of An Active Semiconductor Fingerprint Collection Sensor And A Fingerprint Recognition Processing Chip.
3. Supports Functions Such As Fingerprint Image Processing, Template Extraction, Template Matching, Fingerprint Search And Template Storage. The Product Structure Is Simple And Highly Integrated, Which Improves The Stability And Consistency Of The Product And Can Be Customized According To User Needs.

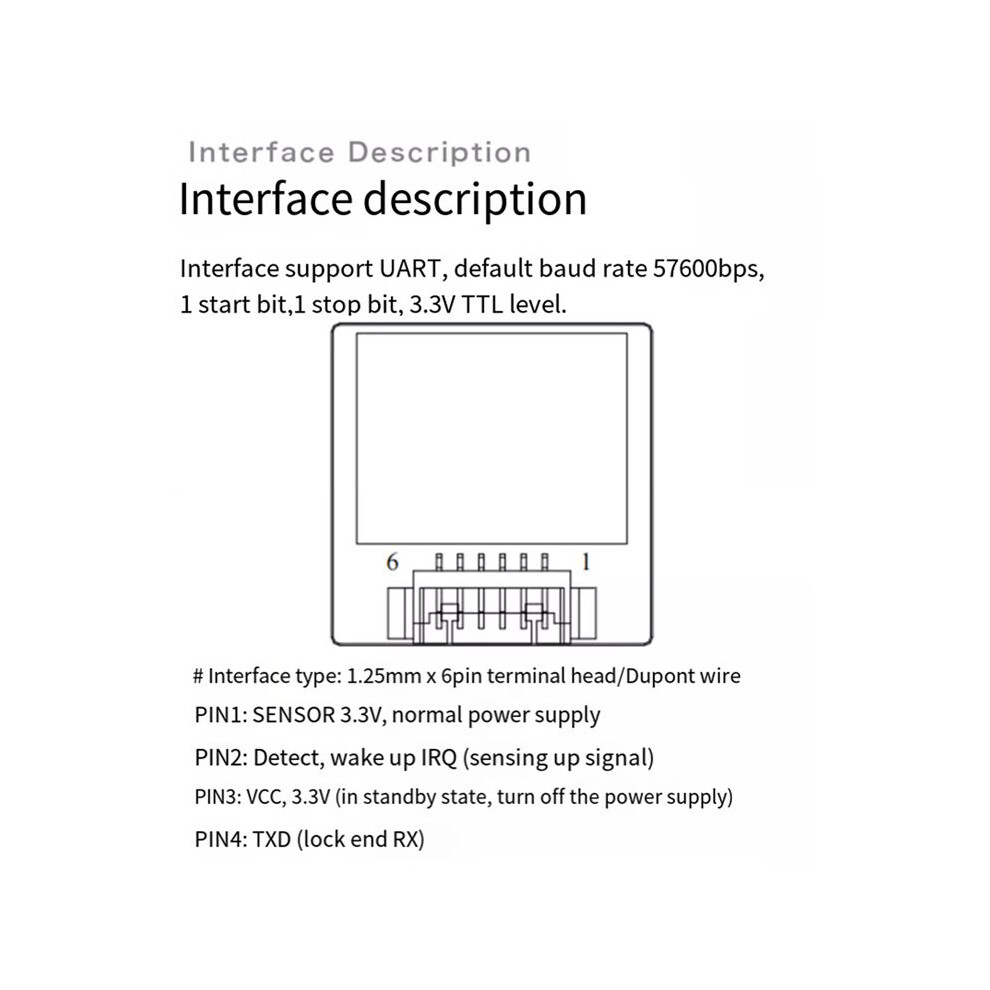

4. The Interface Supports Uart, The Default Baud Rate Is 57600bps, 1 Start Bit, 1 Stop Bit, 3.3vttl Level.
5. Fingerprint Adaptability Is Strong. During The Fingerprint Image Reading Process, An Adaptive Parameter Adjustment Mechanism Is Adopted To Achieve Better Imaging Quality For Both Wet And Dry Fingers, And Is Applicable To A Wider Range Of People.

Description:
1.Module Size: About 19 x 19mm
2.Sensor Size: About 12.05 x 12.05mm
3.Resolution: 160 x 160 Pixel
4.Data Connection: Uart
5. Interface Protocol: Ttl Serial Port
6. Communication Baud Rate: Default Baud Rate 57600bps/1 Start Bit/1 Stop Bit 3.3v Ttl Level

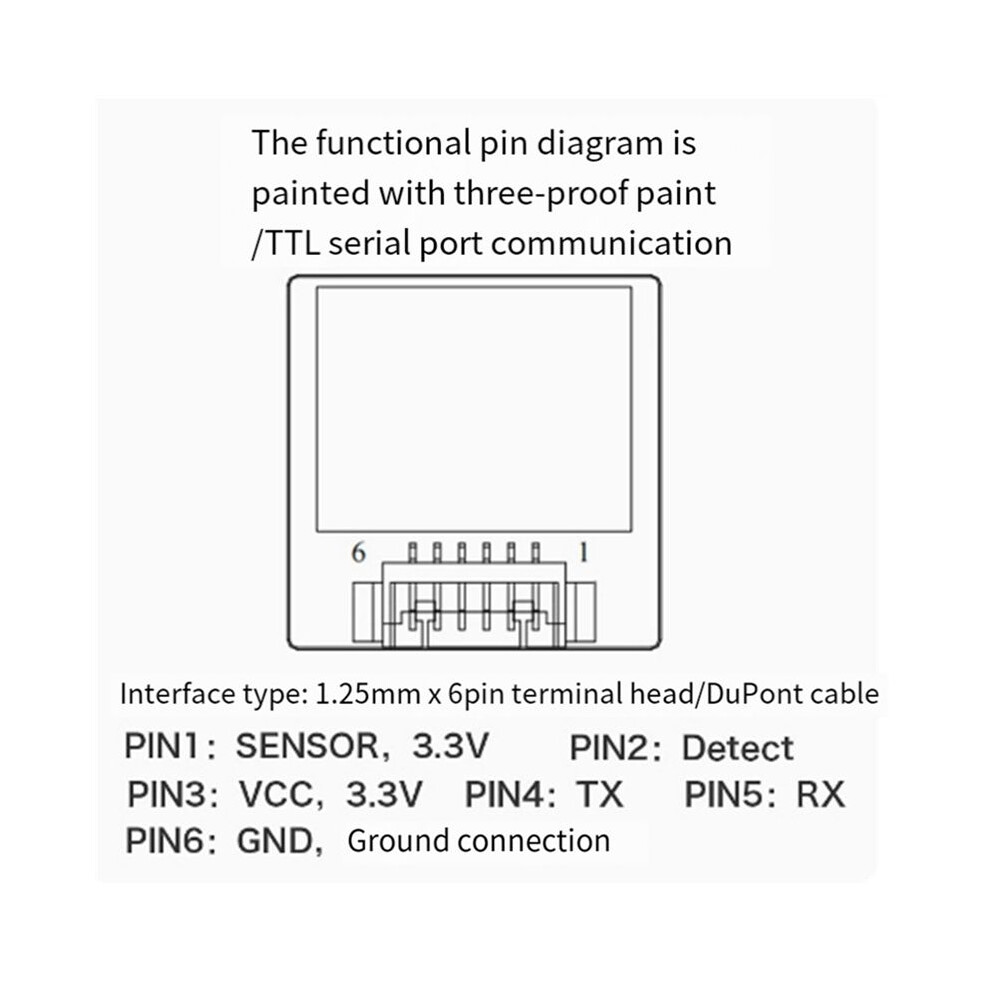

7. Interface And Sequence: 1.25mm x 6pin Horizontal Patch
8. Fingerprint Library Capacity: 100 Pieces
9. Storage Temperature And Humidity: -40~+85; 45%~95%Rh
10. Working Temperature And Humidity: -25~+85;45%~85%Rh
11. False Recognition Rate: Less than 0.001%
12.Rejection Rate: 1%
13.Comparison Method: 1:N
14. Actively Send Handshake Command After Initialization Is Completed: Supported
15.Self-Learning Function: None
16.Fingerprint Unique Serial Number: Supported
17. Fingerprint Entry Buffer Definition: Buffers Charbuffer1, Charbuffer2 Or Charbuffer
