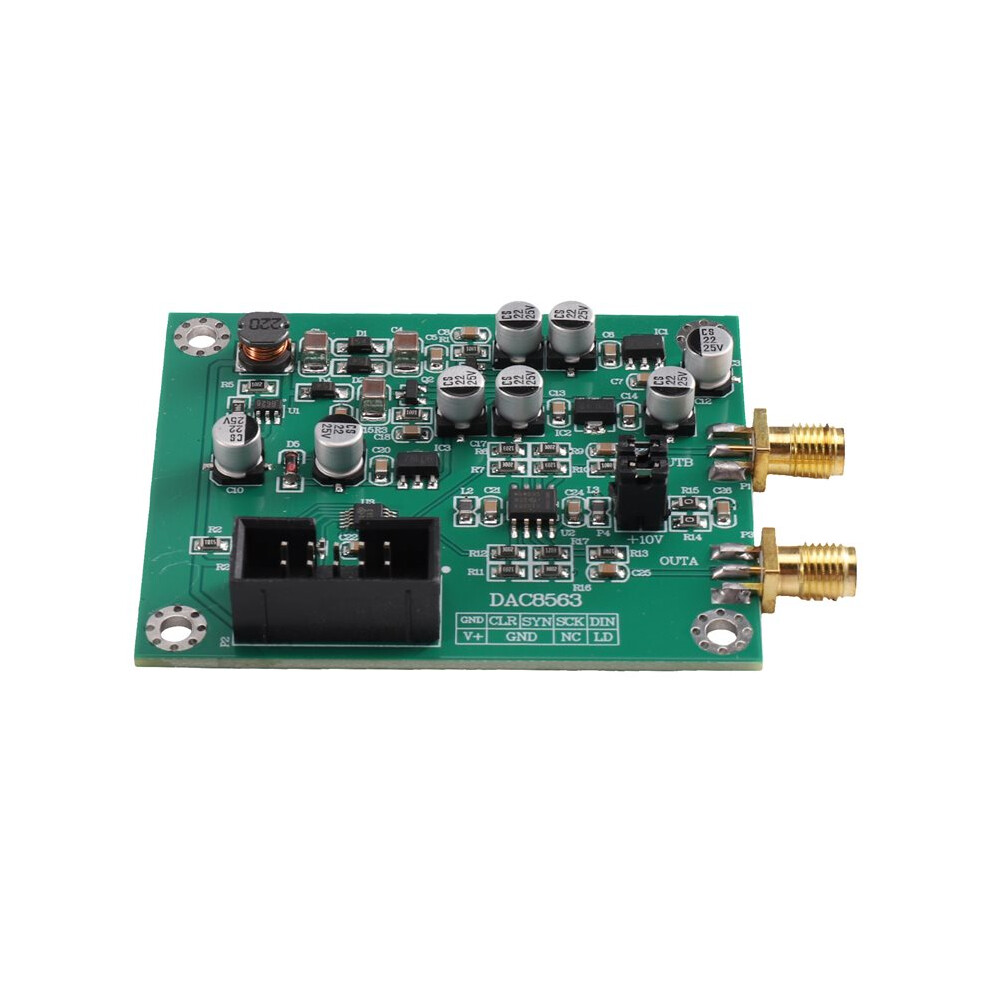

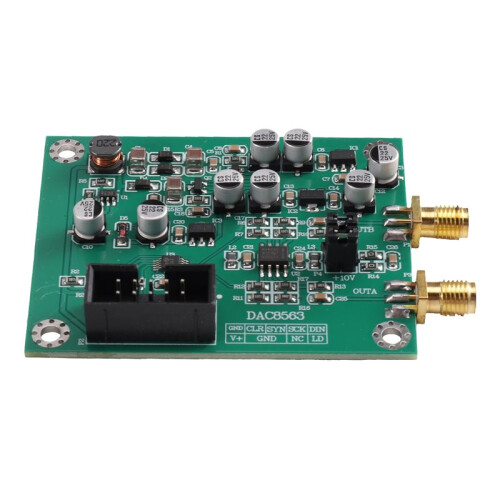

For DAC Module Dual CH 16-Bit Digital Analog, 10V Adjustable Positive Negative Voltage Acquisition Demo Board,DAC8563

For DAC Module Dual CH 16-Bit Digital Analog, 10V Adjustable Positive Negative Voltage Acquisition Demo Board,DAC8563 Popis

Dual 16-bit for DAC Precision:Features dual 16-bit for DACs for high-resolution analog output, ensuring accurate signal conversion.
10v Output Range:Generates adjustable 10V voltage output, offering versatile signal control for various applications.
This is a low-power, voltage output, dual-channel, 16-bit digital-to-analog conversion module
Digital-to-Analog Conversion:Expertly handles digital-to-analog conversion, enabling smooth signal transition for various devices.
Data Collection Module:Optimized as a data collection module, facilitates real- data acquisition for industrial processes.

Module parameters
Module model: DAC8563
Module type: digital-to-analog conversion module
Module power supply: DC3V-5V
Module current: 100mA (MAX)
Module communication protocol: SPI serial
Module output voltage range: 10V or 0-10V
DAC resolution digits: 16
Number of output channels: 2 channels independent
Module output interface: SMA; 24-hour salt spray anti-oxidation
Module output signal: voltage; OPA1602 chip output, with a certain driving capacity, within 20mA
Reference voltage: 2.5V; internal 2.5V reference
Voltage settling : 10uS
DAC output analog bandwidth: 100KHz
Module features: multiple; with output buffer amplifier, ultra-low AC crosstalk, fast settling
Module application: multiple; programmable voltage source, instrument and control system, sensor excitation, motion process control
Module interface type: SMA signal output and external reference input, DC5.5 power socket
XH2.54 pin data interface.
Module description
The DAC8563 device is a low-power, voltage output, dual-channel, 16-bit digital-to-analog converter (DAC). The device includes a 2.5V, 4-ppm / C internal reference voltage source that provides a full-scale output volta
