For Motion Base V1.1 Servo and Motor Drive Base for ATOM Main Control Series for Atom Series Controllers

For Motion Base V1.1 Servo and Motor Drive Base for ATOM Main Control Series for Atom Series Controllers Popis

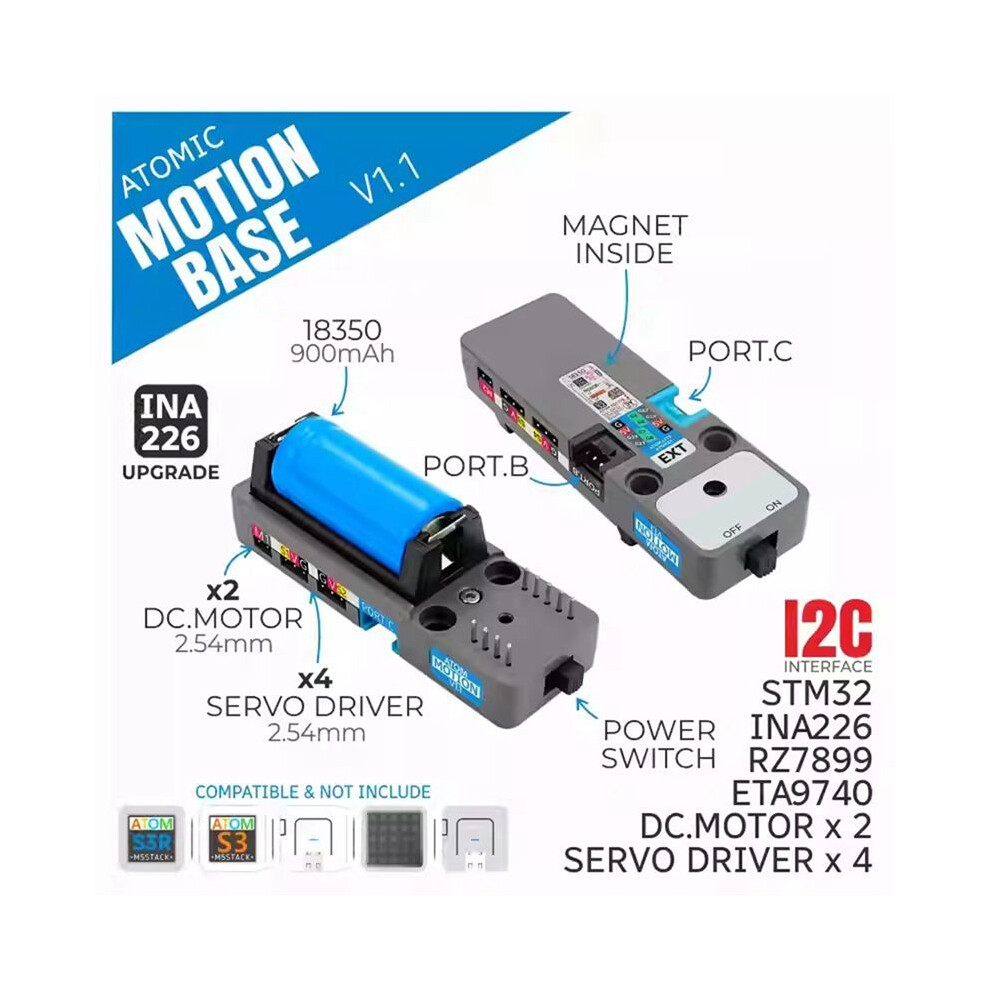

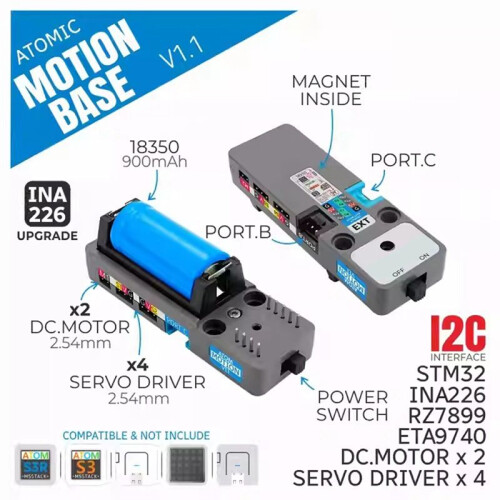

Motion Base v1.1 is a servo and motor drive base designed specifically for ATOM main control series. The product provides 4-channel servo motor interface and 2-channel motor interface, as well as two onboard Grove interfaces, which can facilitate the external connection of various sensors and expansion devices.
In terms of communication, I2C communication method is adopted, and STM32 control chip is used to ensure stable data transmission.
In terms of power supply, it is equipped with a built-in 18350 specification lithium battery (900mAh) and an INA226 current/voltage detection chip to monitor battery voltage, current, and power in real , ensuring the safety and stability of system power supply.
At the same , the integrated overload protection function effectively prevents equipment from being damaged due to excessive load. The product also has a battery charging function, ensuring that the battery can be easily charged to extend its usage . The onboard independent power design facilitates users to and off the power supply.
This product is suitable for multi servo control, robot development, intelligent device prototype design, and automation experiments.

Suitable for Atom series controllers
4-channel servo control
2-channel motor control
Detachable lithium battery
Back magnetic design
Independent power
2-channel Grove interface
rechargeable
Battery current/voltage detection
development platform: UIFlow 1.0, UIFlow 1.0, for IDE
Different batches may have different printing screens, but it does not affect the use
Color: Dark gray
Material: Plastic

Package Contents:
1 x for Motion Base v1.1
