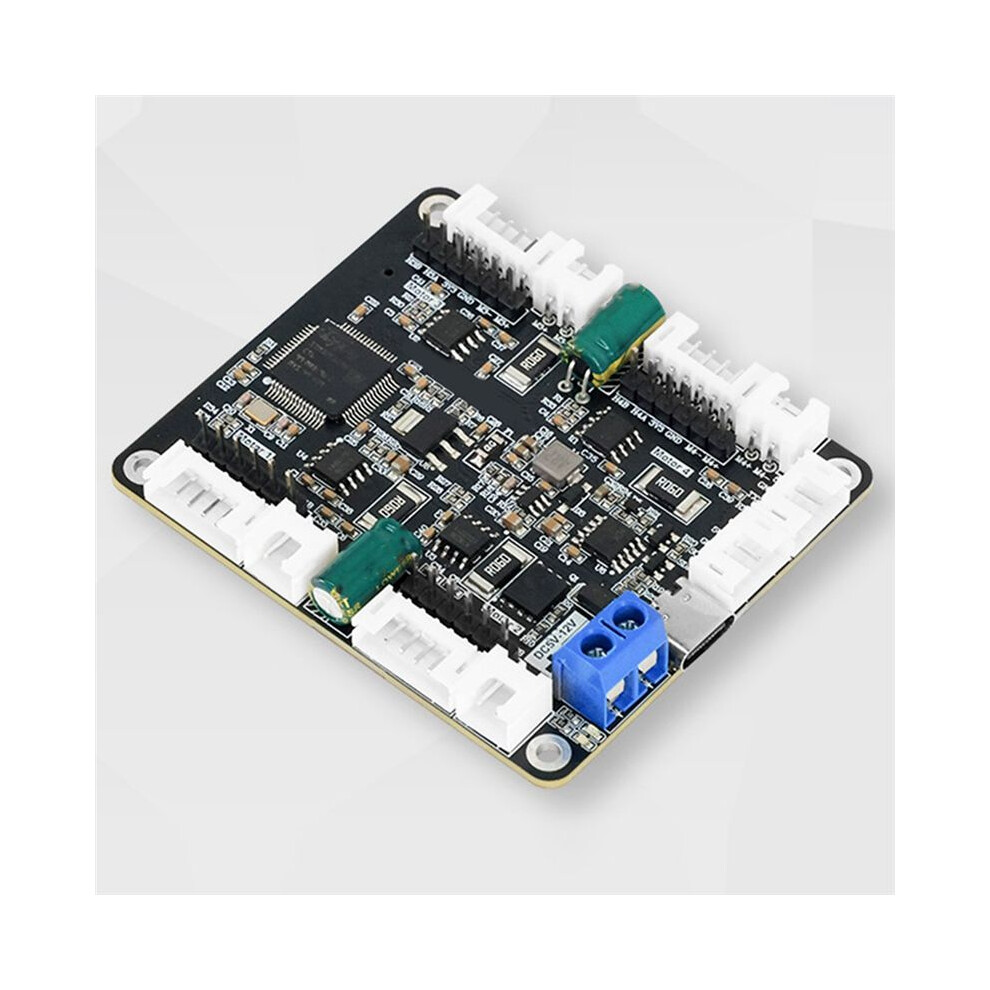

Four-Channel Encoder Motor Driver Board Kit AT8236 Controller Board Module for STM32, Raspberry Pi, Jetson Controllers

Four-Channel Encoder Motor Driver Board Kit AT8236 Controller Board Module for STM32, Raspberry Pi, Jetson Controllers Popis

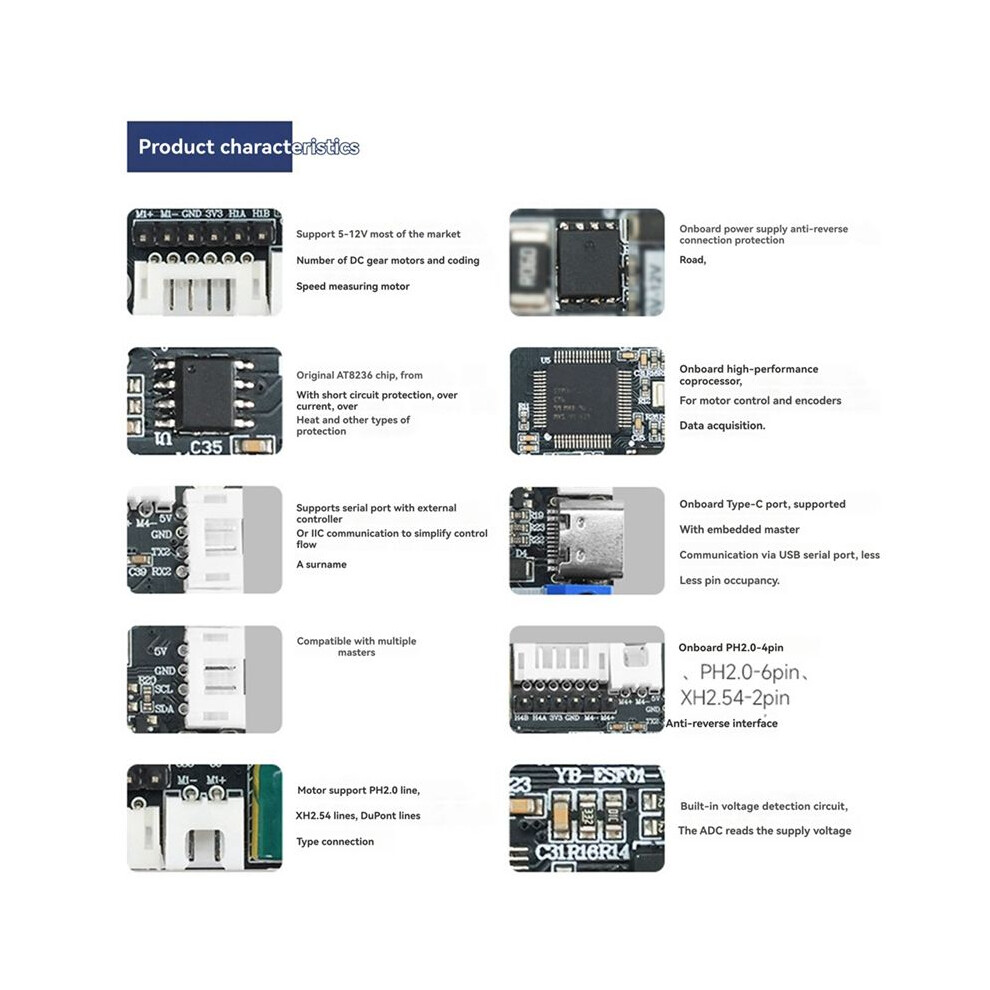

Features:

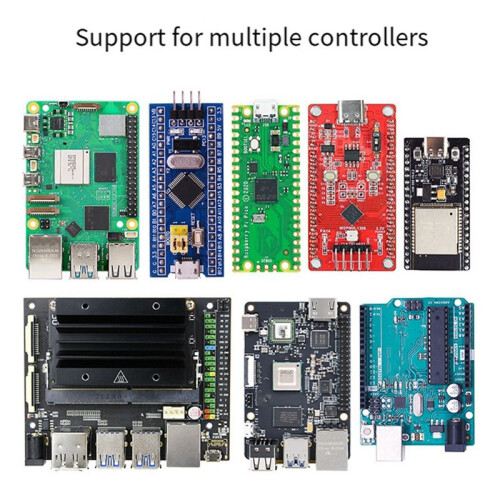

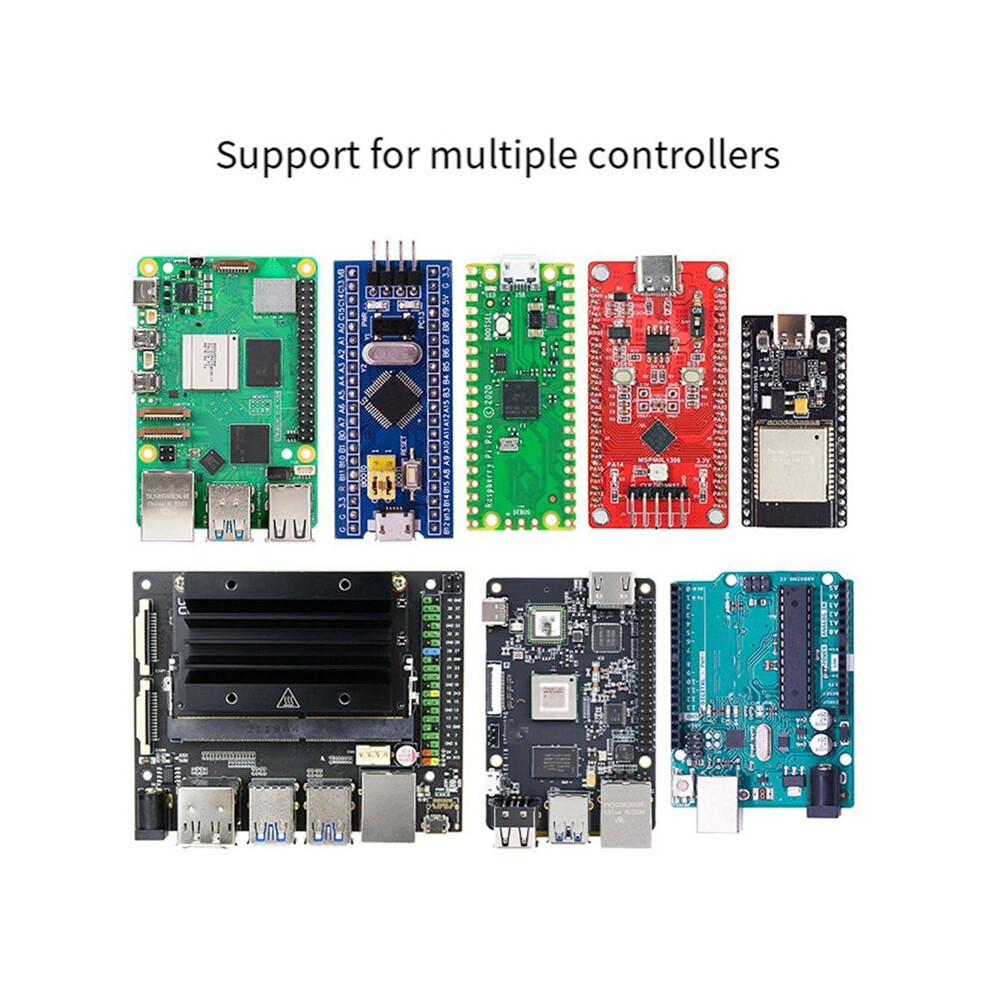

1. The four-channel encoder motor driver module integrates a high-performance single-chip coprocessor, which can seamlessly connect with multiple controllers such as MSPMO, STM32, Raspberry Pi and Jetson through serial port or IIC communication, simplifying the driving process.
2. Only four connecting wires are required to achieve efficient communication with the main control unit, so as to easily control the motor and obtain encoder data, reduce the number of wiring and reduce the difficulty of operation.
3. At the same , it supports driving most Hall encoder TT motors, 520/310 and other reduction motors the market, which is an ideal choice for electronic competitions and robot car DIY.

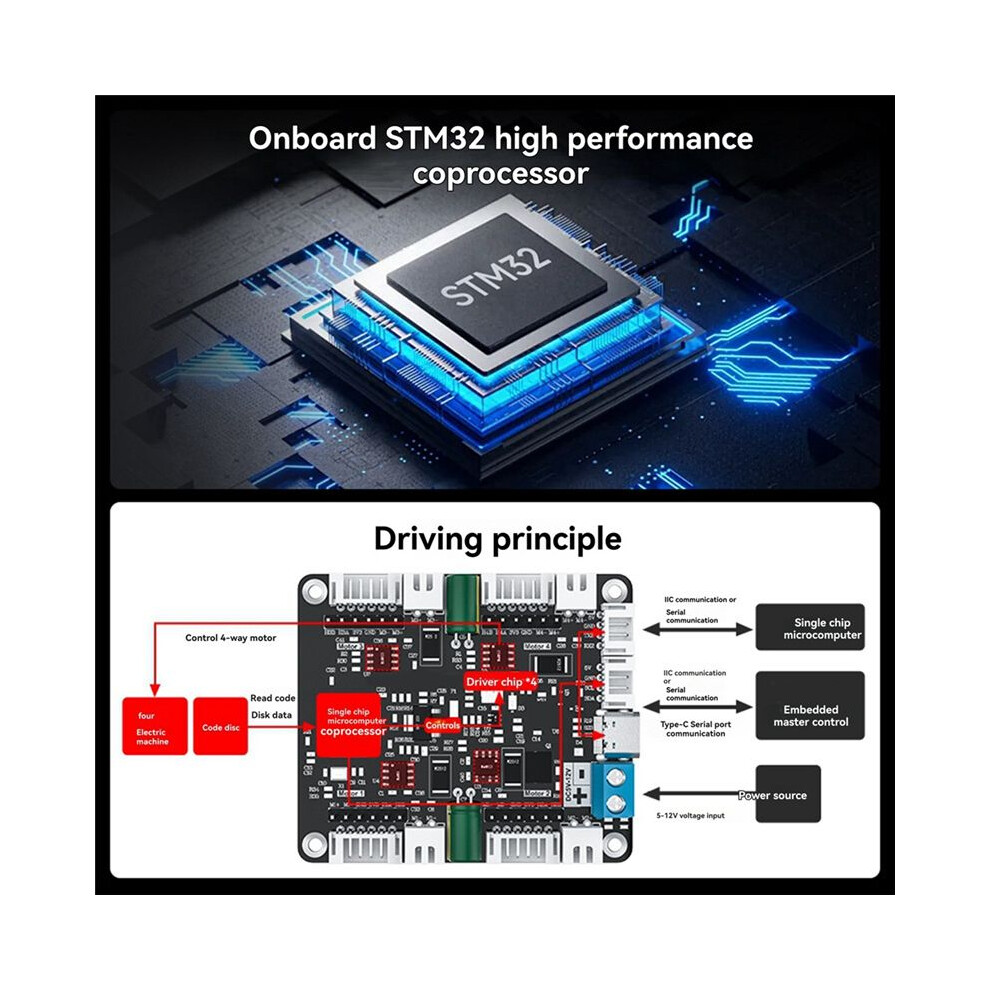

4. The driver board has a built-in high-performance STM32F103RCT6 coprocessor, which supports driving 4 motors and obtaining encoder data, communicates with the external master through IC or serial port to receive drive instructions, and synchronously transmits encoder, battery voltage and other data to the master.

Specifications:
Motor driver chip: AT8236*4VM
Power supply range: 5V-12V
Power output: 5V, 3.3V5V
Output current: 0.7A
Colour:As Shown
Material:PCB
style:Four-channel encoder
Due to different batches, there may be differences in product appearance and printed text, which will not affect use

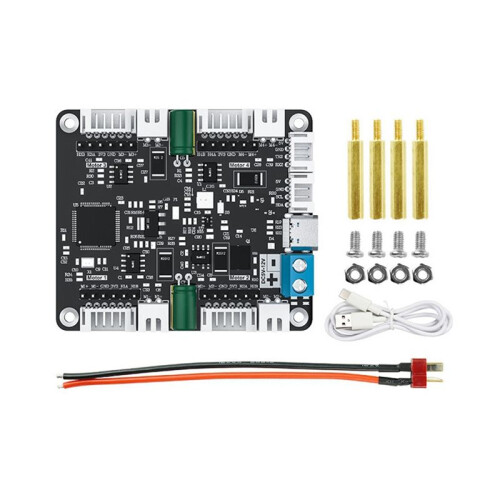

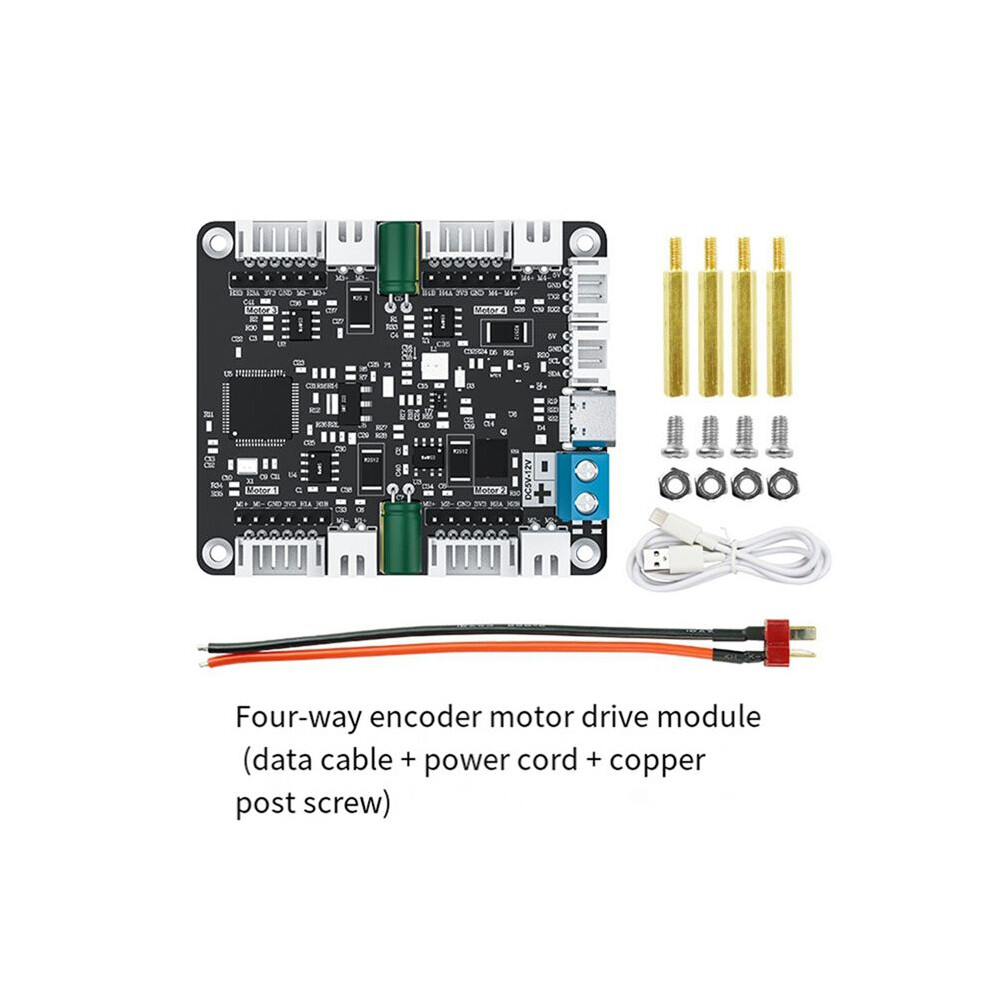

Package Contents:
1 x Driver Board Kit
