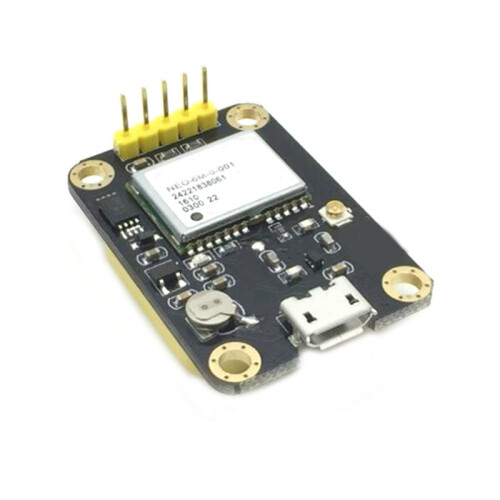

GPS Module NEO-6M APM2.5 Navigation Satellite Positioning with Ipx Antenna Interface

GPS Module NEO-6M APM2.5 Navigation Satellite Positioning with Ipx Antenna Interface Popis

After the PPS pin of the module is connected to the red LED light, it is always : it is working normally, but it has not been positioned Blinking: the positioning is successful
Baud rate, the default baud rate of the module is 9600

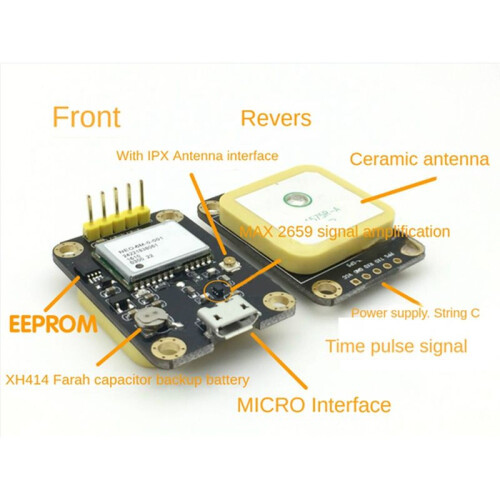

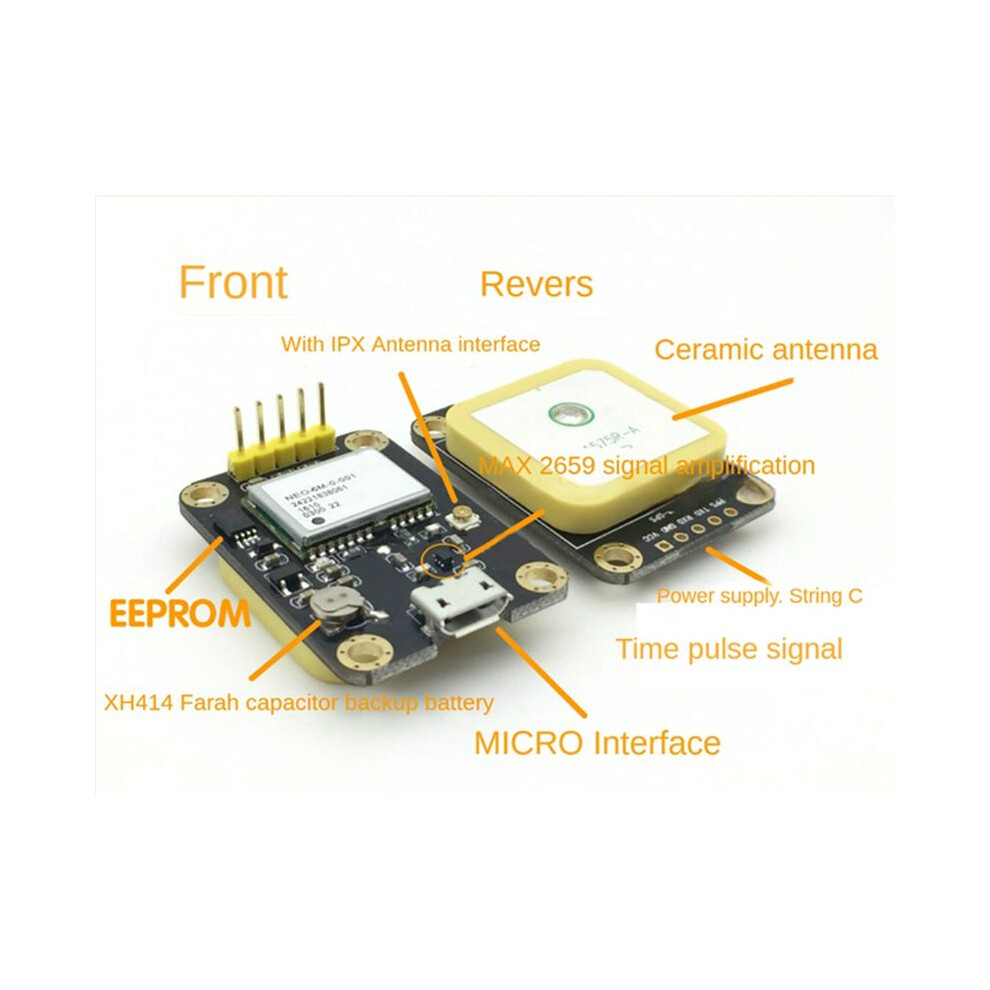

The module comes with a ceramic antenna, and there is an IPEX interface to connect other active antennas
The module adds a radio frequency amplifier circuit, which is conducive to speeding the search for satellites
The module is compatible with 3.3V/5V level, which is convenient for connecting various single-chip microcomputer systems

Color: As Shown
Material: pc+metal
1. Voltage
Input voltage: 3.3-5.5V
power consumption
Normal mode: 50 mA
Power saving mode: 30mA
2. Temperature
Working temperature -40Cto+85C
Storage temperature -55Cto+100C
3. Pin description and electrical connection
module pin
VCC: power pin input 3.3-5.5V
GND: power ground
RXD: Module serial port receiving pin--connect to the serial port TXD of the microcontroller to send
TXD: Module serial port sending pin--connect to single chip microcomputer serial port RXD receiving
PPS: clock pulse output pin

Package Contents:
1 x GPS module
