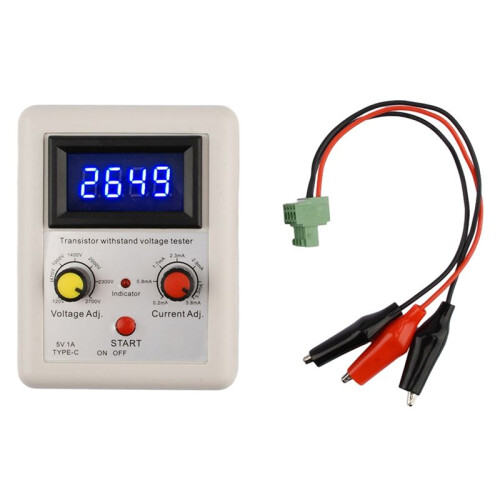

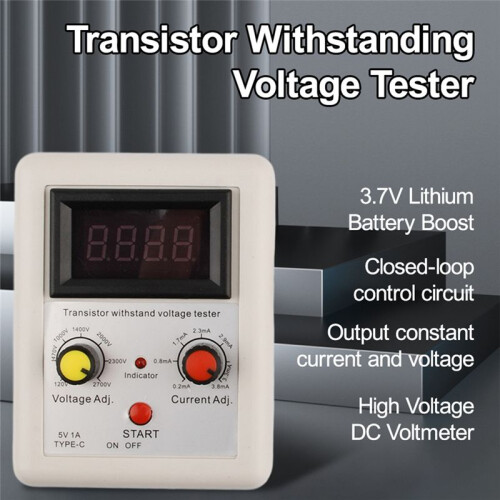

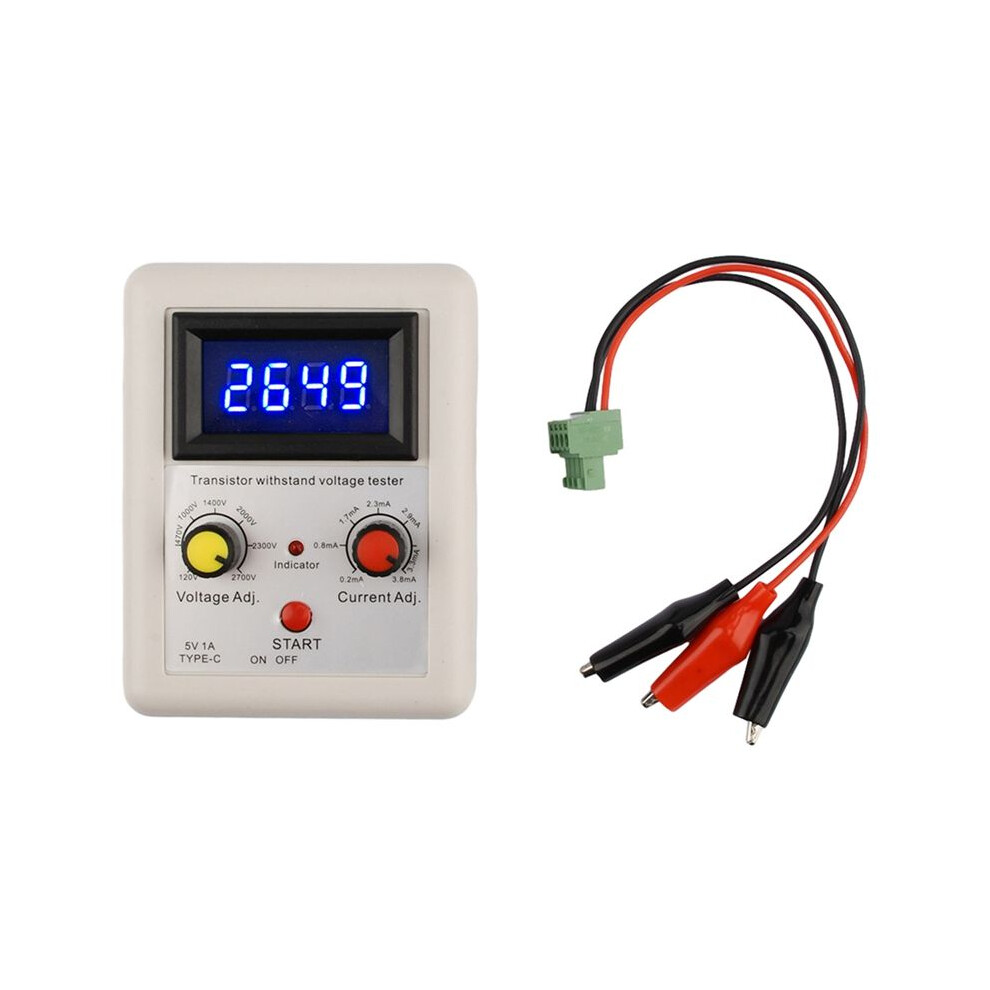

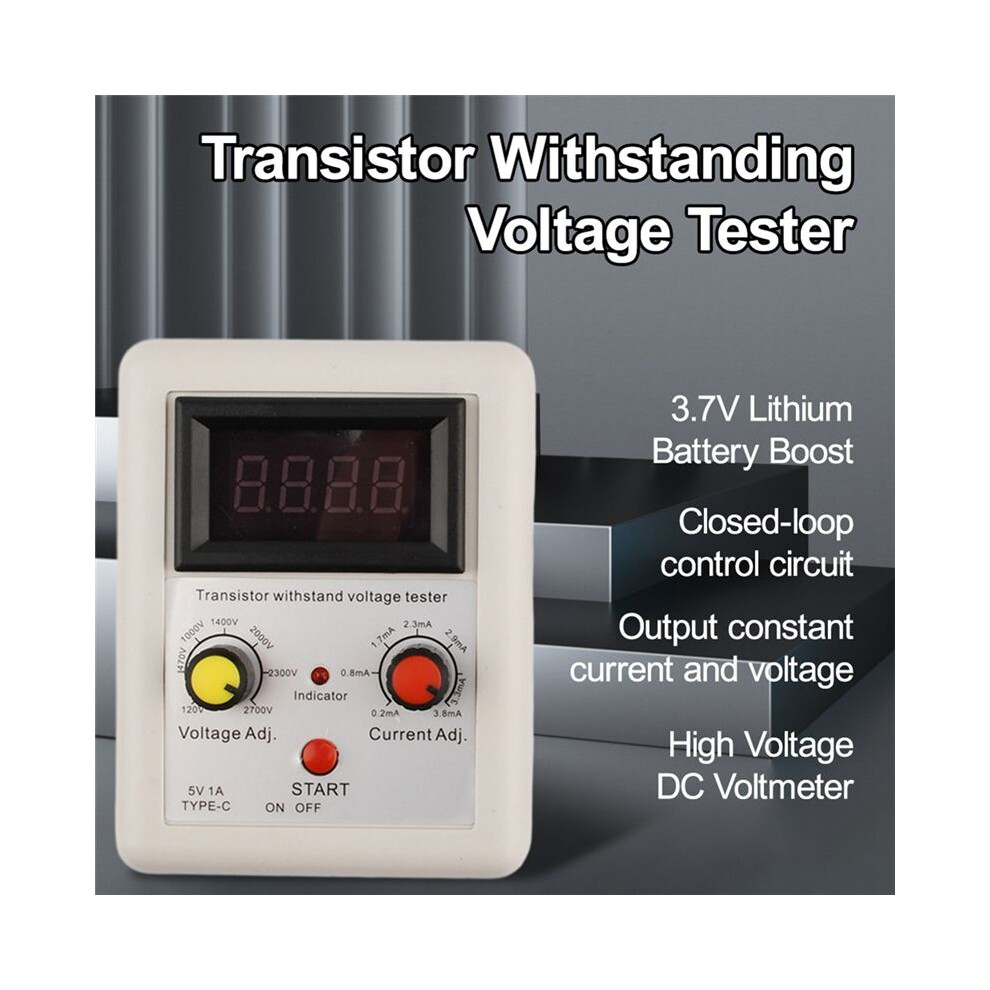

IGBT Voltage Capability Transistor Tester Diode MOS Triode LED Voltage Capability Test Tool 120-2700V( Standard)
Značka Torribaly
Nové
Skladem
Proč si zamilujete nakupování na OnBuy:
- Získejte Cashback při každém nákupu – využijte jej okamžitě při další objednávce
- Doprava zdarma – u milionů položek na celém webu
- Zákazníci nás mají rádi – 126,000 recenzí s hodnocením “Vynikající”
849,94 Kč
1 047,10 Kč
Sleva 19 %!
Doru en zdarma
1%
Získejte 8,50 Kč okamžitě
Zjistěte více
Ceny zboží prodávaného na OnBuy jsou zobrazeny včetně DPH.
Možnosti platby bez úroků k dispozici
Zobrazit kompletní popis a podrobnosti o produktu
Doručení: Standardní (Zdarma) | stř 24 - pon 29 čvn
Vrácení zboží: 30 dní
180denní ochrana platby
Nejoblíbenější v kategorii Veřejné obrazovky
Popis a podrobnosti
Shrnutí

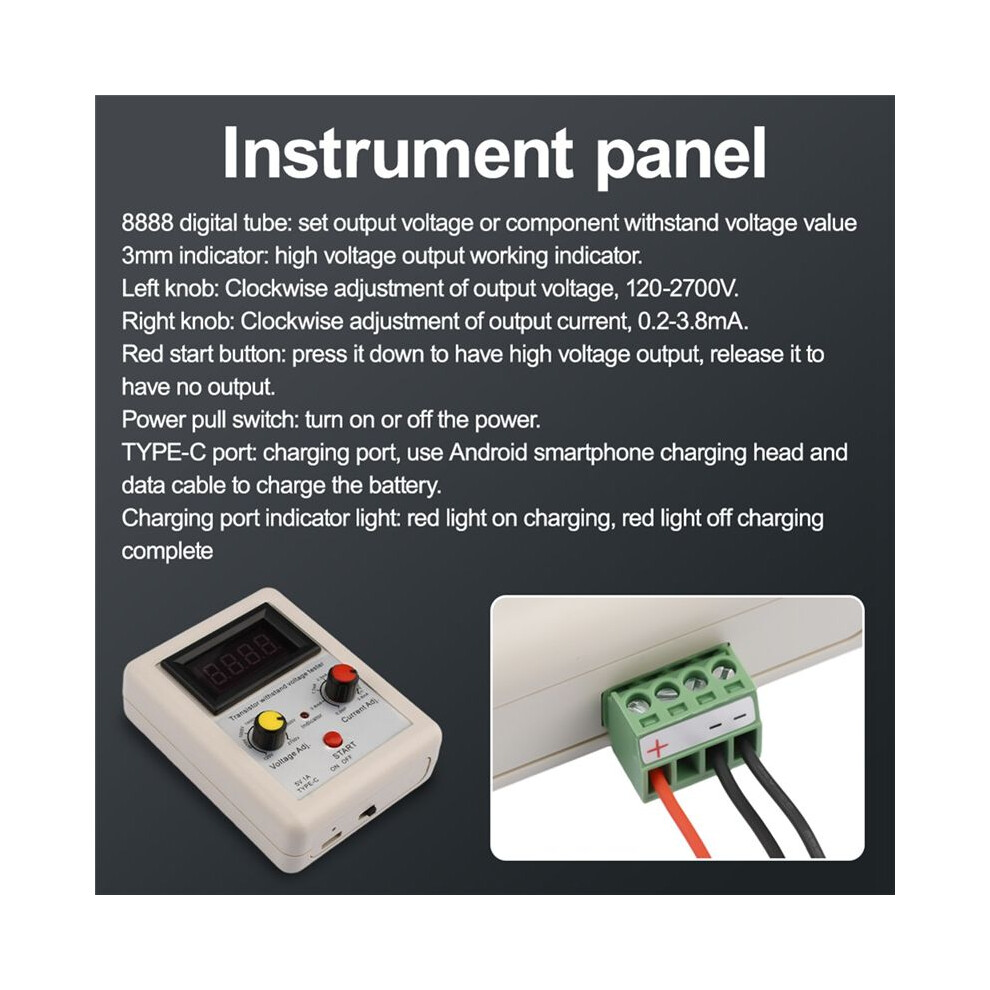

- Product selling points and features: 1. The output voltage is 110-2600V DC. You can turn the voltage adjustment button clockwise to increase the voltage and counterclockwise to decrease the voltage.The output current is 0.25~3.4mAh. You can turn the voltage adjustment button clockwise to increase the current and counterclockwise to decrease the current.
- 2. Widely used: This tool can be widely used for MOS, transistor, IGBT, diode, Zener diode, diode bridge maximum voltage capacity testing, voltage verification of capacitors and varistors, LED backlight and lamp board testing, etc
- 3. When testing MOS transistors, transistors, and Zener diodes, it is recommended to adjust the current to the minimum scale of 0.25mA. When testing the LED backlight board, it is recommended to adjust the current to the maximum scale of 3.4mAh.
- 4. Portable size: The small size of this tool is very convenient for daily use. You can carry it in a tool bag without occupying too much storage space.
- 5. Equipped with a built-in 660mAh high capacity lithium battery for power supply, it can be charged in a timely manner through the Type-C interface.
IGBT Voltage Capability Transistor Tester Diode MOS Triode LED Voltage Capability Test Tool 120-2700V( Standard) Popis
Product selling points and features: 1. The output voltage is 110-2600V . You can turn the voltage adjustment button clockwise to increase the voltage and counterclockwise to decrease the voltage.The output current is 0.25~3.4mAh. You can turn the voltage adjustment button clockwise to increase the current and counterclockwise to decrease the current.
2. Widely used: This tool can be widely used for MOS, transistor, IGBT, diode, Zener diode, diode bridge maximum voltage capacity testing, voltage verification of capacitors and varistors, LED backlight and lamp board testing, etc
3. When testing MOS transistors, transistors, and Zener diodes, it is recommended to adjust the current to the minimum scale of 0.25mA. When testing the LED backlight board, it is recommended to adjust the current to the maximum scale of 3.4mAh.
4. Portable size: The small size of this tool is very convenient for daily use. You can carry it in a tool bag without occupying too much storage space.
5. Equipped with a built-in 660mAh high capacity lithium battery for power supply, it can be charged in a timely manner through the Type-C interface.

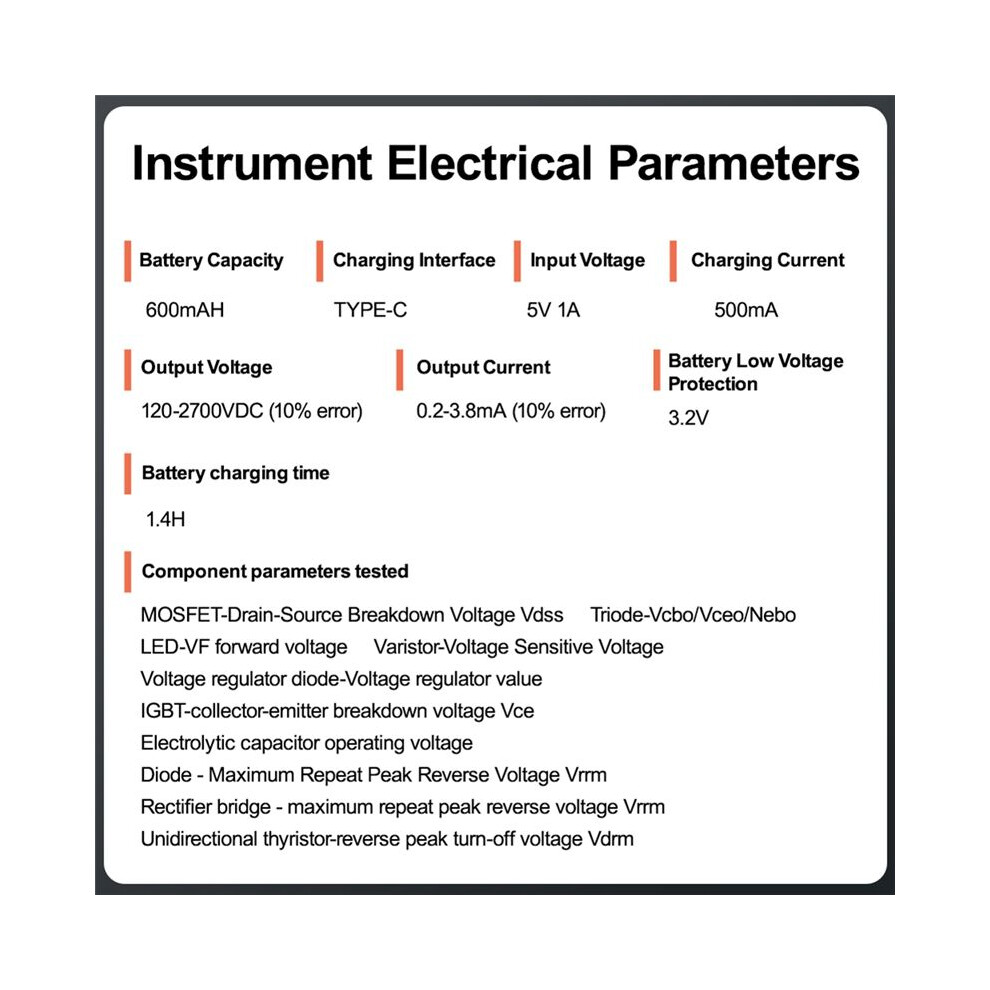

Product parameters:
Battery capacity: 3.7V 600mAH
Charging port: TYPE-C
Input: 5V 1A
Charging current: Max.550mA
Output voltage: 120-2700V
Output current: 0.2-3.8mA

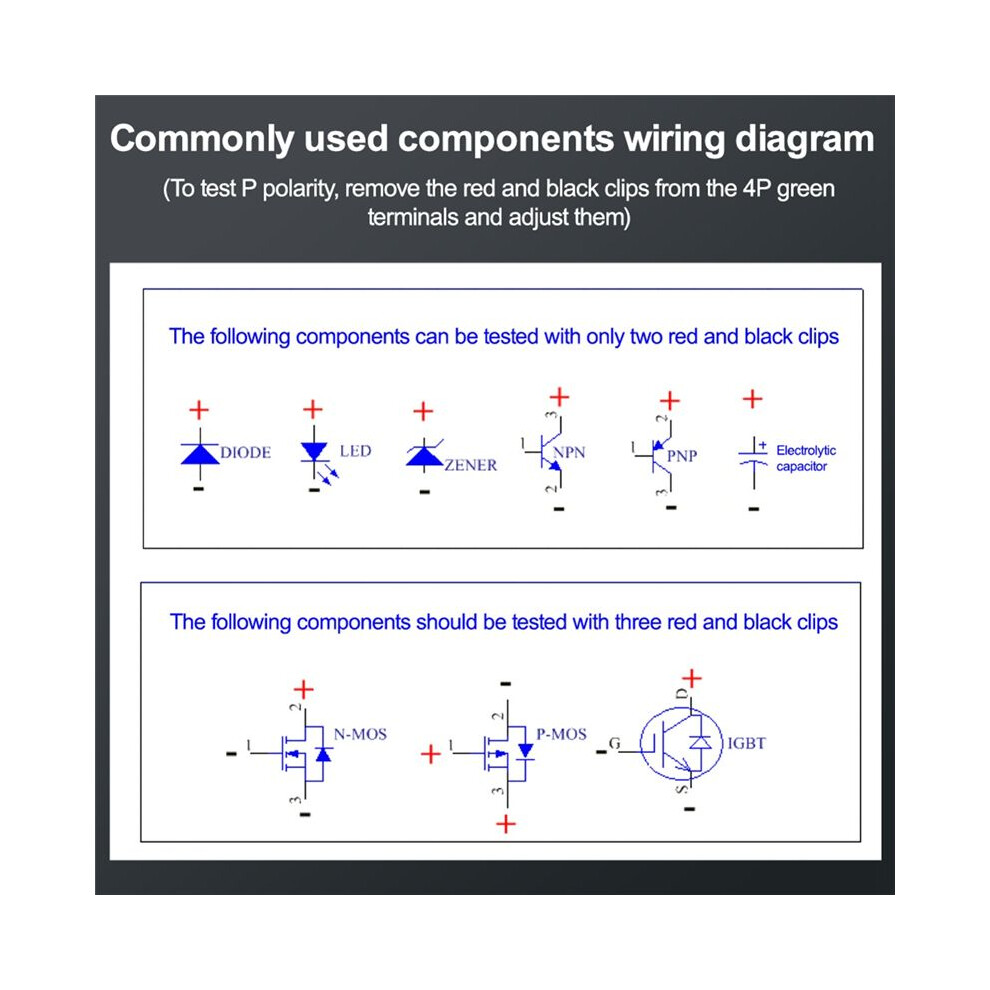

Applicable components: MOS tube/IGBT/triode/diode/Electrolytic capacitor/LED/MOV/unidirectional thyristor/rectifier bridge
Test objective: Breakdown voltage value of electronic components
Power supply: built-in lithium battery 500mah

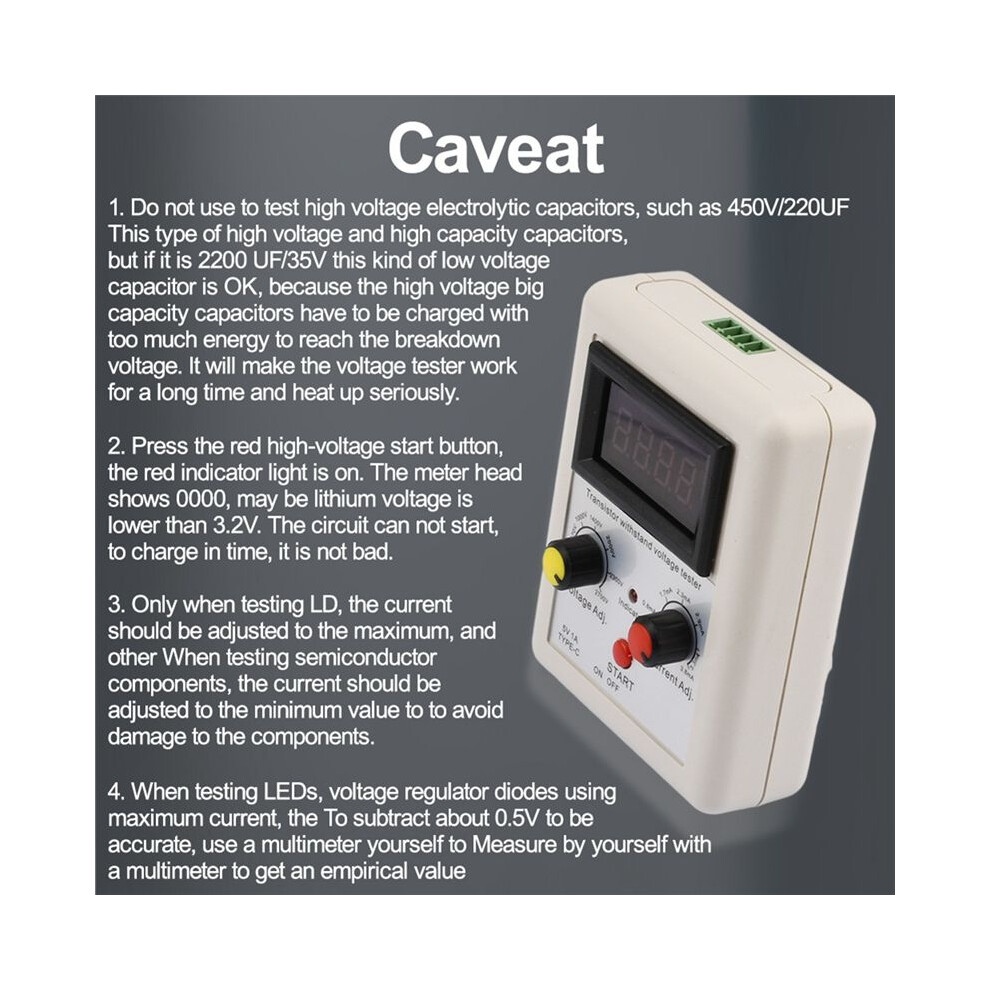

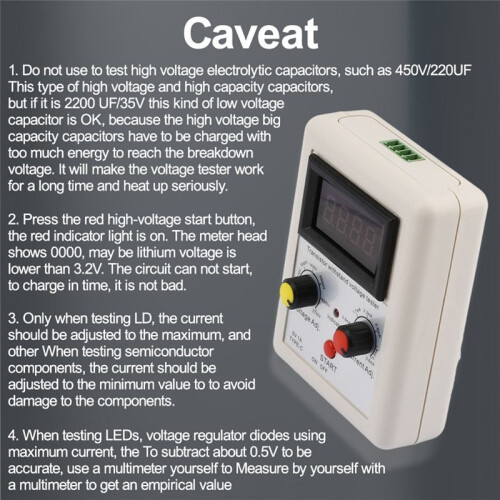

Attention:
1. Do not use it to test 450V/220UF and other high-voltage large Electrolytic capacitor. It is possible to test low-voltage capacitors such as 2200UF/35V.
2. If there is no output voltage when pressing the red high-voltage start button, it is likely that the lithium battery voltage is lower than 3.1V and the tester cann
Podrobnosti
| OPC | PPCP8PW |
|---|---|
| Značka | Torribaly |
| Kódy | 4711053324918 (EAN) |
Produktová data
| Height | 4cm |
|---|---|
| Width | 8cm |
| Length | 12cm |
| Weight | 0.1405kg |
| Colour | As Shown |
| Size | Blue |
| Material | plastic |
