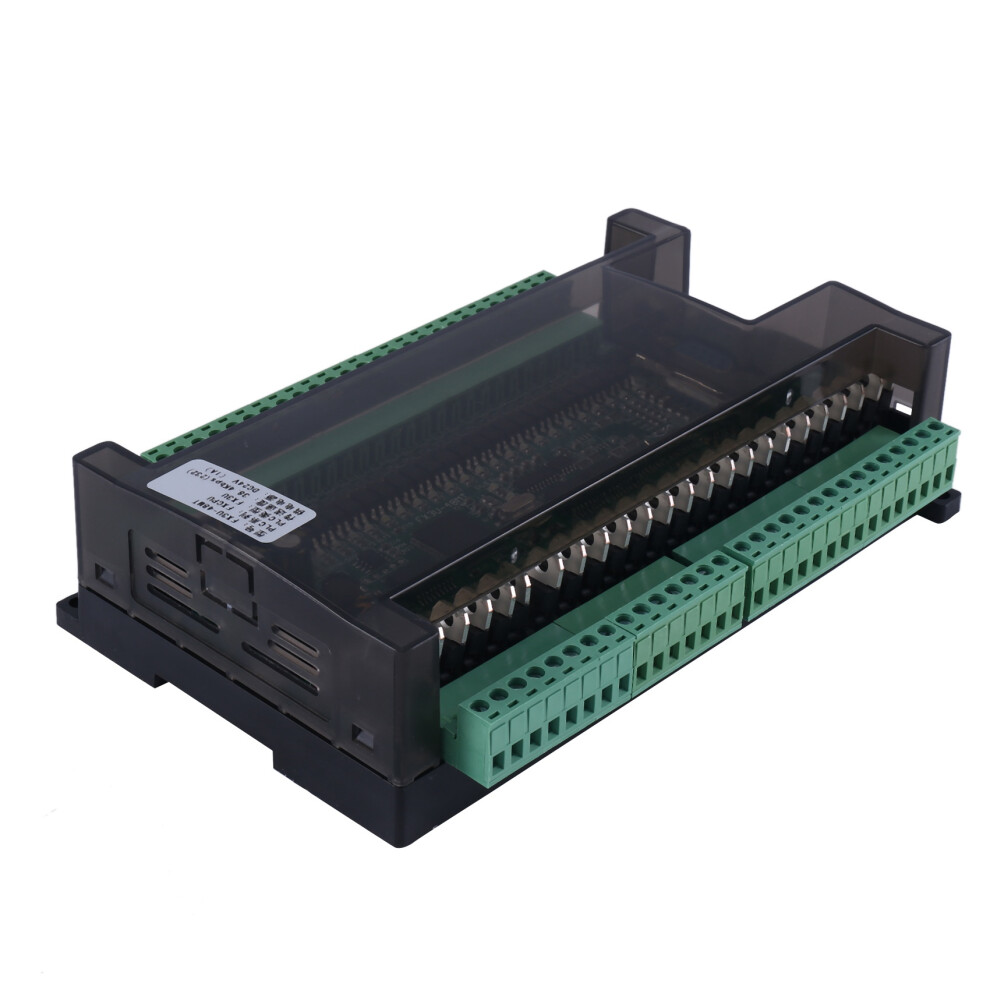

LE3U FX3U 48MT RS485 RTC (Real Clock) 24 Input 24 Transistor Output 6 Analog Input 2 Analog Output Plc Controller

LE3U FX3U 48MT RS485 RTC (Real Clock) 24 Input 24 Transistor Output 6 Analog Input 2 Analog Output Plc Controller Popis

1. 3 channel AB input,
2. Support 1N, 2N, 3U instruction
3. Program 8,000 steps,
4. The download speed 38400
5. Support GX-Develoer, GX-WORK2

LE3U 48MT--24 point input 24 Transistor outputs , 6 analog inputs(3 channcel o-v10,3 channel 0-20mA), 2 analog outputs(0-10V),X0-X5 High speed input 12k
Support HMI
connection, the application is completely identical to the FX3U.
The PLC with industrial-grade 32-bit MCU, and run much faster than FX3U.
The PLC baud rate to 38400
The clock module explains: when setting the clock, the M8015 should be set and restores the M8015 reset. D8018 is for year, D8017 is month, D8016 is day, D8019 is week, D8015 is hour, D8014 is minute, D8013 is second. The clock data can be read by the clock data TRD to read the clock data to the general register, or to modify the clock with the clock writing instruction TWR, using this instruction without the position M8015
material: plastic
Color as shown

Package Contents:
1 x Controller

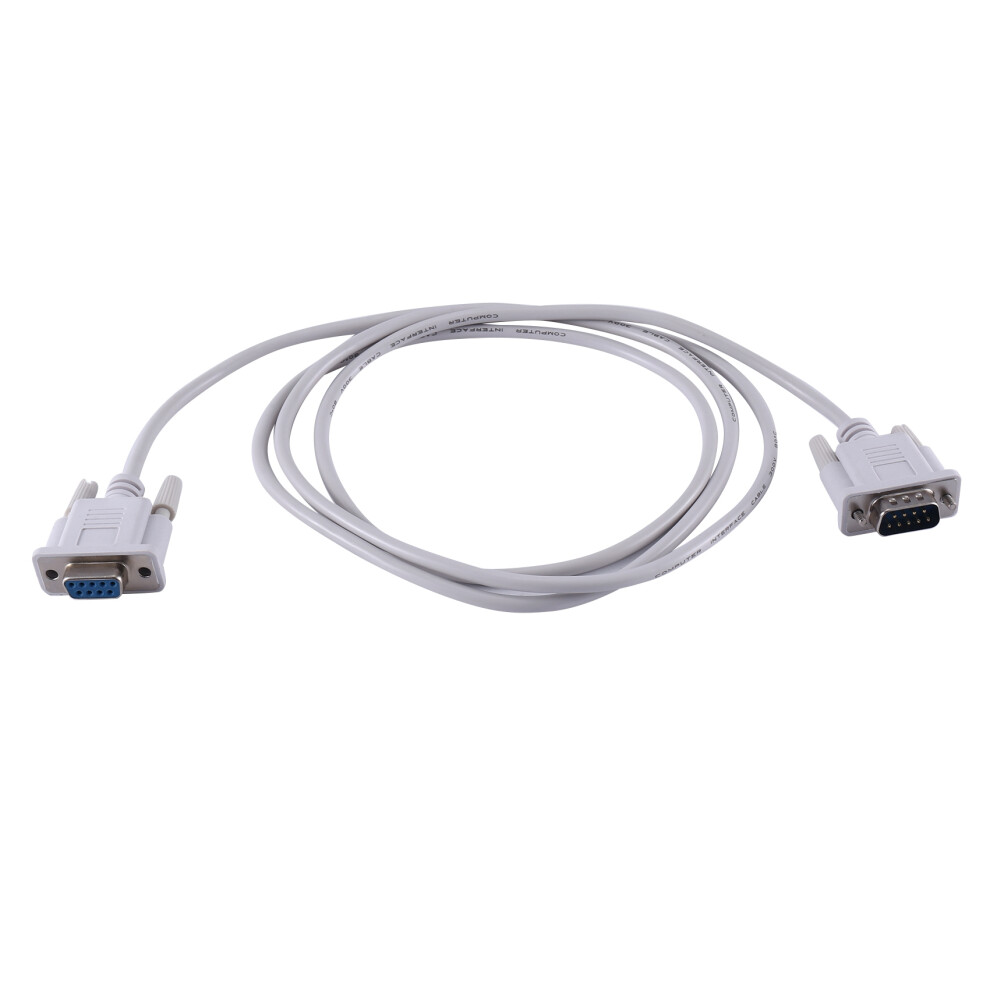

1 x Rs232 Cable
