LILYGO LoRa32 V2.1 ESP32 Development Board with WiFi, , 0.96 Inch OLED Display 868MHz LoRa32 V2.1 Wireless Module
New
1 357,56 Kč
Would you like us to let you know when it's back?
Popis a podrobnosti
Shrnutí
- Powerful LoRa Communication Performance: Equipped with the LoRa module, it delivers outstanding long-range communication performance, suitable for IoT applications requiring extended reach and low power consumption.
- Global Usability with LoRa 2.4G Frequency Band: Optional the LoRa 2.4G frequency band ensures stable operation globally, complying with different countries' and regions' spectrum regulations.
- Advanced Main Control Chip: Integrated with the ESP32-S3 main control chip, providing higher computing performance and additional interface options, enhancing device flexibility and expandability.
- TF Card Support: The device supports TF cards (micro-SD cards) for extended storage, facilitating users in storing and managing data, particularly useful in scenarios requiring large-capacity storage.
- Wide Range of Applications: Leveraging the long-range capabilities of LoRa technology, this module finds applications in various IoT scenarios, including smart agriculture, smart cities, and industrial IoT.
LILYGO LoRa32 V2.1 ESP32 Development Board with WiFi, , 0.96 Inch OLED Display 868MHz LoRa32 V2.1 Wireless Module Popis
Powerful LoRa Communication Performance: Equipped with the LoRa module, it delivers outstanding long-range communication performance, suitable for IoT applications requiring extended reach and low power consumption.
Global Usability with LoRa 2.4G Frequency Band: Optional the LoRa 2.4G frequency band ensures stable operation globally, complying with different countries' and regions' spectrum regulations.
Advanced Main Control Chip: Integrated with the ESP32-S3 main control chip, providing higher computing performance and additional interface options, enhancing device flexibility and expandability.
TF Card Support: The device supports TF cards (micro- cards) for extended storage, facilitating users in storing and managing data, particularly useful in scenarios requiring large-capacity storage.
Wide Range of Applications: Leveraging the long-range capabilities of LoRa technology, this module finds applications in various IoT scenarios, including agriculture, cities, and industrial IoT.
Working voltage:1.89-13.7v
Acceptable current:109-114mA
Working frequency:868MHz/915MHz/433MHz
Transmit power:+20dBm
Frequency error:+/- 15KHz
FIFO space:64Byte
Modulation mode:FSK, GFSK, MSK, GMSK, LoRa TM, OOK
Interface form:SPI
Working temperature:-40 - +85
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Colour:As Shown
Material:PCB

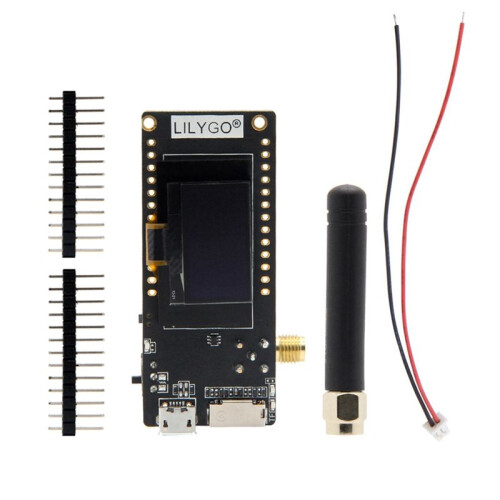

Package Contents:
1 * LoRa32 V2.1
2 * 2.54mm Male PIN(1*13P)
1 * Battery Cable
1 * LoRa Antenna
Podrobnosti
| OPC | PWVFGCJ |
|---|---|
| Kódy | 6032579876025 (EAN) |
| Informace o produktu a bezpečnosti |
Produktová data
| Height | 3cm |
|---|---|
| Width | 5cm |
| Length | 8cm |
| Weight | 0.031kg |
| Colour | As Shown |
| Material | PCB |
