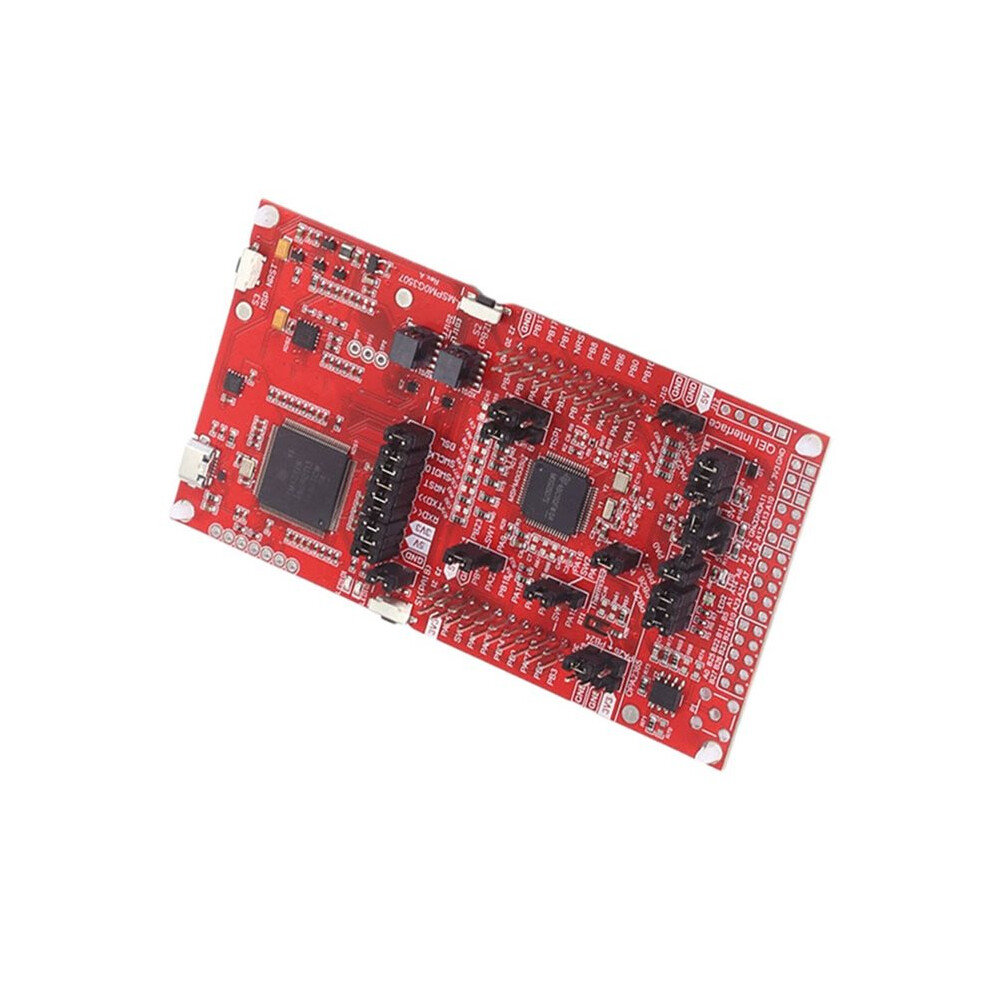

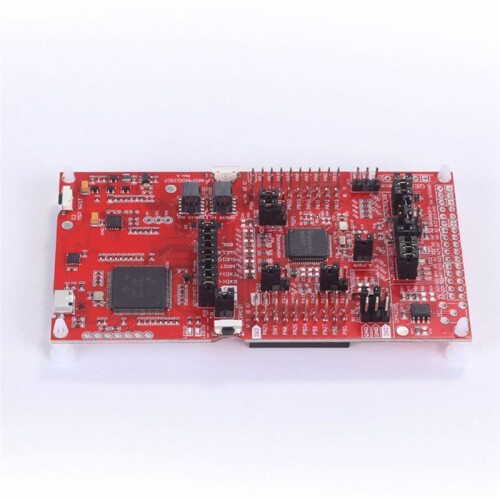

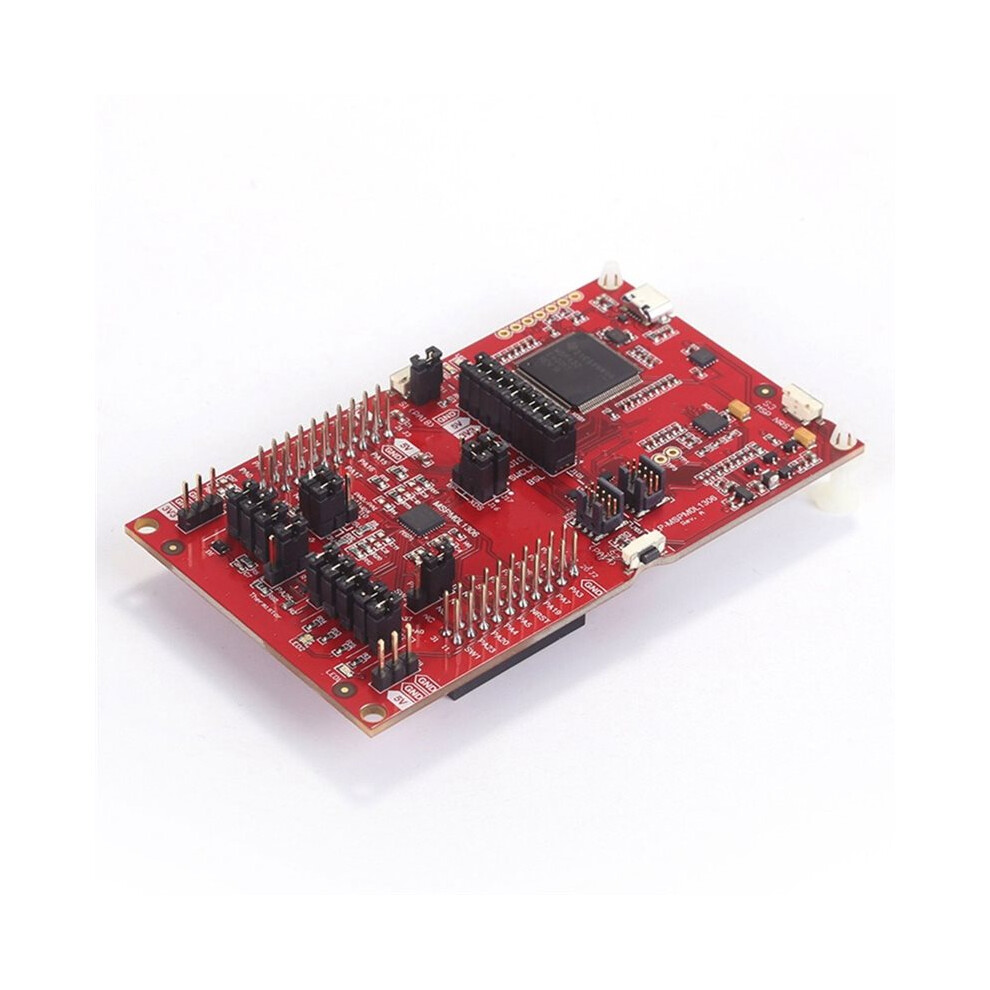

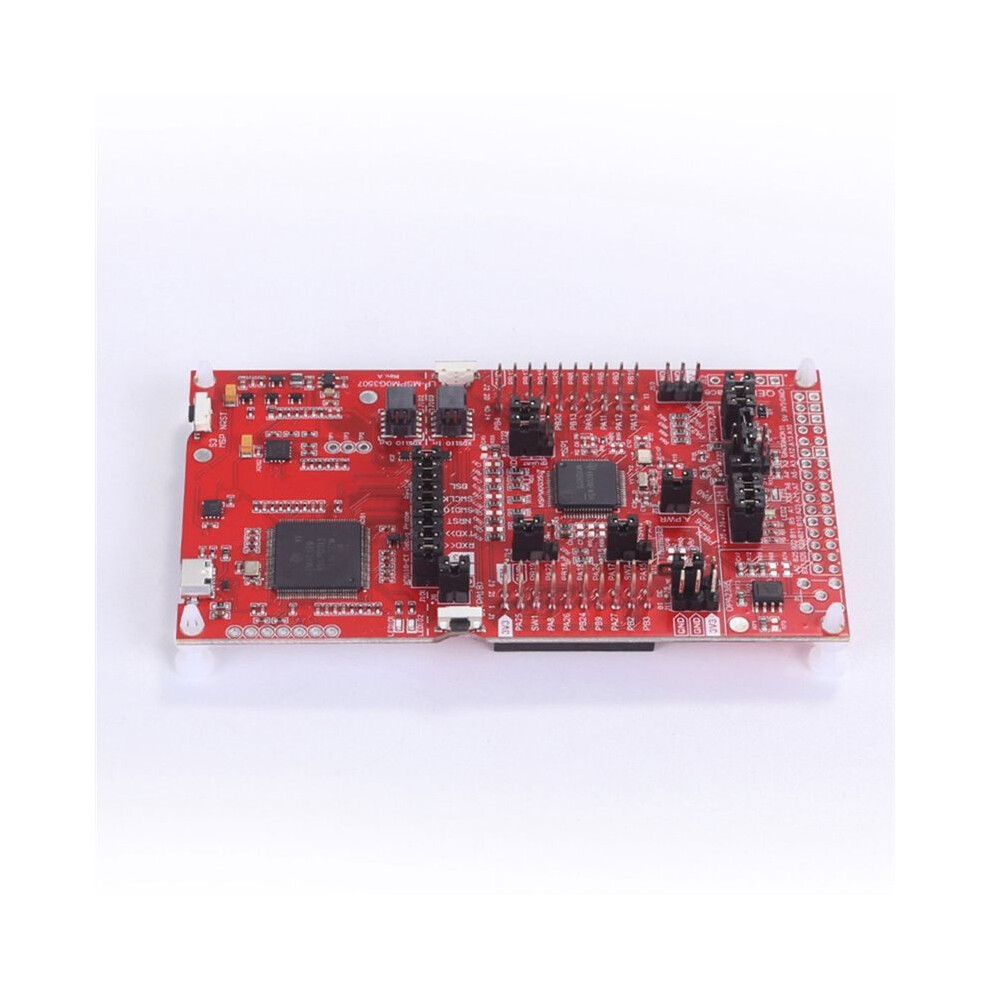

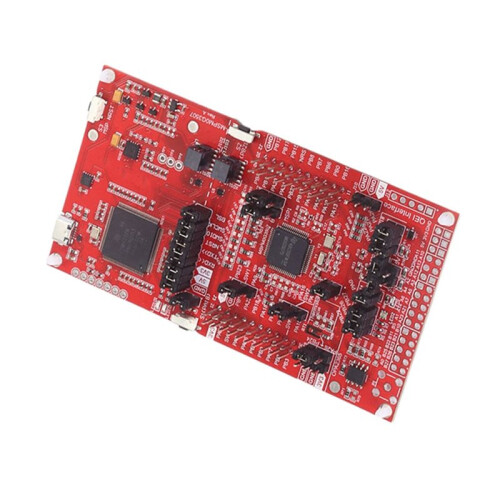

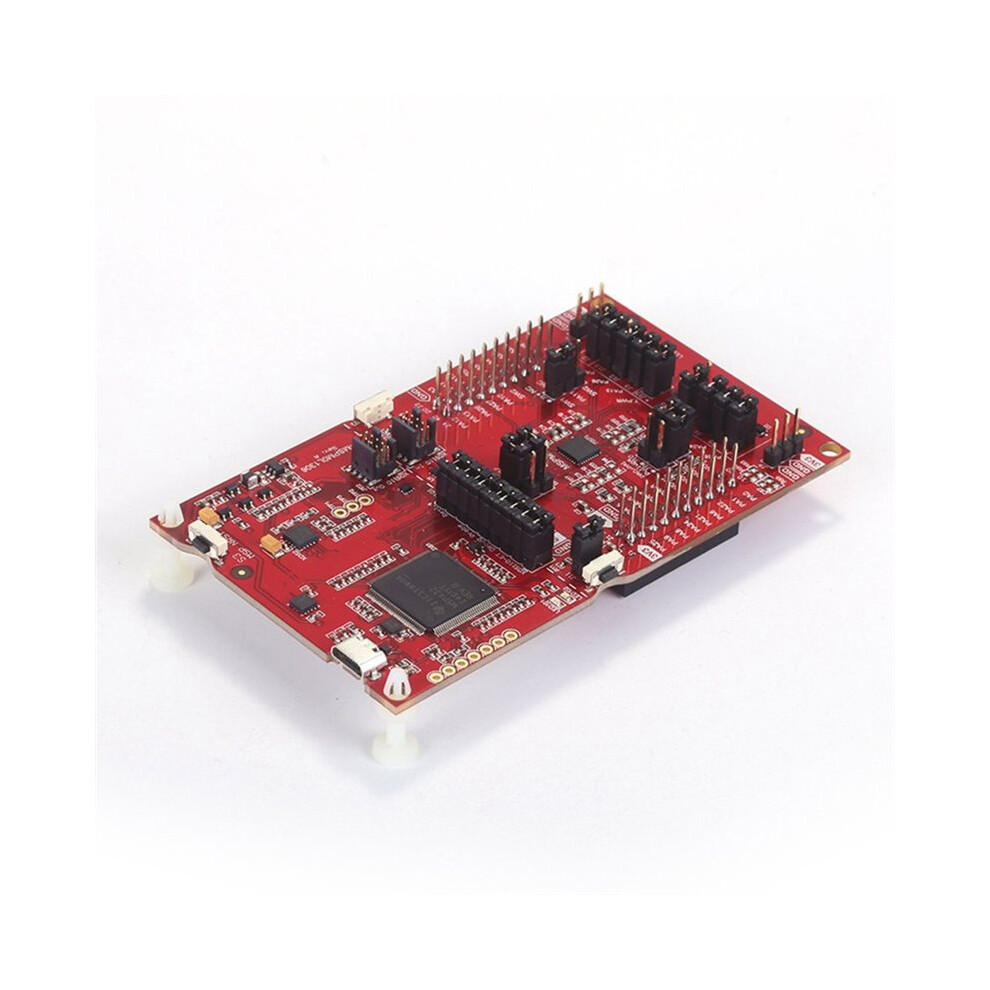

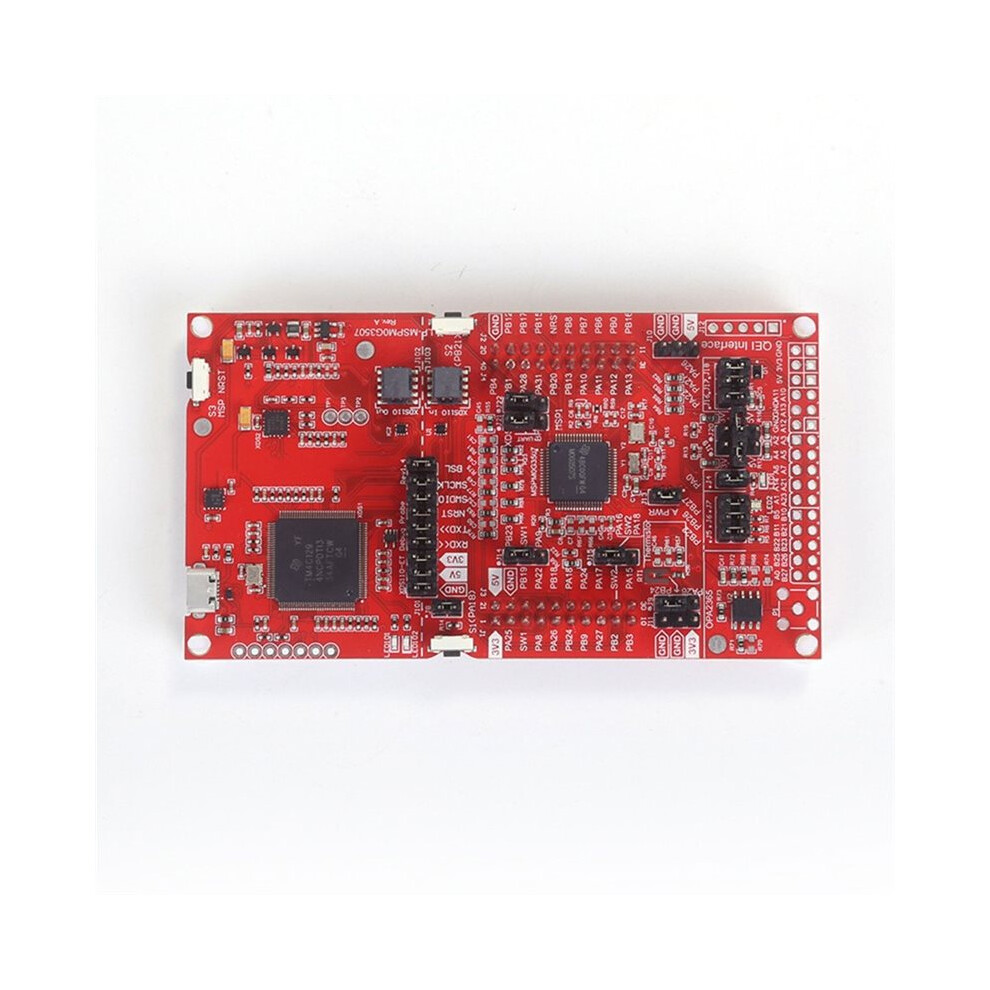

LP-MSPM0G3507 LaunchPad Development Kit 80MHz Arm M0+ MCU Evaluation Board Supports ADC Performance Testing

LP-MSPM0G3507 LaunchPad Development Kit 80MHz Arm M0+ MCU Evaluation Board Supports ADC Performance Testing Popis

I. High-Performance 80MHz Arm Cortex-M0+ Core: Features a 32-bit Arm Cortex-M0+ core clocked at to 80MHz and equipped with a Memory Protection Unit (MPU), ensuring efficient computation while enhancing system stability.
II. High-Capacity Memory Configuration: Offers to 128KB of -board Flash memory (with ECC) and 32KB of (with hardware parity check) to meet the storage and execution requirements of complex applications.
III. Dual 12-bit 4Msps High-Speed ADCs: Integrates two 12-bit Analog-to-Digital Converters (ADCs) with sampling rates to 4Msps and support for simultaneous sampling; -board external buffers enable full utilization of the high-speed ADC performance. Hardware averaging allows for 14-bit effective resolution at 250ksps.
IV. Integrated Analog Signal Chain: Features a variety of -chip analog peripherals, including a 12-bit 1Msps DAC (with output buffer), two zero-drift chopper operational amplifiers (OPAs), three high-speed comparators (COMPs with 8-bit reference DACs), and a general-purpose amplifier (GPAMP), supporting programmable analog interconnects.
V. Rich -Board Features and Sensors: The development board includes a light sensor, an analog temperature sensor, an RGB LED (with PWM control), and three independent buttons. It also features an -board XDS110 debug probe supporting programming, debugging, and EnergyTrace power measurement, eliminating the need for an external debugger.

[Applications]
Motor control, industrial automation, lighting, home appliances, uninterruptible power supplies (UPS), test and measurement equipment, Hospital equipment, communication modules, etc.
(The product printed words may vary depending the batch, but this does not affect use)
Color: As Shown
Material: PCB

Package Contents:

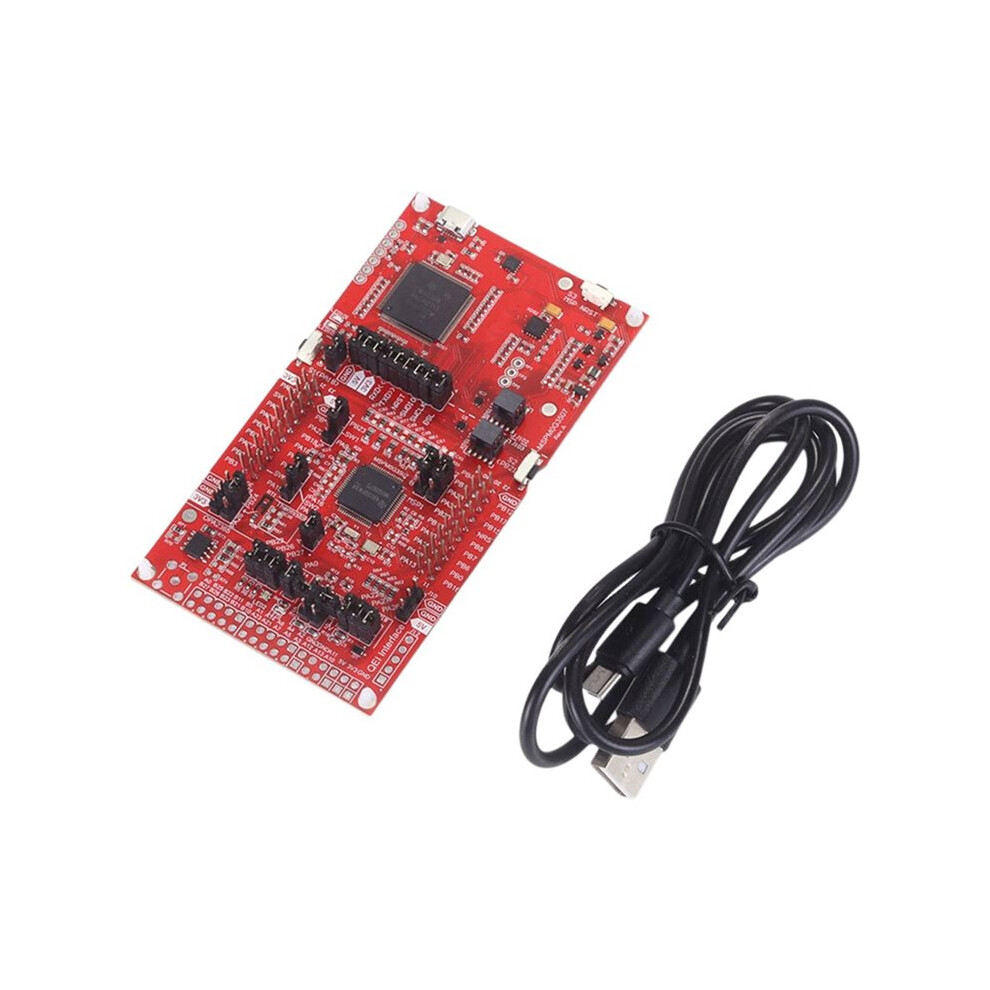

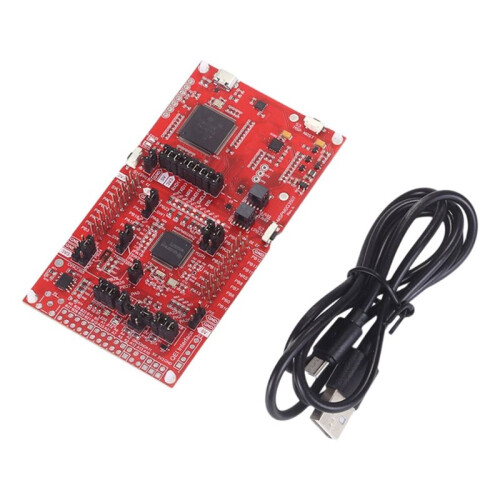

1*LP-MSPM0G3507 LaunchPad Development Board
