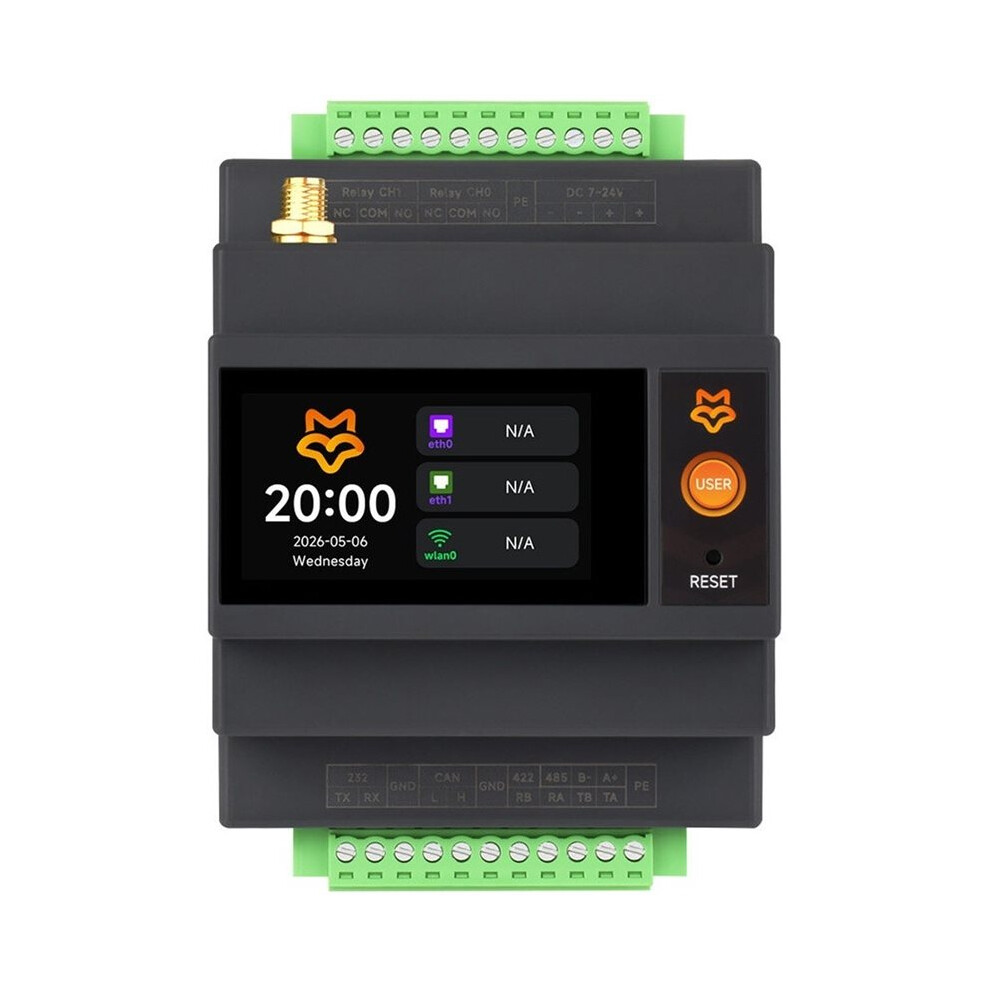

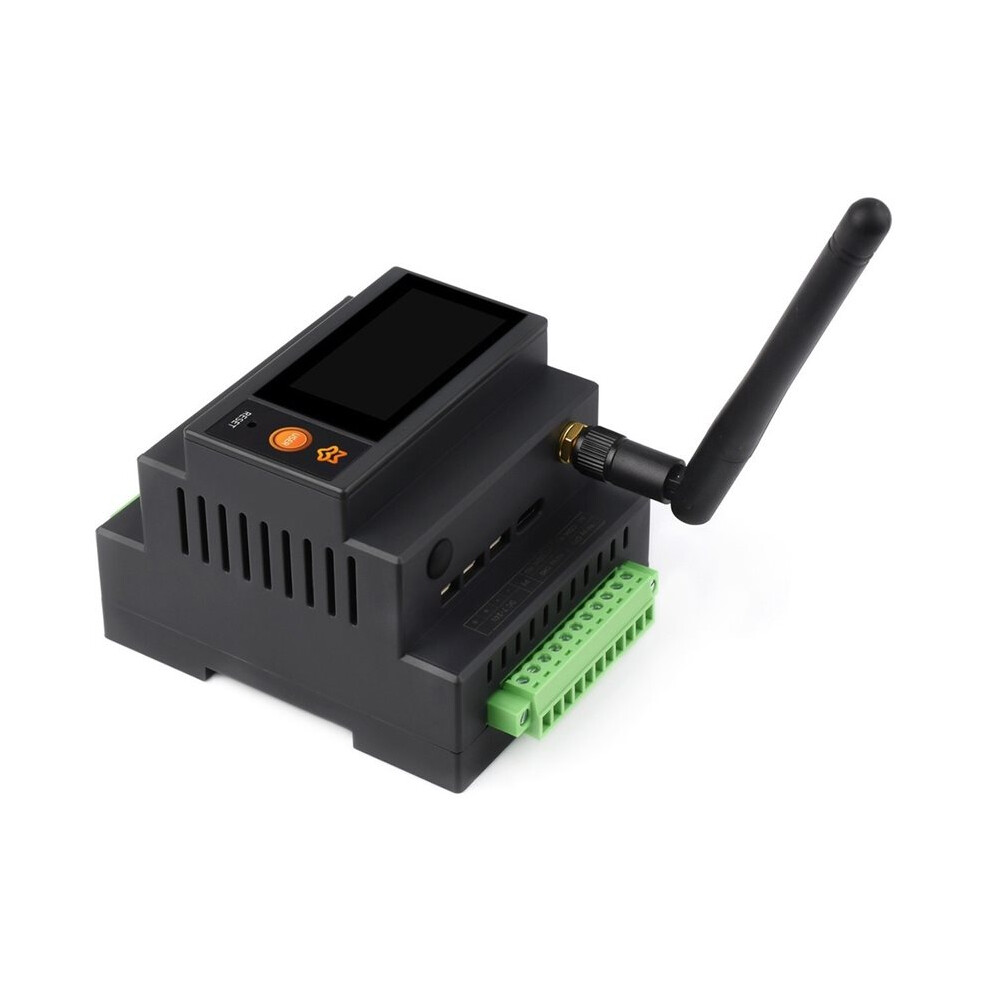

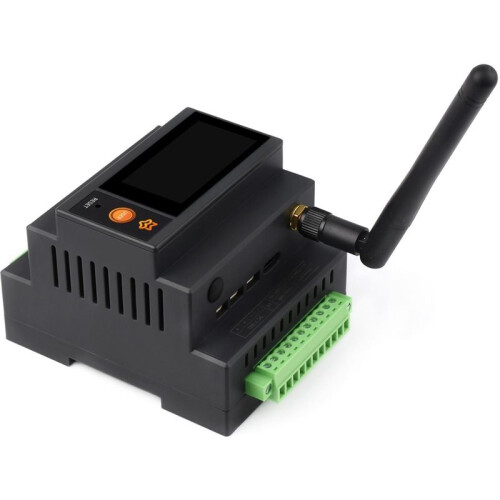

Luckfox Lyra PLC Programmable Logic Controller Based RK3506B 1.9inch LCD Touchscreen Dual 100Mbps Ethernet with POE

Luckfox Lyra PLC Programmable Logic Controller Based RK3506B 1.9inch LCD Touchscreen Dual 100Mbps Ethernet with POE Popis

Luckfox Lyra PLC: Based Luckfox Core3506, Supports Custom Development. Extensive I/O Interfaces and Robust Performance for Industrial Automation.

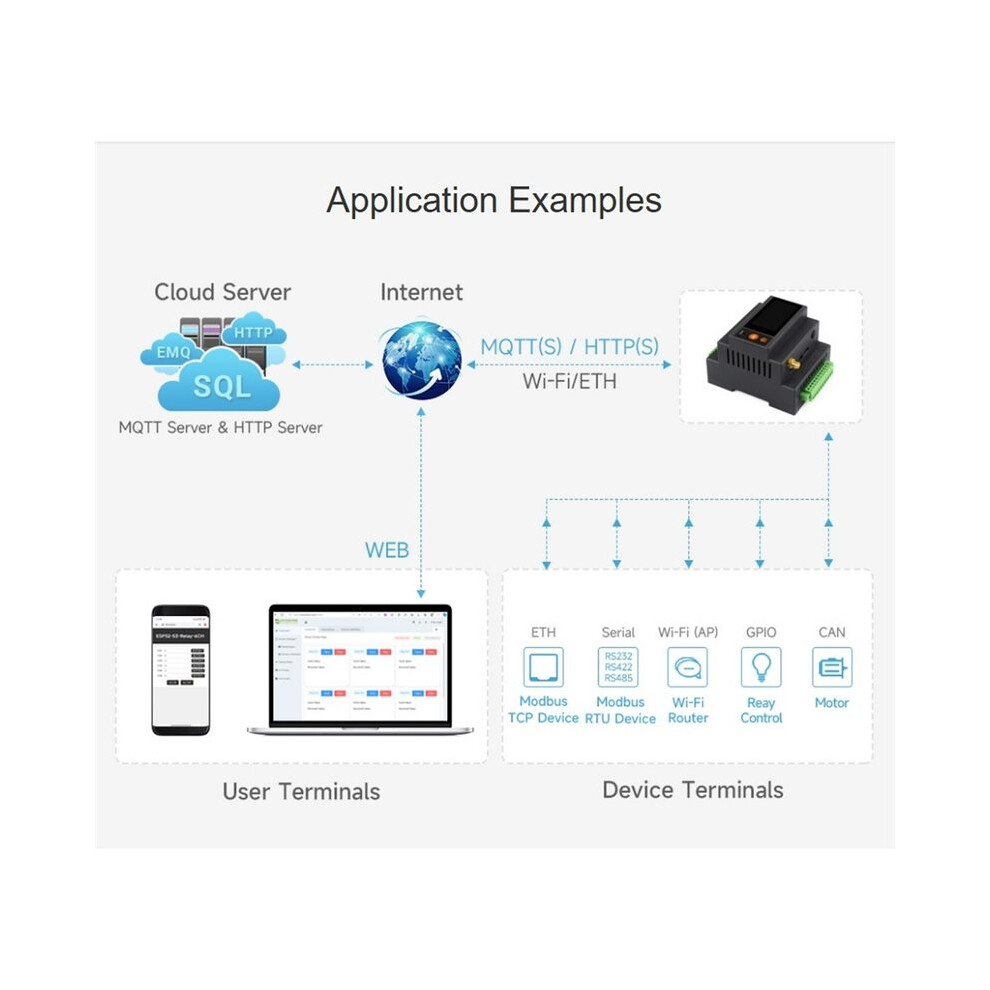

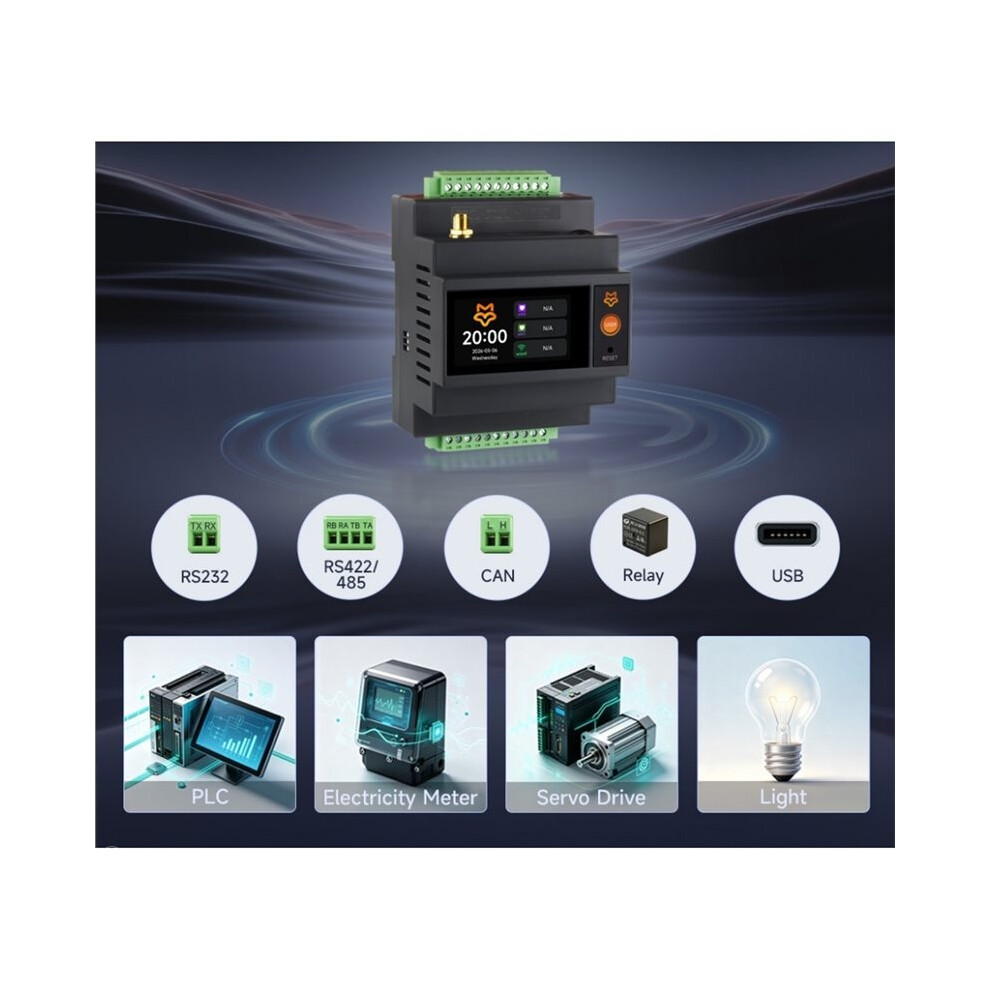

Extensive Peripheral Interfaces: Supports wired and wireless connectivity, Provides RS232 / RS422 / RS485 / CAN / USB and Other Interfaces, Suitable for Data Collection and Reporting, Device Linkage Control, and Protocol Conversion.

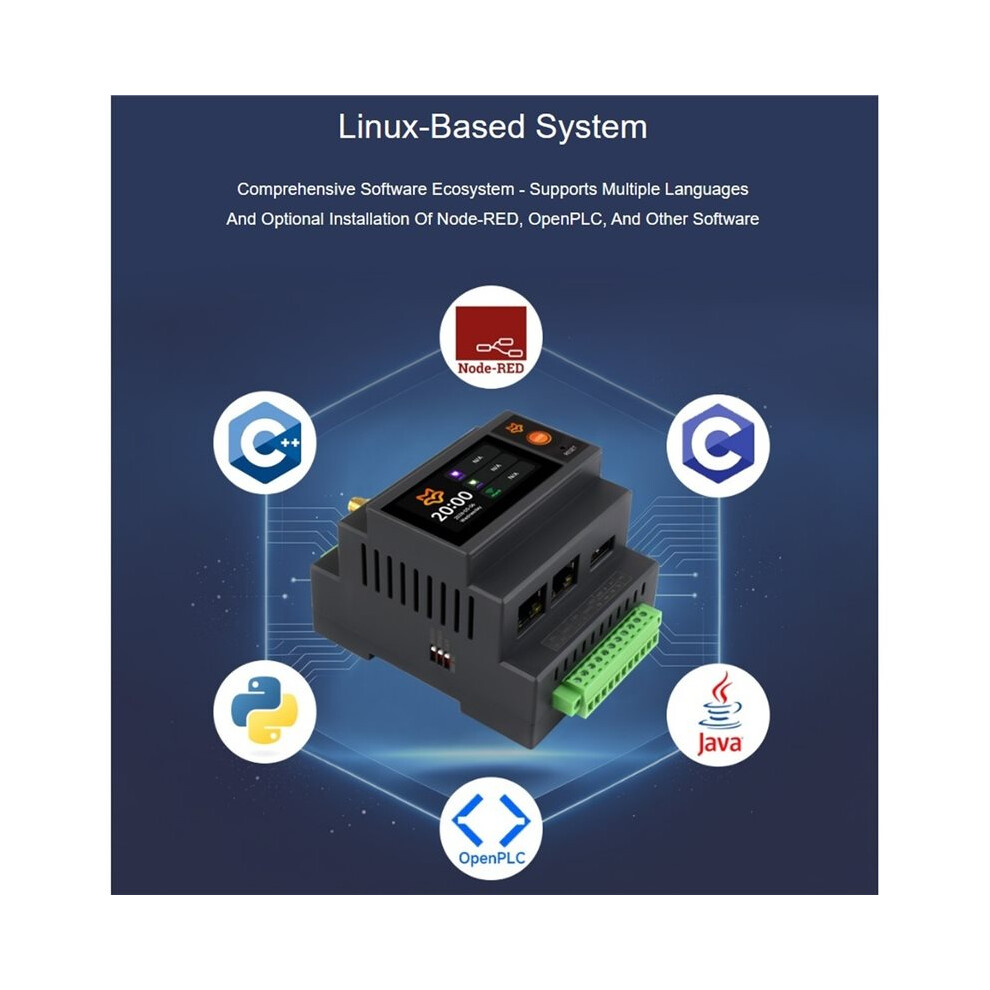

Linux-Based System: Comprehensive Software Ecosystem - Supports Multiple Languages and Optional Installation of Node-RED, OpenPLC, and Other Software.

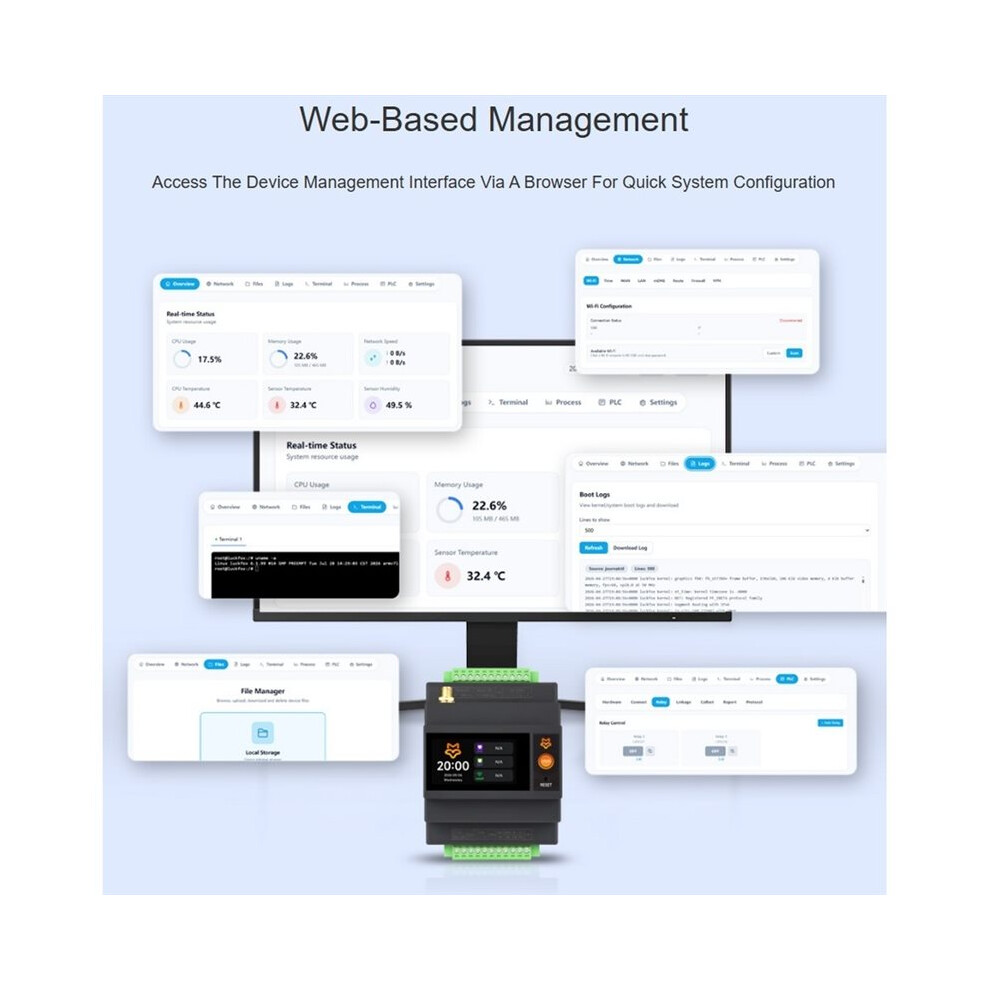

Web-Based Management: Access the device management interface via a browser for quick system configuration.
Remote Management and Maintenance: Multiple built-in remote access networking solutions enable remote management and debugging.

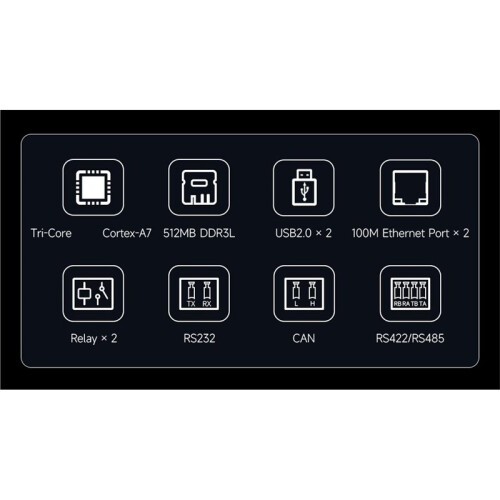

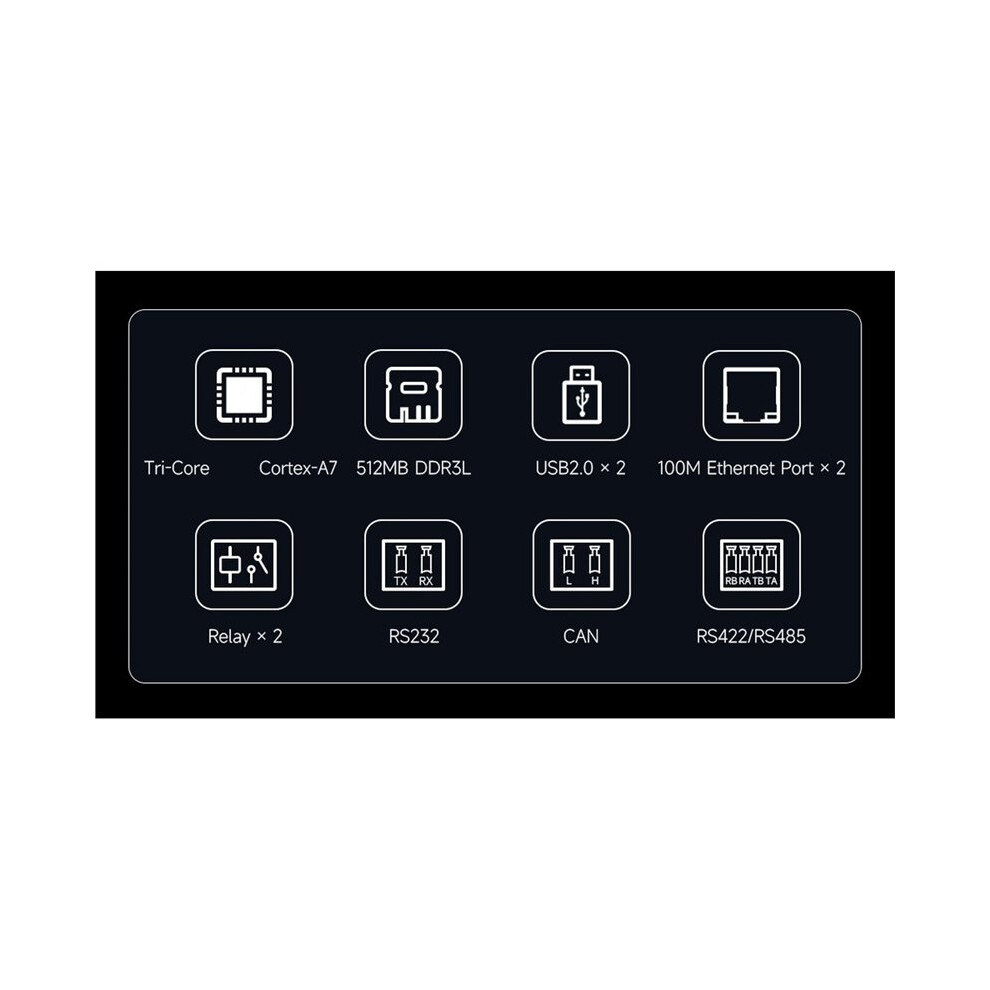

Specifications:
Version: Luckfox Lyra PLC PoE Kit PoE Version
Processor: RK3506B
CPU: Triple-core ARM Cortex-A7 (1.2 GHz)
RAM: Onboard 512MB DDR3L
Storage: eMMC (8GB)
Display: 1.9inch LCD touchscreen, 170 x 320 pixels
USB: USB OTG2.0 x 1, Extended USB HOST2.0 x 1 via HUB
Ethernet: 10/100Mbps Ethernet port x 2
Wireless Connectivity: Onboard 2.4 GHz Wi-Fi 6 / 5.2 / BLE
CAN: CAN x 1
Serial Interfaces: RS232 x 1, RS422/RS485 x 1 (Shared port, selectable by wiring)
Relay Channels: 2
Relay Contact Form: Normally Open (NO) x 1, Normally Closed (NC) x 1
Relay Contact Rating: 10A 250V AC or 10A 30V
Buttons: Custom button x 1 (Used for firmware update by default), RESET button x 1
Power Input:
USB-C input: 5 V
Screw terminal power input: 7-24 V (wide input voltage range)
PoE input: compatible with IEEE 802.3af PoE Standard
Color: Black
Material: Plastic+Metal

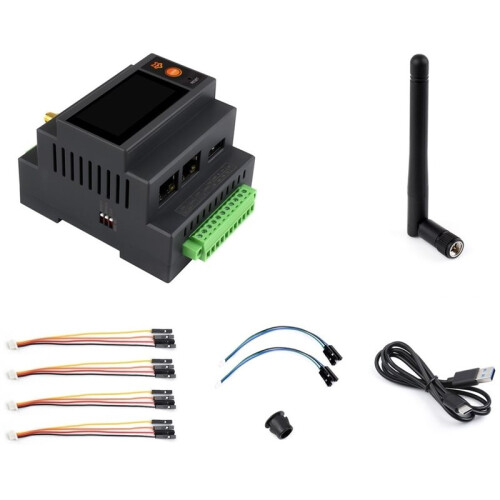

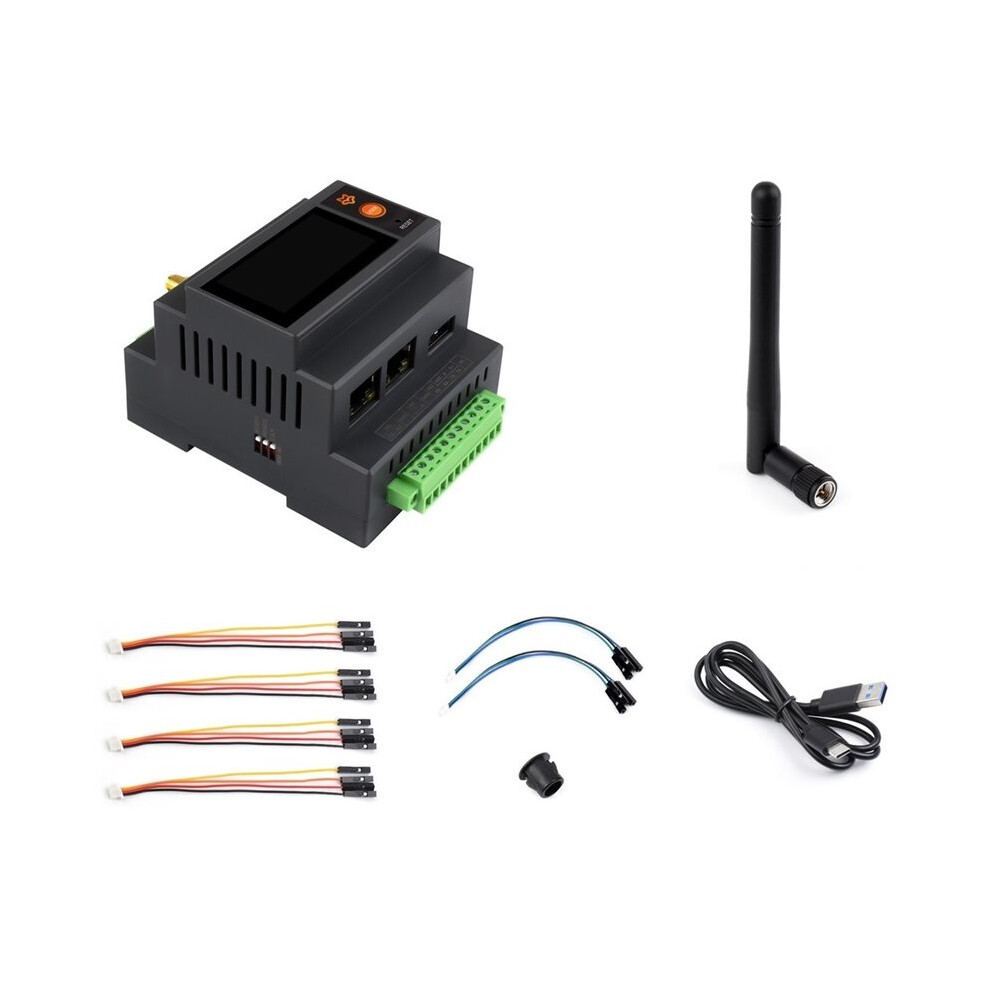

Package Contents:
1 * Controller
1 * Antenna
4 * 4PIN connectors
2 * 3PIN connectors
